GS-MI/D средней интенсивности двойной цвет авиация непроходимость свет
US $450.00-$480.00
Башня ветровая турбина FAA L864 стандарт ICAO Средняя интенсивность СИД красный авиационный Солнечный свет
- Категория: LED Aviation Obstruction Lights >>>
- Поставщик: Hunan,Chendong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 608.4 $* | 620.69 $* |
| Jul-16-2025 | 493.43 $* | 503.78 $* |
| Jun-16-2025 | 599.12 $* | 611.22 $* |
| May-16-2025 | 594.57 $* | 606.20 $* |
| Apr-16-2025 | 474.41 $* | 483.78 $* |
| Mar-16-2025 | 584.27 $* | 596.75 $* |
| Feb-16-2025 | 580.38 $* | 592.72 $* |
| Jan-16-2025 | 575.82 $* | 587.51 $* |
Характеристики
Contact Us
Ms Jodie Shaw | Sales Engineer | Hunan Chendong Technology Co.,Ltd
T:+86-0731-85563165 85563265 | F: +86-0731-85563365
Phone/Wechat/Whatsapp: +86-15907360172
A:No.101,#4 Building, XinCheng Science and Technology Park, West of Yuelu Ave., Hi-Tech Development Zone,Changsha city, Hunan province, China.
Email: jodie@chendongtech.com
ICAO Certificate
Application
Products Description
Application

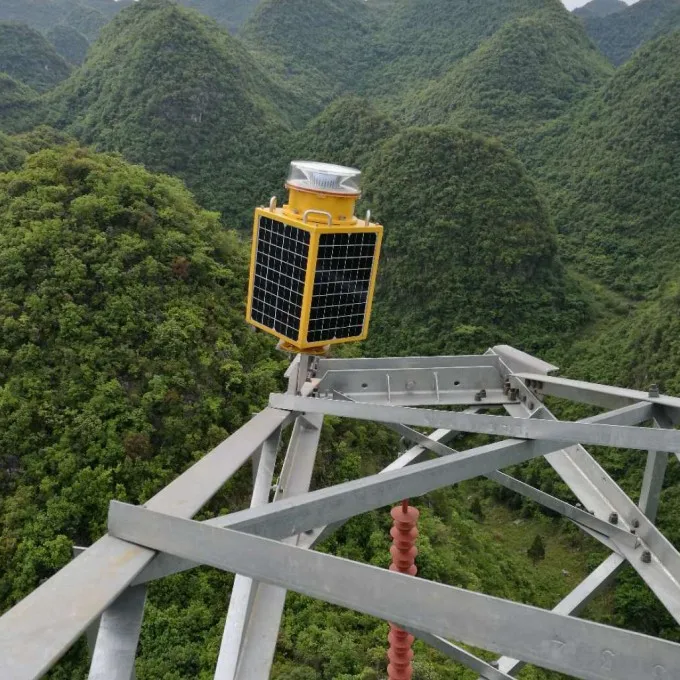

Usually used above 45m or below 150m buildings, could use alone, also could use with Low intensity OBL type B together.
Key Feature
● Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite high impact resistance and fit the bad environment very well.
● The body of the light adopts SUS304 stainless steel, House of the light is made of aluminum alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion.
● Special battery for solar energy, free maintenance and high reliability, lifetime more than 3 years.
● Based on the single chip computer micro power control, could control the charge and discharge precisely.
● Mild steel change glass Polycrystalline silicon solar panels, energy efficiency high (> 18%), lifetime more than 20 years.
● Using Fresnel lens optical design, range further.
● Further use reflector optical design, visual distance, angle more accurately, thoroughly eliminate the light pollution.
● Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and high efficiency.
● Used the photosensitive probe fit for the natural ligh spectrum curce, automatic control light intensity level.
● The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5
times, Imax 15KA so that the light is suitable to harsh environment.
● Integral structure, protection lever of Ip65.
● Synchronizing GPS function is available.
● The body of the light adopts SUS304 stainless steel, House of the light is made of aluminum alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion.
● Special battery for solar energy, free maintenance and high reliability, lifetime more than 3 years.
● Based on the single chip computer micro power control, could control the charge and discharge precisely.
● Mild steel change glass Polycrystalline silicon solar panels, energy efficiency high (> 18%), lifetime more than 20 years.
● Using Fresnel lens optical design, range further.
● Further use reflector optical design, visual distance, angle more accurately, thoroughly eliminate the light pollution.
● Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and high efficiency.
● Used the photosensitive probe fit for the natural ligh spectrum curce, automatic control light intensity level.
● The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5
times, Imax 15KA so that the light is suitable to harsh environment.
● Integral structure, protection lever of Ip65.
● Synchronizing GPS function is available.
Option Feature
●Infrared Lighting - NVG and NVIS compatibility using 850nm infrared (IR) LEDs.
●Overvoltage Protection
●Adjustable Mounting Pedestal - For mounting in variable mounting positions.
●Overvoltage Protection
●Adjustable Mounting Pedestal - For mounting in variable mounting positions.
Product Paramenters
Operating voltage | DC12V |
Power consumption | 10W |
Flashing frequency | 20fpm,40fpm,60fpm |
Light source | LED Red |
Light intensity | 2000cd |
Lifespan | ＞100,000hours |
Beam angle | 360° horizontal beam angle |
3° vertical beam spread | |
Method of synchronization | GPS |
Overall size(mm) | 255mm×255mm×515mm |
Installation size(mm) | Φ105mm-4×M10 |
Ingress protection | IP65 |
Operating temperature | -40℃～55℃ |
Net Weight | 17kg |
