ADSP1452 ARM Dante acoustic components class d power board pcb amplifier

Product Description

【Introduction】

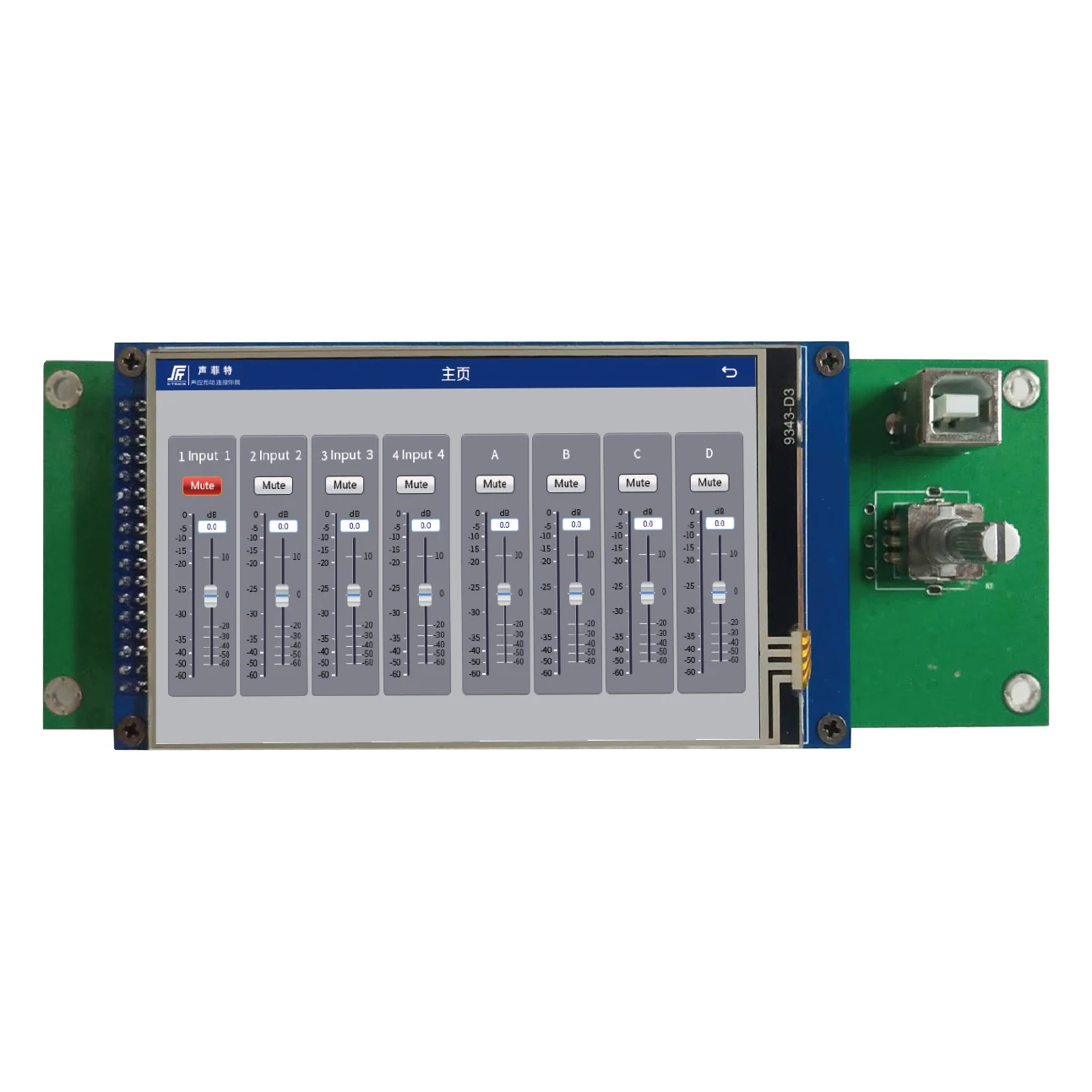

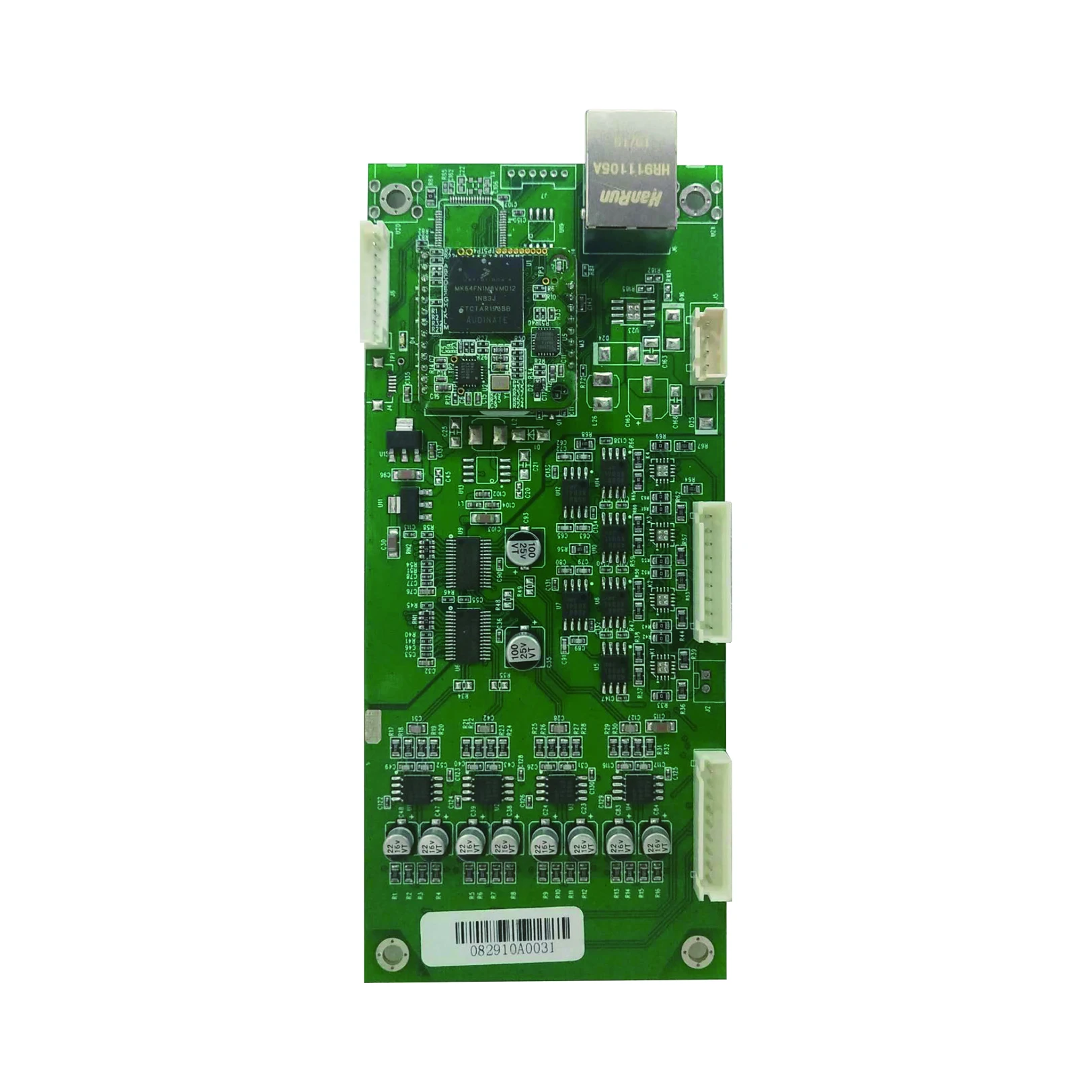

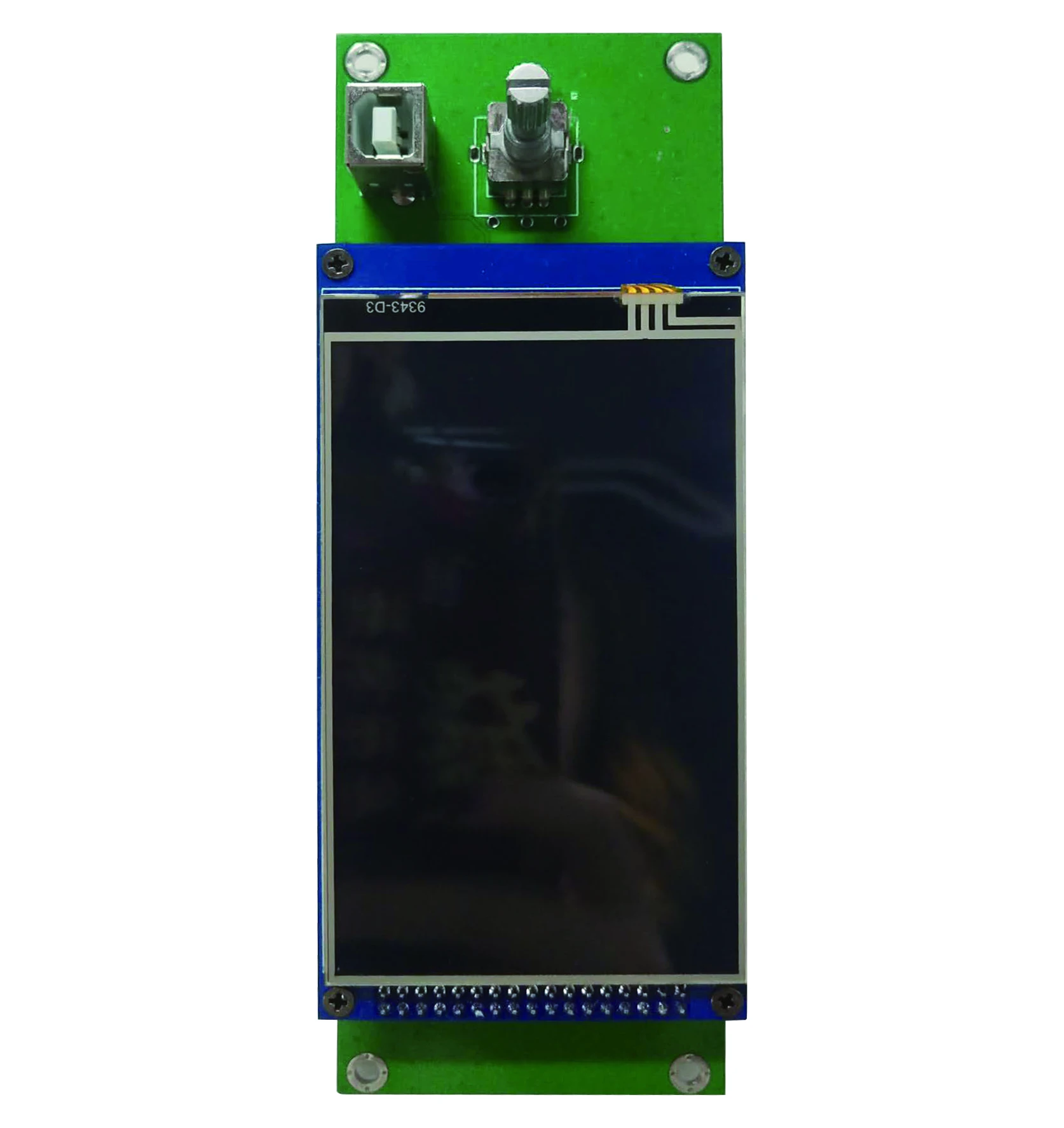

The Cicada 01 network DSP processing module is composed of a 3.97-inch color TFT resistive touch screen module and an audio processing module.

There are 4 channels of analog audio balanced signal input, correspondingly converted into 4 channels of balanced output.

【Product Features】

● Using high-performance ADI DSP processor, high-fidelity and low-noise 24-bit A/D and D/A conversion;
● Support 4 channels of Dante signal/4 channels of analog signal input, 4 groups of analog output;
● With limited amplitude, frequency division, delay, PEQ, mute, inversion, gain adjustment, level indication

functions, etc.;

● Multiple sets of scenes save, recall, import and export functions;
● Support USB/network control interface, which can realize PC control for parameter configuration;
● Use 3.97-inch color TFT resistive touch screen, Chinese and English menu operation, display content is

more comprehensive and intuitive

Specification

Model No.	Cicada 01
Frequency response	20~20KHz，±0.2 dB
Maximum input level	+8 dBu，Balanced Input
Maximum output level	+8 dBu，Balanced output
THD+N	＜0.002% @ 0 dBu
Channel isolation	85 dB @ 1 KHz
Sampling frequency	48KHz
Digitalizing bit	24bit
Floor noise	-90dBu
Input impedance	20 KΩ
Output impedance	100 Ω
Digital-analog dynamic range	-114 dB
Analog-digital dynamic range	-114 dB
Working voltage	+12V, -12V, +5V
Power	5.5 W

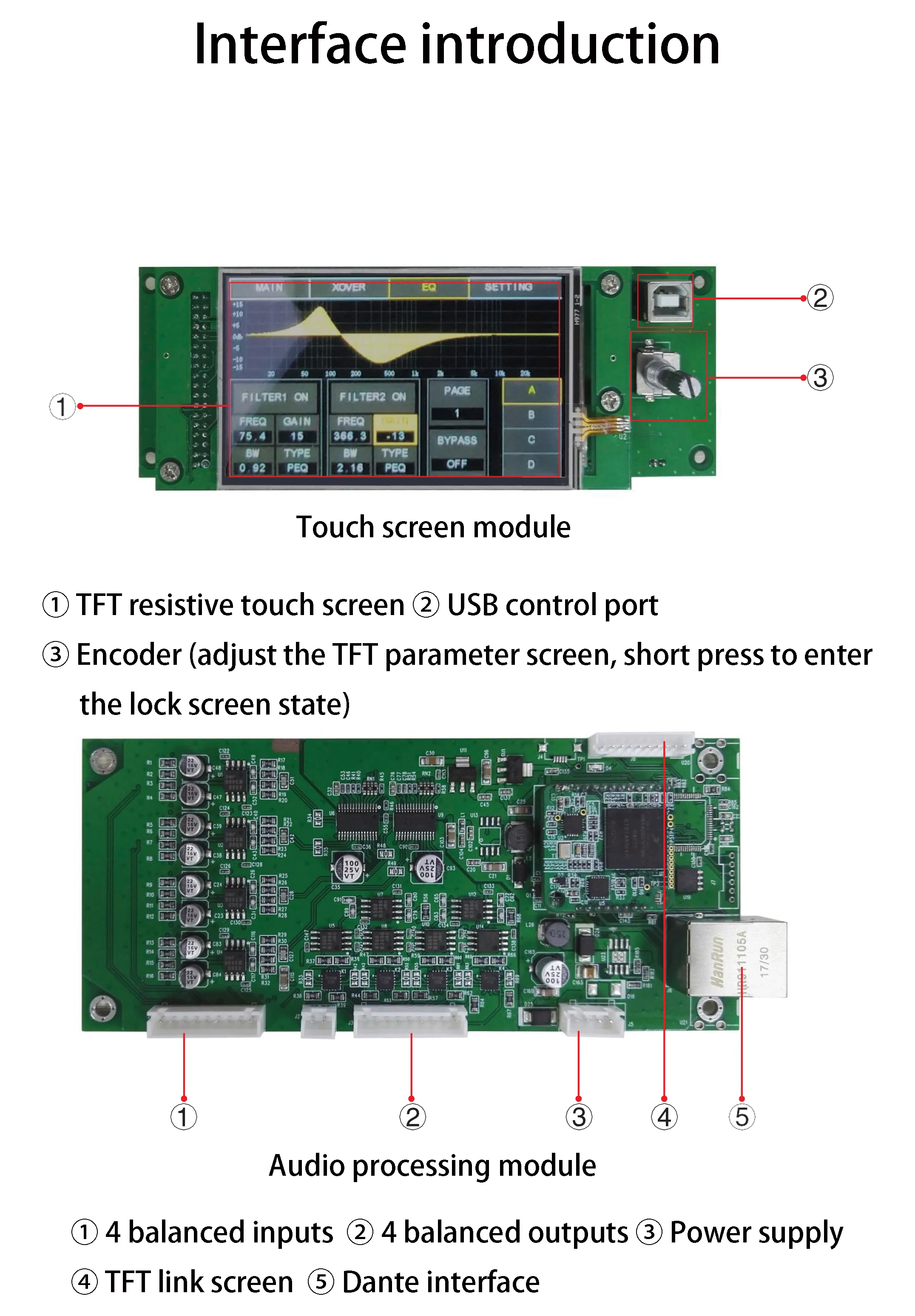

【Audio interface description】

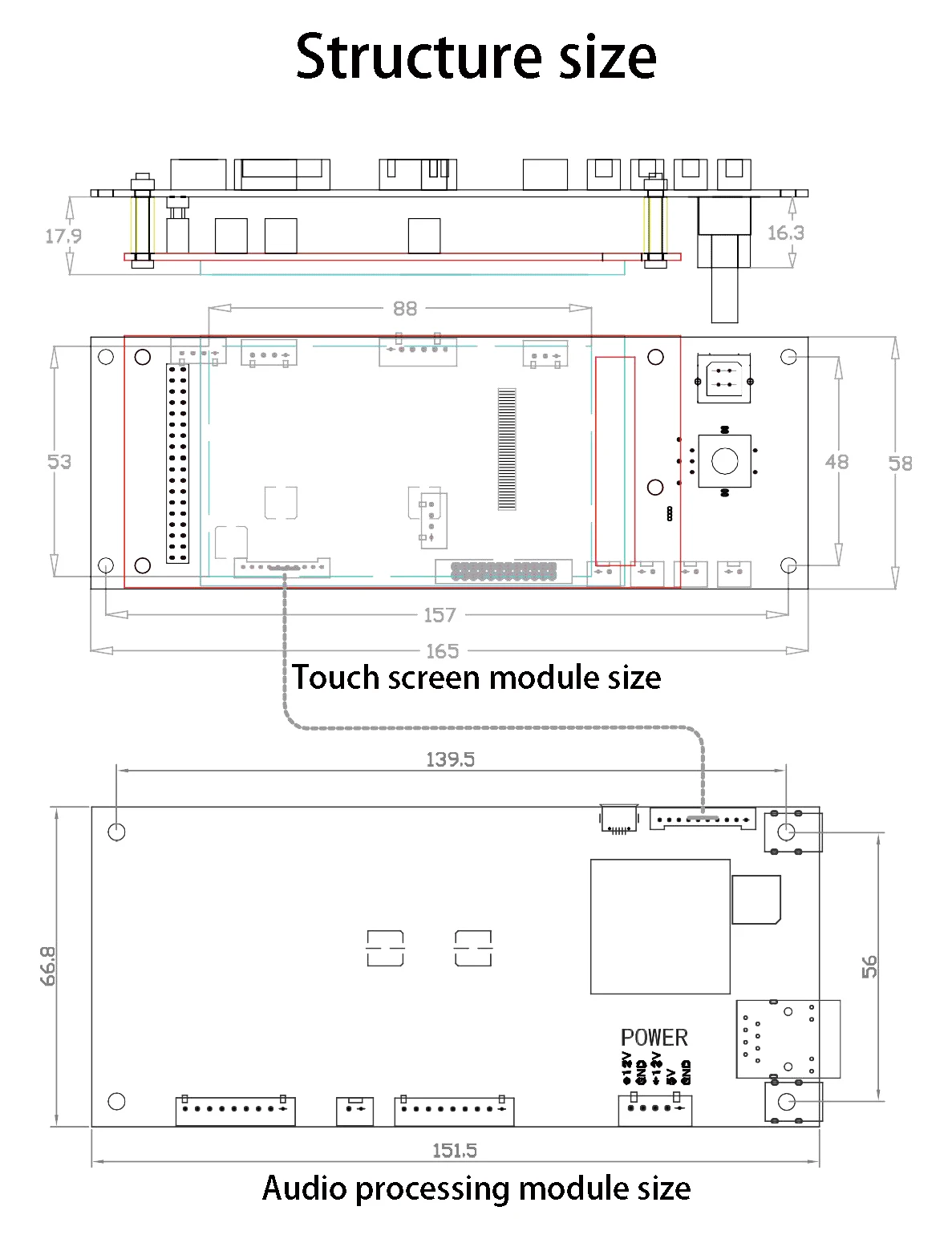

【structure size】

Related Product

Company Profile

* S-Track was founded in 2013,who is a pioneer in the audio field in China;
* With core audio processing technology, it is a national high-tech enterprise with independent research

and development,production,sales of audio products;
* The earliest manufacturer to launch a network audio system in China,It is also the enterprise with the

most complete production line of Dante network audio in China;
* It is committed to digitizing, networking and intelligentizing audio and video products, actively building AI

intelligent audio and video ecosystem, and providing users with comfortable audio experience.

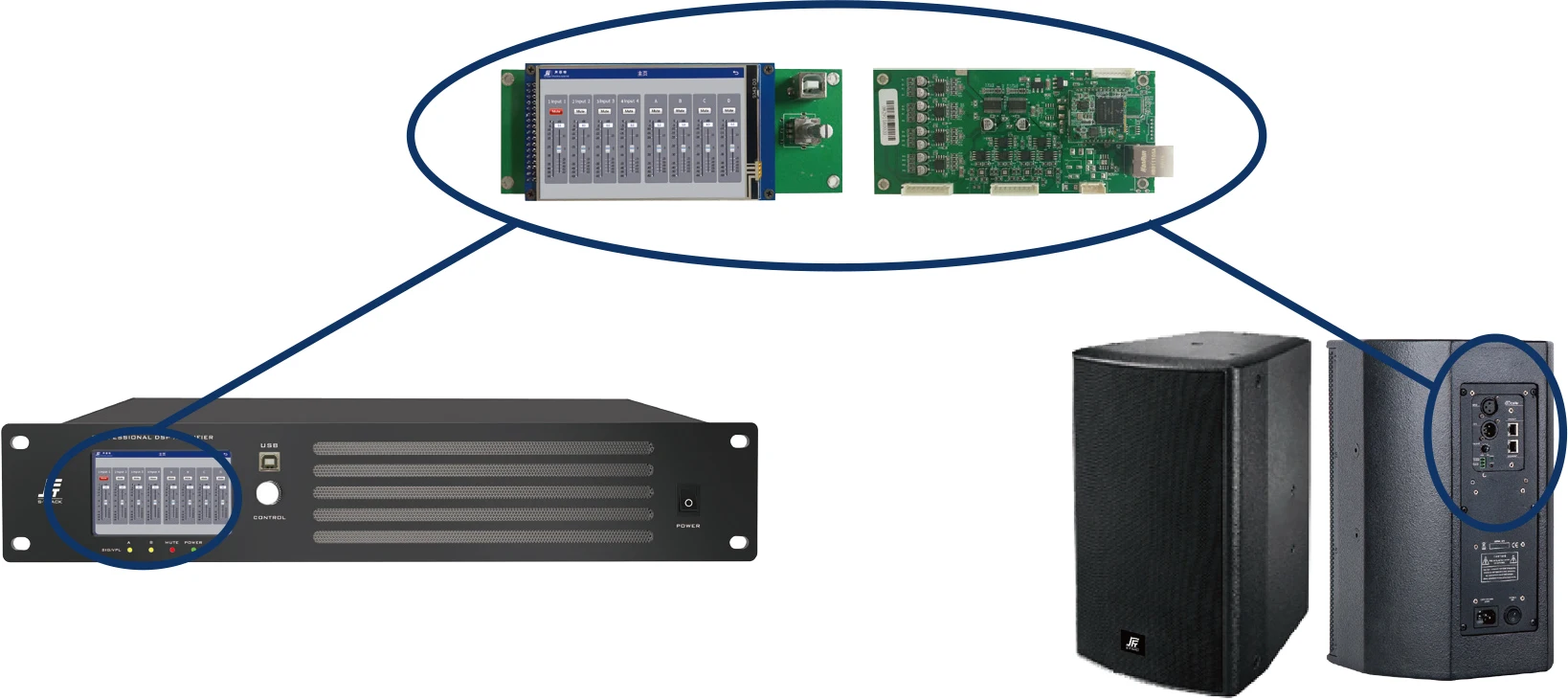

【Real scene】

【Certification and honor】
