Мастерская Электрический кран Мини Паук гусеничный паук

Цена:9 900,00 $ - 19 000,00 $*

Количество:

Product Description

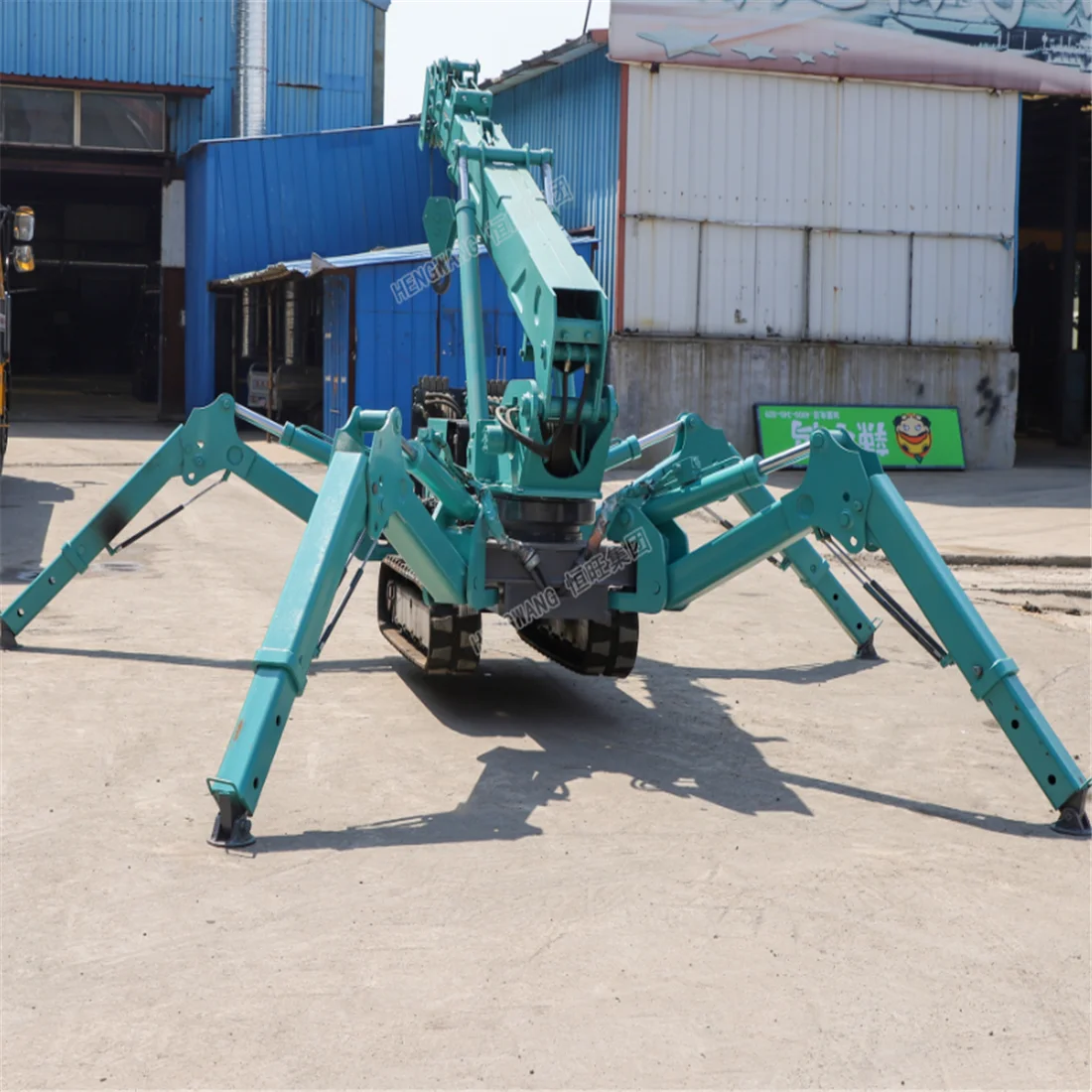

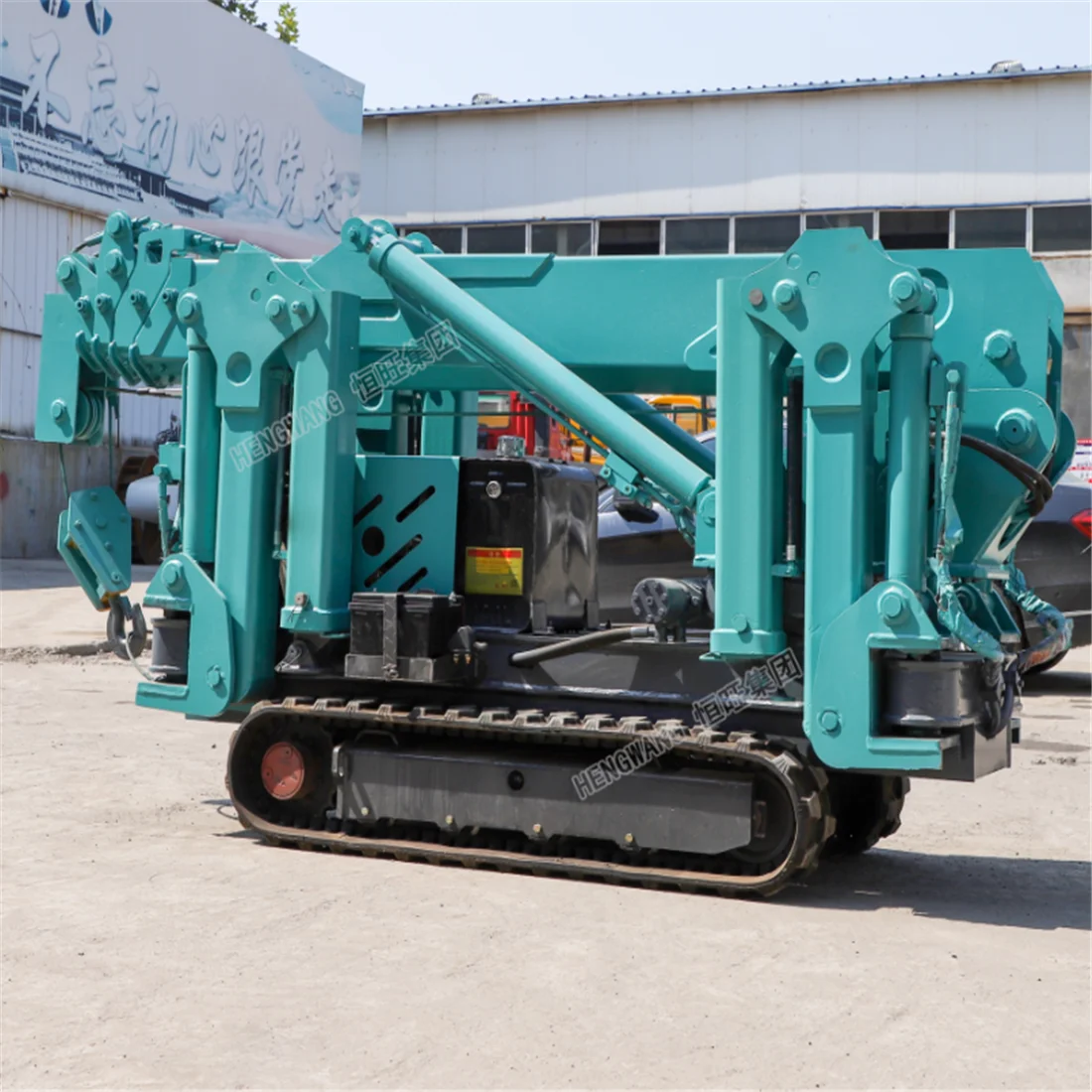

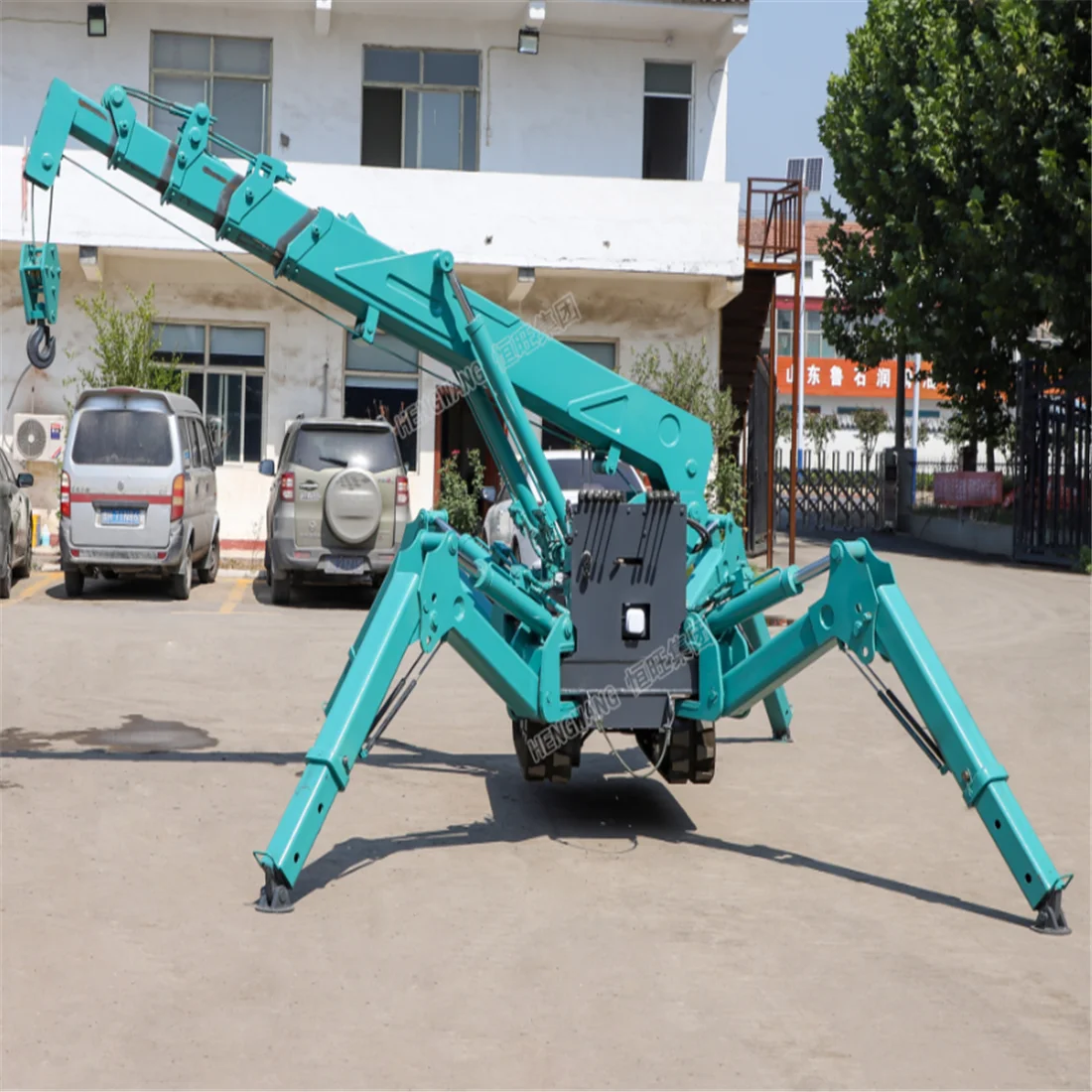

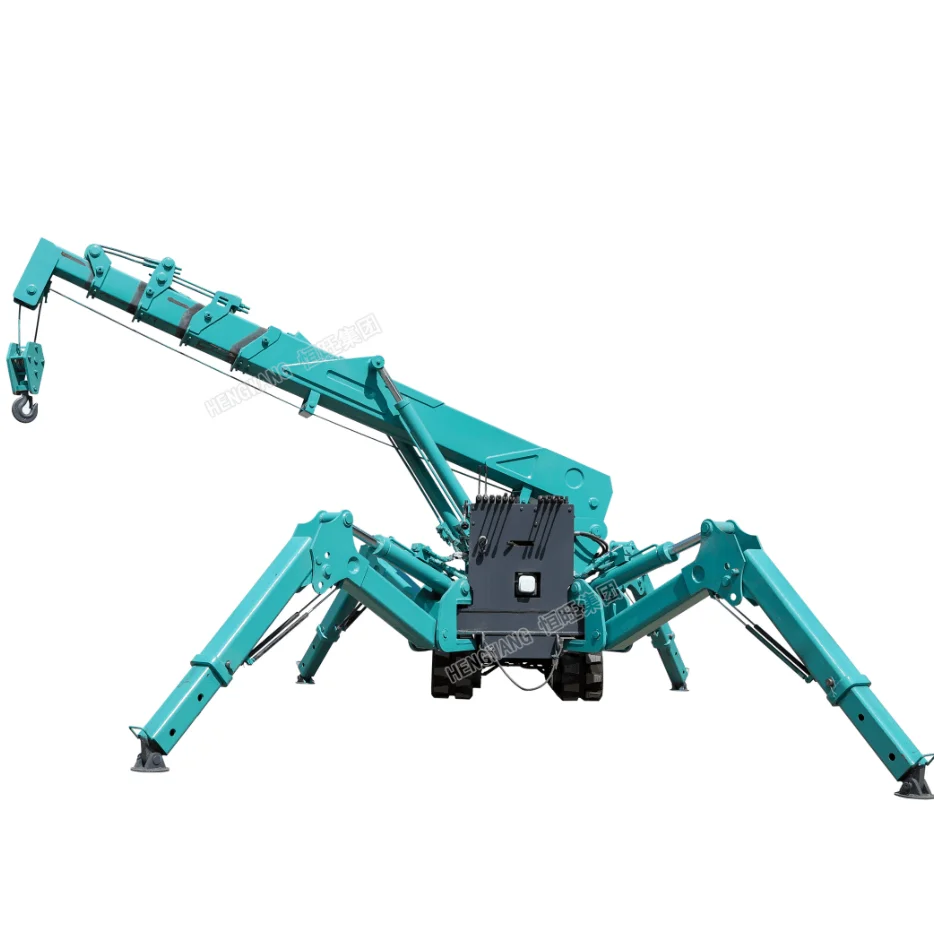

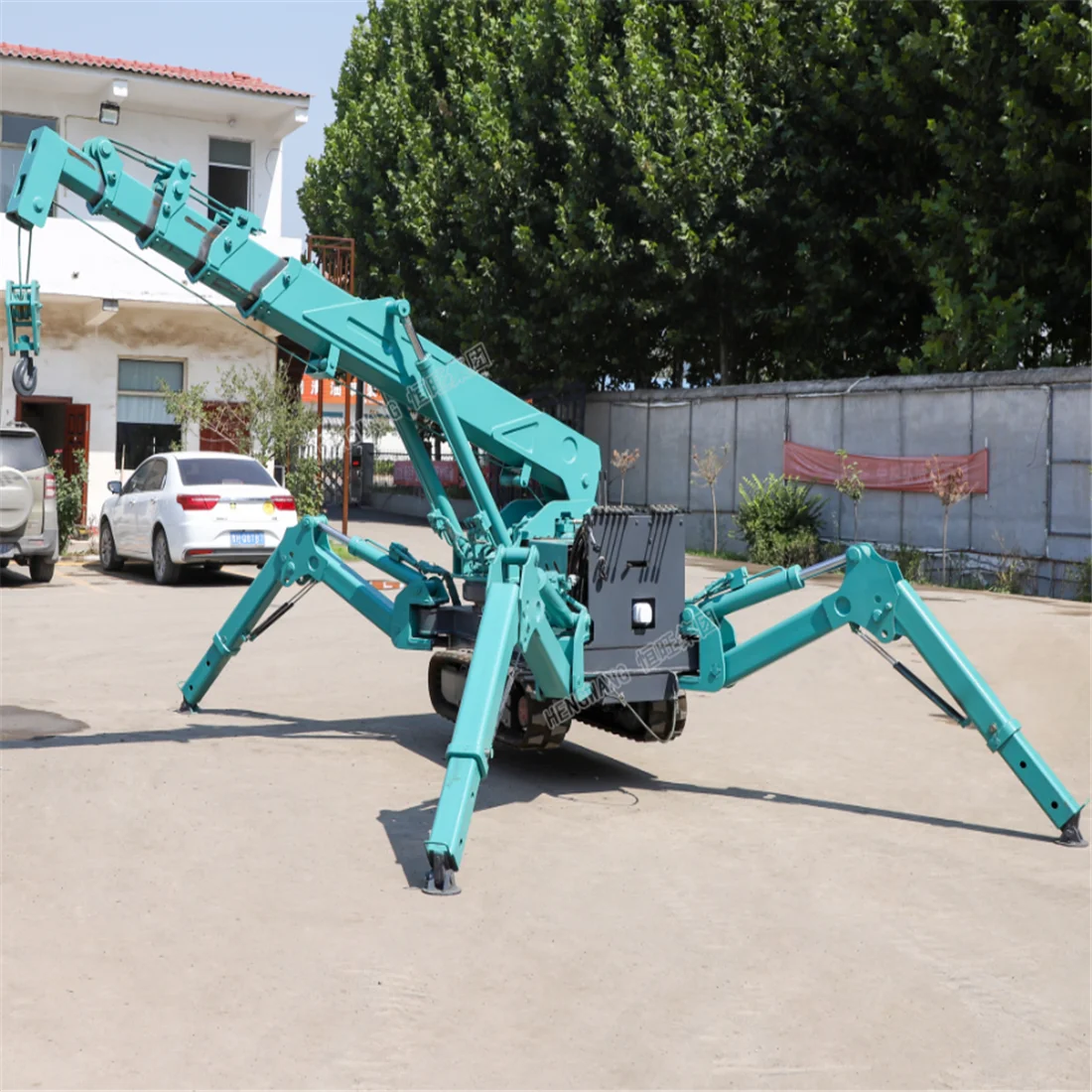

Workshop electric crane mini spider crawler spider lift

Crawler crane is the abbreviation of crawler crane.

It is a kind of crane that has crawler walking mechanism on the landing site and walks on the crawler.

Advantages of crawler crane:3 ton mini spider crane/workshop crane

The crawler crane has good stability, good anti-skid performance, and low requirements on the road surface .3 ton mini spider crane/workshop crane

The crawler has a large lifting weight and can be lifted and walked.

The crawler crane has a strong lifting capacity.3 ton mini spider crane/workshop crane

Crawler cranes are suitable for large factories and work in the factory area.

Specification

Model( crawler spider crane)			HW3.0 crawler crane
Crane capacity			3.0t×1.3m
Maximum working radius			7.7m
Maximum lifting height			9.5m
Winch	Hook up speed	2.8m/min(4 times)
Winch		Diameter and length of wire rope	Ø8mm×50m
Telescopic	Boom form	4 (4 Automatic)
Telescopic		Boom length	8.2 m
Derrick	Derricking angle	0-75°
Slewing	Slewing angle	360-degree continuous
Outrigger	Form of outrigger	First phase--automatic Second phase--manual
Outrigger		Maximum extend range	5.3m
Traction system	Travel	Hydraulic
		Travel speed	0-3.0km/h
		Track	Synthetic rubber
		Gradeability	30°
		Track ground pressure	50kpa
Engine and machine parameters	Model	HONDA GX390
Engine	Displacement	389.2ml
	Outputpower	13HP(9.6KW)
	Starting method	Electric and Recoil Start
	Fule/Fule tank capacity	Automotive gasoline/6L
Hydraulic(crane)	Tank capacity	38L
L×W×H			3.0m×0.8m×1.5m
Total weight			2,000kg
