Aerial кевлар ADSS волоконно-оптические кабели g652d Одиночная куртка span 200-1000 m 12f 16 core 48 72 fibra


Поделиться:


Цена:160,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 190.17 $* 200.13 $*
Aug-19-2025 189.43 $* 198.93 $*
Jul-19-2025 158.13 $* 166.36 $*
Jun-19-2025 186.32 $* 195.66 $*
May-19-2025 162.97 $* 170.84 $*
Apr-19-2025 182.28 $* 191.12 $*
Mar-19-2025 181.52 $* 190.85 $*
Feb-19-2025 179.18 $* 188.46 $*
Jan-19-2025 178.46 $* 187.82 $*

Характеристики





Products Description

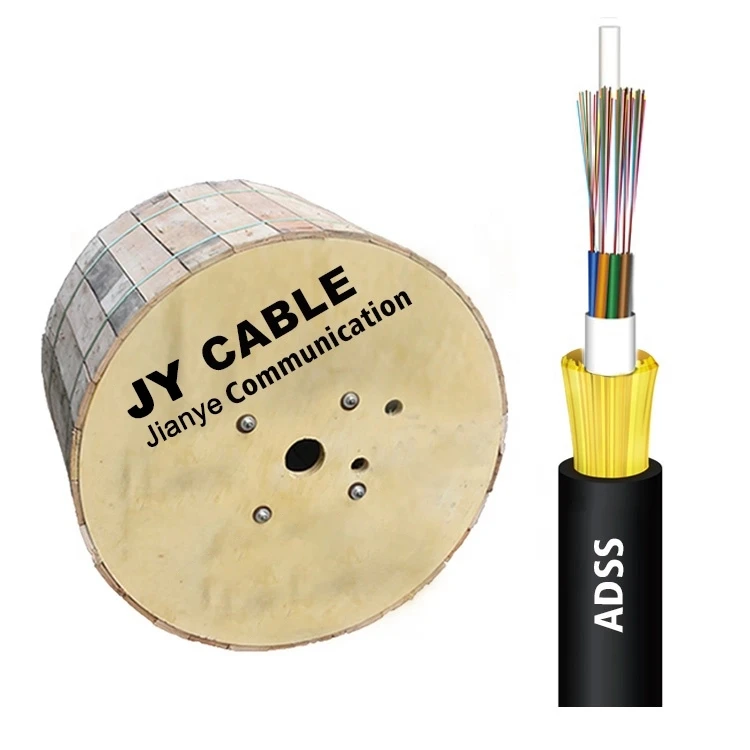

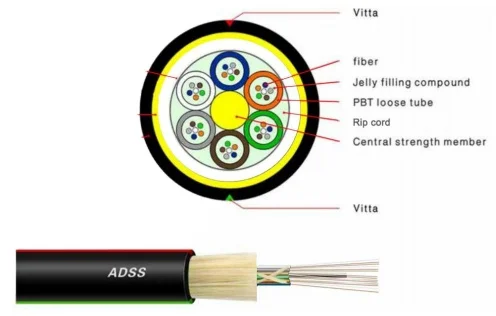

4 6 8 12 24 48 96 144 192 Cores PE Jacket All Dielectric Self-support Aerial Optical Fiber ADSS Cable
--Can be installed without shutting off the power
---Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
---Large span lengths
---Good performance of tensile strength and temperature
--- Arc-erosion-resistant AT jecket
---The design life span is 30 years
---Package :4-5 km/ wooden drum



Applications

---Outdoor aerial applications
---Low voltage transmission system(≤12 kV)
---Railway & Telecommunication pole route
---Subscriber & Local Area Network
---Voice, data, video & imaging system


                 Cable Performance Parameter
Span meter
200
300
400
Related Strength Tension(RTS)
17.5 kn
20.6 kn
28 kn
Max Allowable Tension(MAT)
6.9 kn
8.2 kn
11.5 kn
Allowable Crush Resistance
Long Term: 1100 n/100mm
Long Term: 1100 n/100mm
Long Term: 1100 n/100mm
Short Term: 2200 n/100mm
Short Term: 2200 n/100mm
Short Term: 2200 n/100mm
Minimum Bending Radius
Operating: 220 mm
Operating: 220 mm
Operating: 220 mm
Installlation: 360 mm
Installlation: 360 mm
Installlation: 360 mm
Temperature Range
Operating: -40 /+70℃
Operating: -40 /+70℃
Operating: -40 / +70℃
Installlation: -15 / +60℃
Installlation: -15 / +60℃
Installlation: -15 / +60℃
Out Sheath Material
Electrical Resistance AT (Borealis material 6081) Sheath
Note
ice accretion 5MM,weed speed:30M/S


Details Images




Product packaging

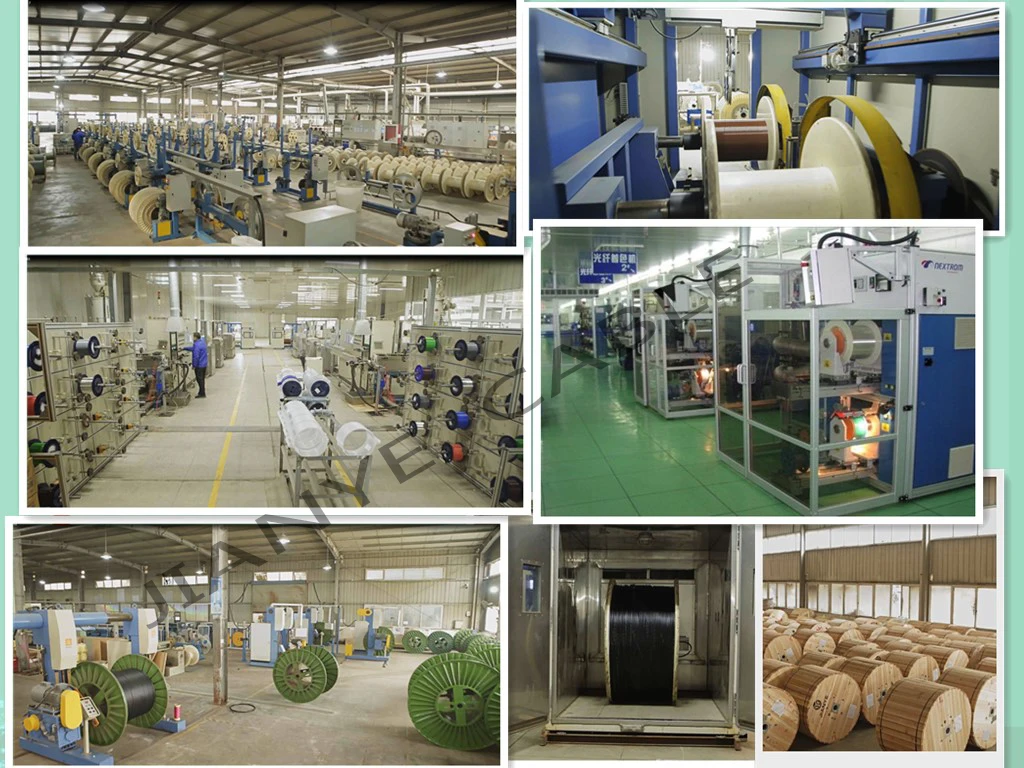

Company Profile





We Hangzhou Jianye Cable Co.,Ltd is a Pioneer manufacturer with more than 10 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables, lan cables, alarm cables, telephone cables and the cable assembly etc,. Our current production capacity is about 50,000,000 meters per year.Our factory is located in Lin an city, enjoying great convenience to Shanghai and Ningbo Port. We have very advanced testing machines, including Agilent and HP analyzer. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. And our quality is always reliable.Most of our products are exported to Europe, America, and South-east Asia. Etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.




Why Choose Us






FAQ




Contact US
