Product Description
ISO2531/ EN545 ductile iron pipe k9/c25/c30/c40
Specification
1) The standard of pipe: ISO 2531, EN545 , EN598. | 2) Pipe class: K9, C40, C30, C25, etc. |
3) Pipe joint: push-on joint(Tyton joint), K type joint, self-restrained joint | 4) Effective length: in general, the pipe length is 6m for bulk shipment and 5.7m for container shipment. |
5) Internal lining: cement mortar lining as per ISO4179 | 6) Zinc coating: at least 130g/m2 as per ISO 8179 |
7) Bitumen painting: at least 70um as per ISO 8179 | 8) Gaskets are NBR rubber, natural rubber, SBR rubber or EPDM rubber ring as per ISO4633 |
9) DN 80 - 2,600 mm | 10) High strength, lighter than gray iron, good corrosion resistance, no furring, small flow resistance, easy fixing, long life time |
11) Checked by automatic inspection equipment | 12)Chemical composition: (%) |
13)Mechanical properties | C: 3.5 - 4.0 |
Tensile strength: ≥420MPa | Si: 1.9 - 2.6 |
Yield strength: ≥300Mpa | P: <0.06 |
Hardness: ≤230HB | Mn:0.15 - 0.45 |
Elongation%: DN80 - 1000 ≥10 DN1200 - 2200 ≥7 | S: <0.02 |
14) Process and testing: | a) Induction furnace and treated metallic (Chemical analysis of raw material, spheroidizing & Nodularity) |
b) Casting (Visual check and weight check) | c) Heat treatment (Micro structure) |
d) Hydrostatic test (Pressure test) | e) Dimensional checks (Checking pipe length and joint, OD, wall thickness, appearance) |
f) Zinc spraying (Thickness testing) | g) Lining and coating (100% visual check, thickness testing randomly) |
i) Marking and packing (100% visual check) | 15) The pipe coating can be customized, such as, zinc-aluminum alloy, PU, etc. |
Packing: bundled with steel belts or in bulk
Shipment: in bulk or container
Shipment: in bulk or container
Technical parament
DN(mm) | DE(mm) | THICKNESS OF WALL(mm) | WEIGHT OF SOCKET(kg) | TOTAL WEIGHT(kg) | ||||||||
K8 | K9 | K10 | 3.4 | K8 | K9 | K10 | ||||||
80 | 98 | 6.0 | 6.0 | 6.0 | 4.3 | 77.0 | 77.0 | 77.0 | ||||
100 | 118 | 6.0 | 6.0 | 6.0 | 5.7 | 93.7 | 95.0 | 95.0 | ||||
125 | 144 | 6.0 | 6.0 | 6.0 | 7.1 | 119.0 | 119.0 | 121.0 | ||||
150 | 170 | 6.0 | 6.O | 6.0 | 10.3 | 138.0 | 144.0 | 144.0 | ||||
200 | 222 | 6.0 | 6.3 | 6.4 | 18.9 | 183.0 | 194.0 | 194.0 | ||||
300 | 326 | 6.4 | 7.2 | 8.0 | 23.7 | 290.0 | 323.0 | 357.0 | ||||
350 | 378 | 6.8 | 7.7 | 8.5 | 29.5 | 359.0 | 403.0 | 441.0 | ||||
400 | 429 | 7,2 | 8.1 | 9.0 | 38.3 | 433.0 | 482.0 | 532.0 | ||||
450 | 480 | 7.6 | 8.6 | 9.5 | 42.8 | 515.0 | 577.0 | 632.0 | ||||
500 | 532 | 8.0 | 9.0 | 10.0 | 59.3 | 600.0 | 669.0 | 736.0 | ||||
600 | 635 | 8.8 | 9.9 | 11.0 | 79.1 | 791.0 | 882.0 | 971.0 | ||||
700 | 738 | 9.6 | 10.8 | 12.0 | 102.6 | 1009.0 | 1123.0 | 1237.0 | ||||
800 | 842 | 10.4 | 11.7 | 13.0 | 129 | 1255.0 | 1394.0 | 1537.0 | ||||
900 | 945 | 11.2 | 12.6 | 14.0 | 161.3 | 1521.0 | 1690.0 | 1863.0 | ||||
1000 | 1048 | 12.0 | 13.5 | 15.0 | 237.7 | 1811.0 | 2017.0 | 2221.0 | ||||

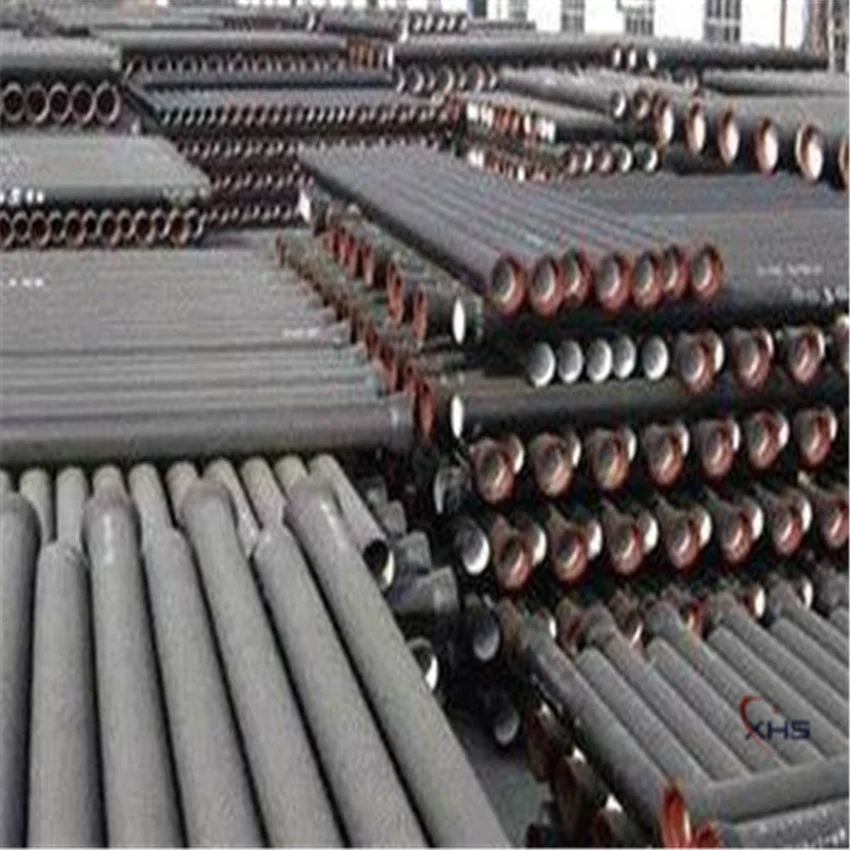

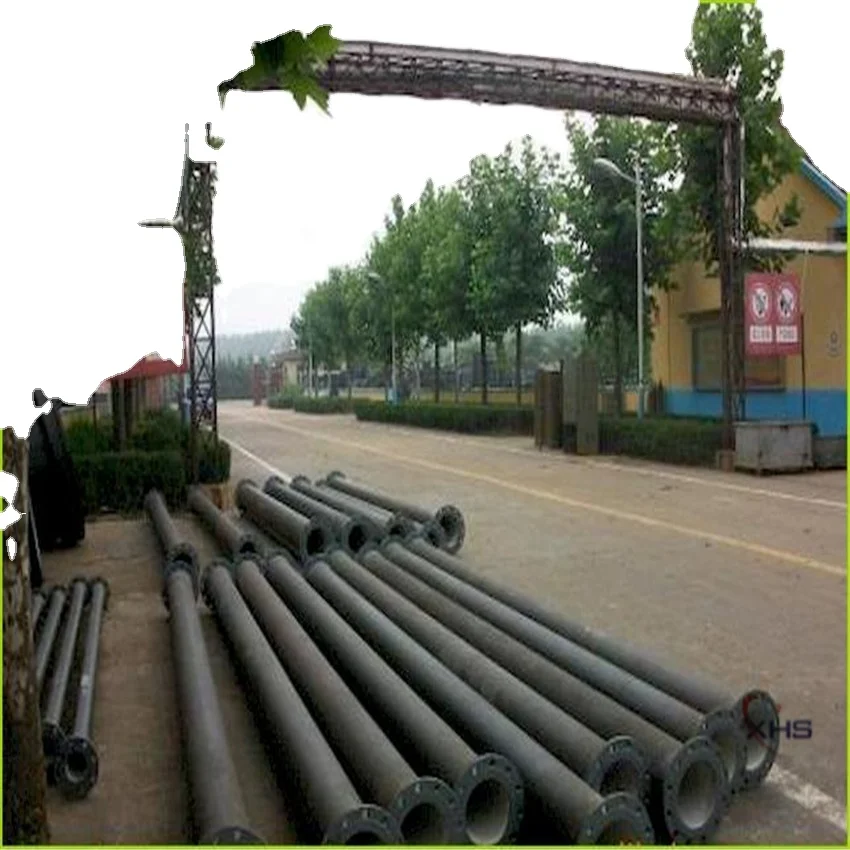

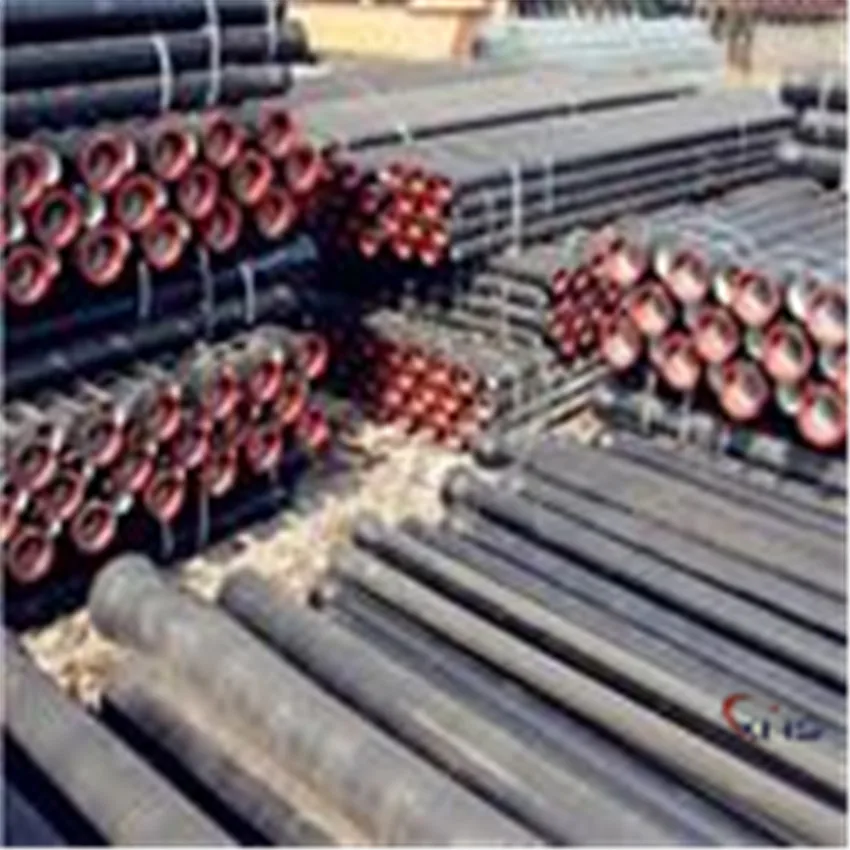

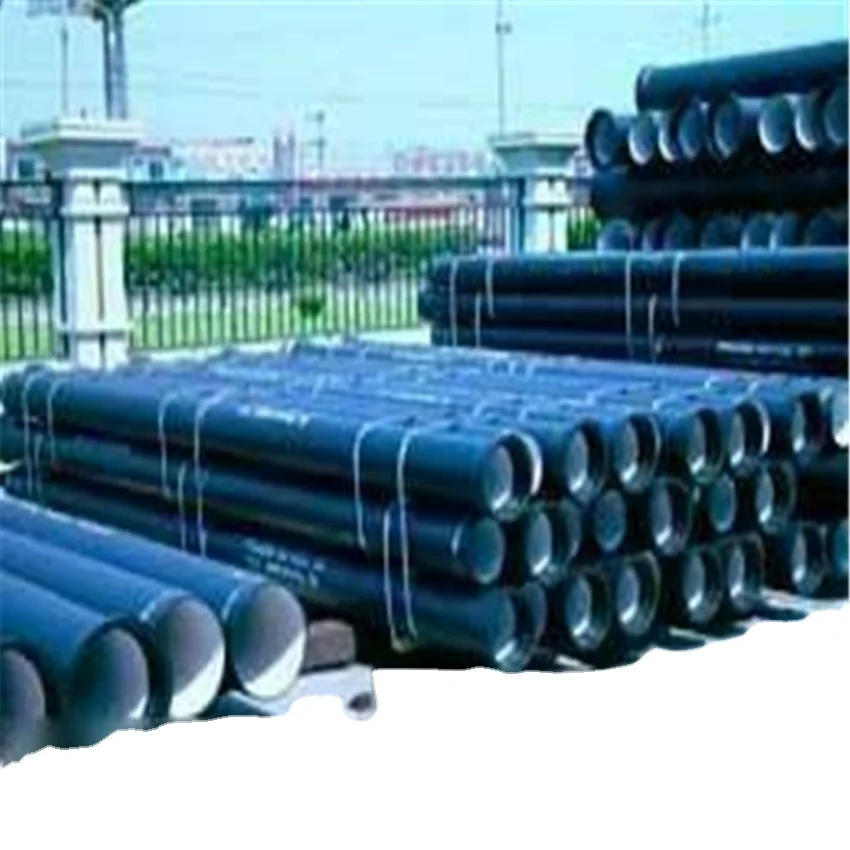

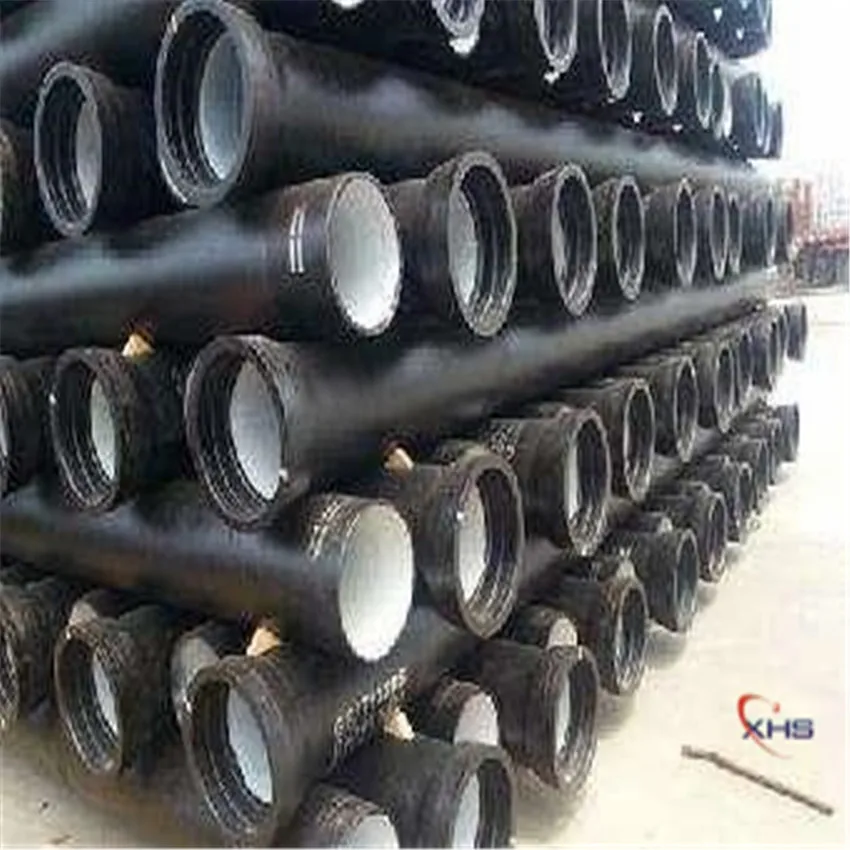

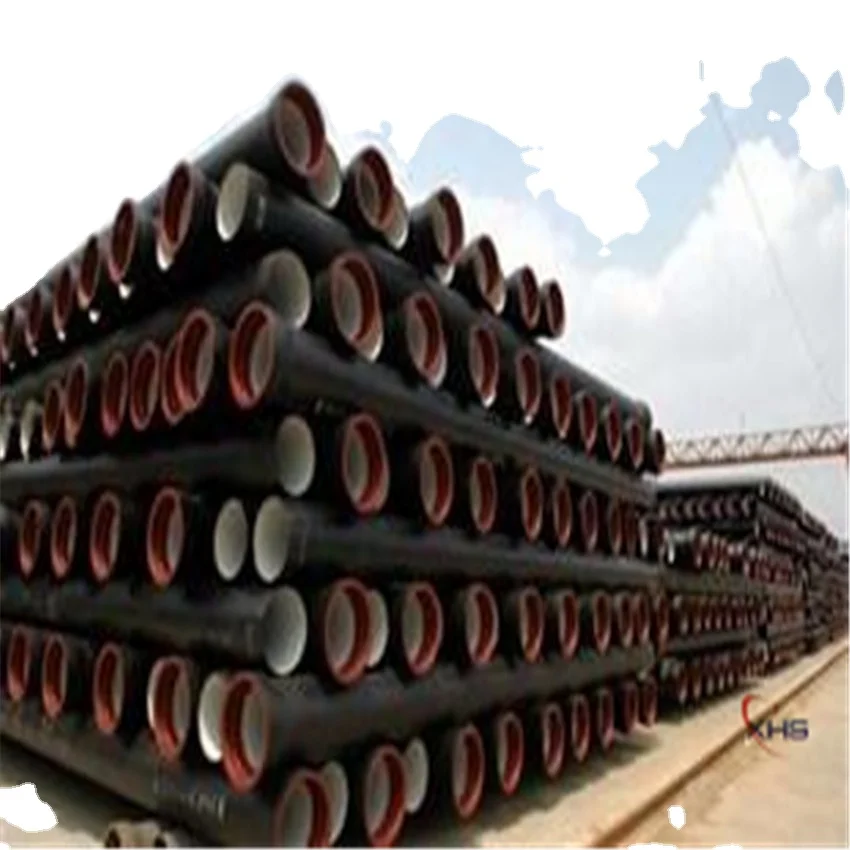

Details Images
