Китай 12 тонн автокран подъемная техника
- Категория: Used Machinery >>>
- Поставщик: Snail,Truck,Network,(shandong),E-Commerce,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 11067.87 $* | 11620.26 $* |
| Aug-19-2025 | 10974.40 $* | 11523.49 $* |
| Jul-19-2025 | 9207.66 $* | 9667.89 $* |
| Jun-19-2025 | 10788.28 $* | 11327.74 $* |
| May-19-2025 | 9393.56 $* | 9863.34 $* |
| Apr-19-2025 | 10602.99 $* | 11132.90 $* |
| Mar-19-2025 | 10509.75 $* | 11034.77 $* |
| Feb-19-2025 | 10416.95 $* | 10937.33 $* |
| Jan-19-2025 | 10323.32 $* | 10839.38 $* |
Характеристики

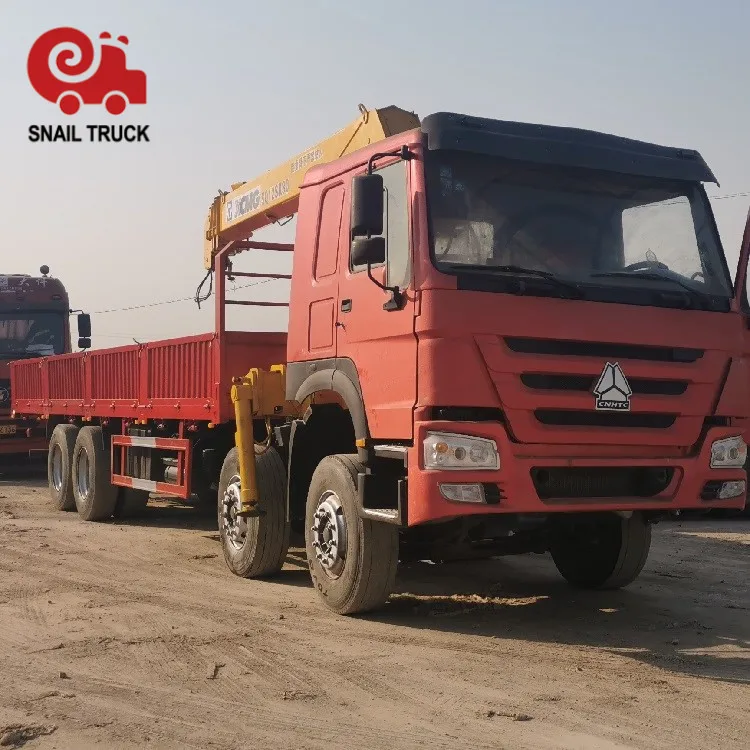

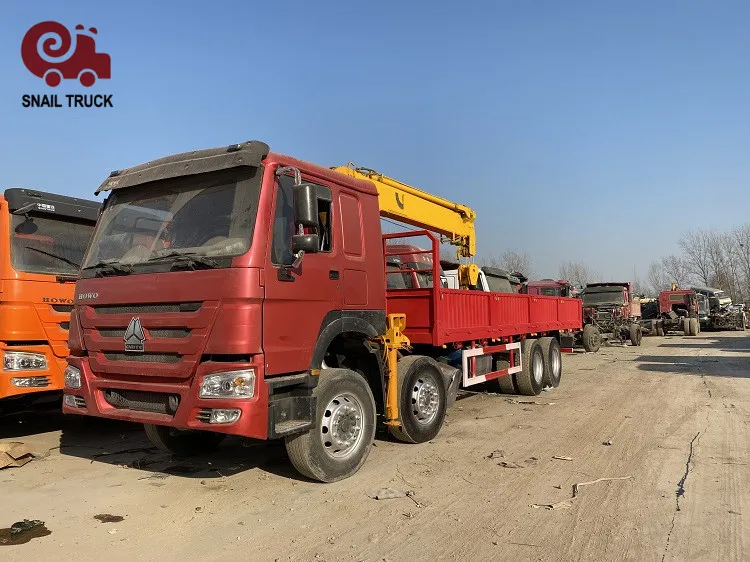

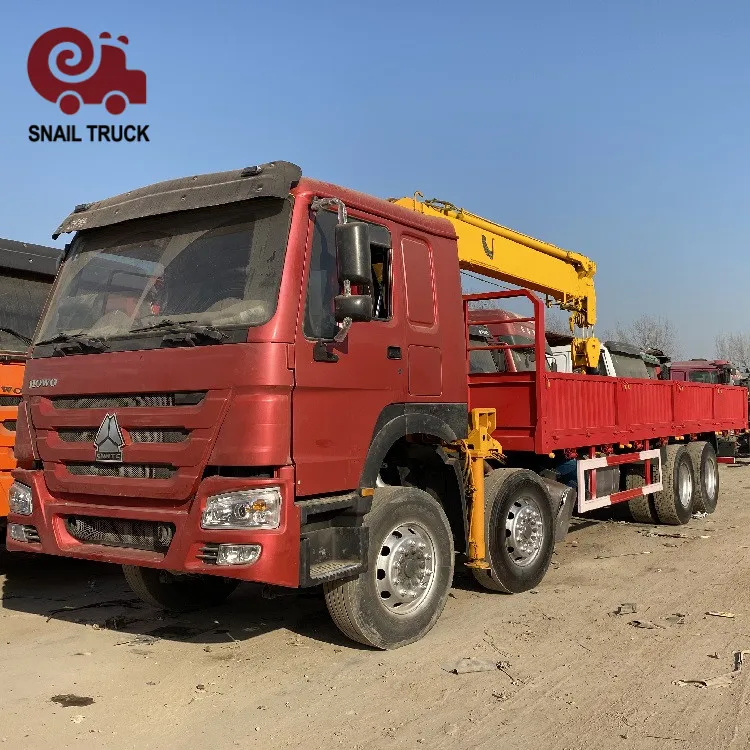

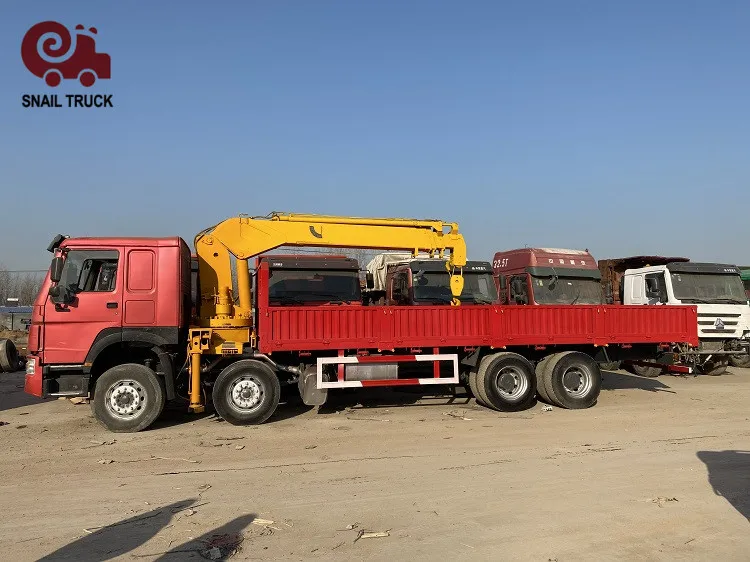

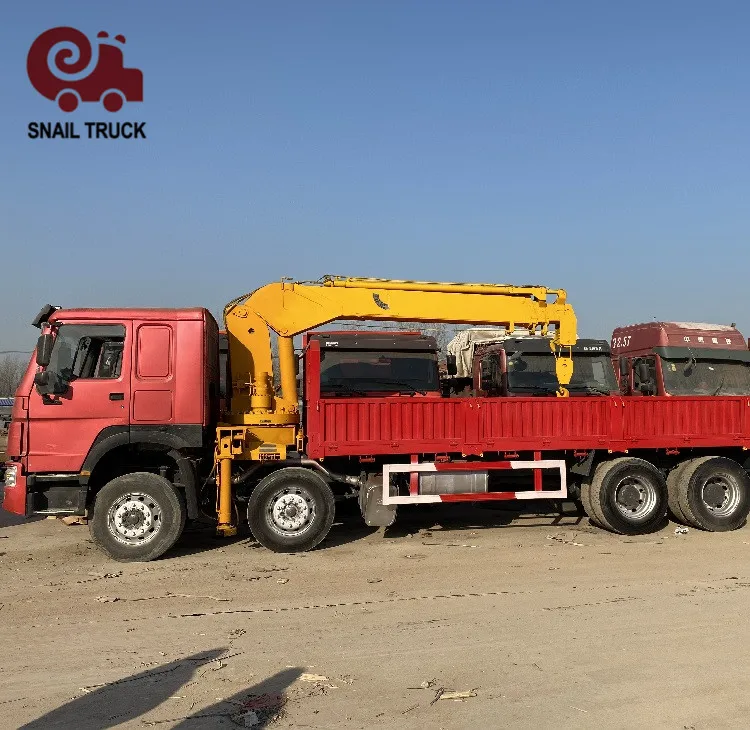

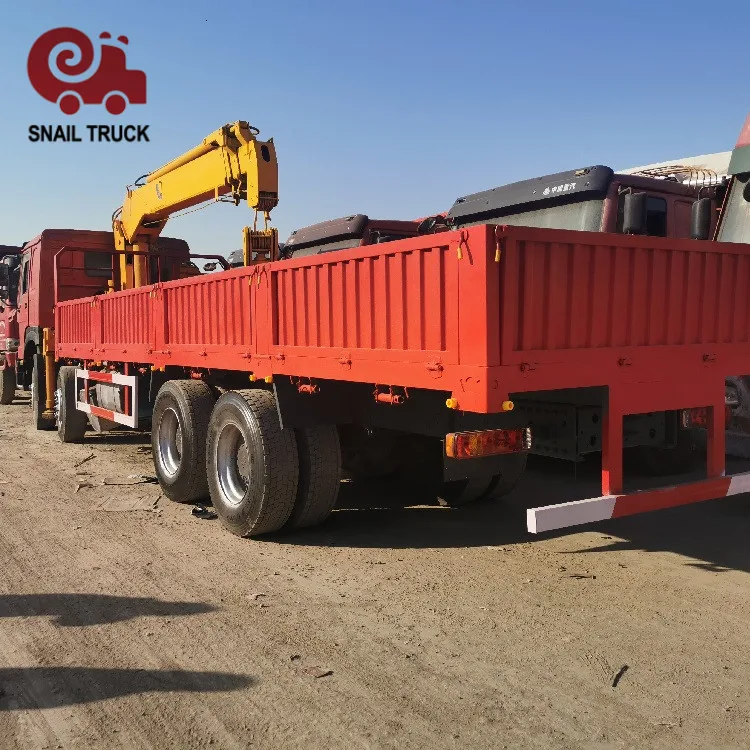

China 12 Ton Truck Crane
Mobile Crane Lifting Machinery Truck Crane
| SPECIFICATION FOR CRANE | |||
| Max Lifting Capacity | 12000 kg | ||
| Max Lifting Moment | 30 T.M | ||
| Max Pressure of Hydraulic System | 26 MPa | ||
| Rotation Angle | All Rotation | ||
| Max.Working radius (m) | 12.5 m | ||
| SPECIFICATION FOR CHASSIS | |||
| Dimension(Lx W xH)(unloaded)(mm) | 12484×2496×4125 | ||
| Loading Capacity (Ton) | 31 Ton | ||
| Cargo body size (LxWxH) (mm) | 8500×2300×600 ,Bottom 3 mm, Side 2 mm | ||
| Approaching angle/Departure angle(°) | 16/14 | ||
| Overhang(front/rear) (mm) | 1500/2734 | ||
| Wheel base (mm) | 1800+4600+1350 | ||
| Max speed(km/h) | 102 | ||
| Curb weight(kg) | 18876 | ||
| Engine(Steyr technology, made in China) | Model | WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection | |
| Fuel type | Diesel | ||
| Power, max(kw/rpm) | 375HP | ||
| Emission | EUROII | ||
| Fuel tanker capacity(L) | 400L aluminum oil tank | ||
| Transmission | Model | HW19710, 10 speeds forward and 2 reverse | |
| Brake system | Service brake | Dual circuit compressed air brake | |
| Steering system | Model | ZF8118 | |
| Front axle | HF9 | ||
| Rear axle | HC16 | ||
| Tire | 12.00R20 (Radial Tyre) | ||
