Характеристики



Product Description

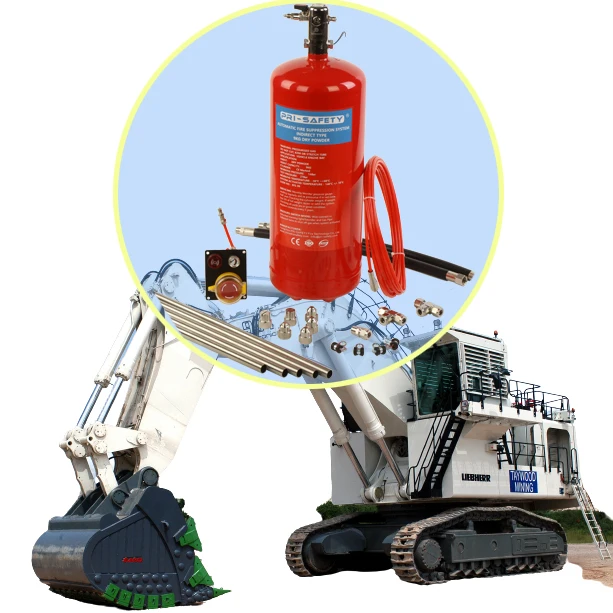

The automatic mining machine fire system consists of a tank cylinder, a solenoid valve with pressure gauge, discharge tube, fire
alarm, control panel and thermal detection cord.
The tank could be filled with Water, AFFF3% Foam, FM200, or Dry Powder agent, and is filled with an appropriate amount of driving
gas nitrogen.
The systems with different agent are with different discharge tube and nozzles.


Product Features.
* Fast detection and high efficiency
* Rechargeable
* Adapted to harsh environments
* Lightweight, not burdensome to equipment

* Simple installation and maintenance
* Suitable for heavy duty mining machine
* Comtrol panel shows real-time temperature
* Available in many agents: foam, novec1230, water mist, dry powder, FM200,etc


Specification


CAPACITY
9KG AUTO ABC90%
NECK THREAD OF CYLINDER
M30*1.5
MATERIAL
Steel red painting Or Stainless Steel 304
VALVE THREAD
M30*1.5
ACTIVATION TEMPERATURE
140ºC
SERVICE TEMPERATURE
-30ºC ~ +60ºC
WORKING PRESSURE
14Bar
TEST PRESSURE
27Bar
DISCHARGE PIPE
Dia.16mm, Stainless Steel
ACTIVATION TIME
<8s
Application
Vehical Engine Room
Packing
with High Quality Export Carton Box or Wooden Box
System Activated Temperature
140℃ or Customized Temperature
MOQ
50sets


Product Details


1). Product Activated Principle
The temperature sensor send temperature signal to control panel, the control panel can indicate the temperature at anytime, once
temperature reach 100 ºC, the fire alarm was activated. Once the temperature reach 140ºC, control panel will send signal to
electric valve to open it. Then the agent will be discharged from dischange tube and nozzles.


2). Drawing for reference




Diagram of R107 Systems for Detection Tube Model




Certifications




Details Images


1). Steel red painting




2). Stainless Steel 304




Application


Not only used in Mining Machines




but also could be used for All Vehicles




FAQ


1. who are we?
We are based in Zhejiang, China, start from 2009,sell to Western Europe(39.36%),Africa(15.12%),Mid East(15.04%),Central America(12.33%),South America(10.03%),North America(4.01%),Northern Europe(2.56%),Southeast Asia(1.05%),Eastern Asia(0.50%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Automatic Fire Suppression System,Tube fire system,CAFS Compressed Air Foam Fire System,Throwing Fire Extinguisher,Fire Extinguisher Accessoriers

4. why should you buy from us not from other suppliers?
One Stop Fire Fighting Equipment supply and professional service.
We have CE, EN3, EN671, EN1869 certificates.
Mainly export to Europe, Middle east, South America, Africa,etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
