Ac Dc 90 градусов прямоугольный редукторный двигатель
US $22.50-$23.00
Маленький микро-червячный редукторный двигатель GW180 постоянный ток 6 в 12 В низкоскоростной высокий крутящий момент ультратонкая коробка передач Реверсивный электрический
- Категория: Motors >>>
- Поставщик: Dongguan,Jiali,Motor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 7.93 $* | 7.74 $* |
| Aug-19-2025 | 7.39 $* | 7.29 $* |
| Jul-19-2025 | 6.40 $* | 6.99 $* |
| Jun-19-2025 | 7.51 $* | 7.74 $* |
| May-19-2025 | 6.52 $* | 6.24 $* |
| Apr-19-2025 | 7.2 $* | 7.6 $* |
| Mar-19-2025 | 7.47 $* | 7.62 $* |
| Feb-19-2025 | 7.73 $* | 7.89 $* |
| Jan-19-2025 | 7.40 $* | 7.75 $* |
Характеристики
Product Overview

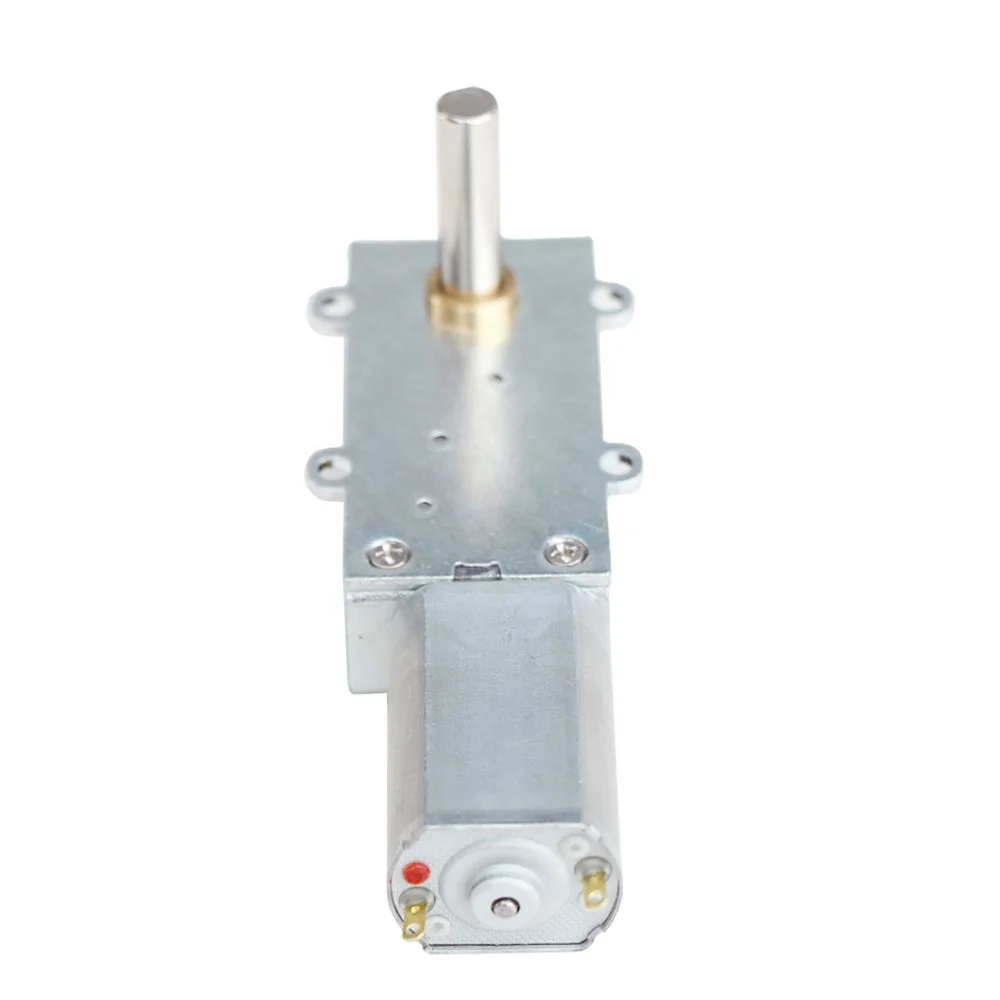

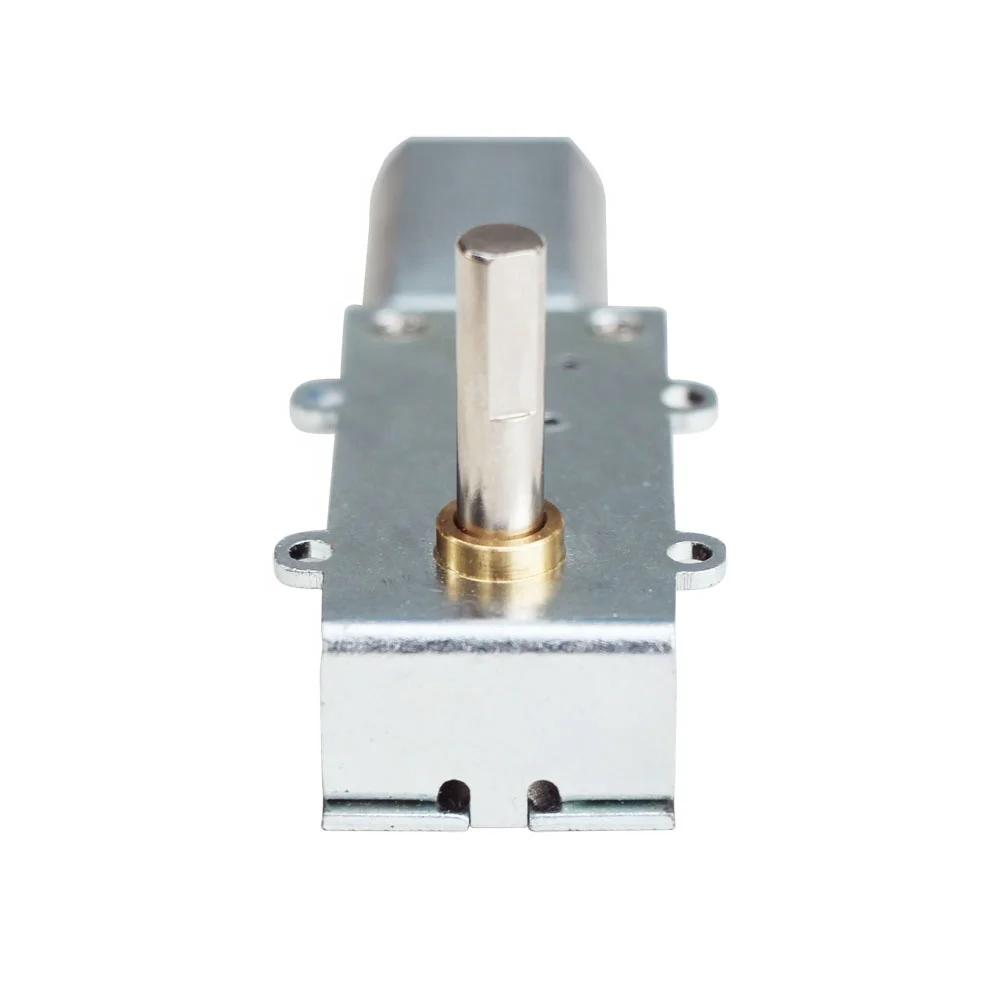

GW180 DC 6V 12V small micro Worm gear motor
This type is a miniature DC Worm Gear Motor, reversible, variable and self-lock. Low speed, High torque, Ultra Thin Slim gear box, for electric robot electric lock.
1). With self-locking function, the output shaft can't be rotated by certain force when switching off.
2). The gearbox output shaft and motor shaft are 90 degrees, it's widely used in various of occasions that require special install size.
Widely used in windows and doors opening, electric lock, home appliances, Car model, Boat model, Robot model, DIY engine, Industry application, and other occasions.
1). With self-locking function, the output shaft can't be rotated by certain force when switching off.
2). The gearbox output shaft and motor shaft are 90 degrees, it's widely used in various of occasions that require special install size.
Widely used in windows and doors opening, electric lock, home appliances, Car model, Boat model, Robot model, DIY engine, Industry application, and other occasions.
FEATURES AT A GLANCE
Ultra Slim Gear Box

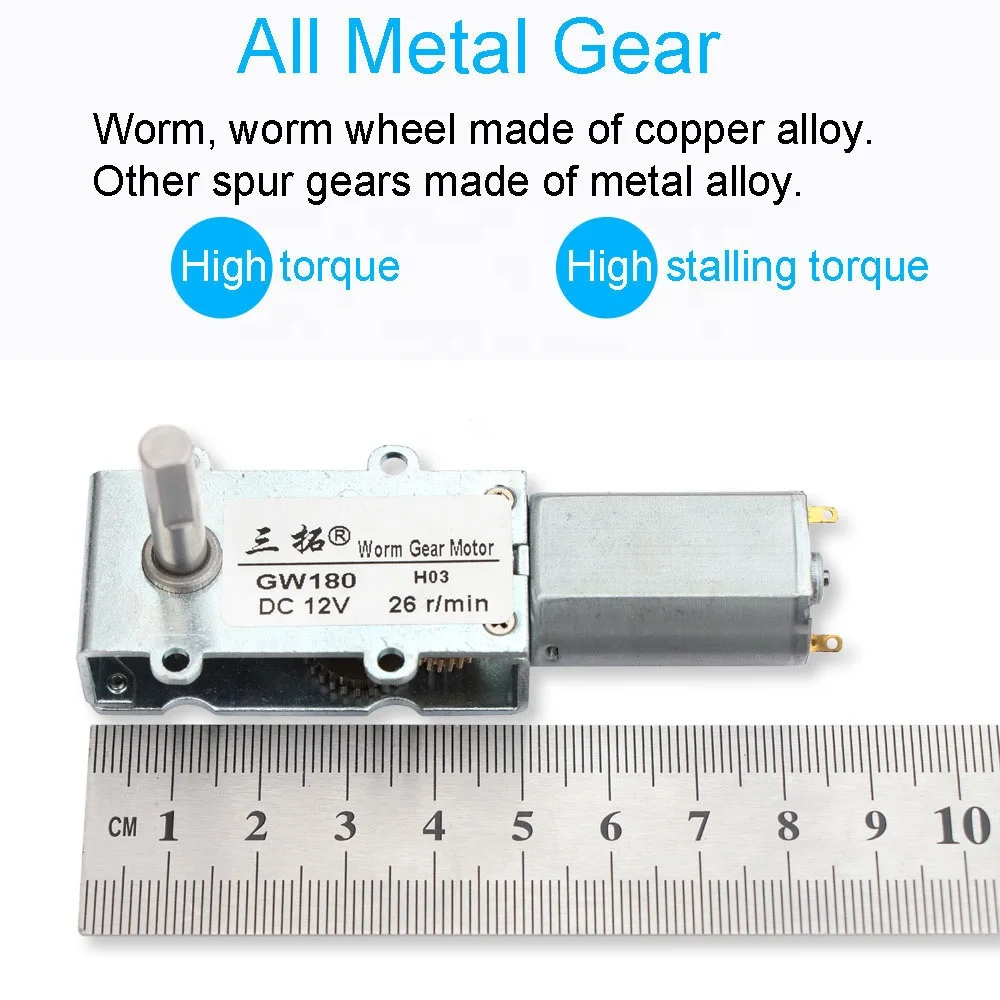

All Metal Gears
Can Be Stalled
Reversible, Variable And Self-Lock.
For Electric Robot Electric Lock.
Accept Customize
All Metal Gears
Can Be Stalled
Reversible, Variable And Self-Lock.
For Electric Robot Electric Lock.
Accept Customize
Right elevation
Left elevation
Front elevation
Drawing (Dimensions)
Product Sepcifications
Item | Voltage | No-load Speed (rpm) | Loading Speed (rpm) | Rated Torque (N·cm) | Rated Current (A) | Rated Power (W) | Shaft (mm) | Net Weight | Dimension (exclude shaft) |
GW180-4 | DC 6V | 4 | 3 | 54 | 0.30 | 1 | Φ6*21.5 | 0.1 Kg 0.22 Ib | 87x32x16 mm 3.43x1.26x0.63 inch |
GW180-6 | 6 | 4.5 | 35 | ||||||
GW180-9 | 9 | 6.8 | 25 | ||||||
GW180-12 | 12 | 9 | 16 | ||||||
GW180-25 | 25 | 19 | 8 | ||||||
GW180-8.5 | DC 12V | 8.5 | 6.5 | 75 | |||||
GW180-13 | 13 | 10 | 50 | ||||||
GW180-18 | 18 | 14 | 34 | ||||||
GW180-26 | 26 | 20 | 24 | ||||||
GW180-52 | 52 | 40 | 12 |
We do customize for speed, output shaft, motor type, encoder.
If you need curve of motor, feel free to require.
PRODUCT CONFIGURATION

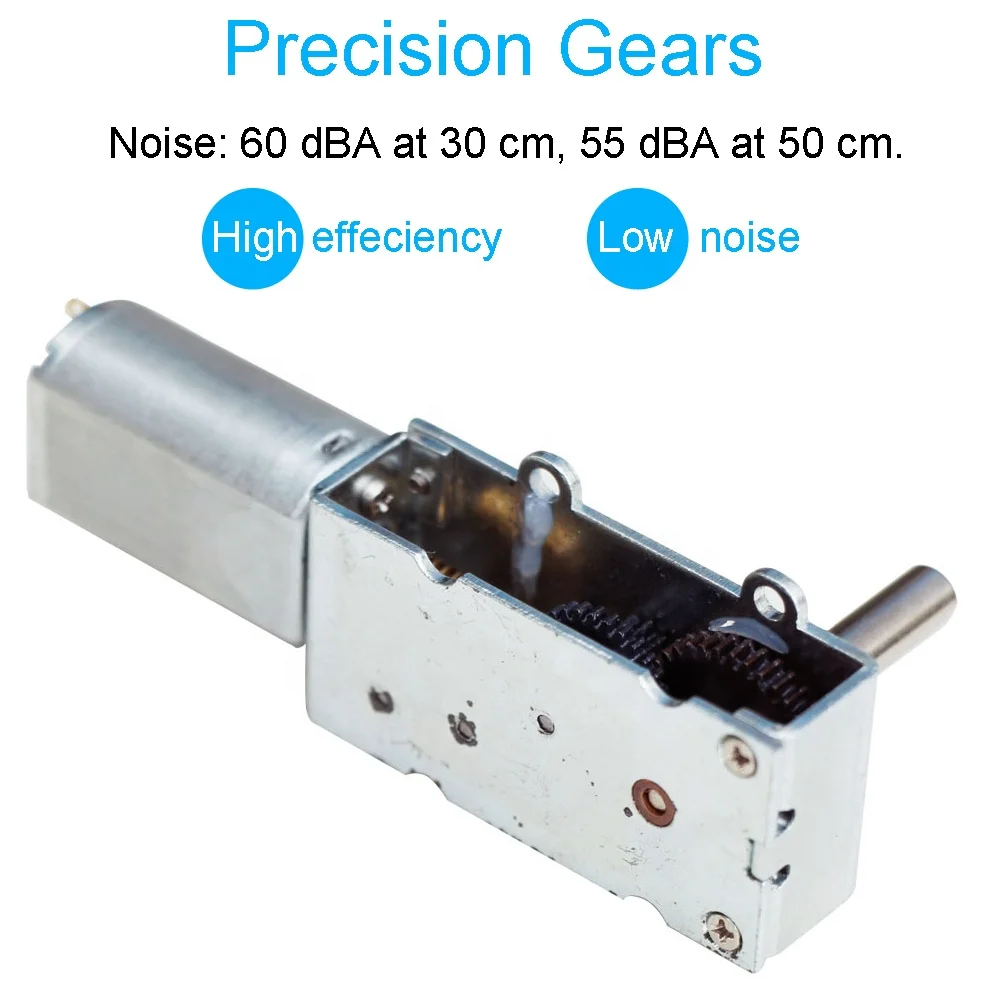

All metal precise gears
Nickel-plated gearbox
Carbon/metal brush motor
Successful Project
Electric Drug Dispenser
Electric Door Lock
PTZ Camera Motor
