XCMG TY230 Горячая продажа 230HP гусеничный бульдозер с запасными
- Категория: Бульдозеры >>>
- Поставщик: Xcmg,E-Commerce,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 23800.43 $* | 24990.39 $* |
| Aug-19-2025 | 23600.75 $* | 24780.89 $* |
| Jul-19-2025 | 19800.31 $* | 20790.71 $* |
| Jun-19-2025 | 23200.62 $* | 24360.34 $* |
| May-19-2025 | 20200.22 $* | 21210.6 $* |
| Apr-19-2025 | 22800.78 $* | 23940.89 $* |
| Mar-19-2025 | 22600.14 $* | 23730.38 $* |
| Feb-19-2025 | 22400.77 $* | 23520.55 $* |
| Jan-19-2025 | 22200.97 $* | 23310.22 $* |
Характеристики
Products Description

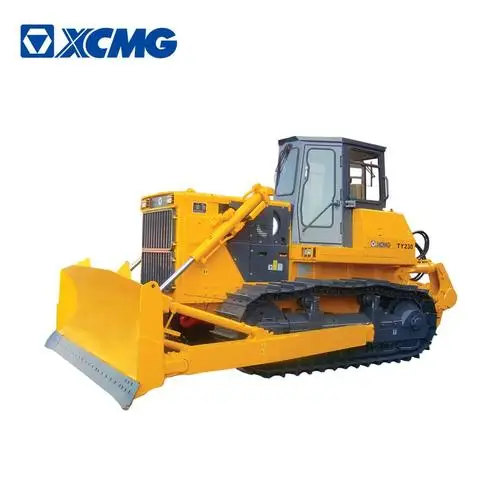

XCMG TY230 Hot Sale 230HP Crawler Bulldozer with Spare Parts.
* The machine features reasonable layout, excellent performance and advanced technology.
* Higher engine power reserves efficiency, bigger torque output, lower fuel consumption, while better reliability.
* Hydraulicly controlled drive, automatically speed regulating and non-stop gear shifting.* The final drive uses triangle Spline and tip relief, crowned gear drive to enhance the balance and the stability of the load of transmission Part.
* The novel hexahedral cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.Professional power:
* Pulse exhaust manifold for improving performance and emission.
* Robust and precise balance design for crankshaft.
* With a high torque reserve and a low speed under the maximum torque condition for a good adaptation.* High quality cast iron and special designed valve guide for the seal performance and durability.
* Advanced turbocharger and water cooler technology.
* 4 valves per cylinder for high power and low fuel consumption.
Specification
Specification/Blade type | Straight-tilt | Angle | U-Blade |
Operating Weight(kg) | 17400 | 17700 | 17900 |
Min.Ground Clearance(mm) | 400 | 400 | 400 |
Min.Tuming Radius(m) | 3.2 | 3.2 | 3.2 |
Ground Pressure(MPa) | 0.069 | 0.070 | 0.071 |
Track Gauge(mm) | 1880 | 1880 | 1880 |
Max.Pulling Force(KN) | 142 | 142 | 142 |
Grade Ability(°) | 30 | 30 | 30 |
Blade Capacity(m³) | 4.5 | 4.3 | 8.6 |
Blade WidthxHeight(mm) | 3416x1145 | 3970x1037 | 4061x1386 |
Max.Lift(mm) | 1110 | 1095 | 1095 |
Max.Depth(mm) | 530 | 545 | 545 |
Max.tilt Adjustment(mm) | ≥860 | ≥400 | ≥400 |
Pitch Adjustment(°) | 55 | 55 | 55 |
Capability(m³/H)(Theoreticalvalue 40m) | 247 | 247 | 260 |
Weight Of Blade(kg) | 2350 | 2450 | 2560 |
ENGINE | ||||||
Model＆Type Cummins NT855-C280S10/Shangchai SC11CB200G2B1/Weichai WD 10G200E25,6-cylinder, in-line,vertical.water-cooled.4-stroke-cycle,turbo-charged,over valve directs injection | ||||||
Rated Revolution(rpm) | 1850 | |||||
Flywheel Horsepower(HP) | 160 | |||||
Cylinder Number-BoreX Stroke(mm) | Cummins ：6-139.7x152.4 | |||||
Shangchai：6-120.6x152.4 | ||||||
Weicha i：6-126x130 | ||||||
Piston Displacement(L) | 14 | 10.5 | 9.73 | |||
Min.Fuel Consumption(g/kW.h) | 212 | 223 | 223 | |||
Max.Torque(Nm/rpm) | 877/1250 | 830/1100 | 830/1100 | |||
Starting Method | Starting motor 24V 7.5KW | |||||
