Product Description
Application

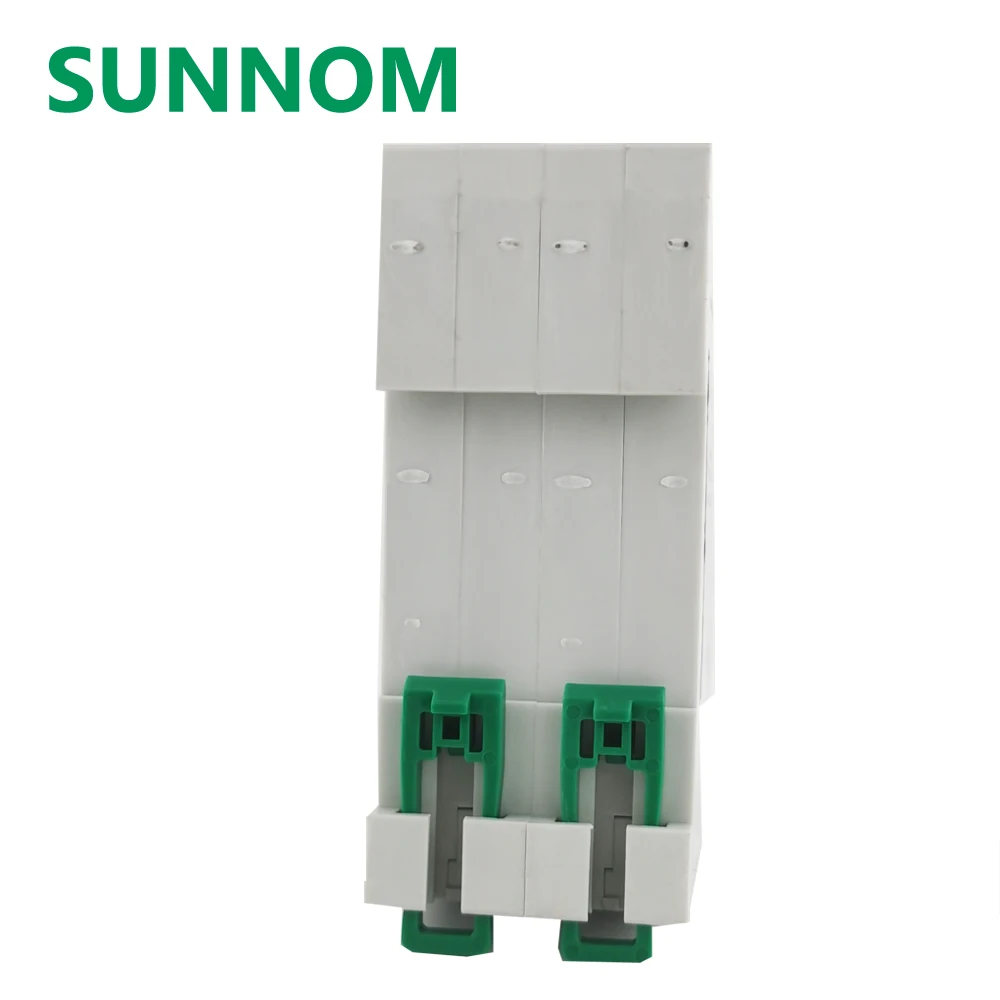

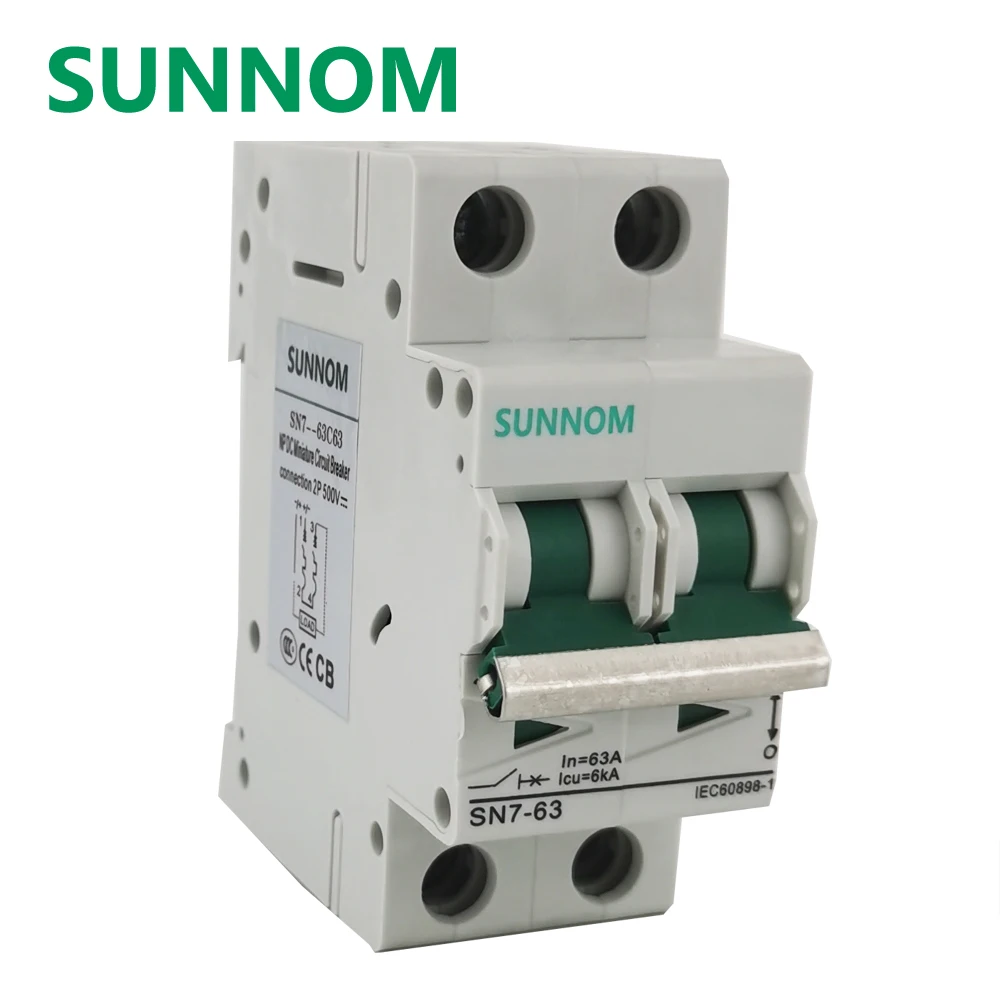

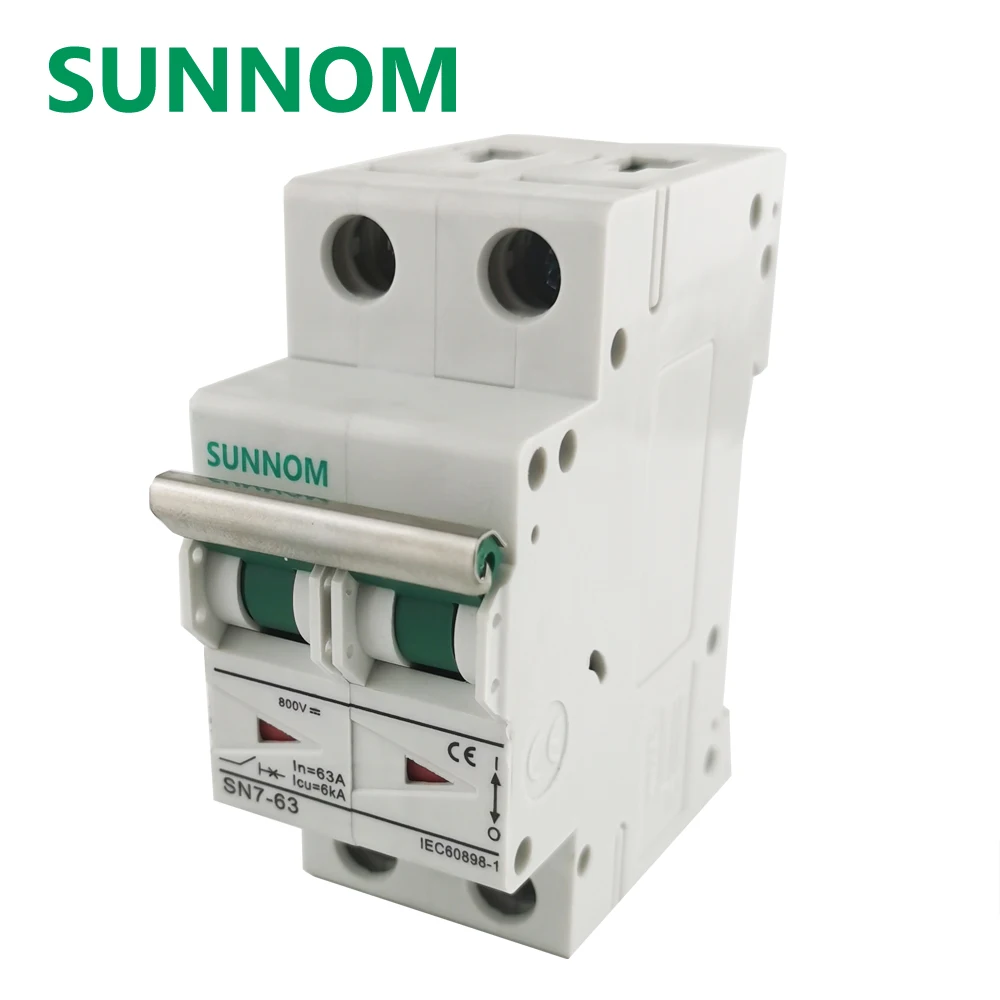

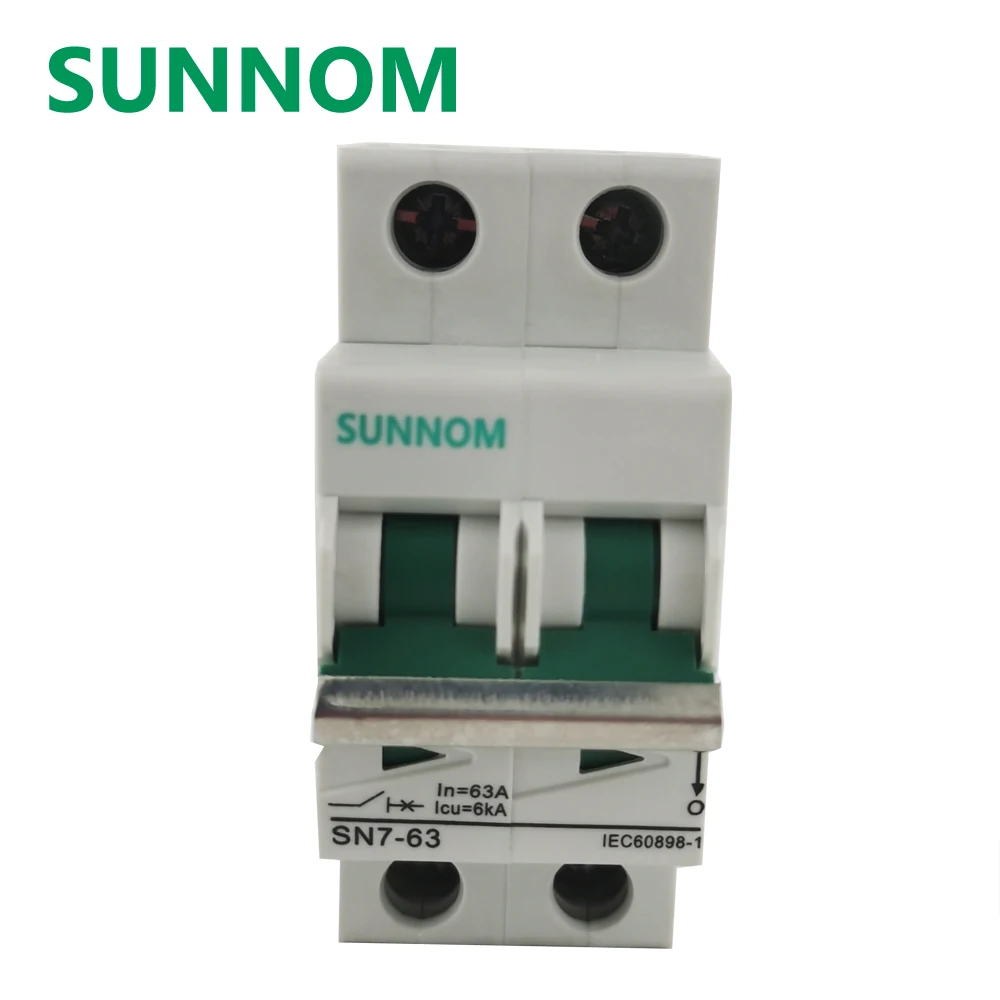

SN7-63 Solar system DC MCB , apply to rating current 63A or less, It is mainly used for the overloading and short circuit
protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post,traffic,mining enterprise and different kinds of fields.
protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post,traffic,mining enterprise and different kinds of fields.
Feature
1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic
Brand Name | SUNNOM |
Model Number | SN7-63 |
Type | DC MCB Miniature Circuit Breaker |
Poles Number | 1P,2P,3P,4P |
Curve type | C |
Rated current | 6-10-16-20-25-32-40-50-63A |
Rated voltage | 250V 500V 800V 1000V 1200V |
Certificate | IEC CE |
Breaking capacity | 6KA |
Standard | IEC60947-2 |
Material | Flame Resistant Plastic |
Mechanical Life | 20000 Times |
Wiring capacity (mm²) | In≤32A,1∼25mm²,1≥40A,10∼35mm² |
Packing | 120Poles/CTN |
Protection Degree | IP20 |
Installation | 35MM DIN RAIL |
