Product Introduction:

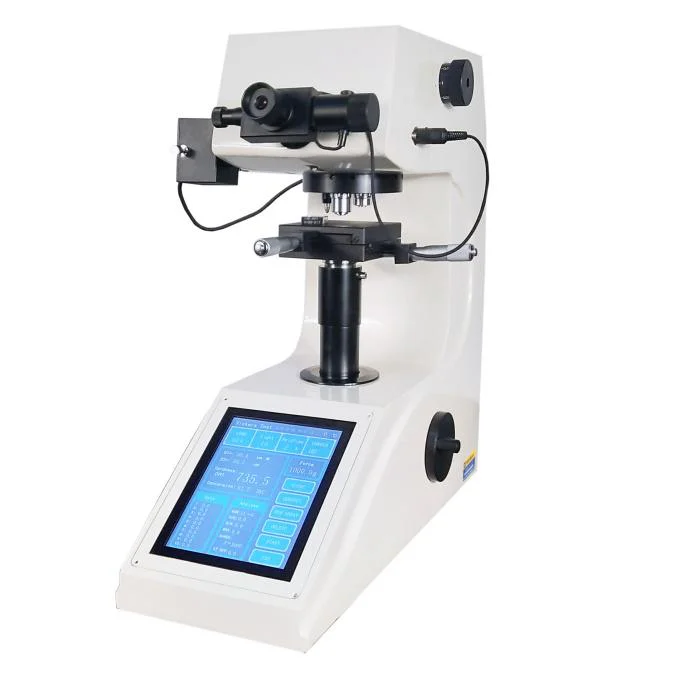

HVS-1000AT touch-screen digital display automatic rotating tower micro-Vickers hardness tester, using 8-inch touch screen and high-speed ARM processor, intuitive display, friendly man-machine interaction, easy to operate;Fast operation speed, huge amount of database storage, data automatic correction, and provide data line report.

1. The fuselage is formed by casting high-quality cast iron in one time, and is round and beautiful in appearance in combination with automobile paint processing technology;

2. The turbo worm lifting system greatly improves the test stability and test accuracy, and there is no need to focus again after the test is completed;

3. Equipped with automatic turret function, hd measurement and observation - double objective lens combination, combined with hd micrometer eyepiece with built-in length encoder, realized one-key measurement of indentation diagonal, greatly reducing the interference of human operation and reading error;

4. Convenient NUMERICAL control system, which can automatically convert the unit of full hardness scale;

5. The maximum and minimum hardness values can be set. When the test value exceeds the set range, an alarm sound will be issued;

6. With software hardness value correction function, the hardness value can be directly corrected within a certain range;

7. With the function of database, the test data can be automatically grouped and saved. Each group can save 10 data and more than 2000 data;

8. It has the function of displaying the hardness value curve, intuitively displaying the change of the hardness value;

9. CCD image processing system can be optional, and Nu's head can also be optional for Nu's hardness measurement;

10. Wireless Bluetooth printer is configured, and data can be output through RS232 and USB interface;

11. The precision conforms to GB/T4340.2-2018 ISO6507-2 and ASTM E384.

Application Scope:

1. Ferrous metal, nonferrous metal, IC sheet, surface coating, laminating metal;

2. Glass, ceramics, agate, precious stones, thin plastics, etc.

3. Hardness test for depth and gradient of carbonized and quenched layers.

4. It is suitable for precise micro-vickers hardness measurement of flat surfaces and micro and ultra-thin parts.

Technical parameters:
