20 мкм до 38 ПЭТ пленка БОПП бумага и алюминиевая фольга 7 блистерная глубокой печати
- Категория: Машины для ротационной глубокой печати >>>
- Поставщик: Guangdong,Henghuilong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.8 $* | 0.94 $* |
| Aug-18-2025 | 0.59 $* | 0.2 $* |
| Jul-18-2025 | 0.62 $* | 0.89 $* |
| Jun-18-2025 | 0.52 $* | 0.83 $* |
| May-18-2025 | 0.11 $* | 0.59 $* |
| Apr-18-2025 | 0.26 $* | 0.60 $* |
| Mar-18-2025 | 0.84 $* | 0.85 $* |
| Feb-18-2025 | 0.25 $* | 0.99 $* |
| Jan-18-2025 | 0.52 $* | 0.66 $* |
Характеристики
Type | HYS61000SD |
Max machine speed | 200m/min (n=300rpm) |
Max printing speed | 180m/min - 300m/min |
Color number | 6 colors with double winder and re-winder, could be single-headed or double-headed printing(3+3;4+2;5+1) |
Base material | PE:15-40um 15-40um PE breathable film |
Material width | 800-1300mm |
Horizontal and vertical color matching precision | ±0.15mm |
Color matching control mode | vertical automatic color matching tracking |
Pre-color matching detection | In Store thousands sets data for pre-color matching |
Color matching precision detection | ±0.01mm |
Plate diameter | 160mm-370mm |
Circumference | 500~1150mm |
Diameter of winding/unwinding | Max 800 mm |
Total power | Motor Power 120kW, Heating power 144kW |
Weight | Around 30000kg |
Dimensions | 18800(L) x 3200(W) x 3200(H)mm |

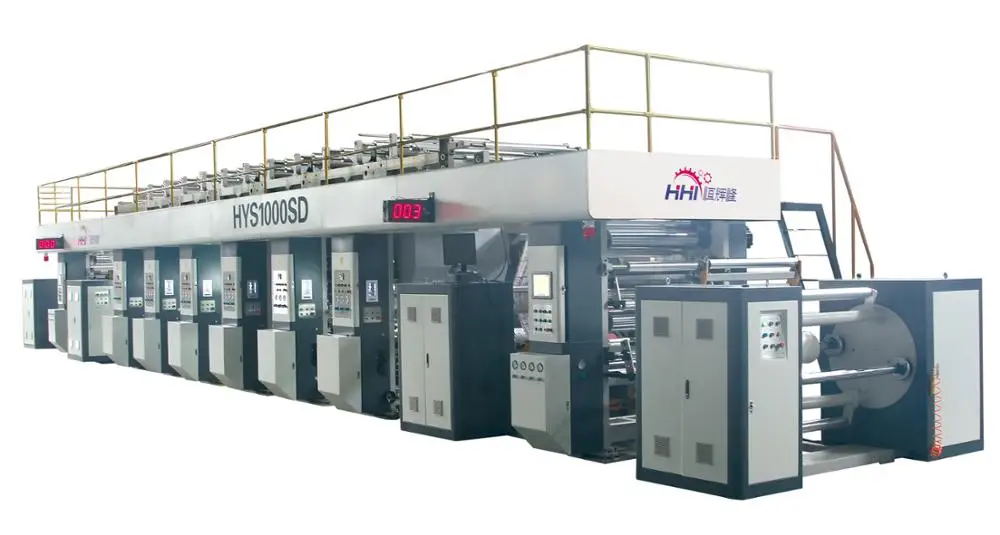

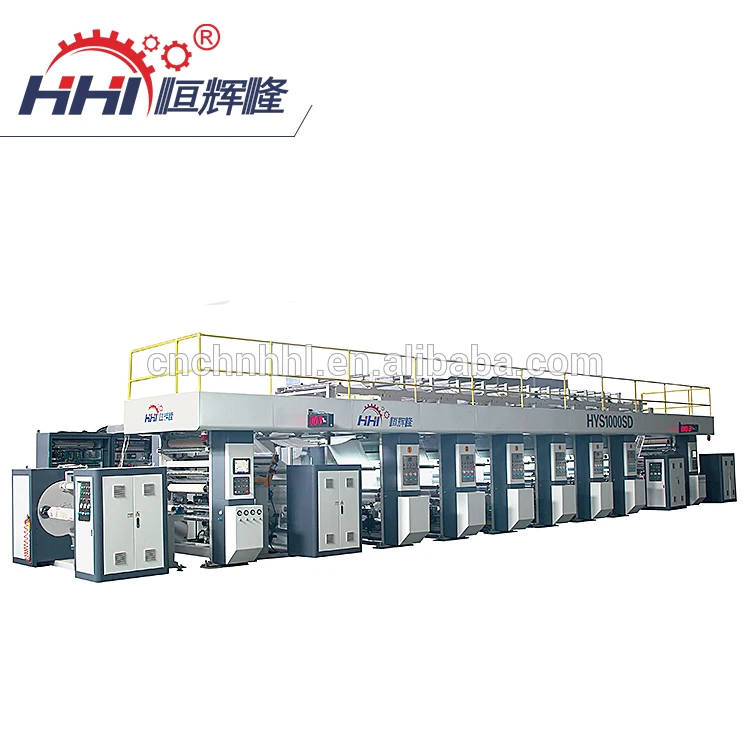

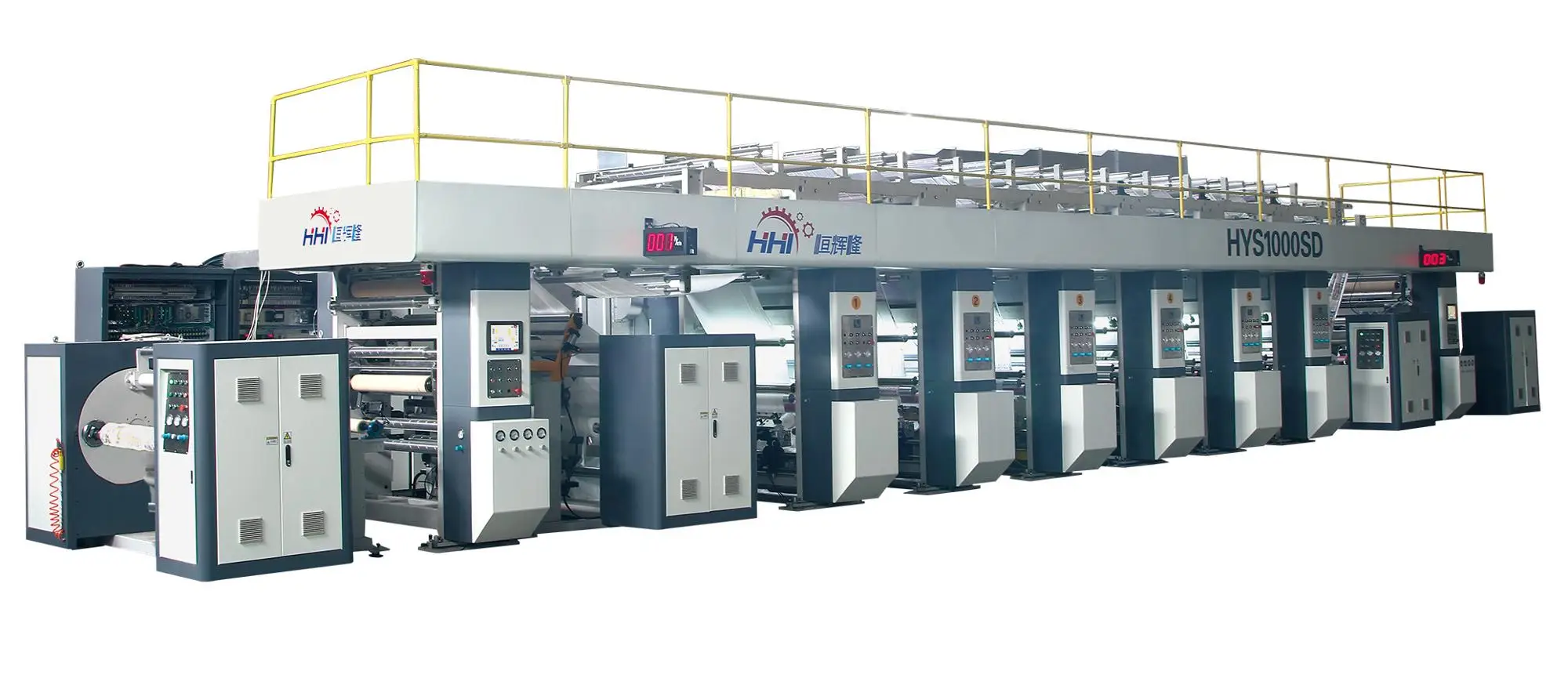

HHL 6 colors gravure printing machine for film
Overview
HHLY61300SD Intaglio printing machine is a high-performance intaglio printing machine, it has been assembled and combined the oversea printing machine’s characteristics, it has the feature of independent transmission, automatic cover matching and it could work without screw rod. It has has high accuracy when pre-color matching, and also could achieve high speed in color matching, wastage reducing and result in high output.
Processing method
HHLY61300-SD is combined with 2 material unwinding units, 2 material charging units, No.0 plate installing unit,6 printing units, 2 material discharging units, 2 material winding units, and 6 drying units. Based on the printing color numbers, users could choose single-headed printing or double-headed printing (to print two different products at the same time), which could give full play to the machine’s efficiency , saving the labor cost. Therefore, it would be able to meet the requirements of future needs on multi-color printing products.
Outstanding Features
A. Max machine speed: 220m/min.
B. Drying oven: nozzle type hot air circulation arc structure.
C Plate cylinder adopts AC servo motor, it allows independent transmission, it uses air compressing manner for plate installing , and achieve fast speed when changing plate.
D.Automatic function of winding and unwinding, tape detection, material connecting, cutting, tension switching, resetting.
E. Using standard setup of high grade gravure press: nine grade roller-floating tension control system, detecting the process of unwinding, feeding, discharging and winding with ultra-low friction air cylinder oscillating roller, which has high-precision on tension control.
F. Static picture synchronization monitor, which could monitor 1 equipment while printing 5-6 colors,2 equipments could be monitored simultaneously while using double-headed printing.
G.PLC centralized control, screen-touching control and integrated design of machine, electricity and gas, allows the users to monitor the working condition of the whole equipment with only one worker. With complete safety protection function, it can intelligently identify the working condition and determine the malfunction of the machine.
Overview
HHLY61300SD Intaglio printing machine is a high-performance intaglio printing machine, it has been assembled and combined the oversea printing machine’s characteristics, it has the feature of independent transmission, automatic cover matching and it could work without screw rod. It has has high accuracy when pre-color matching, and also could achieve high speed in color matching, wastage reducing and result in high output.
Processing method
HHLY61300-SD is combined with 2 material unwinding units, 2 material charging units, No.0 plate installing unit,6 printing units, 2 material discharging units, 2 material winding units, and 6 drying units. Based on the printing color numbers, users could choose single-headed printing or double-headed printing (to print two different products at the same time), which could give full play to the machine’s efficiency , saving the labor cost. Therefore, it would be able to meet the requirements of future needs on multi-color printing products.
Outstanding Features
A. Max machine speed: 220m/min.
B. Drying oven: nozzle type hot air circulation arc structure.
C Plate cylinder adopts AC servo motor, it allows independent transmission, it uses air compressing manner for plate installing , and achieve fast speed when changing plate.
D.Automatic function of winding and unwinding, tape detection, material connecting, cutting, tension switching, resetting.
E. Using standard setup of high grade gravure press: nine grade roller-floating tension control system, detecting the process of unwinding, feeding, discharging and winding with ultra-low friction air cylinder oscillating roller, which has high-precision on tension control.
F. Static picture synchronization monitor, which could monitor 1 equipment while printing 5-6 colors,2 equipments could be monitored simultaneously while using double-headed printing.
G.PLC centralized control, screen-touching control and integrated design of machine, electricity and gas, allows the users to monitor the working condition of the whole equipment with only one worker. With complete safety protection function, it can intelligently identify the working condition and determine the malfunction of the machine.
Q1: What Industry is your product suitable for?
A1:Our machines are widely used in the fields of disposable hygienic products,disposable medical products, clothing, textile fabrics, self-adhesive labels, medical tape, plaster backing, and various othercoating compounds.
Q2：What if the machine fails during use?
A2:Our machines will be carefully inspected and ensured before delivery,and we will provide the correct instructions for use of the products. In addition, our products support lifetime warranty service, if there any question during using our products please consult our work personnel.
Q3: When can I get the machine after payment?
A3:The product production time about 45-60 days. We will deliver it on time as the date we agreed both side.
Q4: How can I install my machine when it arrives?
A4:We will provide installation videos and tutorials, or send our engineer to your side ASAP
you get all your machines ready, for testing and teaching your technicians how to run the machine.
you get all your machines ready, for testing and teaching your technicians how to run the machine.
Q5: What payment do you accept?
A5:We generally accept T/T or L/C, and we can negotiate the payment method.
A5:We generally accept T/T or L/C, and we can negotiate the payment method.
