Высококачественное Напольное Однофазное электрическое автомобильное зарядное устройство для быстрой зарядки EV в общественных
- Категория: Wall-mounted Charging Stations >>>
- Поставщик: Sichuan,Weiyu,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 333.93 $* | 350.90 $* |
| Aug-18-2025 | 330.62 $* | 347.15 $* |
| Jul-18-2025 | 277.1 $* | 291.73 $* |
| Jun-18-2025 | 325.41 $* | 341.26 $* |
| May-18-2025 | 283.21 $* | 297.86 $* |
| Apr-18-2025 | 319.97 $* | 335.83 $* |
| Mar-18-2025 | 316.9 $* | 332.94 $* |
| Feb-18-2025 | 314.45 $* | 330.2 $* |
| Jan-18-2025 | 311.76 $* | 327.24 $* |
Характеристики
Product Description

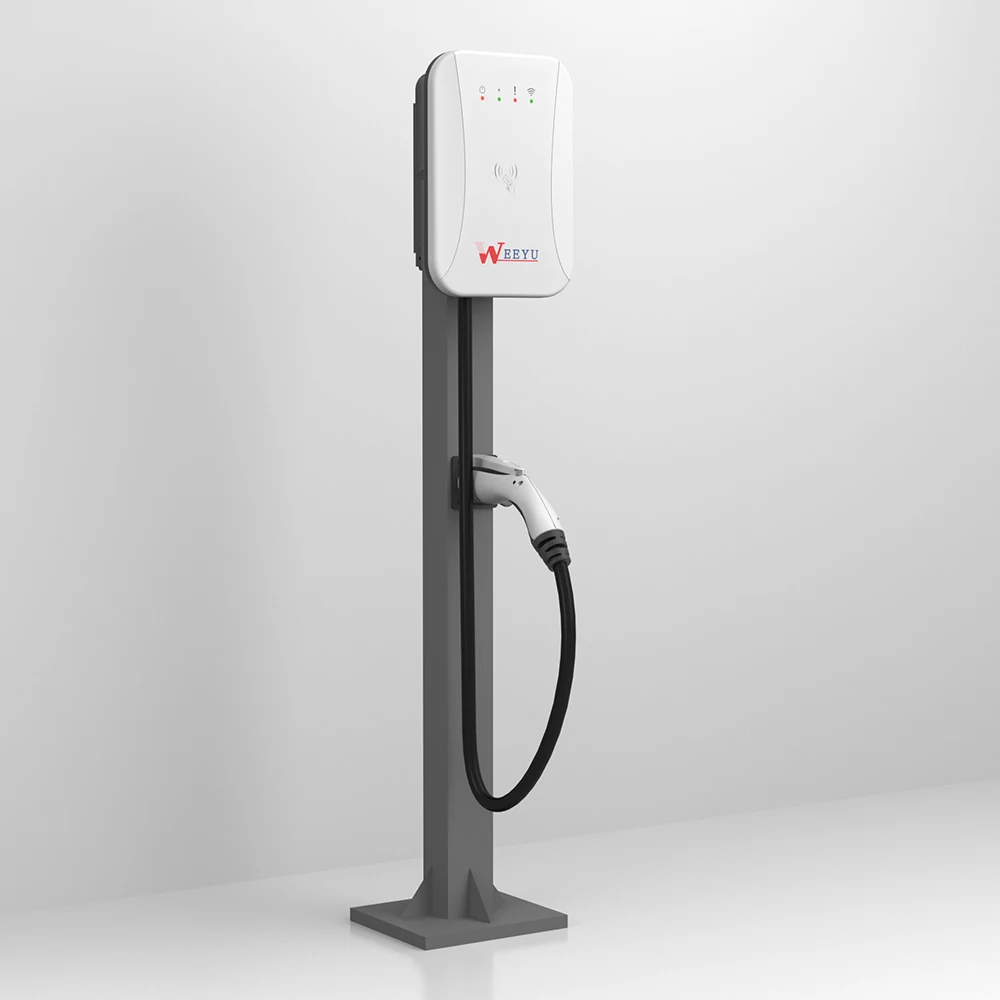

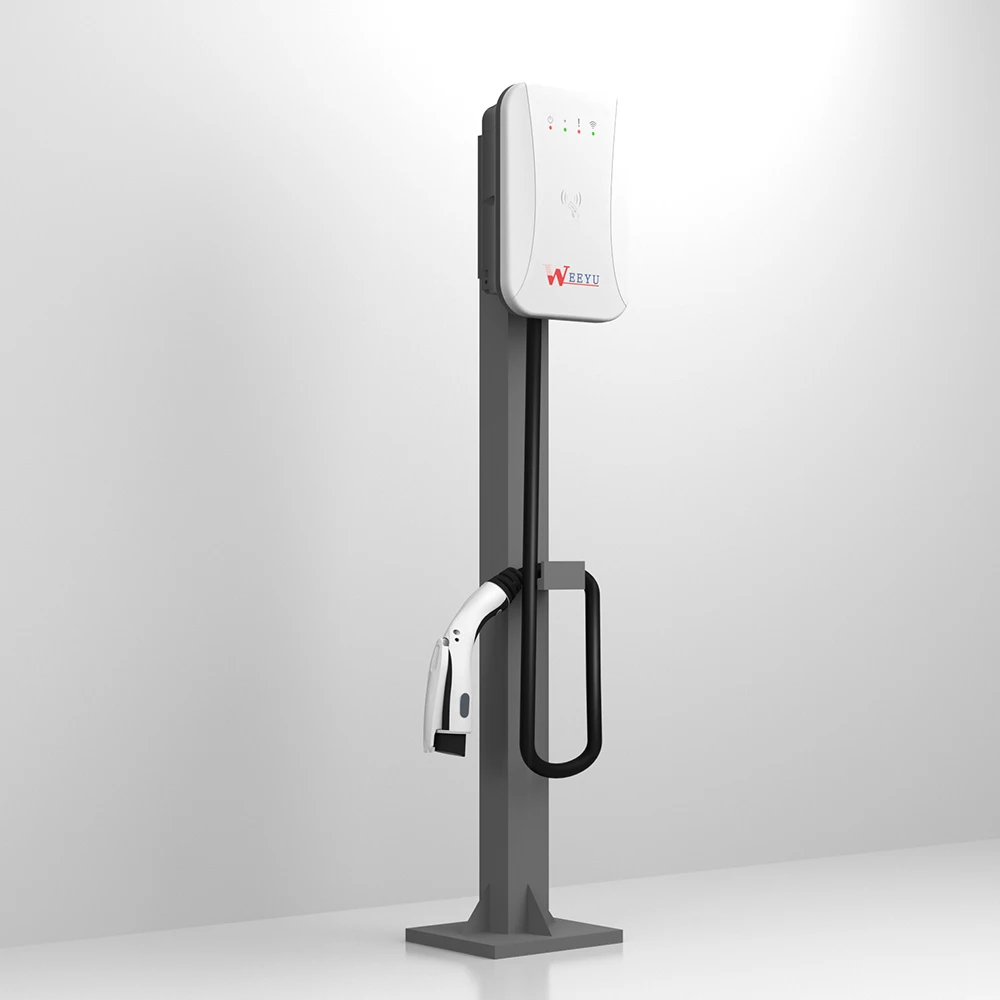

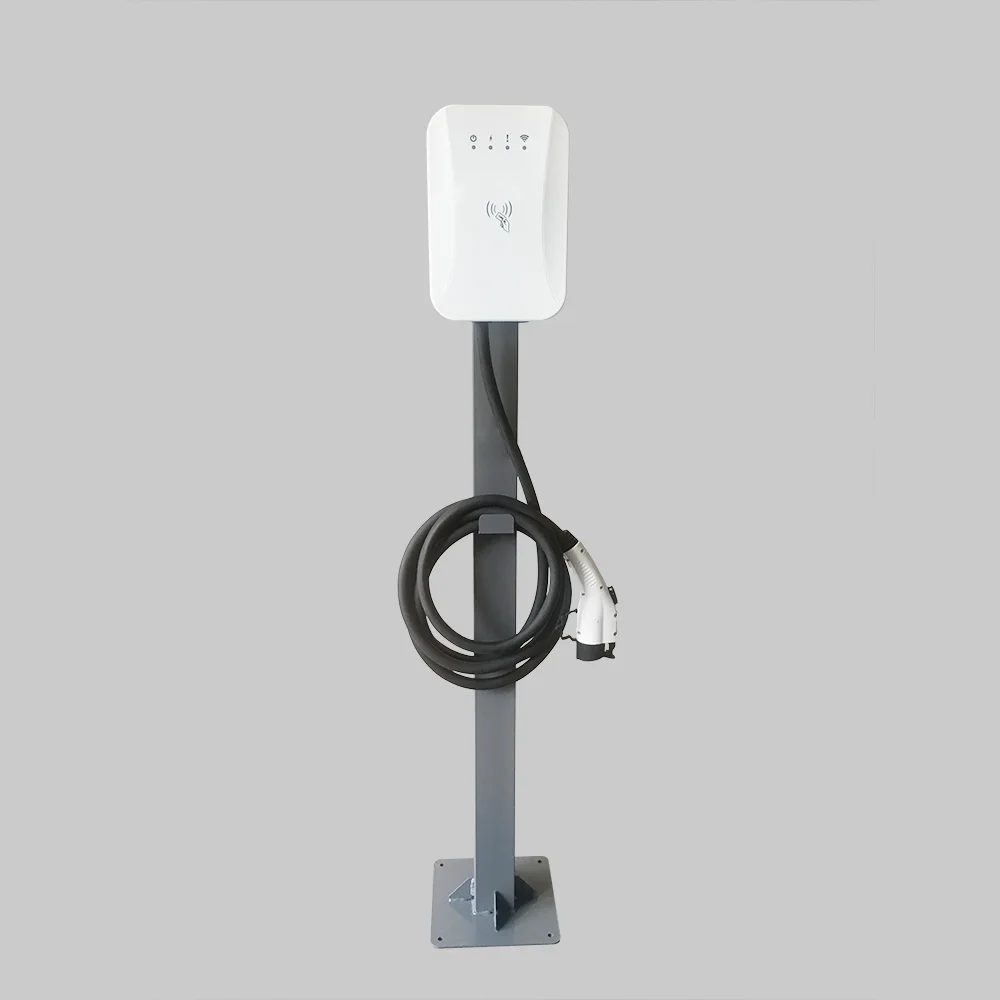

M3W with Mounting Pole

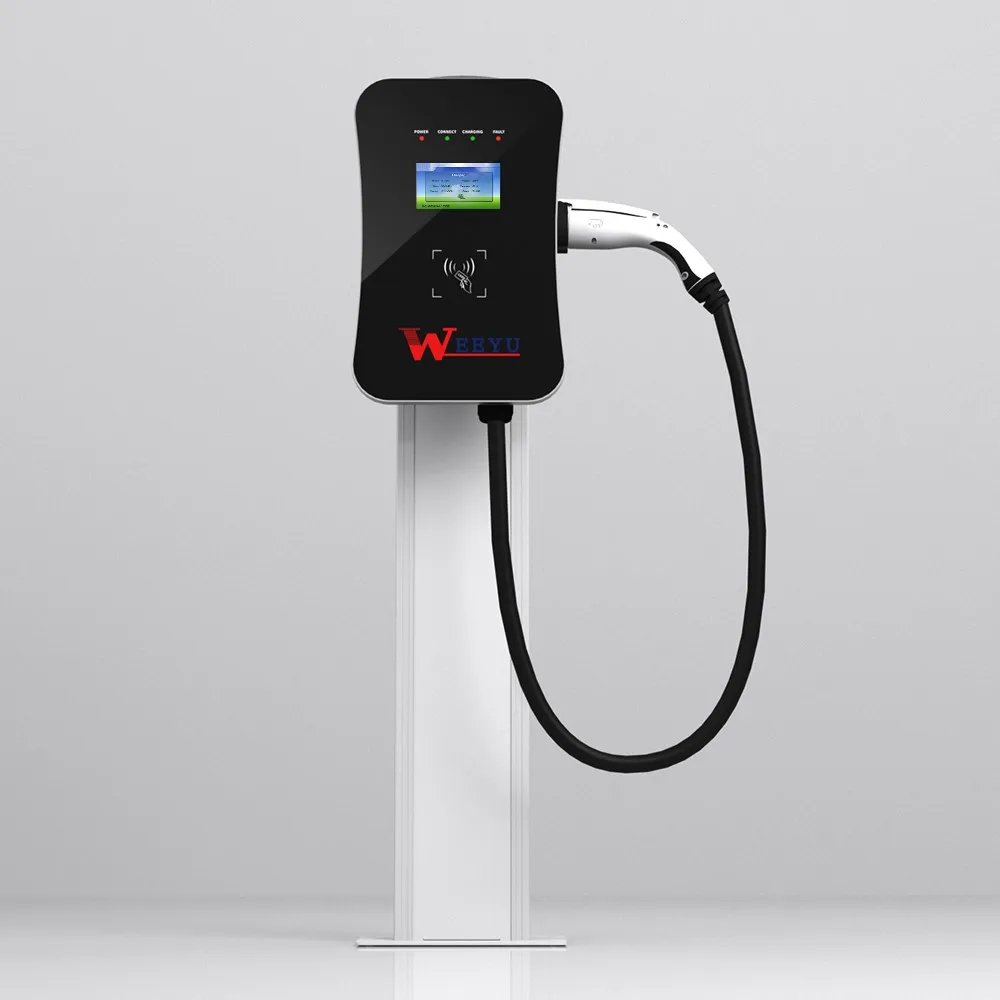

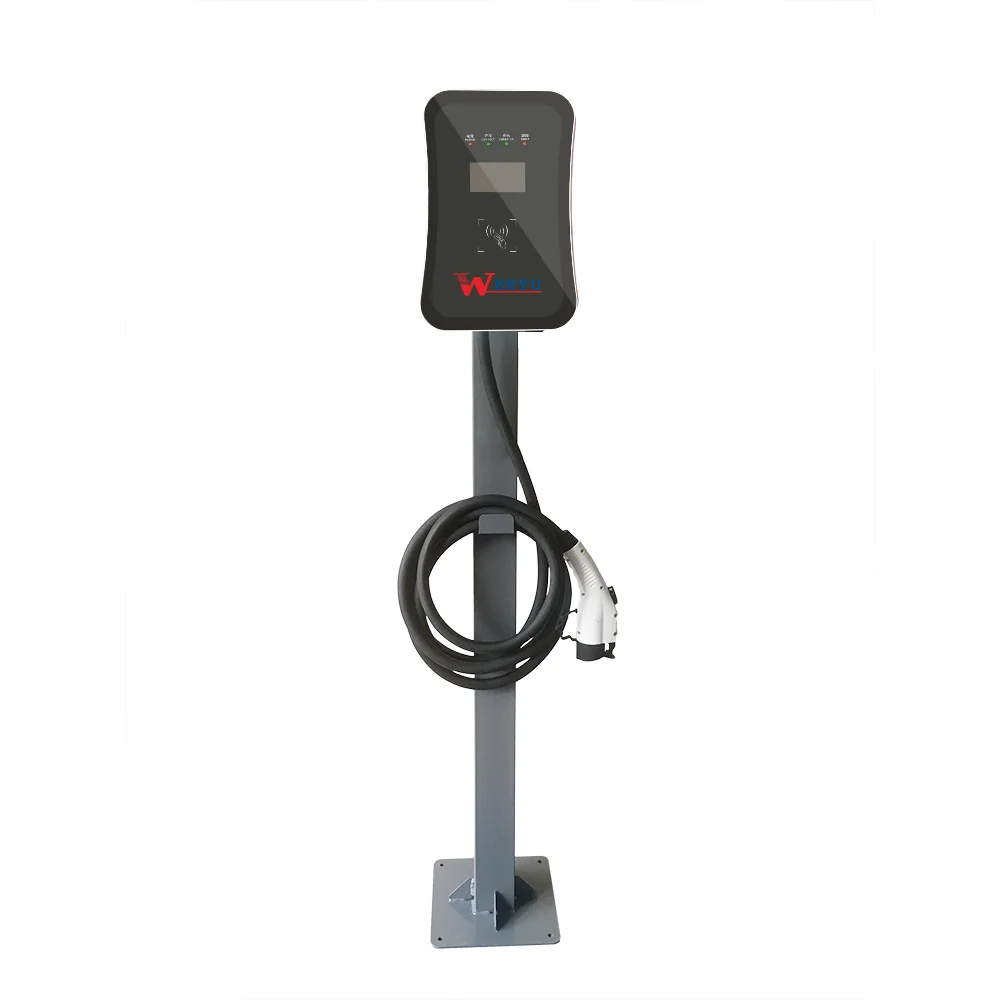

M3P with Mounting Pole
Power Specification | ||||||
Charging Connector Type | IEC 62196-2 (Type 2) / SAE J1772 (Type 1) | IEC 62196-2 (Type 2) | ||||
AC Power Input Rating | 1 Phase | 3 Phase | ||||
230V±15% | 380V±15% | |||||
AC Power Output Rating | 3.5kw/16A | 11kw/16A | ||||
7kw/32A | 22kw/32A | |||||
10kw/40A | 43kw/63A | |||||
Frequency Rating | 50/60 Hz | |||||
User Interface & Control | ||||||
Emergency Stop Button | Yes | Plug-and-Charging | Yes | |||
RFID Card Charging | Yes | App Charging | Yes | |||
Ethernet Interface | Yes | Wifi Function | Yes | |||
OCPP Protocol | OCPP 1.6 | 4.3-inch LCD Screen | Optional | |||
Protection | ||||||
Over Voltage Protection | Yes | Under Voltage Protection | Yes | |||
Over Load Protection | Yes | Short Circuit Protection | Yes | |||
Earth Leakage Protection | Yes | Ground Protection | Yes | |||
Over-temp Protection | Yes | Surge Protection | Yes | |||
RCD | Type B | |||||
Environmental | ||||||
Storage Temperature | -40 ~ 75℃ | Operating Temperature | -30 ~ 55℃ | |||
Operating Humidity | Up tp 95%, non-condensing | Altitude | ≤2000m | |||
Cooling Method | Natural Cooling | |||||
M3P Wallbox Mechanical | ||||||
IP Code | IP54 | Dimension(H×W×D,mm) | 410×260×164 | |||
Weight | 12kg | Charging Cable Length | 5m or Customize | |||
Enclosure Material | Front-panel: Tempered Glass, Back-cover: Plate Metal | |||||
M3T Mounting Pole(Optional) | ||||||
Dimension(H×W×D,mm) | 1400×200×100 | Weight | ＜8kg | |||
Enclosure Material | Metal | |||||
Product Description
Power Specification | ||||||
US Standard | EU Standard | |||||
Charging Connector Type | SAE J1772 (Type 1) | IEC 62196-2 (Type 2) | ||||
AC Power Input Rating | AC Level 2, 240V | 230V±15% | ||||
Frequency Rating | 50/60 Hz | |||||
AC Power Output Rating | 3.5kw/16A | |||||
7kw/32A | ||||||
10kw/40A (US Standard optional) | ||||||
User Interface & Control | ||||||
Emergency Stop Button | Yes | Plug-and-Charging | Yes | |||
RFID Card Charging | Yes | App Charging | Yes | |||
Ethernet Interface | Yes | Wifi Function | Yes | |||
OCPP Protocol | OCPP 1.6 | |||||
Protection | ||||||
Over Voltage Protection | Yes | Under Voltage Protection | Yes | |||
Over Load Protection | Yes | Short Circuit Protection | Yes | |||
Earth Leakage Protection | Yes | Ground Protection | Yes | |||
Over-temp Protection | Yes | Surge Protection | Yes | |||
RCD | Type A | |||||
Environmental | ||||||
Storage Temperature | -40 ~ 75℃ | Operating Temperature | -30 ~ 55℃ | |||
Operating Humidity | Up tp 95%, non-condensing | Altitude | ≤2000m | |||
Cooling Method | Natural Cooling | |||||
M3P Wallbox Mechanical | ||||||
IP Code | IP65 | Dimension(H×W×D,mm) | 310×220×95 | |||
Weight | 7kg | Charging Cable Length | 5m or Customize | |||
Enclosure Material | PC | |||||
M3T Mounting Pole(Optional) | ||||||
Dimension(H×W×D,mm) | 1400×200×100 | Weight | ＜8kg | |||
Enclosure Material | Metal | |||||
Customize Service
Recommend Products
Our Advantages
WEEYU, an “EVSE” (electric vehicle supply equipment) brand of Sichuan Weiyu Electric Co., Ltd. Weiyu electric was founded in 2016. With the professional R&D and Sales & Service Team, we can not only provide the products mainly including all kinds of EV charging stations, but also a complete solution. In addition, OEM&ODM or engineering application assistance are available.
WEEYU is the wholly-owned subsidiary of a listed company (Stock Code: 300820)-Sichuan Injet Electric Co., Ltd. With Over 500 workers, 22000 ㎡ non-dust workshop, 169 patent certifications, 24 years’ experience in electric power industry, Injet has received high praise from international renowned enterprises for the superior products and service like ABB, Siemens, Schneider, GE, GT, SGG and etc.
We have our QC system, all the EV chargers would be tested before shippment, and the testing report will be sent together with electric car charging station.
We have experience in exporting to USA, Russia, Germany, Japan, Serbia, Dutch and etc. We will attend more than 10 exhibitions per year in Shenzhen Guangzhou and Shanghai.
We Weeyu and Injet have more than 180+ patents till now. For EV charging station, we can design and manufacture according to customer requirements.
We are the leading ev charger manufacturer of southwest China, having full production and operation experience in domestic DC and AC ev charging stations for public and commercial use.
FAQ
Q1: What is your terms of packing of EV Charging point?
A: We pack our EV Charging Point in cartons.
Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific solutions for your requirements.
Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
