500 градусов по Цельсию высокая температура 3D принтер с 120

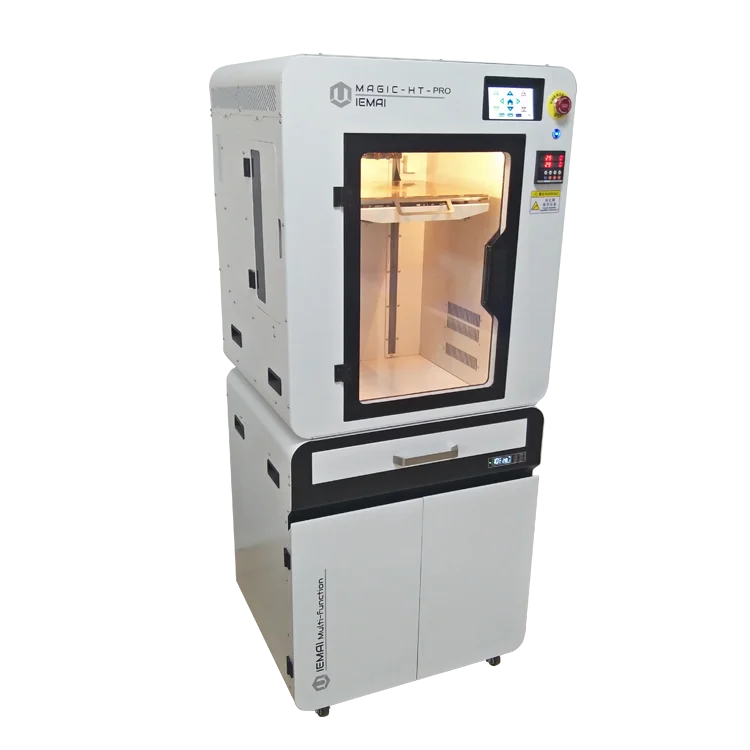

IEMAI high performance material 3D printer MAGIC-HT-PRO is a 3D printing device based on the principle of fuse deposition (FFF) technology, with printing temperature up to 500 ° C, hot bed temperature of 170 ° C, and 120 ° C chamber temperature.

It adopt detachable print heads,2 liquid-cooling system extruder, with a multi-functional moisture proof cabinet which is optional.

Supports most of the polymer 3D printing filaments on the market, including special engineering plastics PEEK, PEAK,PEKK,PPSU, ULTEM,CARBON,METAL FILL etc., with detachable double print heads, creating simple maintenance conditions, supporting PLA and water-soluble support materials (PVA), As well as the printing of ABS and limonene support material (HIPS), it also opens up the possibility of soluble support for special engineering plastics PEEK, PPSU and PEI.

IEMAI produces PEEK, PPSU, PEI, ABS and high-temperature cleaning materials. Together with the 3D printer MAGIC-HT-M/L, it is a domestic manufacturer to provide high-performance materials for 3D printed wire and high-temperature 3D printers,and solve the problem of cleaning high-performance materials.

Materials

Printable materials:PEEK ULTEM PPSU PEAK PEKK PC PA Carbon Fiber PETG TPU,etc.

Filament diameter: 1.75 mm

Open material system, Compatible with 3rd party filaments

Build volume

Print size (xyz):310 x 310 x 480 mm ( 12.2 x 12.2 x 18.8 inches )

Temperature

Max extruder temperature: 500 ℃

Max chamber temperature: 248 °F / 120 ℃

Max hot bed temperature: 266°F / 170 ℃

3D Printer and printing properties

Layer resolution: 50 Microns

Position Accuracy:X/Y12.5 Microns Z:1.25 Microns

Feeder system: Direct, Near end extrusion

Extruder type: Dual , detachable

Nozzle size: standard 0.4 mm ,optional 0.2/0.6/0.8 mm

Max print speed:150 mm/s

Frame: Metal , glass

Closed print chamber: Yes, fully enclosed

Temperature controlled print chamber: YES

Bed leveling: Automatic / Manual

Print bed: High viscosity fiberboard / Composite Metal ( optional )

Display: 5 inches full color touch screen ( Multi Language)

Firmware:Open-source

Connectivity: USB / SD Card / Wi-Fi ( cell phone)

Requirements

Slicing: Cura , IEMAI 3D ,Simplify 3D, Compatible with other

Operating system(s): Windows 7/8/10 64 bit.

Dimensions and weight

Machine outer dimensions (xyz): 702*624*1580 mm ( 27.6 * 24.5 * 62.6 inches)

Packing dimensions (xyz): 780*690*980*2 mm ( 30.7 *27.1 * 38.5*2 inches)

Net Weight : 238KG ( 524.7 pounds )

Packing Weight : 260 KG ( 573.2 pounds)

Power

100~250V,50~60 Hz , 3000W

Power plug standard: China, Europe, UK, Japan

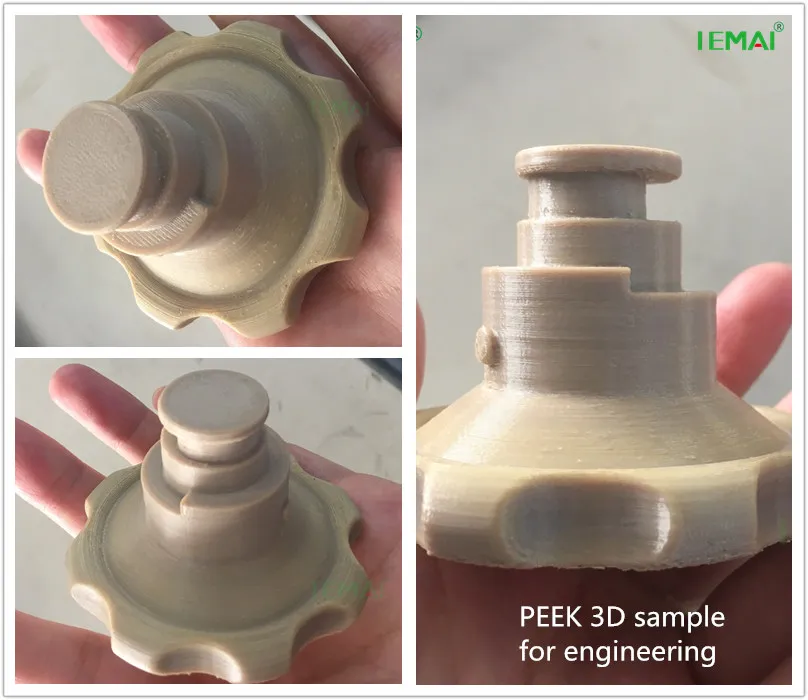

PEEK and high temperature support printing samples

CARBON FIBER PEEK printing sample
