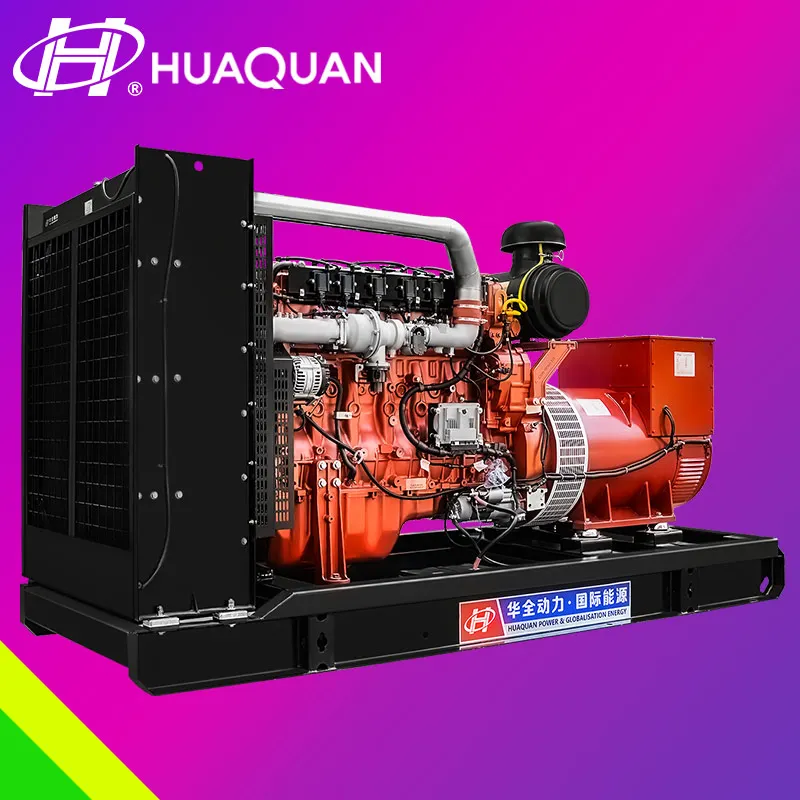

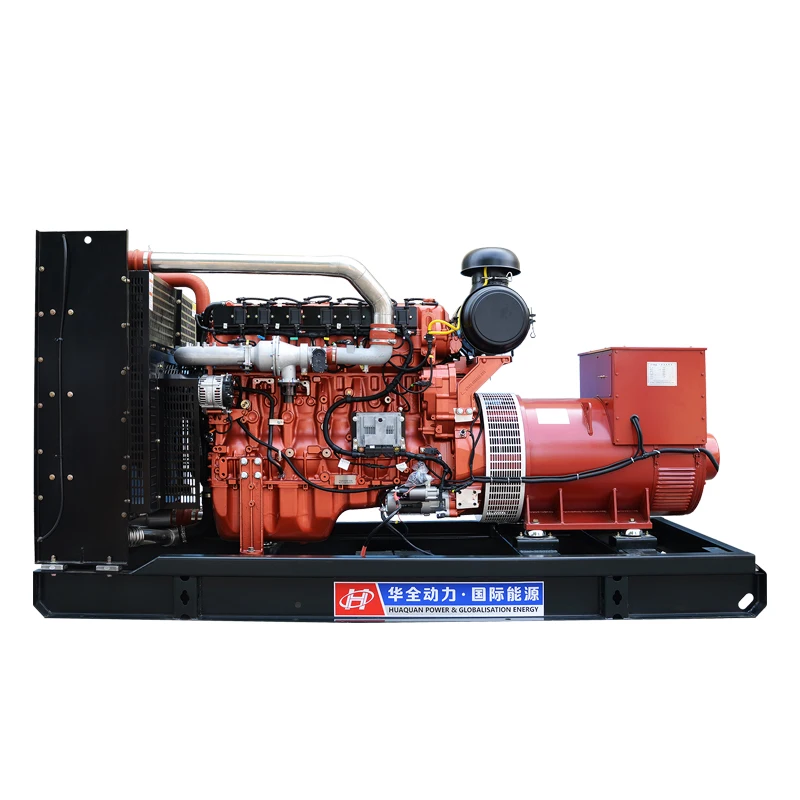

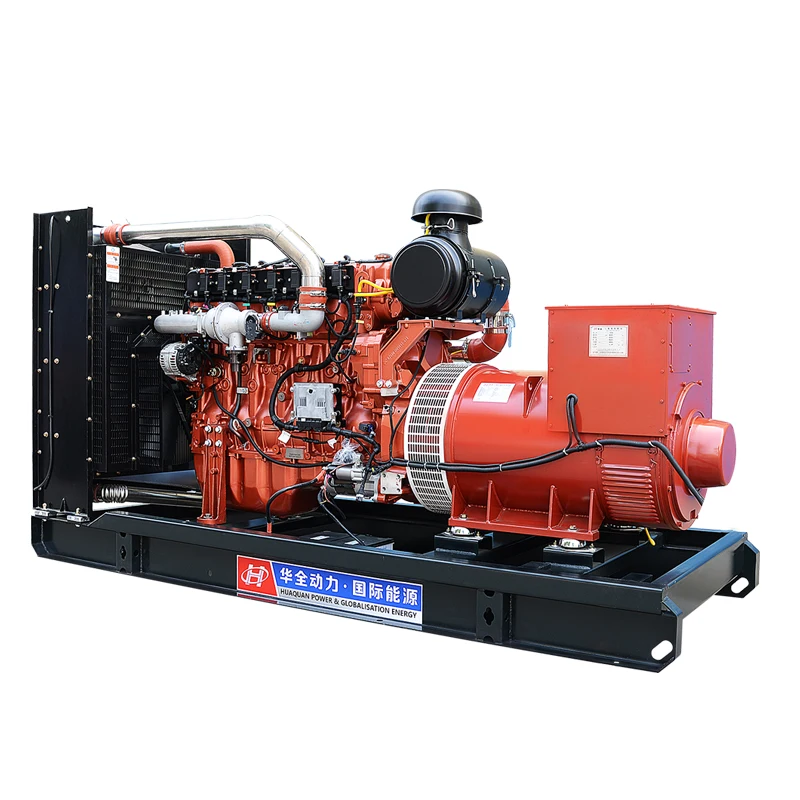

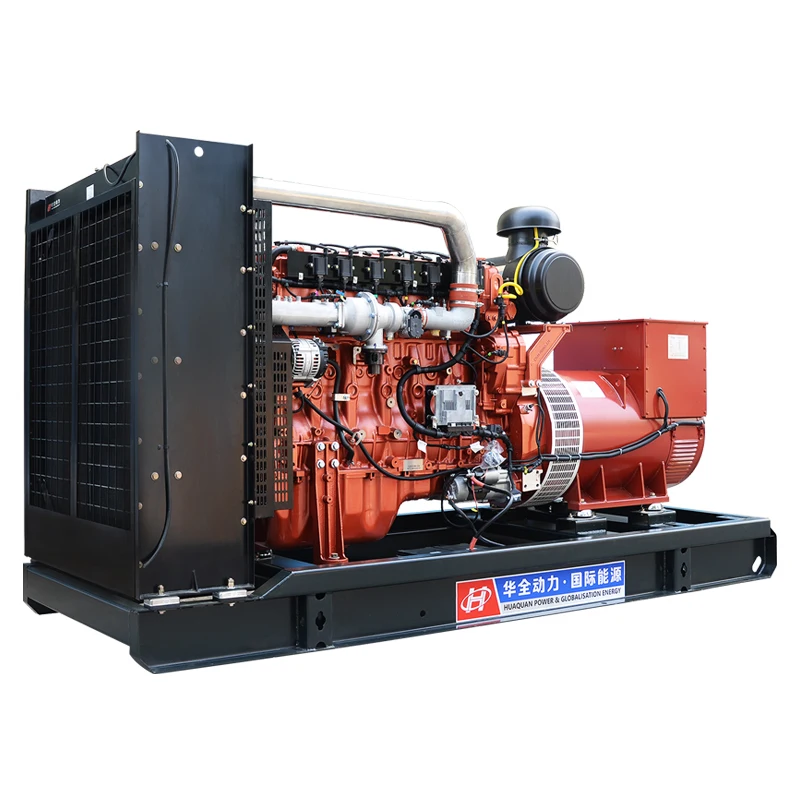

1,Huaquan 250kw gas generator set, dimensions: 2800×850×1600 (L×W×H mm), unit weight: 2100kg. |
2,Use Yuchai gas engine, L-type 6 cylinder, ECU control, spark plug ignition, DC24V electric start mode. |
3,This gas generator set has a fast load response speed and is matched with Huaquan pure copper brushless motor. It has high voltage regulation accuracy and low voltage waveform distortion rate. It can operate reliably under normal load or standby load. |
4,Random information of generator set: original technical documents of gas generator and generator, instruction manual of generator set, test report, etc. |
5,The warranty period of the generator set is: 12 months after the acceptance of the unit's commissioning test or 1000 hours of cumulative operation; whichever comes first. |
|
Unit model: |
HQRQ250GF |
Steady state voltage adjustment rate (%): |
≤± 1 |
Output power: |
250KW |
Voltage fluctuation rate (%): |
≤ ± 0.5 |
Power factor: |
COSΦ = 0.8 (lagging) |
Transient voltage adjustment rate (%): |
+20 ~-15 |
Output voltage: |
400V / 230V |
Voltage stabilization time (s): |
≤1 |
Output current: |
450A |
Steady state frequency adjustment rate (%): |
≤ ± 1 |
Rated frequency: |
50Hz |
Frequency fluctuation rate (%): |
≤ ± 0.5 |
Rated speed: |
1500rpm |
Transient frequency adjustment rate (%): |
+ 10 ~ -7 |
Gas grade: |
LNG/CNG/Biogas |
Frequency stabilization time (S): |
≤3 |
Dimensions: |
2800×850×1600(L×W×H mm) |
gas consumption (100% load): |
0.6L/kW·h |
Start mode: |
2100kg |
Acoustic noise (LP7m): |
≤95dB(A) |
gas engine technical parameters |
Brand/origin: |
Yuchai gas Engine |
Cooling method: |
Closed water-cooling |
Model: |
YC6T420N-D30 |
Oil supply method: |
direct injection |
Number of cylinders / Dare to mention structure: |
6/ L Type |
Speed regulation method: |
ECU control |
Bore stroke: |
123×145 mm |
Intake method: |
Turbocharged |
Compression ratio: |
11.5:1 |
Overload capacity: |
110% |
Weight: |
DC 24V Electric start |
Speed: |
1500rpm |
Technical parameters of generator |
Brand: |
Huaquan Brushless Generator |
Protection level: |
IP22 |
Model: |
HQF-250 |
Wiring mode: |
Three-phase four-wire, Y-connection |
Rated power: |
250kW |
Adjustment method: |
AVR (Automatic Voltage Regulator) |
Rated voltage: |
400V / 230V |
Output frequency: |
50Hz |
Insulation class: |
H class |
Output factor: |
COSΦ = 0.8 (lag) |
Ø Ø EFI internal combustion engine (gas); |
Ø AC synchronous generator(Single Bearing); |
Ø Water Radiator design for 40-45℃ Ambient belt-driven fans and guards; |
Ø Generation output air switch,Standard control panel; |
Ø Steel common base with shock absorber; |
Ø Dry-type air filter fuel filter,oil filter,starting motor,Self-charging alternator; |
Ø starter battery and connecting cables; |
Ø Industrial 9dB muffler and accessories; |
Ø Random information: original technical documents of gas engine and generator, generator set manual, test report, etc.; |
Optional accessories(Extra charged) |
Ø Engine oil,diesel,water jacket,Anti-condensation heater |
Ø Battery floating charger |
Ø Self-protection unit/self-starting control panel |
Ø Tree-remote control panel |
Ø ATS AUTO-loaded transferring screen |
Ø Daily fuel tank,Integral fuel tank |
Ø Waterproof type(Cabinet) |
Ø Mobile trailer(Drip proof) |
Ø Mobile trailer(Silent type) |
|
