24v 0 5 hp dc Солнечный погружной водяной насос цена в
- Категория: Насосы и запчасти >>>
- Поставщик: Taizhou,Waterlink,Pump,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 129.91 $* | 135.90 $* |
| Aug-19-2025 | 127.34 $* | 133.79 $* |
| Jul-19-2025 | 107.66 $* | 112.38 $* |
| Jun-19-2025 | 125.82 $* | 131.13 $* |
| May-19-2025 | 109.76 $* | 114.88 $* |
| Apr-19-2025 | 123.29 $* | 129.77 $* |
| Mar-19-2025 | 122.80 $* | 128.28 $* |
| Feb-19-2025 | 121.3 $* | 127.46 $* |
| Jan-19-2025 | 120.76 $* | 126.94 $* |
Характеристики
Product Description
ADVANTAGES OF DC SOLAR PUMP
1.Permanent magnet DC brushless synchronous motor: The efficiency is improved by 25%;
Save energy; Reduce the consumption of solar panels
2.304 S/S pump shaft
3. Brass or stainless steel outlet/connector/ oil cylinder.
4.Japanese NSK bearing: prolong the working life
5. Double bearing motor base: can work under more axial pressure
6. Alloy mechanical seal: Longer working life and high reliability
7. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved
8.Intelligent water shortage protection: The pump stops working automatically when there is no water in the well,and automatically
start working 30 minutes later

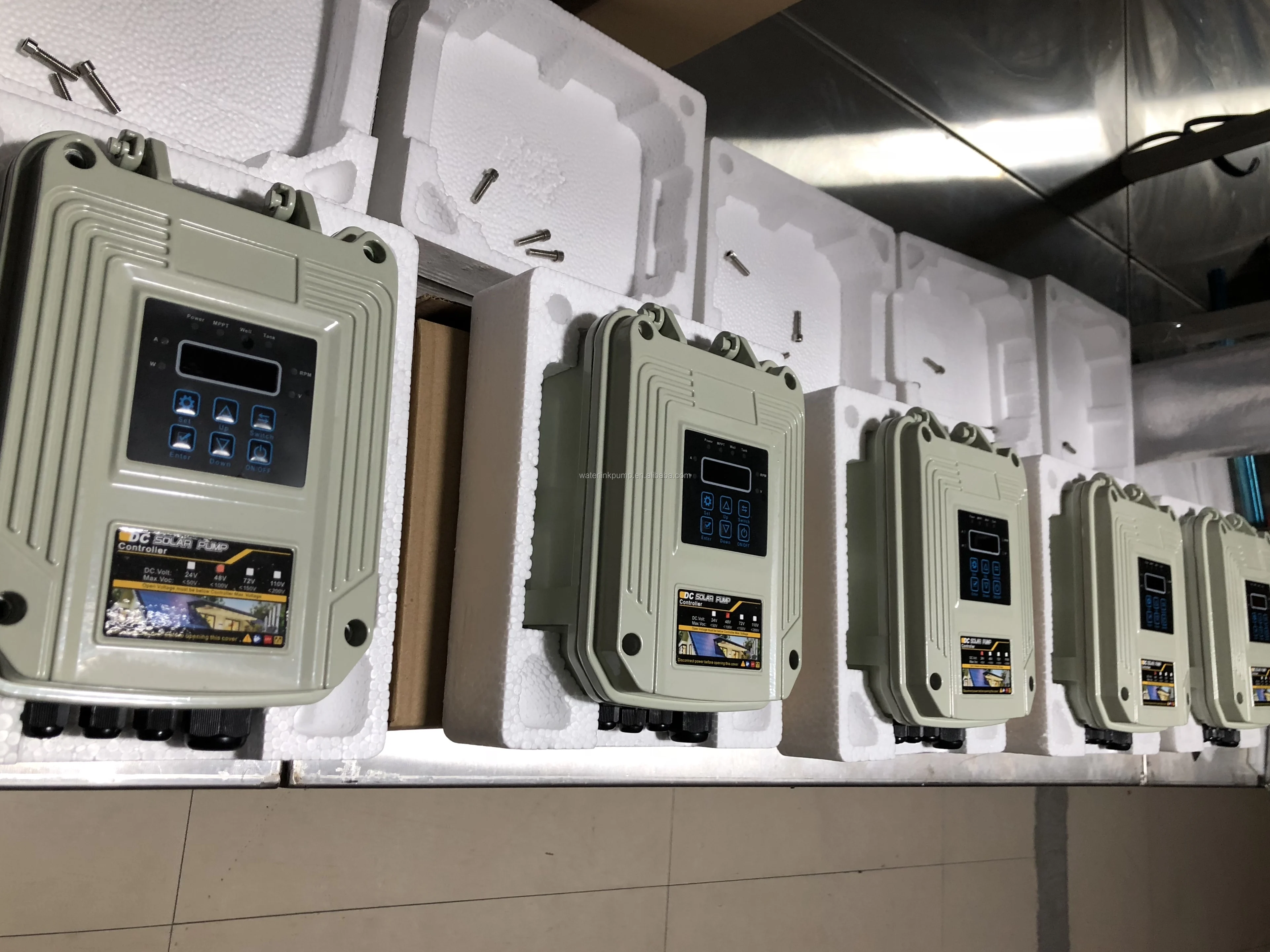

ADVANTAGES OF CONTROLLER
(1)Waterproof grade: IP65
(2) Ambient temperature:-15℃-60℃
(3 )MPPT function, the solar power utilization rate is higher
(4)Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery;And when there is no sunshine,
the battery can make the pump continuously working
(5 )LED displays the power, voltage, current, speed etc working condition
(6 )Frequency conversion function: It can automatically run with frequency conversion according to the solar power and user also
can change the speed of pump manually
(7)Automatically start and stop working
(8)Water proof and leak-proof: Double seal effect
(9 )Soft start: No impulse current, protect the pump motor.
(10)High voltage/Low voltage/Over-current/High temperature protection
1.Permanent magnet DC brushless synchronous motor: The efficiency is improved by 25%;
Save energy; Reduce the consumption of solar panels
2.304 S/S pump shaft
3. Brass or stainless steel outlet/connector/ oil cylinder.
4.Japanese NSK bearing: prolong the working life
5. Double bearing motor base: can work under more axial pressure
6. Alloy mechanical seal: Longer working life and high reliability
7. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved
8.Intelligent water shortage protection: The pump stops working automatically when there is no water in the well,and automatically
start working 30 minutes later
ADVANTAGES OF CONTROLLER
(1)Waterproof grade: IP65
(2) Ambient temperature:-15℃-60℃
(3 )MPPT function, the solar power utilization rate is higher
(4)Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery;And when there is no sunshine,
the battery can make the pump continuously working
(5 )LED displays the power, voltage, current, speed etc working condition
(6 )Frequency conversion function: It can automatically run with frequency conversion according to the solar power and user also
can change the speed of pump manually
(7)Automatically start and stop working
(8)Water proof and leak-proof: Double seal effect
(9 )Soft start: No impulse current, protect the pump motor.
(10)High voltage/Low voltage/Over-current/High temperature protection
Specification
Model | Voltage (v) | Power (w) | Max flow (m3/h) | Max head (m) | Outlet (inch) |
3SC3-25-24-200 | 24 | 200 | 3 | 35 | 1.25" |
3SC3-35-24-300 | 24 | 300 | 3 | 35 | 1.25" |
3SC3.5-47-48-400 | 48 | 400 | 3.5 | 47 | 1.25" |
3SC3.5-80-48-600 | 48 | 600 | 3.5 | 80 | 1.25" |
3SC3.5-80-72-600 | 72 | 600 | 3.5 | 80 | 1.25" |
3SC3.5-95-48-750 | 48 | 750 | 3.5 | 95 | 1.25" |
3SC3.5-95-72-750 | 72 | 750 | 3.5 | 95 | 1.25" |
3SC3.8-123-72-1100 | 72 | 1100 | 3.8 | 123 | 1.25" |
3SC3.8-123-110-1100 | 110 | 1100 | 3.8 | 123 | 1.25" |
3SC3.8-155-110-1300 | 110 | 1300 | 3.8 | 155 | 1.25" |
3SC3.8-180-110-1500 | 110 | 1500 | 3.8 | 180 | 1.25" |
3SC5-45-48-500 | 48 | 500 | 5 | 45 | 1.5" |
3SC5.2-50-48-600 | 48 | 600 | 5.2 | 50 | 1.5" |
3SC5.2-50-72-600 | 72 | 600 | 5.2 | 50 | 1.5" |
3SC5.2-75-110-750 | 110 | 750 | 5.2 | 75 | 1.5" |
3SC5.5-65-72-750 | 72 | 750 | 5.5 | 65 | 1.5" |
3SC5.5-65-110-750 | 110 | 750 | 5.5 | 65 | 1.5" |
3SC6-84-110-1100 | 110 | 1100 | 6 | 84 | 1.5" |
3SC6-125-110-1500 | 110 | 1500 | 6 | 125 | 1.5" |
3SC7-46-72-750 | 72 | 750 | 7 | 46 | 1.5" |
3SC7-46-110-750 | 110 | 750 | 7 | 46 | 1.5" |
3SC7.5-62-110-1100 | 110 | 1100 | 7.5 | 62 | 1.5" |
3SC7.5-78-110-1500 | 110 | 1500 | 7.5 | 78 | 1.5" |
Outlet:
-Brass
-Stainless steel
Joint/ oil chamber:
-Brass
-Stainless steel
MPPT controller:
-High voltage/Low voltage/ Over-current/High temperature protection
How to select the suitable model?
1. Where will the pump be used?
e.g.: Borehole.
2. How much water demand(liters or gallon or m3)required per day(suppose 6-8H working time) or per hour?
e.g.:5000 liters per hour
3.The depth from the pump to the ground?(H1)
e.g.:20m
4. The height from the ground to the water tank?(H2)
e.g.:30m
5. The horizontal distance from the well to the water tank?(H3)
e.g.:50m
The pumping head=H1+H2+H3/10
The pumping flow=per day flow/6hours=per hour flow
Packing & Delivery
Export standard carton or wooden box
Company Profile
WATERLINK PUMP Co.,LTD was established to meet a major need in the pump trading market: consistently high quality products, shipment on time, and competitive price.
With combined sales/marketing experience in the pump business of 10 years, we started own manufacturer of series water pumps, including solar pump, deep well pump, peripheral pumps, centrifugal pumps, self-priming pump, JET pump, submersible pumps, etc. We are consistently looking for better ways to improve our lineup of products to meet the demands of today's market. All products are tested to the highest standards.
Based on the wide and professional raw material sources and our strict concern on quality control, our experienced team can fulfill all your demand and guarantee you the most competitive prices.
With combined sales/marketing experience in the pump business of 10 years, we started own manufacturer of series water pumps, including solar pump, deep well pump, peripheral pumps, centrifugal pumps, self-priming pump, JET pump, submersible pumps, etc. We are consistently looking for better ways to improve our lineup of products to meet the demands of today's market. All products are tested to the highest standards.
Based on the wide and professional raw material sources and our strict concern on quality control, our experienced team can fulfill all your demand and guarantee you the most competitive prices.
FAQ
01About the sample
Samples are available, the buyer is expected to cover the sample cost and freight cost.
02 About payment term
T/T:30% deposit in advance, balance against B/L copy.
L/C: L/C at sight or L/C 30days.
03 About delivery term
On receipt of deposit,7days for sample order/25-30days for bulk order.
04 About OEM
OEM packing is available only if the quantity of single model reaches 500pcs.
If not, it is expected that the buyers will pay the OEM packing charges extra.
05 About warranty
We offer 2-year warranty for solar pump and 1 year warranty for AC pumps, since the date the goods arrive the destination warehouse.
Samples are available, the buyer is expected to cover the sample cost and freight cost.
02 About payment term
T/T:30% deposit in advance, balance against B/L copy.
L/C: L/C at sight or L/C 30days.
03 About delivery term
On receipt of deposit,7days for sample order/25-30days for bulk order.
04 About OEM
OEM packing is available only if the quantity of single model reaches 500pcs.
If not, it is expected that the buyers will pay the OEM packing charges extra.
05 About warranty
We offer 2-year warranty for solar pump and 1 year warranty for AC pumps, since the date the goods arrive the destination warehouse.
