Широко используемый JT4-2 аллювиальный сепаратор золотого концентрата производство Jigger Авто jigging джиг пила машина в
- Категория: Минеральный сепаратор >>>
- Поставщик: Jiangxi,JXSC,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 1904.12 $* | 1999.37 $* |
| Aug-15-2025 | 1888.23 $* | 1982.35 $* |
| Jul-15-2025 | 1584.84 $* | 1663.80 $* |
| Jun-15-2025 | 1856.34 $* | 1949.25 $* |
| May-15-2025 | 1616.53 $* | 1697.47 $* |
| Apr-15-2025 | 1824.89 $* | 1915.80 $* |
| Mar-15-2025 | 1808.22 $* | 1898.67 $* |
| Feb-15-2025 | 1792.93 $* | 1882.91 $* |
| Jan-15-2025 | 1776.45 $* | 1865.64 $* |
Характеристики
Product Description

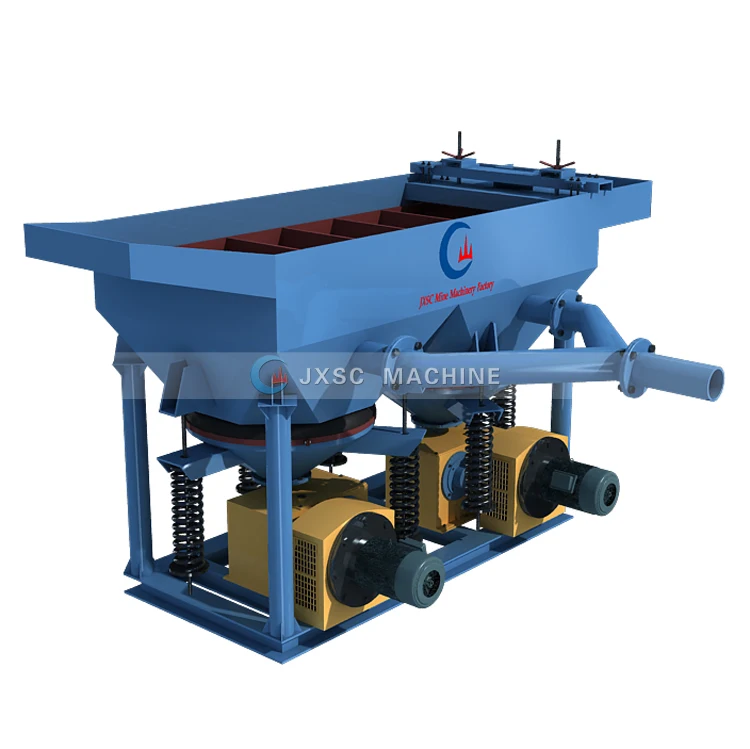

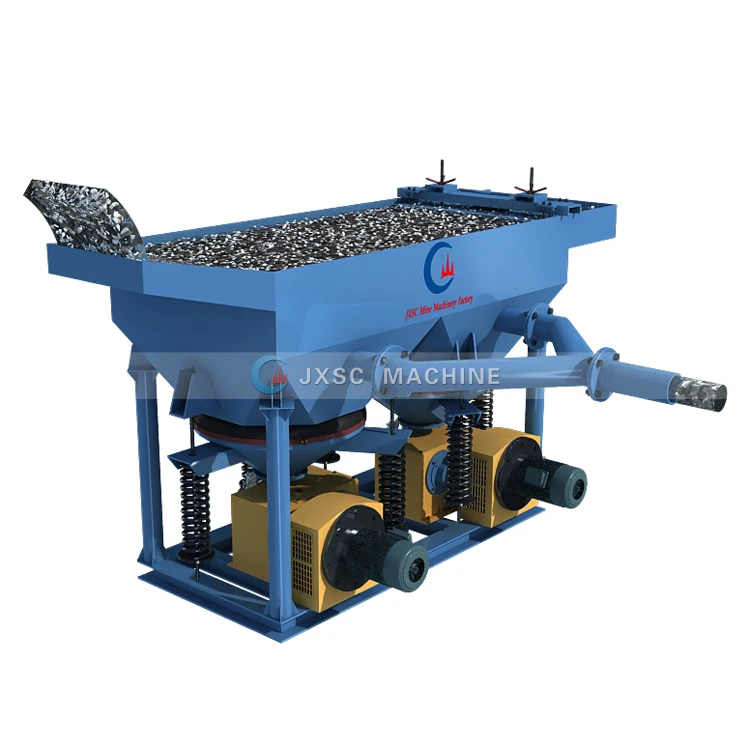

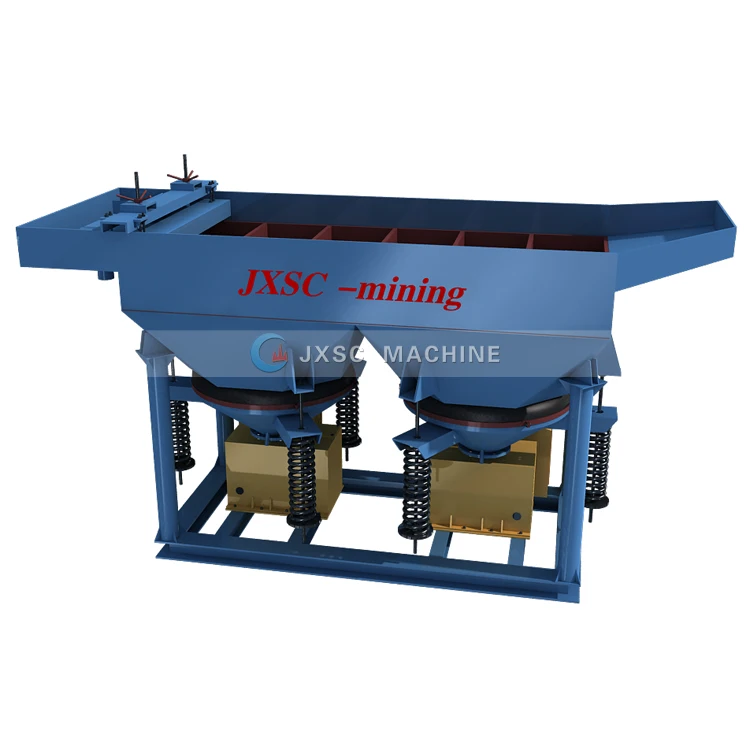

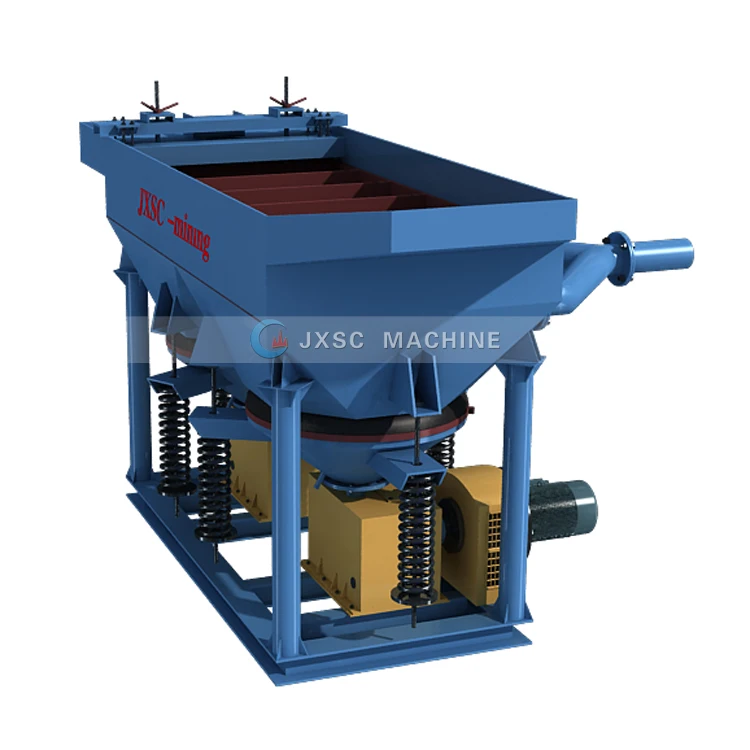

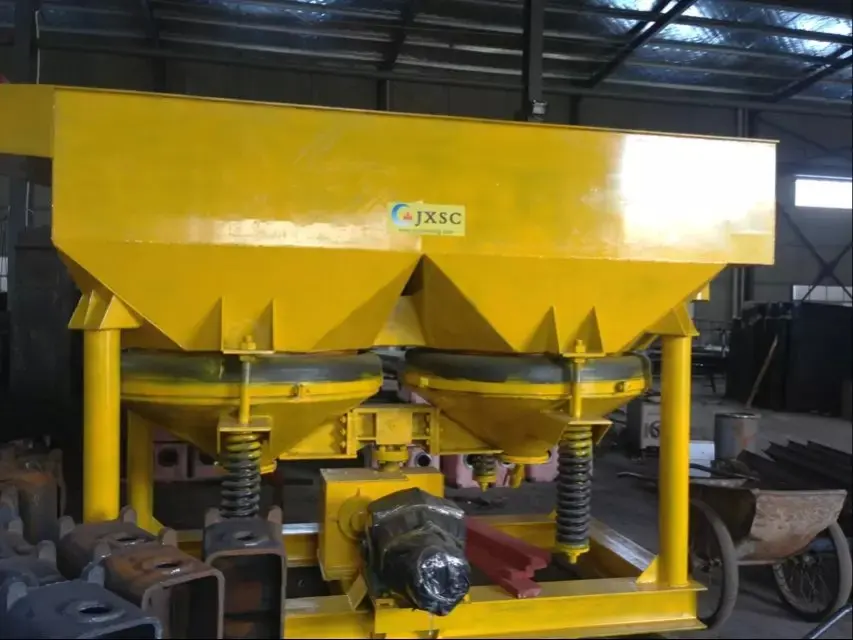

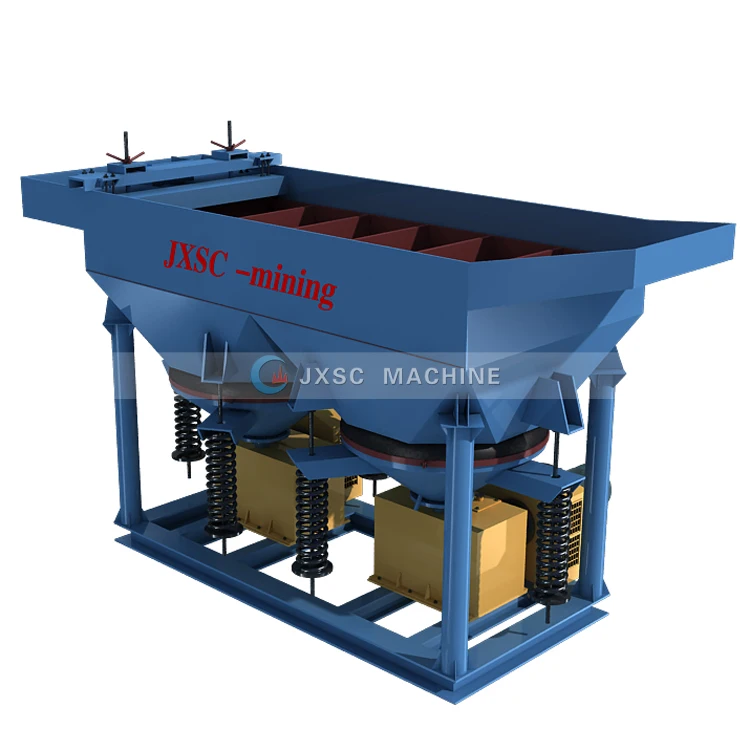

High Efficient Gold Mining Equipment JT4-2 Alluvial Gold Concentrate Separator Manufacture Jigger auto jigging Jig Machine
jig concentration machine:
JXSC jig concentration machine is energy-saving gravity separation equipment, which is developed according to the law of layer theory of jigger bed stratification. The performance of saw-tooth Jig has reached the domestic advanced level, the jig separator is one of the ideal devices in energy-saving gravity separation.
Procesible Material: gold ore/coltan ore/ tin ore/ tungsten ore/ diamond ore/ barite ore/ iron ore/ manganese ore,ect.
Mining Machinery Gravity Beneficiation Equipment Jig Concentrator for Gold/ Coltan/ Tin/ Diamond:
Capacity: 1-16 TPH as per requested
Procesible Material: gold ore/coltan ore/ tin ore/ tungsten ore/ diamond ore/ barite ore/ iron ore/ manganese ore,ect.
Jig Separator Application
Mainly applied for placer gold, alluvila gold, tantalum-niobium, titanium, coltan ore, tungsten, iron, tin, hematite, cope,
manganese, barite, zirconium and chrome etc concentration.
manganese, barite, zirconium and chrome etc concentration.
jig machine features:
1.High capacity, high concentration ratio and high recovery ratio.
2.Fabricated with highest quality material
3.Easy to install, operate and maintain
4.Water conservation ,Saving water 30-40% than ordinary jig.
5.The pulsation speed very easy adjusted by regulator
6.Suitable to separate out big and small size heavy minerals.
1.High capacity, high concentration ratio and high recovery ratio.
2.Fabricated with highest quality material
3.Easy to install, operate and maintain
4.Water conservation ,Saving water 30-40% than ordinary jig.
5.The pulsation speed very easy adjusted by regulator
6.Suitable to separate out big and small size heavy minerals.
Technical data
Model | Jig Area (M2) | Stroke (R/Min) | Feeding size (mm) | Hutch Water ( T/H) | Pressure Water (kg/cm2) | Capacity (T/H) | Power (KW) | Overall dimensions (mm) | Weight (T) |
JT0.57-1 | 0.57 | 60-160 | <6 | 1-2 | ≥0.3 | 1-2.5 | 1.5 | 1560x820x1550 | 0.612 |
JT1-1 | 1.04 | 60-160 | <10 | 2-3 | ≥0.3 | 4-10 | 2.2 | 1322x1190x1915 | 0.9 |
JT2-2 | 2.28 | 60-160 | <10 | 2-4 | ≥0.3 | 8-15 | 3 | 3225x1550x2150 | 1.637 |
JT4-2 | 4 | 50-125 | <10 | 4-8 | ≥0.1 | 8-16 | 7.5 | 4240x1990x2750 | 4.6 |
JT4-2A | 4 | 50-125 | <10 | 4-8 | ≥0.1 | 8-16 | 8 | 4240x1990x2750 | 4.6 |
JT5-2 | 4.86 | 80-120 | <10 | 4-10 | ≥0.1 | 10-20 | 7.5 | 3940x2006x2580 | 4.6 |
Products Application
Jig Separator Mainly applied for placer gold, alluvial gold, tantalum-niobium, titanium, coltan ore, tungsten, iron, tin,
hematite, cope, manganese, barite, zirconium, etc.
hematite, cope, manganese, barite, zirconium, etc.
JXSC 100TPH Tantalum Niobium Project in Uganda
Capacity:100tph
site:Uganda
mineral:Tantalum niobium
machine:hopper,jig separator,belt conveyor,vibrating feeder,vibrating screen,pumps etc
We designed and offered the whole processing plant equipments,and offered the engineer there for commissioning and guidance.
Capacity:100tph
site:Uganda
mineral:Tantalum niobium
machine:hopper,jig separator,belt conveyor,vibrating feeder,vibrating screen,pumps etc
We designed and offered the whole processing plant equipments,and offered the engineer there for commissioning and guidance.
jig machine application
We have provided jig machine for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa, Uganda, Zambia, Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant, diamond washing plant, Iron ore washing plant,ect.
We have provided jig machine for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa, Uganda, Zambia, Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant, diamond washing plant, Iron ore washing plant,ect.
Packaging & Delivery
Jig concentration machine Packing/Loading
1. Some machines spare parts would be packed in wooden boxes to avoid broken.
2. Usually the machines are fixed and loaded in container directly.
1. Some machines spare parts would be packed in wooden boxes to avoid broken.
2. Usually the machines are fixed and loaded in container directly.
Company & Fair
Jiangxi Shicheng Mine Machinery Co., Ltd,
are a professional manufacturer of complete set mining equipment, a sub-company of JXSC mine machinery factory in Jiangxi province.
We are very professional at providing complete set processing equipment for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, etc. As well as complete set small lab mining machines.
Our Main product including trommel screen, trommel scrubber, shaking table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, jaw crusher, hammer crusher, ball mill, flotation machine, spiral classifier. as well as complete set small laboratory mining equipment.
Our main market is in Africa, South Amercia, Southeast Asia, Asia,ect. Our cooperated customers cover Mali, Ghana, Sudan , Uganda, Mozambique, Suriname, Zambia, Nigeria, Cameroon, Madagascan, Malasia, Indonesia, Korea, Philippines, Monglia, Singapore, India, Mexico, Brazil, Chile, Peru, Spain, Canada, Australia, U.S, UAE, etc.
Plant and machine processing capacity can be customized from 1TPH to 300TPH, and accept OEM service.
are a professional manufacturer of complete set mining equipment, a sub-company of JXSC mine machinery factory in Jiangxi province.
We are very professional at providing complete set processing equipment for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, etc. As well as complete set small lab mining machines.
Our Main product including trommel screen, trommel scrubber, shaking table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, jaw crusher, hammer crusher, ball mill, flotation machine, spiral classifier. as well as complete set small laboratory mining equipment.
Our main market is in Africa, South Amercia, Southeast Asia, Asia,ect. Our cooperated customers cover Mali, Ghana, Sudan , Uganda, Mozambique, Suriname, Zambia, Nigeria, Cameroon, Madagascan, Malasia, Indonesia, Korea, Philippines, Monglia, Singapore, India, Mexico, Brazil, Chile, Peru, Spain, Canada, Australia, U.S, UAE, etc.
Plant and machine processing capacity can be customized from 1TPH to 300TPH, and accept OEM service.
Engineers abroad
We can send engineers to guide the installation and provide perfect after-sales service
Exhibition & Fair
Our company have attended many mining fairs, in Ghana, Nigeria, South Africa, Peru, Indonesia, Russia, Mongolia, U.S, Morocco, Australia, Kazakhstan, Tanzania etc. Our footprint all over the continents just wanna serve our clients well. Moreover, we have an overseas office in Tanzania, the service can cover the whole Africa continent, pre-sales prospecting, testing, after-sales installation are available and easier.
Our company have attended many mining fairs, in Ghana, Nigeria, South Africa, Peru, Indonesia, Russia, Mongolia, U.S, Morocco, Australia, Kazakhstan, Tanzania etc. Our footprint all over the continents just wanna serve our clients well. Moreover, we have an overseas office in Tanzania, the service can cover the whole Africa continent, pre-sales prospecting, testing, after-sales installation are available and easier.
Our customer
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.How about the Guarantee:
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
3.What is the price?
Answer: It's different from each machines, trommel scrubber, trommel screen, shaking table, jig machine separator, centrifugal concentrator, spiral chute, vibrating feeder, cone crusher, jaw crusher, impact crusher, sand making machine etc. For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.If you can help to make the flowchart?
Answer: Yes, sure. We'de will to make the flowchart design accroding to each clients mineral situation, totally for FREE!
Moreover, our engineer can go abroard guiding the installation.
5.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.de bottle oil bottle cosmetics, wide-mouth
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.How about the Guarantee:
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
3.What is the price?
Answer: It's different from each machines, trommel scrubber, trommel screen, shaking table, jig machine separator, centrifugal concentrator, spiral chute, vibrating feeder, cone crusher, jaw crusher, impact crusher, sand making machine etc. For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.If you can help to make the flowchart?
Answer: Yes, sure. We'de will to make the flowchart design accroding to each clients mineral situation, totally for FREE!
Moreover, our engineer can go abroard guiding the installation.
5.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.de bottle oil bottle cosmetics, wide-mouth
