Б/у Sinotruk 8x4 автокран 12 тонн бум

Цена:*

Количество:

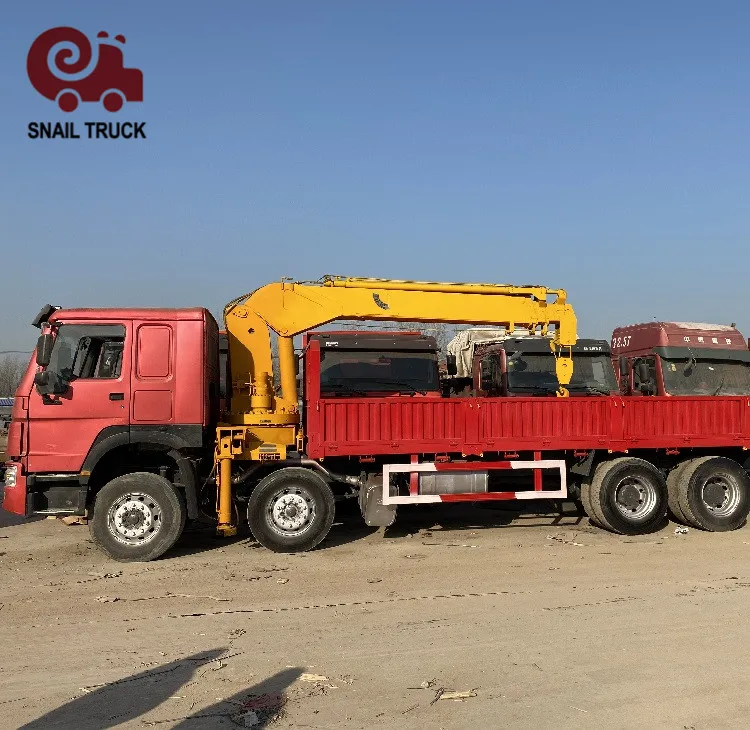

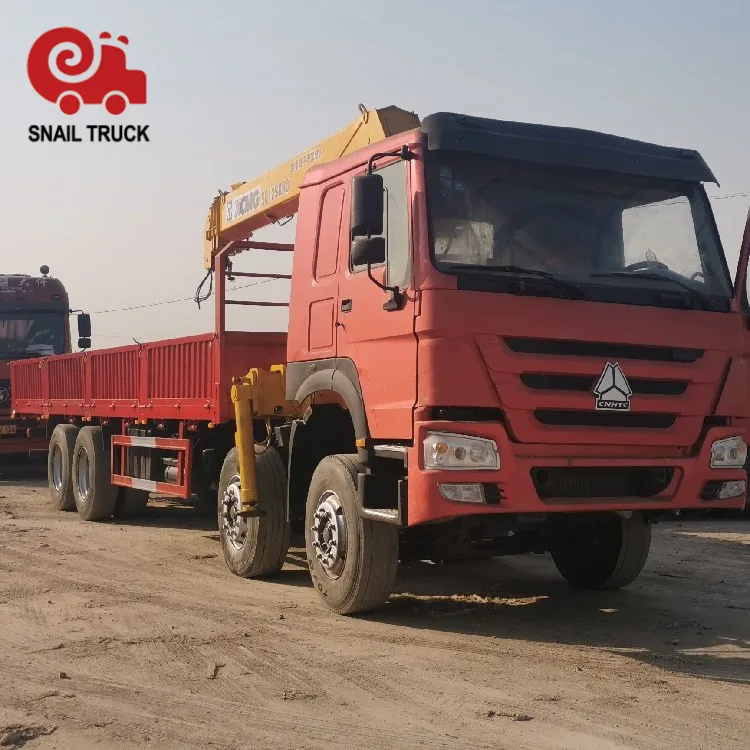

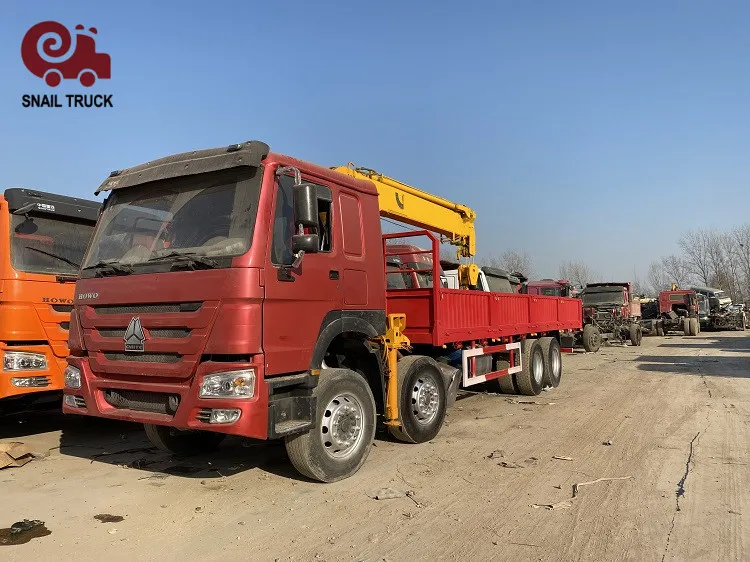

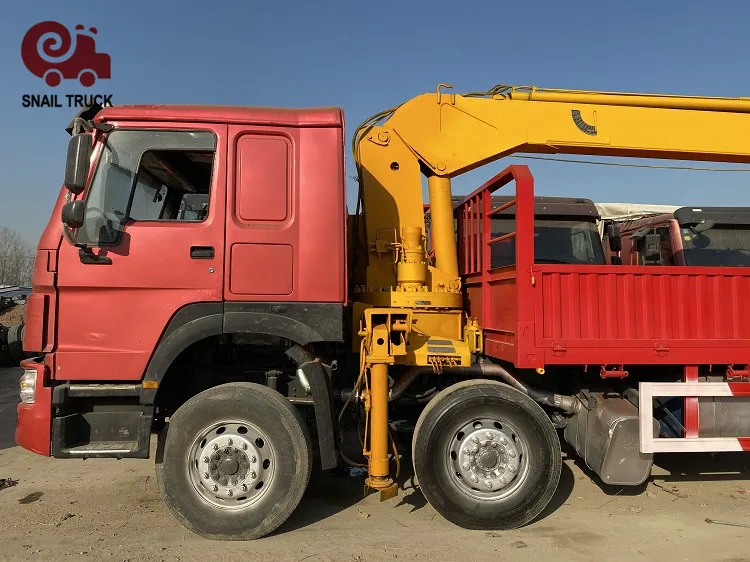

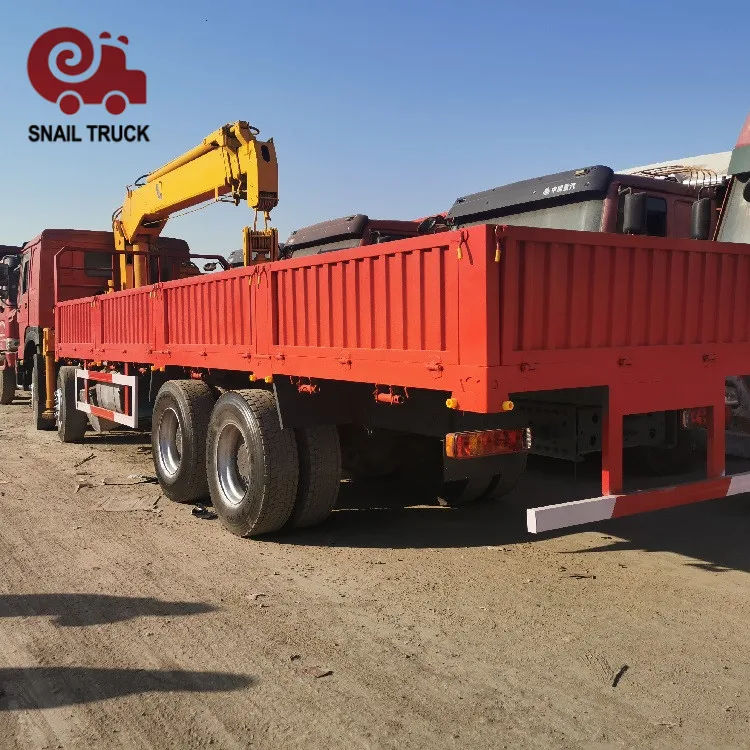

Used Sinotruk 8x4 Truck crane 12 ton boom truck crane price rane

Product Description

SPECIFICATION FOR CRANE
Max Lifting Capacity		12000 kg
Max Lifting Moment		30 T.M
Max Pressure of Hydraulic System		26 MPa
Rotation Angle		All Rotation
Max.Working radius (m)		12.5 m
SPECIFICATION FOR CHASSIS
Dimension(Lx W xH)(unloaded)(mm)		12484×2496×4125
Loading Capacity (Ton)		31 Ton
Cargo body size (LxWxH) (mm)		8500×2300×600 ,Bottom 3 mm, Side 2 mm
Approaching angle/Departure angle(°)		16/14
Overhang(front/rear) (mm)		1500/2734
Wheel base (mm)		1800+4600+1350
Max speed(km/h)		102
Curb weight(kg)		18876
Engine(Steyr technology, made in China)	Model	WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection
	Fuel type	Diesel
	Power, max(kw/rpm)	375HP
	Emission	EUROII
Fuel tanker capacity(L)		400L aluminum oil tank
Transmission		Model	HW19710, 10 speeds forward and 2 reverse
Brake system		Service brake	Dual circuit compressed air brake
Steering system		Model	ZF8118
Front axle		HF9
Rear axle		HC16
Tire		12.00R20 (Radial Tyre)
