Высокое качество низкий уровень шума мотор-редуктор 48v 500w Водонепроницаемый сделай сам фара для электровелосипеда в моторный конверсионный набор электрического горного
- Категория: Electric Bicycle Kit >>>
- Поставщик: Changzhou,Langyan,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 151.25 $* | 154.85 $* |
| Jul-18-2025 | 123.92 $* | 125.56 $* |
| Jun-18-2025 | 149.70 $* | 152.19 $* |
| May-18-2025 | 148.30 $* | 151.58 $* |
| Apr-18-2025 | 118.99 $* | 120.72 $* |
| Mar-18-2025 | 145.26 $* | 148.15 $* |
| Feb-18-2025 | 144.58 $* | 147.28 $* |
| Jan-18-2025 | 143.84 $* | 146.28 $* |
Характеристики

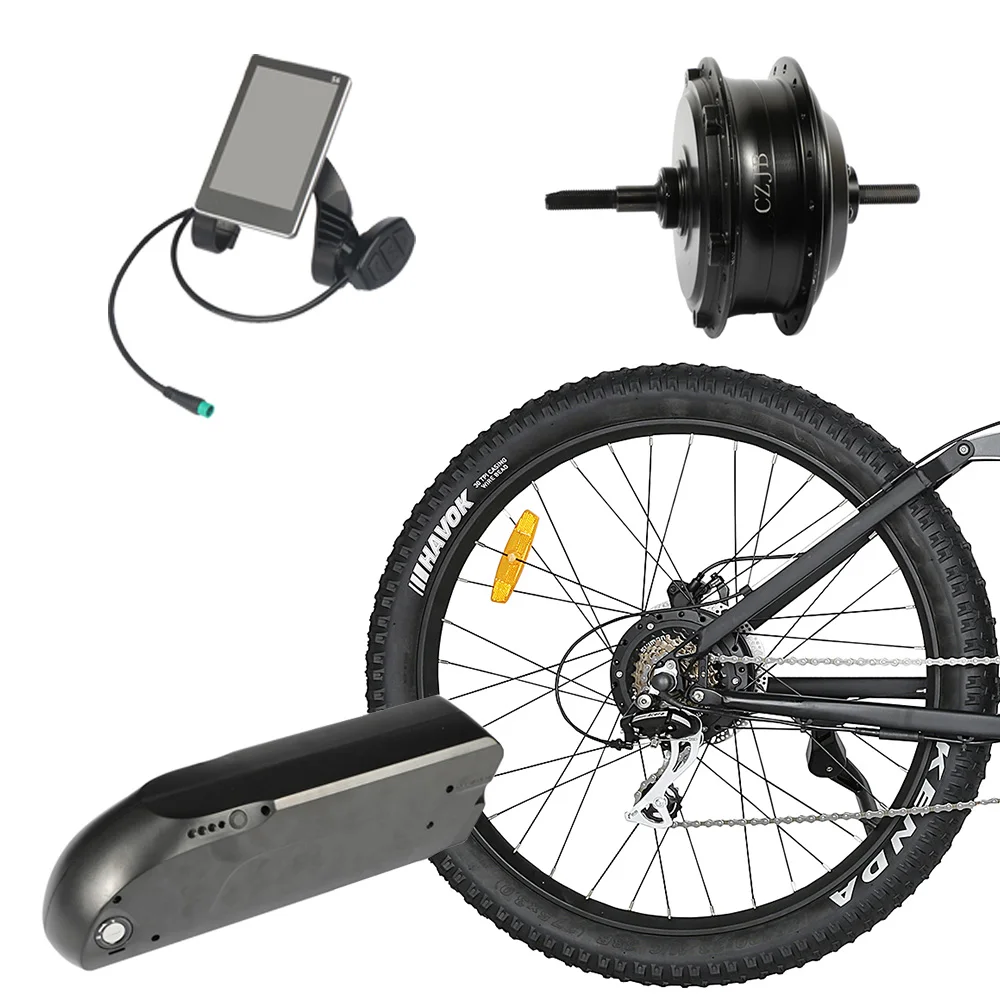

Hot sale low noise bldc motor 48v 500w wheel hub motor ebike electric conversion kit for mountain ebike
Hub Motor | 36V/48V ,250W-500W ,25km/h |
E-Brake | Left Brake&Right Brake , waterproof cable 300mm(You can ask for a brake sensor instead .) |
Throttle | Full twitst, half thumb throttle,waterproof cable 300mm |
Controller | 6 mosfet sinewave controller,22A waterproof cables 110m size:110*65*30mm |
Display | Smart LCD display,waterproof cable 300mm |
PAS | 1:1PAS,separated 12 magnets waterproof cable 1000mm |
1T4 integrated cable | 1500mm waterproof cable |
Extension cable | 1.2*850mm waterproof cable |
Battery | Bottle， Down tube, Rear Rack battery |
Headlight | Optional |
Products Description
24V/36v/48v
250W-500W
Rated Speed: 25Km/h
Wheel size: 16-28 inch
Dropout:135mm
Cable Location: Shaft Center Left
Waterproof Grade: IP65
250W-500W
Rated Speed: 25Km/h
Wheel size: 16-28 inch
Dropout:135mm
Cable Location: Shaft Center Left
Waterproof Grade: IP65
Rear gear motor use for electric mountain ,city ebike
use helical gear,climbing will be better
use helical gear,climbing will be better
6 mosfet sinewave controller,22A
waterproof cables 110msize:110*65*30mm
SMART LCD DISPLAY
Plug : 5 pin male connector
Color : Black
Cable Length : Waterproof 300mm cable without the connector)
Plug : 5 pin male connector
Color : Black
Cable Length : Waterproof 300mm cable without the connector)
1:1PAS,separated 12 magnets waterproof cable 1000mm
Motor extension waterproof cable 800mm
1T4 ebus waterproof
cable 1500mm
Nine pins waterproof cables(1.2 square for 250w/350w;1.5 square for 500w/750w)
If you need longer cables,customize is possible.We also can provide motor extension cables.
INSTALLATION SPECIFICATIONS

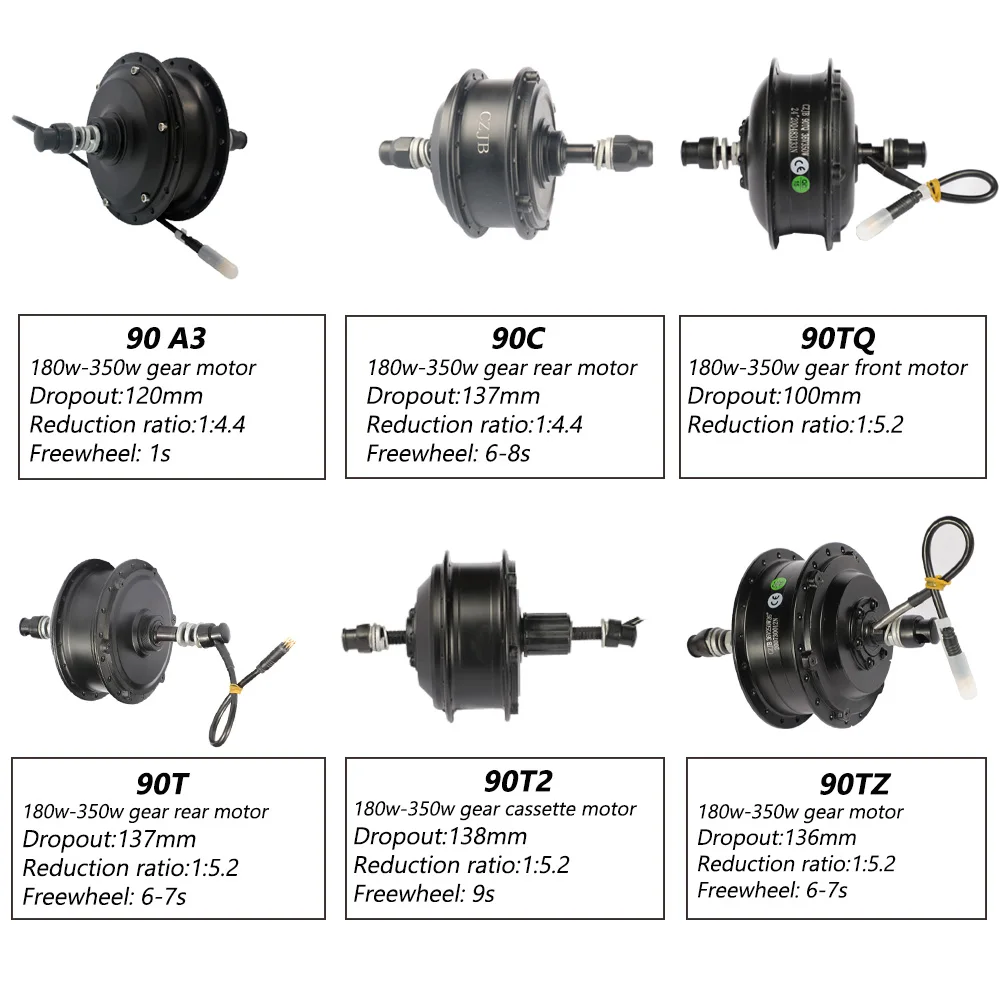

250W-500W KIT MOTOR FOR OPTIONAL
CZJB 105C Rear motor
250-500W
Shaft center right
Open size:135mm
Freewheel:6-7s
CZJB 105C2 Cassette Rear motor
250-500W
Shaft center right
Open size:139mm
Freewheel:6-9s
CZJB 105CQ Front motor
250-500W
Shaft center right
Open size:100mm
CZJB 105CZ Rear motor
250-500W
Shaft center left
Open size:138mm
Freewheel:6-7s
THROTTLE FOR OPTIONAL
Thumb throttle
Half throttle
Full twist throttle
BATTERY FOR OPTIOANL
Bottle battery
36V 8.8AH samsung cells
36V 10.4AH samsung cells
36V 11.6AH samsung cells
Down tube battery
36V 8.8AH samsung cells
36V 10.4AH samsung cells
36V 11.6AH samsung cells
Rear rack battery
36V 11.6AH samsung cells
36V 13AH samsung cells
Recommend Products
Product Application
Company Profile
Certifications
Product packaging
FAQ
1.A:Frame dropout?
B:rear hub motor is 135mm,front hub motor is 100mm
2.A:How much wheel size you need?
B:PLese tell us wheel size you need,because differernt wheel size,differernt freight cost.
We use 1.75-2.125 rim.If snow hub motor and big power hub motor for fat bike,use 4.0 rim.
You can choose single rim or doube rim.
3.A:connected cables?
B:You can choose normal or waterproof cables,waterproof cables need to pay addtional charges.
4.A:Battery connector?
B:If you buy battery from other suppliers,please note battery conntector to connected with controller.
5.A:speed?
B: 25km/h,if you want to other speed,if possible for hub motor,it is ok according your requirements.
6.A:sample?
B:One sample is possible,you can try to test quality.100% payment before sample production.
7.A:choose motor specifications?
B:please tell us voltage/power/speed/wheel size/colour for hub motor,spoke,rim/front or rear;
We will recommend suitable hub motors for you.
8.A:ODM,OEM?
B:it is possible.
9.A:production and delivery time?
B:if sample,motor is 10-15days,ebike kit is 25-30days;if orders,motor is 15-20days,ebike convension kit 30days according
quantities and requiremnts.
B:rear hub motor is 135mm,front hub motor is 100mm
2.A:How much wheel size you need?
B:PLese tell us wheel size you need,because differernt wheel size,differernt freight cost.
We use 1.75-2.125 rim.If snow hub motor and big power hub motor for fat bike,use 4.0 rim.
You can choose single rim or doube rim.
3.A:connected cables?
B:You can choose normal or waterproof cables,waterproof cables need to pay addtional charges.
4.A:Battery connector?
B:If you buy battery from other suppliers,please note battery conntector to connected with controller.
5.A:speed?
B: 25km/h,if you want to other speed,if possible for hub motor,it is ok according your requirements.
6.A:sample?
B:One sample is possible,you can try to test quality.100% payment before sample production.
7.A:choose motor specifications?
B:please tell us voltage/power/speed/wheel size/colour for hub motor,spoke,rim/front or rear;
We will recommend suitable hub motors for you.
8.A:ODM,OEM?
B:it is possible.
9.A:production and delivery time?
B:if sample,motor is 10-15days,ebike kit is 25-30days;if orders,motor is 15-20days,ebike convension kit 30days according
quantities and requiremnts.
