Трехфазный аэратор для рыбного пруда и очистка воды 2 кВт 3
- Категория: Воздуходувка >>>
- Поставщик: Dongguan,Foersheng,Intelligent,M&E,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 188.37 $* | 197.87 $* |
| Aug-20-2025 | 186.62 $* | 195.43 $* |
| Jul-20-2025 | 156.56 $* | 164.49 $* |
| Jun-20-2025 | 183.11 $* | 192.99 $* |
| May-20-2025 | 160.27 $* | 168.88 $* |
| Apr-20-2025 | 180.62 $* | 189.28 $* |
| Mar-20-2025 | 179.85 $* | 188.68 $* |
| Feb-20-2025 | 177.1 $* | 186.98 $* |
| Jan-20-2025 | 175.20 $* | 184.41 $* |
Характеристики

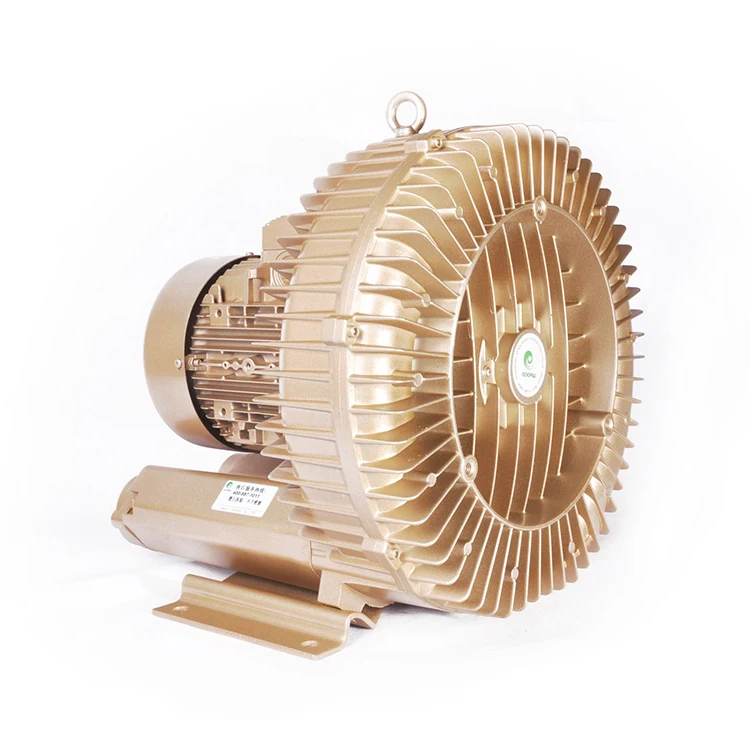

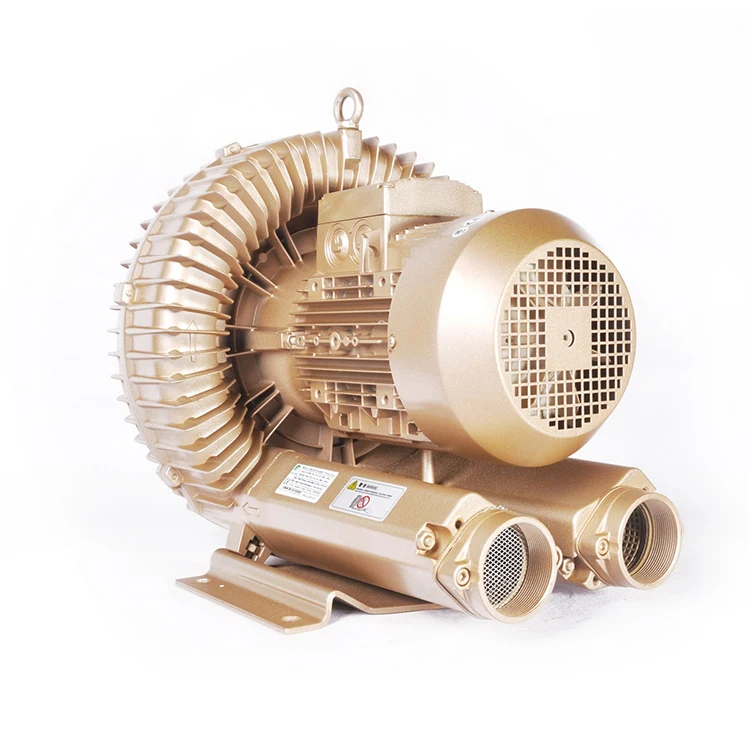

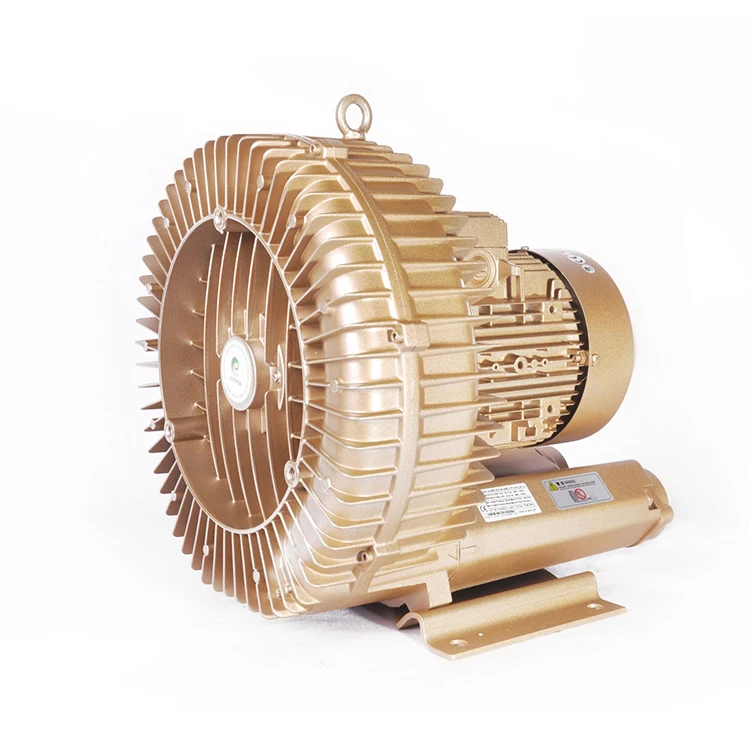

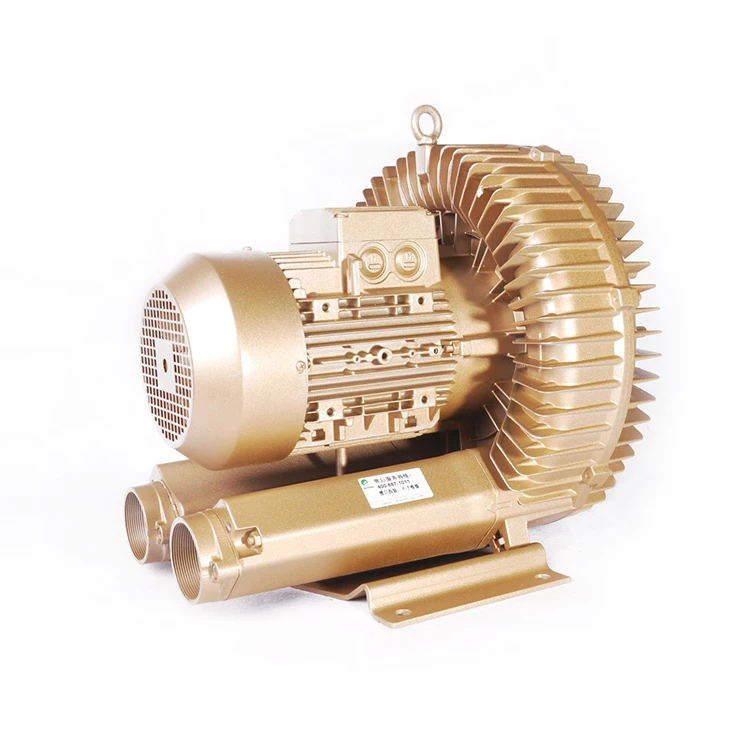

2.2KW 3HP Three Phase Fish Pond Aeration & Water Treatment Ring Blower
Specification
Model No. | GHBH 003 34 AR6 |
Frequency | 50Hz |
Power | 2.2KW |
Voltage | 200-240/345-415Y(V) |
Current | 9.7/5.6Y(A) |
Max Airflow | 345m3/h |
Max Vacuum | -200mbar |
Max Pressure | 195mbar |
Sound | 65db(A) |
Weight | 27kg |
Certificate | CE/ROHS/TUV/ISO certificates |
Product Description
When the blade of high pressure air blowers rotates, the wind vane causes gases to move forward and outward under centrifugal force, producing a series of spiry movements.
The air between impeller blades speeds up rotation and the gases outside the pump body are pushed into side slot (through inlet),The gases are compressed upon entering side channel, and go back between impeller blades for another speeding-up rotation.
When air goes through blade and side slot along a spiry track, each blade increases its compressing and speeding-up level. As the blade rotates, the kinetic energy of gases is increased, which in turn increases the pressure of gases that go through the side channel.
When air arrives the connection between side slot and release flange (the side channel becomes narrow at the outlet), gases will be immediately extruded out of vanes and released from the pump body through silencer at the outlet.
The air between impeller blades speeds up rotation and the gases outside the pump body are pushed into side slot (through inlet),The gases are compressed upon entering side channel, and go back between impeller blades for another speeding-up rotation.
When air goes through blade and side slot along a spiry track, each blade increases its compressing and speeding-up level. As the blade rotates, the kinetic energy of gases is increased, which in turn increases the pressure of gases that go through the side channel.
When air arrives the connection between side slot and release flange (the side channel becomes narrow at the outlet), gases will be immediately extruded out of vanes and released from the pump body through silencer at the outlet.

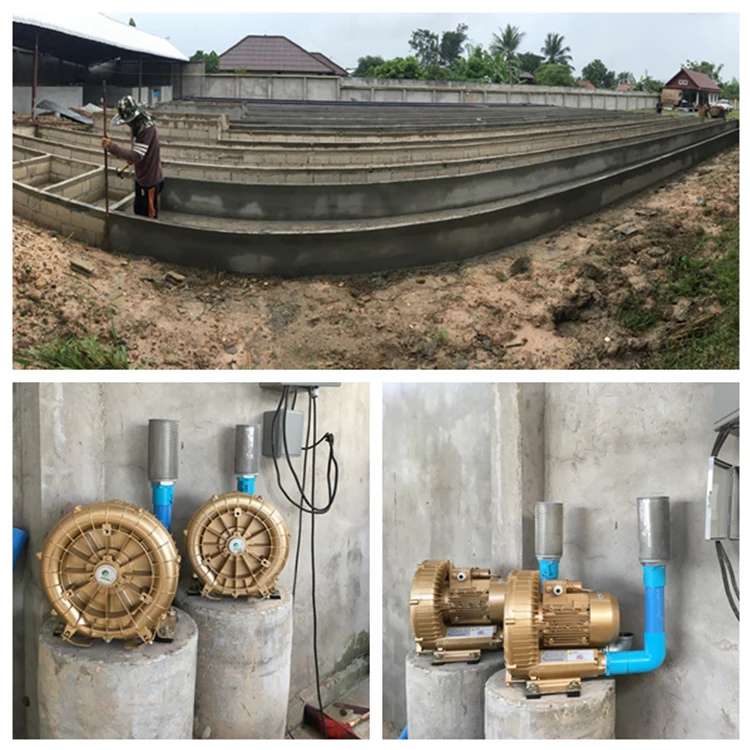

-- Fish Pond Aeration Blower In Aquaculture --
-- Aeration Ring Blower In Water Treatment --
1. It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated.
2. The direction of rotation of the impeller must be consistent with the direction of the pointed tip marked on the fan cover.
3. When working, the working pressure should not be greater than 8 kPa, so as to avoid excessive heat generation of the air pump and damage to the air pump caused by motor overcurrent.
4. It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body.
5. The filters and silencers at both ends of the air inlet and outlet should be cleaned in time according to the situation to avoid clogging and affecting use. 6. The external connection of the air inlet and outlet must be connected by a hose (rubber tube, plastic spring tube).
1. Flat washers and spring washers must be used to tighten the screws.
2. It is best to use rubber buffer rubber to bear the weight of the air pump, especially the high-power air pump, which is indispensable.
3. For some occasions that require noise, a silencer can be installed to reduce the noise (generally down, about 5 dB), the silencer is installed at the end of the inlet duct or outlet duct. 4. For some occasions with high requirements for noise, you can add a layer of silencer cotton according to the conditions of the machine itself to meet the noise requirements on site. For details, please consult our customer service.
5. When using silencing cotton to silence the sound, pay attention to the distance between the air pump and the box, pay attention to the ventilation and heat dissipation of the air pump, and pay attention to using rubber cushioning to bear the weight of the air pump.According to the picture, you need to consult customer service.
6. The air inlet and outlet of the air pump For pipe connection,hose connection should be used to isolate vibration.
Packaging & Shipping
Power≤3KW, we will pack it in high quality and high strength cartons.
Shipping way: By sea or By air or By your agent in China.
Company Profile
Founded in 2002, Dongguan Foersheng Industrial M&E Co,.Ltd. is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts. Products are sold widely in the demestic and overseas market.GOORUI is the brands of our products,with many years of development, our brands are more and more popular with people.
Our factory is over 60,000 square meters,it has the advanced production equipment,Such as DOOSAN CNC machines,automatic robot painting line,three-coordinate measuring machine.We have perfect lectrical Performance Testing System,Blower Performance Testing System,Ensure product quality. Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
Due to premium products and considerate service, our products are extensively used in aquaculture, wood-working machinery, injection mold machinery, Sewage Treatment, Printing, Paper Industry, Pneumatic Conveying etc. Our products have won support and trust from customers through the world and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success !
Our factory is over 60,000 square meters,it has the advanced production equipment,Such as DOOSAN CNC machines,automatic robot painting line,three-coordinate measuring machine.We have perfect lectrical Performance Testing System,Blower Performance Testing System,Ensure product quality. Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
Due to premium products and considerate service, our products are extensively used in aquaculture, wood-working machinery, injection mold machinery, Sewage Treatment, Printing, Paper Industry, Pneumatic Conveying etc. Our products have won support and trust from customers through the world and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success !
