3d-микроскоп с приводом 16 МП совместимый HDMI цифровой

3d-микроскоп с приводом 16 МП совместимый HDMI цифровой

Категория: Microscopes >>>
Поставщик: Suzhou,Jingtong,Instrument,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.6 $*	0.31 $*
Aug-16-2025	0.84 $*	0.10 $*
Jul-16-2025	0.54 $*	0.64 $*
Jun-16-2025	0.72 $*	0.17 $*
May-16-2025	0.78 $*	0.89 $*
Apr-16-2025	0.39 $*	0.59 $*
Mar-16-2025	0.53 $*	0.83 $*
Feb-16-2025	0.32 $*	0.0 $*
Jan-16-2025	0.68 $*	0.87 $*

Характеристики

Max 276X Mag.

Monocular Head

Auto 360° Rotation

Real-time Image Observation

Rotate Speed Adjustable

Product Description

DTE-5 automatic 3D video stereoscopic microscope has long working distance, wide field of view and high definition imaging quality. Based on the two-dimensional observation, rotating three-dimensional observation function is added, real-time image observation and 360° rotation, which makes unilateral specimen easy to be observed in all directions, multi-directionally.

It is mainly used in semiconductor, SMT welding joint, QFP, capacitor, connector, medical device, biological chemical industry and other industries. To observe the 3D images that is not easy to observe under 2D microscope, jewelry industry inspection and school teaching as well.

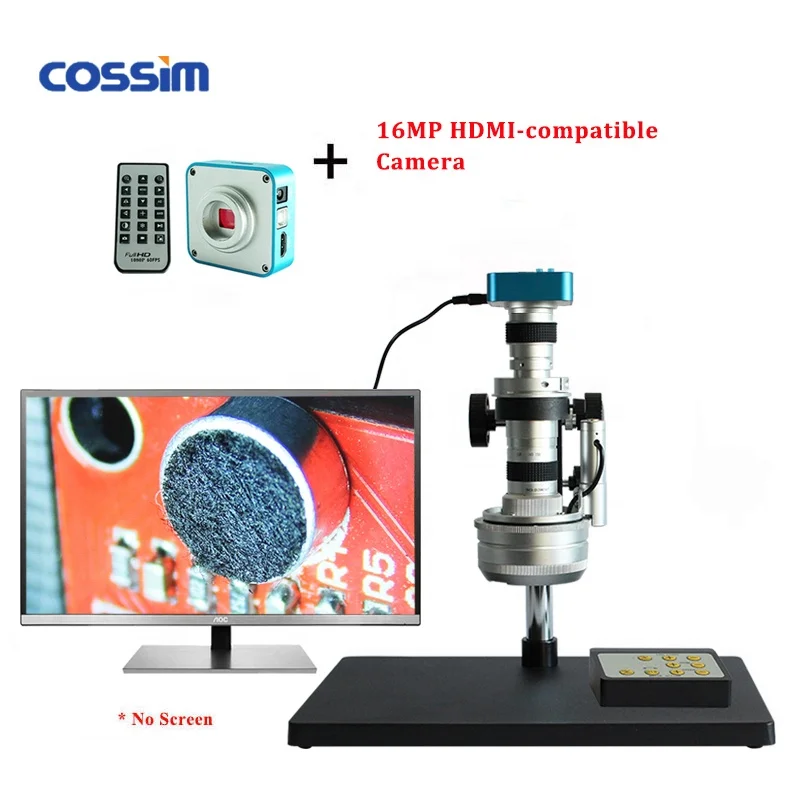

HD1600 Microscope Camera adopts 16MP Panasonic CMOS Sensor, 1/2.33" Sensor. It has HDMI-compatible & USB2.0 interface output, 1080P 60 FPS. The Multiple functions and remote control offer easy and convenient operation.

Features

---Adopt 16MP Panasonic CMOS Sensor

---Adopt 1/2.33” Sensor, more wide view field

---HDMI-compatible 1080P 60 FPS

---USB2.0 free drive 1080P 30FPS Image Output

---4K Video Record

---Remote control

---Real-time image observation and 360° rotation

---Rotate speed adjustable, continuous zoom, multi angles observation

---Total Magnification can reach 276X, the max working distance is 45mm, object field of view is 30mm

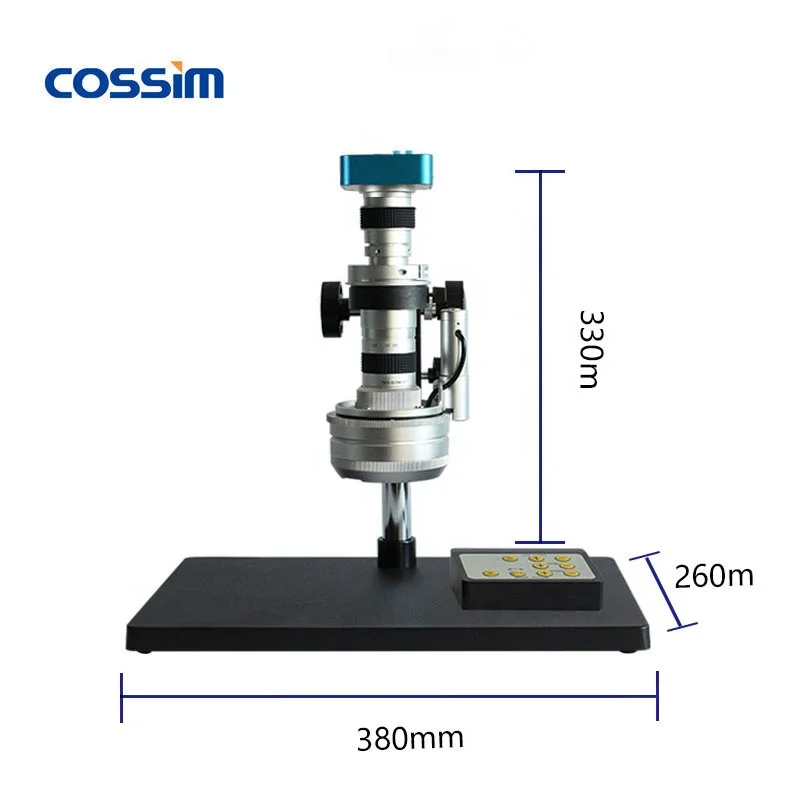

Dimension of DTE-5 3D Stereo Microscope with HD1600 Camera

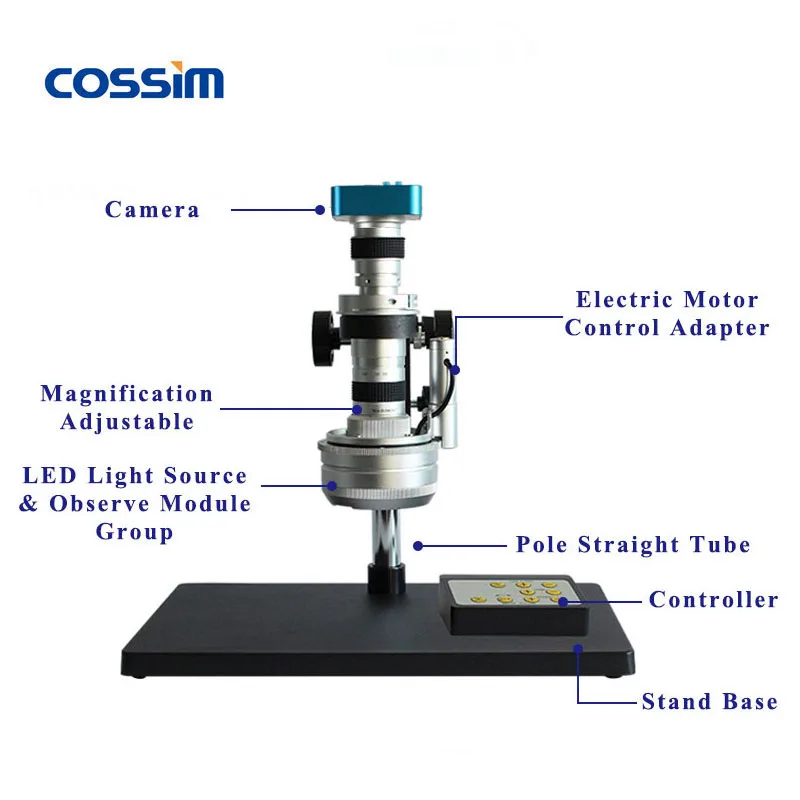

Structure of DTE-5 3D Stereo Microscope with HD1600 Camera

Specification

Parameters for Microscope DTE-5
Head	Monocular (connected with the digital device)
Objective	1X~5X, ratio: 5:1
Digital Device	HD1600 Microscope Camera
Adapter	Standard C-mount
Magnification	Max can reach 276X (Optic Mag. * Digital Mag.) Digital Mag. is based on the Camera & Display Screen
Field of View	30mm Max
Focusing	Column Focusing
Working Distance	45mm Max
Pole Length	330mm
Handwheel Focus Range	60mm
Controller	Imported motor electric controller
Working Base	Size: 380x260x22mm
Input / Output Voltage	100V~240V / 12V10W LED Ring Light
Illumination	LED Light Source

Parameters for HD1600 Camera
Sensor	1/2.33” Panasonic 16MP CMOS Sensor
Resolution	1.335μm x 1.335μm
HDMI-compatible output	1920 * 1080 60fps
USB output	1920 * 1080/ 30, 1280720/30, 640 480/30, 320 * 240/30(MJPG)
Interface	C/CS
Exposure	Auto/ Manal/ One-button
Exposure Compensate	Supply
White Balance	Auto/ Manal/ One-button, RGB Adjustable
Memory	64GB
Input Voltage	DC 5V~12V
Lines	8 types, color & thickness adjustable
Center Lines	Supply
Language	English(deflaut)/ Chinese
Remote	Remote Operation Supply
Net Weight	250g
Gross Weight	450g
Product Size	68 x 68 x 47mm
Package Size	145 x 130 x 70mm
