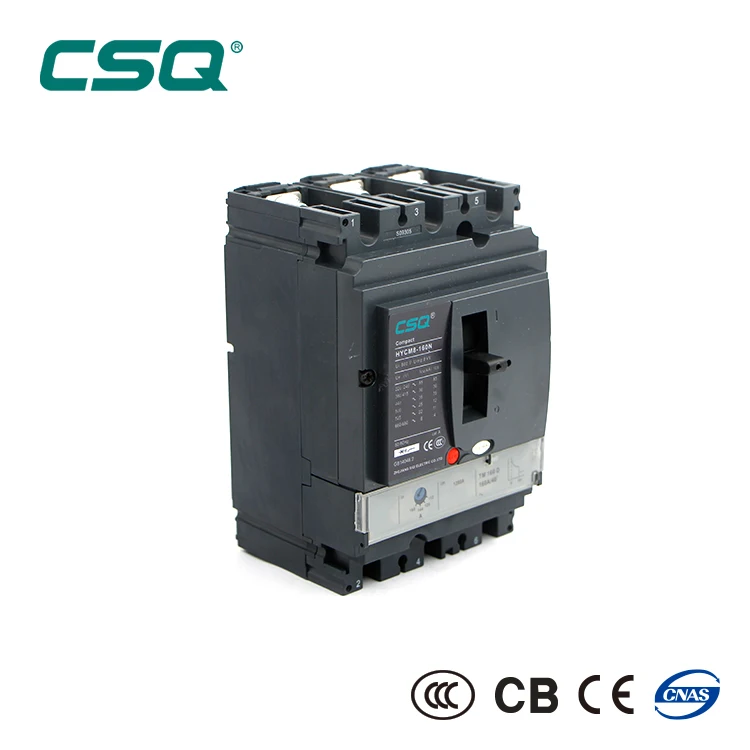

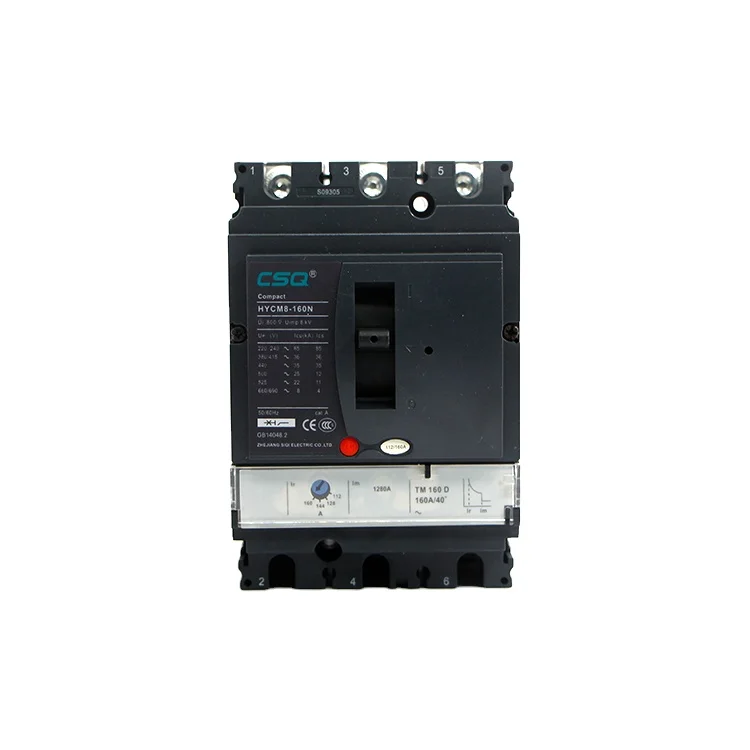

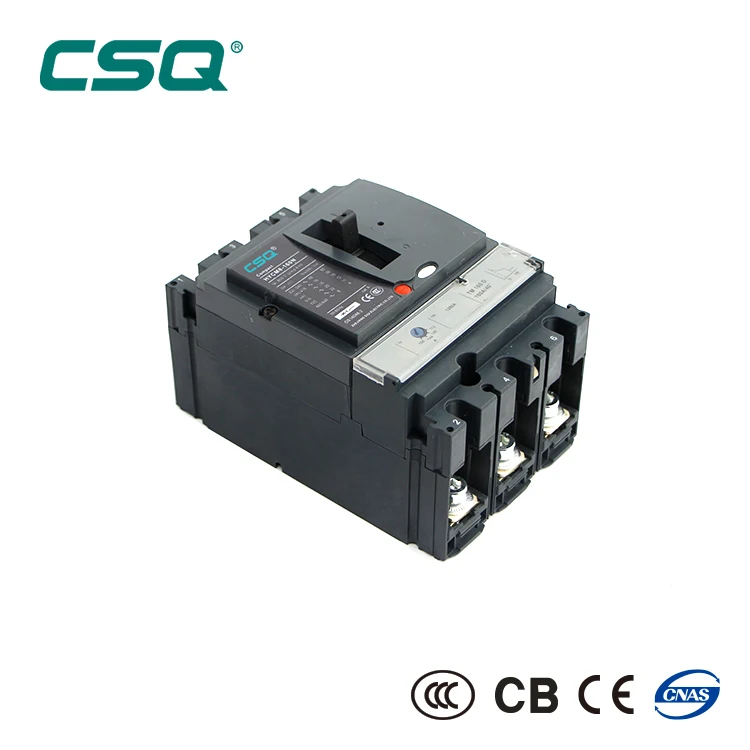

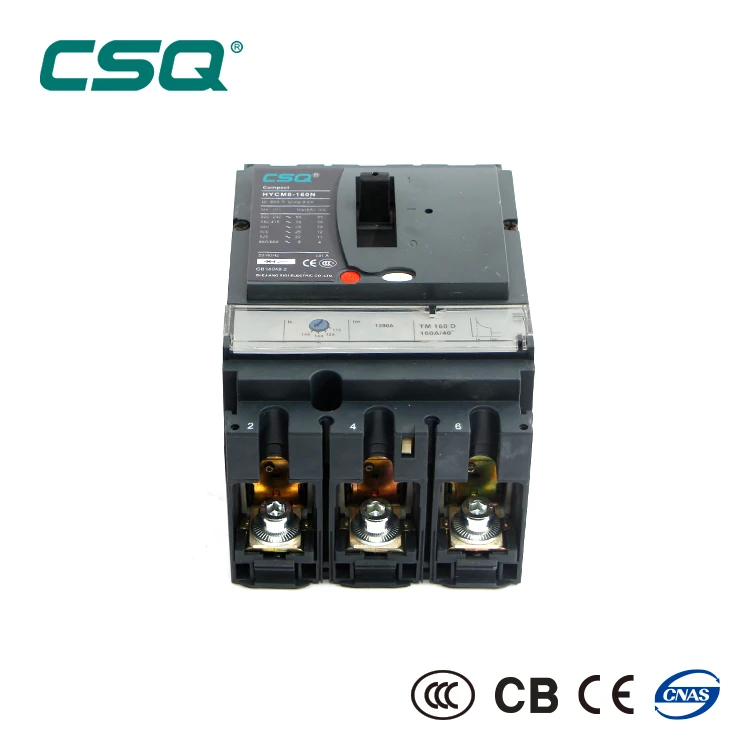

630A Molded Case Circuit Breaker from China MCCB







HYCM8 series Moulded Case Circuit Breaker is one of new type breaker which is SIQI adopts international advanced design, manufacture technology to develop it. The rated insulating voltage is 750V, suitable for AC 50Hz(60Hz), rated working voltage 690V or below, rated working current is 12.5A to 1250A of circuit and use in distributing electric energy. Nonfrequent making and breaking in the normal conditions and protecting when circuit and installation are overload, short circuit and under voltage. Rated shell-rack and the breaker which current is under 400A, take protect effect when mousecage motor is nonfrequent start, breaking off working and protecting overload, short circuit and under voltage.



 2.Innovation structure:

More compact and aesthetically

Intergration can be installed more easier

Easier to increase or decrease of function



3 .Model description:



Note: No code for distribution breakes; M represent motor protection circuit breakers. No code for dircet handle operation; presents electrical operation, and presents ratray-operated-handles.

Rated breaking capacity grade of MCCB: D-Economical type; N-Standard type; H-high breaking capacity type.



 4 .Classification of MCCB:



Installation type of MCCB: MCCB are suitable for vertical or horizontal installation.

According to use of MCCB: distribution circuit protection type, motor protection type;

According to connection way : front panel connection, real panel connection, plug-in connection;

According to operation way: for direct handle operation, for external rotary handle operating, for motor operating;

According to overload release type: magnetic release (only instantaneous), the modynamic magnetic type (dual), electronic release;

According to number of poles: 2 pole, 3 pole, 4 pole.



The meutral pole( N pole) of 4 pole MCCB has for types:

Type A: no overload release on N poles, which is making at the time; not closing and opening with the other three pole.

Type B: no overload release on N poles, which closing and opening with the other three pole.

Type C: with overload release on N poles, which closing and opening with the other three pole.

Type D: with overload release on N poles, which is making all time; not closing and opening with the other three pole.

Type L :highest breaking capacity type.





5. Basic Specification and Main Parameters:





Type	Rated current(A)	Poles	Rated insulating voltage(V)	Rated insulating voltage(V)	Arcing over distance(mm)	ultimate short circuit breaker capacit	Servise short circuit breaker capacit	Operating perfor-mance (times)
HYCM8-100D	12.5,16, 20,25,32, 40,50,63 ,80,100	3,4	750	690	0	18	75%	1500 8500
HYCM8-100N						25	75%
HYCM8-100H						70	75%
HYCM8-100L						150	75%
HYCM8-160D	16,20,25, 32,40,50, 63,80,100, 125,160					25	75%	1500 7000
HCM8-160N						36	75%
HYCM8-160H						70	75%
HYCM8-160L						150	75%
HYCM8-250D	160 180 200 225  250					25	75%	1000 7000
HYCM8-250N						36	75%
HYCM8-250H						70	75%
HYCM8-250L						150	75%
HYCM8-400D	200 225 250 300  315 400					35	75%	1000 4000
HYCM8-400N						45	75%
HYCM8-400H						70	75%
HYCM8-400L						150	75%
HYCM8-630D	315 350 400 500 600 630					35	75%	1000 4000
HYCM8-630N						45	75%
HYCM8-630H						70	75%
HYCM8-630L						150	75%
HYCM8-1250D	630 700 800 1000 1250					50	75%	1000 4000
HYCM8-1250N						65	75%
HYCM8-1250H						85	75%
HYCM8-1250L						160	75%
HYCM8-1600D	800 1000 1250 1600					50	75%	500 2500
HYCM8-1600N						65	75%
HYCM8-1600H						85	75%
HYCM8-1600L						160	75%
