Цанговый патрон HSK63A SHK100A держатель инструмента конус
US $50.00-$65.00

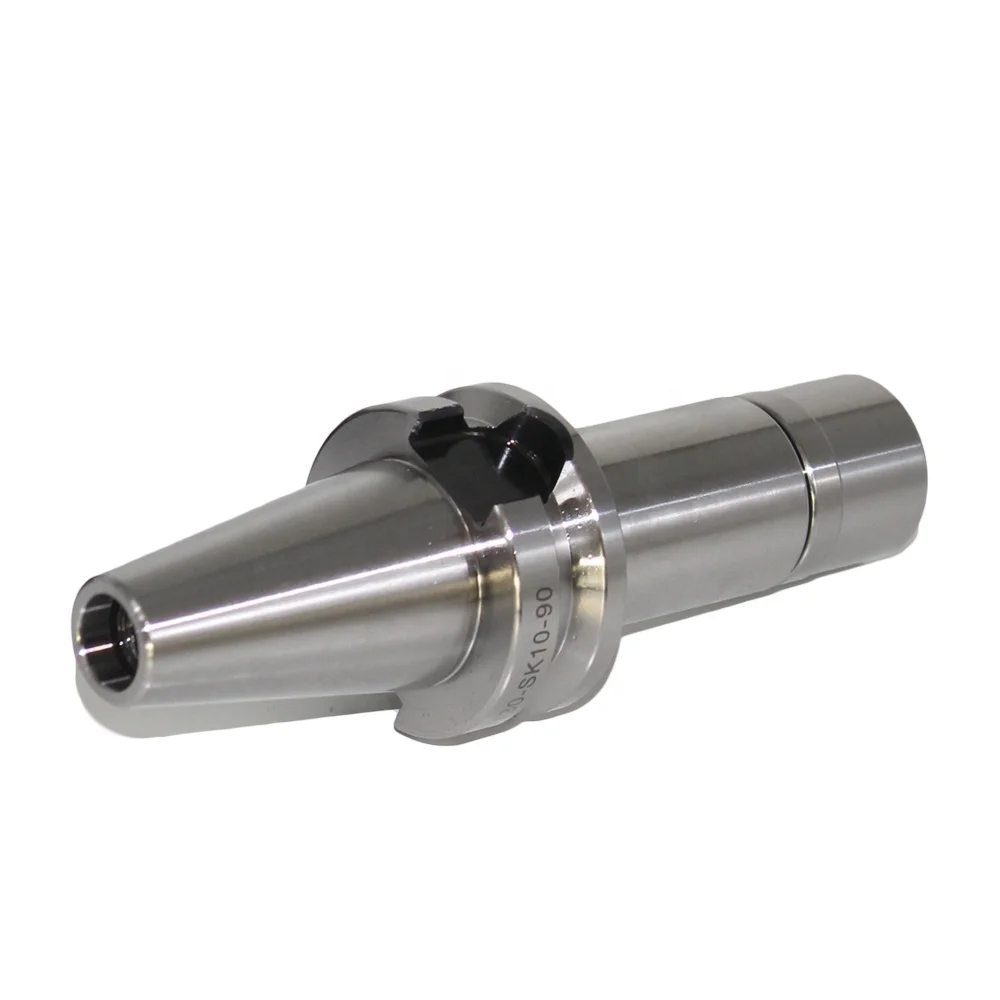

BT30SK10-90 высокоскоростной прецизионный держатель для станков с
- Категория: Держатель инструмента >>>
- Поставщик: Jinan,HC,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.22 $* | 0.6 $* |
| Aug-18-2025 | 0.98 $* | 0.35 $* |
| Jul-18-2025 | 0.2 $* | 0.90 $* |
| Jun-18-2025 | 0.84 $* | 0.15 $* |
| May-18-2025 | 0.81 $* | 0.42 $* |
| Apr-18-2025 | 0.97 $* | 0.75 $* |
| Mar-18-2025 | 0.33 $* | 0.20 $* |
| Feb-18-2025 | 0.90 $* | 0.4 $* |
| Jan-18-2025 | 0.73 $* | 0.27 $* |
Характеристики
Product Introduction
Name | High speed BT30-SK10-90 |
Material | 20CrMnTi |
Taper | <AT3 |
Hardness | HRC58-62 |
Carbon Depth | >0.8mm |
Dynamic balance standard | G2.5/20000RPM |
Feature | High wear resistance; without keyway |
MAS 403 COLLET CHUCKS BT30-SK10
1--First choice of high speed cutting tooling system with longer tool life.
2--No vibration to ensure stable performance.
3--The polishing doesn't influence precision. the coating is even and chemical fluid spitting degree is almost 100%. it can prevent the spindle from abrasion and doesn't influence precision.
4--Overall nickel coating, including inside and outside cone, even if you do not take any anti-rust actions, it won't rust either.
Product Parameter
No | d1 mm | d2 mm | L mm | M | Nut |
BT30-SK10-60 | 27.5 | 27.6 | 60 | M21.5x1.0 | SK10 |
BT30-SK10-90 | 90 | ||||
BT30-SK10-120 | 120 | ||||
BT30-SK16-60 | 40 | 42 | 60 | M32x1.5 | SK16 |
BT30-SK16-90 | 90 | ||||
BT30-SK16-120 | 120 | ||||
BT30-SK20-60 | 48 | 50 | 60 | M40x1.5 | SK20 |
BT30-SK20-90 | 90 | ||||
BT40-SK10-60 | 27.5 | 27.6 | 60 | M21.5x1.0 | SK10 |
BT40-SK10-90 | 90 | ||||
BT40-SK10-120 | 120 | ||||
BT40-SK10-150 | 150 | ||||
BT40-SK16-60 | 40 | 42 | 60 | M32x1.5 | SK16 |
BT40-SK16-90 | 90 | ||||
BT40-SK16-120 | 120 |
Product Details
Company Profile
Package And Transport
FAQ
Q: Could you supply samples?
A: Yes,we can supply but don’t pay for the cost of freight.
Q: Where do you export?
A: The whole world.Main markets are the USA,the UK,Germany,Italy,Canada,
Brazil and Australia.
Q: Could you produce non-standard products?
A: Yes,we can.Please supply samples or drawing.
Q: Do you have minimum order quantity?
A: Conventional products don’t have. The minimum order quantity of non-standard products is 50 pcs.
Q: What’s your delivery time?
A: Most of all are in stock, others 5-20 days after order confirmed.
Q: What’s your delivery time?
A: Plastic box, carton and so on. If your quantity is good, we can package with your demand.
Q: What’s your terms of payment?
A:T\\T Payment 100% in advance.
If you have other questions ,please feel free to contact me.Grace
wechat/whatsapp: +86 18253106925
A: Yes,we can supply but don’t pay for the cost of freight.
Q: Where do you export?
A: The whole world.Main markets are the USA,the UK,Germany,Italy,Canada,
Brazil and Australia.
Q: Could you produce non-standard products?
A: Yes,we can.Please supply samples or drawing.
Q: Do you have minimum order quantity?
A: Conventional products don’t have. The minimum order quantity of non-standard products is 50 pcs.
Q: What’s your delivery time?
A: Most of all are in stock, others 5-20 days after order confirmed.
Q: What’s your delivery time?
A: Plastic box, carton and so on. If your quantity is good, we can package with your demand.
Q: What’s your terms of payment?
A:T\\T Payment 100% in advance.
If you have other questions ,please feel free to contact me.Grace
wechat/whatsapp: +86 18253106925
