Прямые продажи с завода уникальная модернизированная машина для лазерной резки листового металла HSG
- Категория: Станки лазерной резки >>>
- Поставщик: HSG,Laser,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 54740.79 $* | 57477.7 $* |
| Aug-18-2025 | 54280.83 $* | 56994.98 $* |
| Jul-18-2025 | 45540.92 $* | 47817.82 $* |
| Jun-18-2025 | 53360.18 $* | 56028.86 $* |
| May-18-2025 | 46460.1 $* | 48783.58 $* |
| Apr-18-2025 | 52440.21 $* | 55062.19 $* |
| Mar-18-2025 | 51980.77 $* | 54579.83 $* |
| Feb-18-2025 | 51520.54 $* | 54096.18 $* |
| Jan-18-2025 | 51060.47 $* | 53613.59 $* |
Характеристики
Product Description

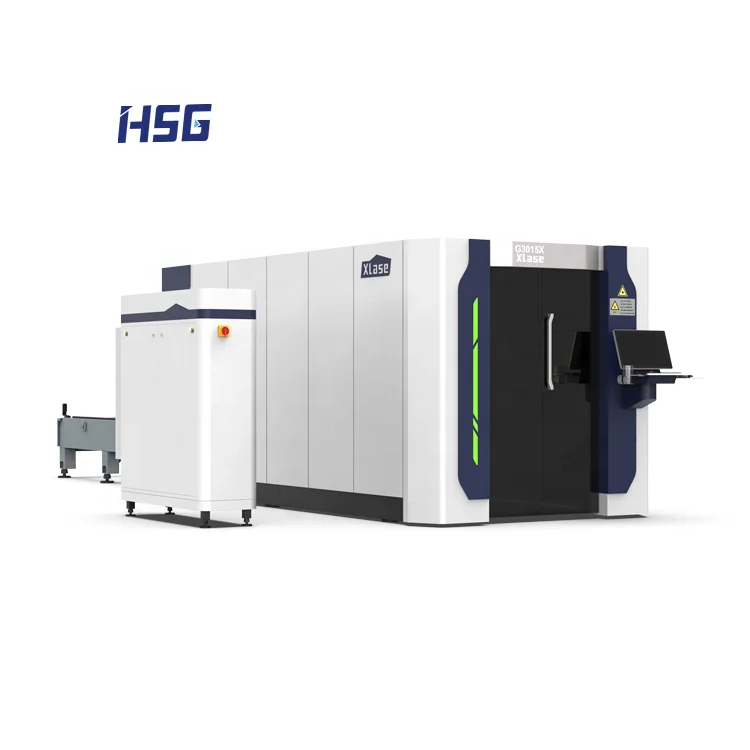

HSG GX Series Unique Upgraded Laser Cutting Machine
(1000W-4000w)
EQUIPMENT FEATURES
Sheet Metal Laser Cutting Machine
A．The gantry structure and integrated lathe bed and beam ensure the high rigidity, stability and
resistance to shock of the equipment.
B．Reducers and gear racks imported with original packaging from Germany as well as precision linear guide way from Taiwan are used for transmission, with high precision and speed. The maximum operation speed reaches 120 m/min, the position precision is 0.05 mm/m and the repeated positioning precision is 0.03 mm.
C．Servo motors imported with original packaging from Japan are used, with quick response, high precision and stable performance.
D．The control system integrates control, graphic processing, type setting and drawing, which is intuitive and easy to learn.
Sheet Metal Laser Cutting Machine
A．The gantry structure and integrated lathe bed and beam ensure the high rigidity, stability and
resistance to shock of the equipment.
B．Reducers and gear racks imported with original packaging from Germany as well as precision linear guide way from Taiwan are used for transmission, with high precision and speed. The maximum operation speed reaches 120 m/min, the position precision is 0.05 mm/m and the repeated positioning precision is 0.03 mm.
C．Servo motors imported with original packaging from Japan are used, with quick response, high precision and stable performance.
D．The control system integrates control, graphic processing, type setting and drawing, which is intuitive and easy to learn.

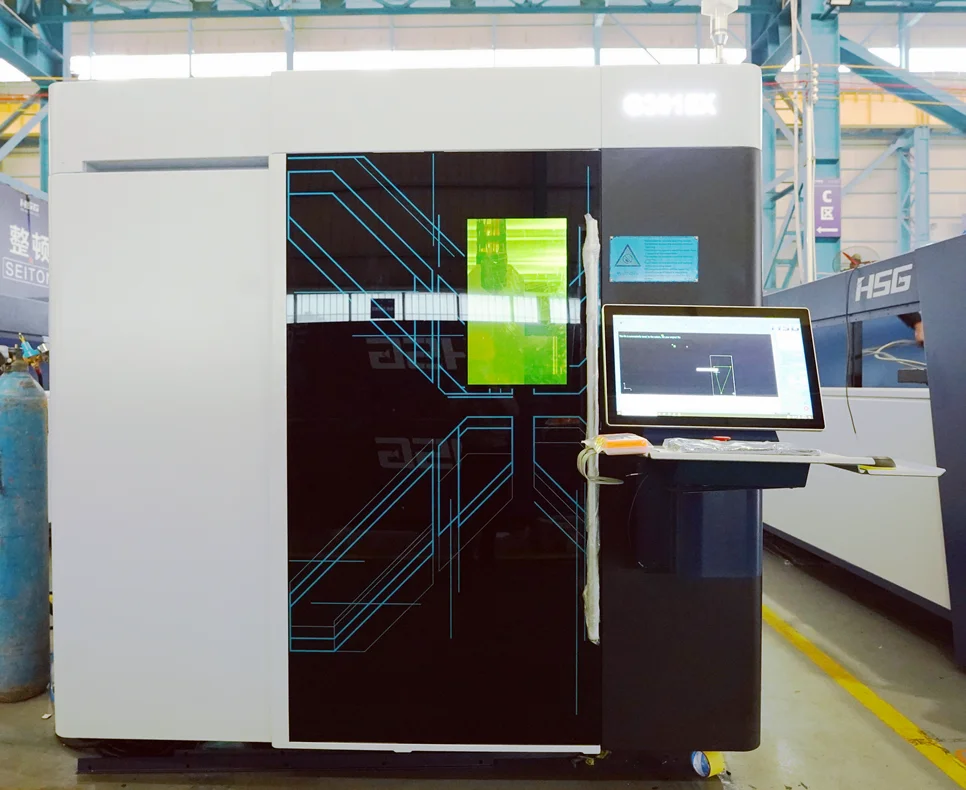

Upgrade Model, Merit of R & D
The G3015X inherits the mature research and development of HSG laser sheet metal cutting equipment products and integrates advanced high technology. It uses a series of high-precision technologies to provide a high-quality guarantee for the diverse processing needs of users.
Packed in 40HQ Container, Cost Saving
The unique body of the small machine greatly reduces the cost of transportation and solves the big problem of shipping. The whole machine can be packed in 40HQ container, which saves the transportation cost and workshop place for users.
Ventilation System
The small louver partition blowing designs, rotary butterfly valve damper and large diameter exhaust duct to achieve good ventilation and almost completely smoke-free effect. The process of opening and closing during the movement of the machine tool is almost free of any noise.
HSG-X2000S Control System
Plc bus control, network transmission free from external interference and reliable operation. Integrated soft PLC design without hardware module can be used for long service life stably.
Panasonic Servo Motor
Panasonic Servo Motor
The electrical and impeller systems included by Japan Denki Sanyo offer customers faster rotation speed and greater stability.
The electrical and impeller systems included by Japan Denki Sanyo offer customers faster rotation speed and greater stability.
Technique Parameters
Feature/Model | G4020H |
Working Area (L*W)) | 3000mm*1500mm |
X/Y Axis Positioning Accuracy | ±0.03mm/m |
X/Y Axis Repositioning Accuracy | ±0.03mm |
Max. Moving Speed | 140m/min |
Max. Acc. Speed | 1.2G |
Power Porection Grade | IP54 |
Laser Power | 1000W~4000W |
Max. Loading Weight | 1870kg |
Machine Weight | 7000kg |
Overall Dimensions (L*W*H) | 8300*2260*2200mm |

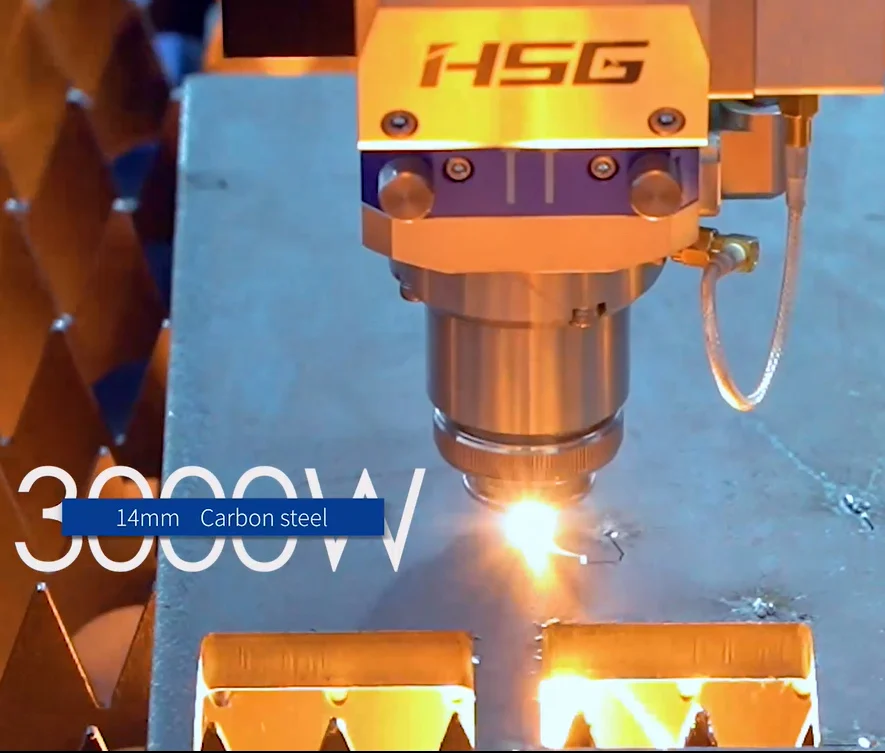

Sample Cutting Display
Quality Inspection Process(HSG Laser Co.,ltd）
Company Profile
HSG Laser Co., Ltd.
HSG Laser, founded in 2006, as a national hi-tech enterprise with an eye to R&D, production and sales of laser equipment, is now mainly dedicated to serve global customers with intelligent metal forming solutions. Starting from China, HSG Laser has expanded its service network to 100+ countries and regions after 14 years of high-quality development. It has two wholly-owned subsidiaries in global industrial powers, Germany and Japan, and creates its own high-end brand Xlase. In China, four standardized intelligent equipment manufacturing bases have been completely built in its headquarters (Foshan City), Puhang, Suzhou and Jinan. HSG frame also includes 2 domestic subsidiaries, 3 branches and 20 operation service centers.
HSG Laser, founded in 2006, as a national hi-tech enterprise with an eye to R&D, production and sales of laser equipment, is now mainly dedicated to serve global customers with intelligent metal forming solutions. Starting from China, HSG Laser has expanded its service network to 100+ countries and regions after 14 years of high-quality development. It has two wholly-owned subsidiaries in global industrial powers, Germany and Japan, and creates its own high-end brand Xlase. In China, four standardized intelligent equipment manufacturing bases have been completely built in its headquarters (Foshan City), Puhang, Suzhou and Jinan. HSG frame also includes 2 domestic subsidiaries, 3 branches and 20 operation service centers.
Certifications
After-Sales Service
Pre-sales Service
Pre-sales Technical Consultation
According to customer requirements, providing customers with product information, technical consultation, technical guidance,
assisting customers or customizing professional laser processing solutions for customers through a variety of channels such asnetwork, telephone, letter, and door-to-door service.
assisting customers or customizing professional laser processing solutions for customers through a variety of channels such asnetwork, telephone, letter, and door-to-door service.
After-Sales Service
24/7 Service
24/7 Service
Packing & Delivery
FAQ
1. I knew nothing about this machine, what kind of machine i should choose?
4. Where is your headquarters?
-So easy . Just tell us what you want to do by using laser machine, then let us give you perfect solutions and suggestions.
2. What can it welding?
-Laser machine for metal usually deal with carbon steel, stainless steel, aluminum, brass and alloy.
3. How long is the warranty?
-We offer 1-year warranty.
4. Where is your headquarters?
-Our headquarters is in foshan, Guangdong Province, China.
5. Can I visit your factory?
-Of course.Please contact us any time . We will arrange in advance.
6. Do you have engineer to teach me/my workers?
-Yes, we offer free training for each customer. We promise to help until everything gets right.
