Соединительный кабель RG402/RG141 с разъемом 4

Категория: Прочие провода, кабели и кабельные сборки >>>
Поставщик: Jiangsu,Zhengkai,Electronics,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.91 $*	0.36 $*
Aug-17-2025	0.61 $*	0.65 $*
Jul-17-2025	0.58 $*	0.77 $*
Jun-17-2025	0.62 $*	0.75 $*
May-17-2025	0.55 $*	0.1 $*
Apr-17-2025	0.41 $*	0.51 $*
Mar-17-2025	0.5 $*	0.5 $*
Feb-17-2025	0.12 $*	0.26 $*
Jan-17-2025	0.51 $*	0.19 $*

Характеристики

Product Description

Jumper Cable of different connector series can be assembled as either straight or angle versions by using the corresponding clamps.With only one combination connector and the different cable clamps,a variety of connectors can be produced allowing a reduction in stock-levels.The technical specifications can be obtained from the descriptions in the respective chapters for each series.

Note: connector and cable type,length can be changed based on customer's requirements.

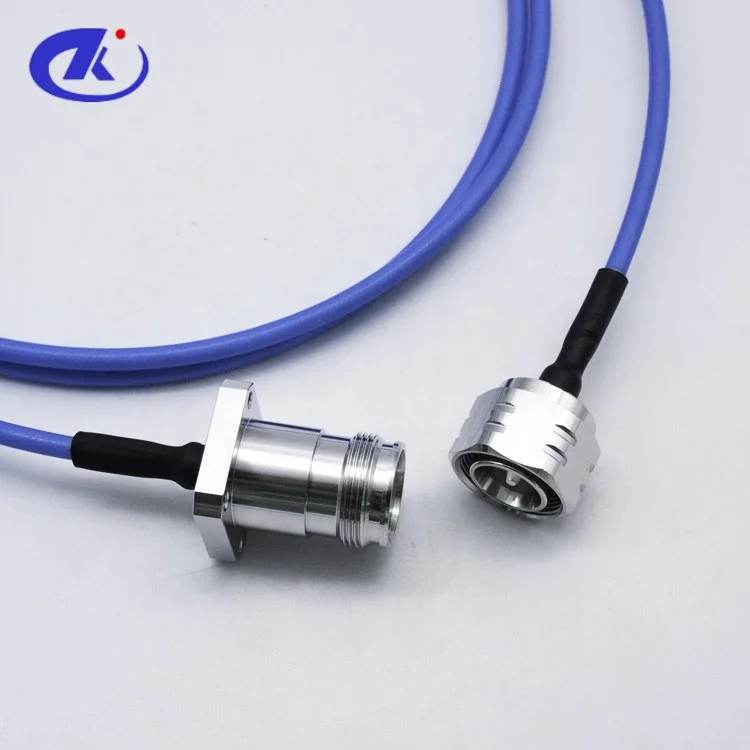

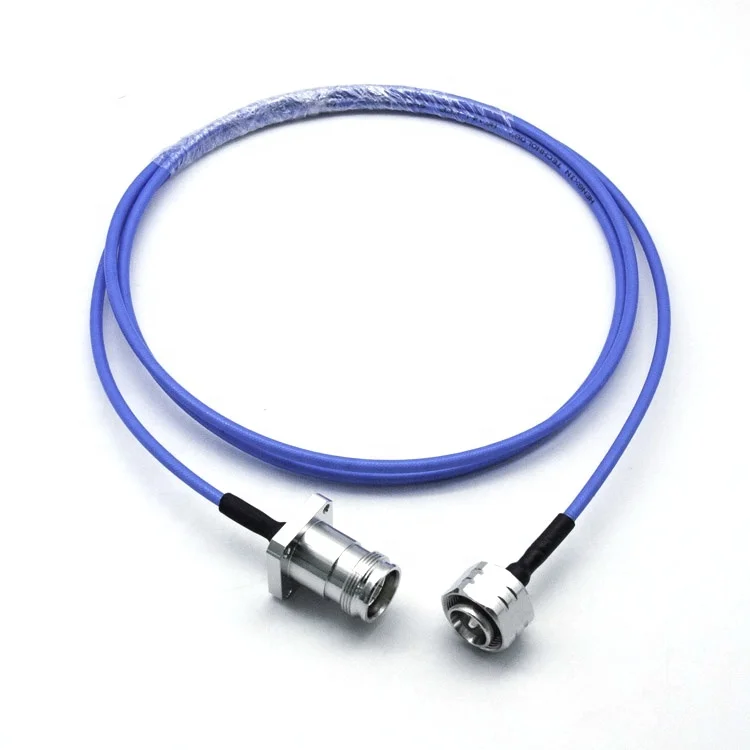

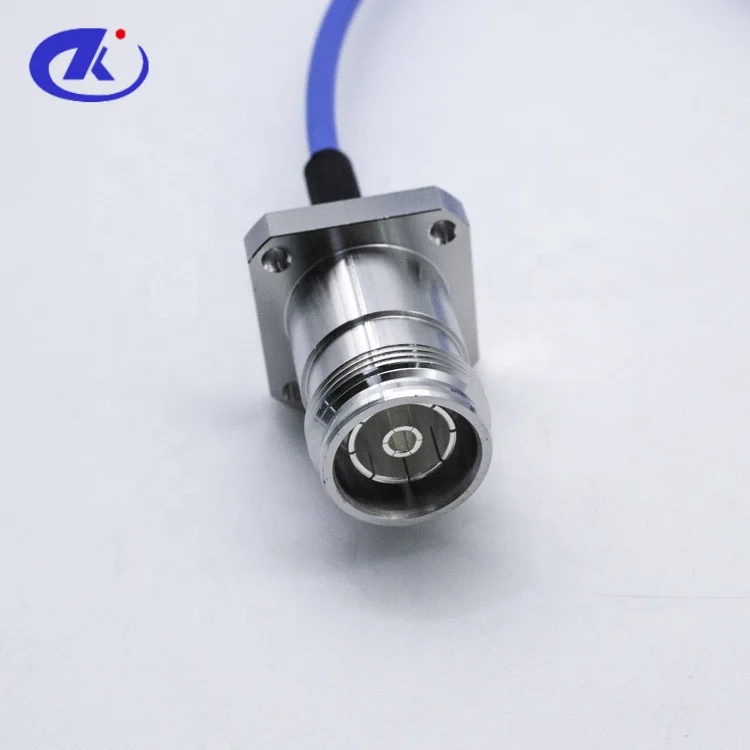

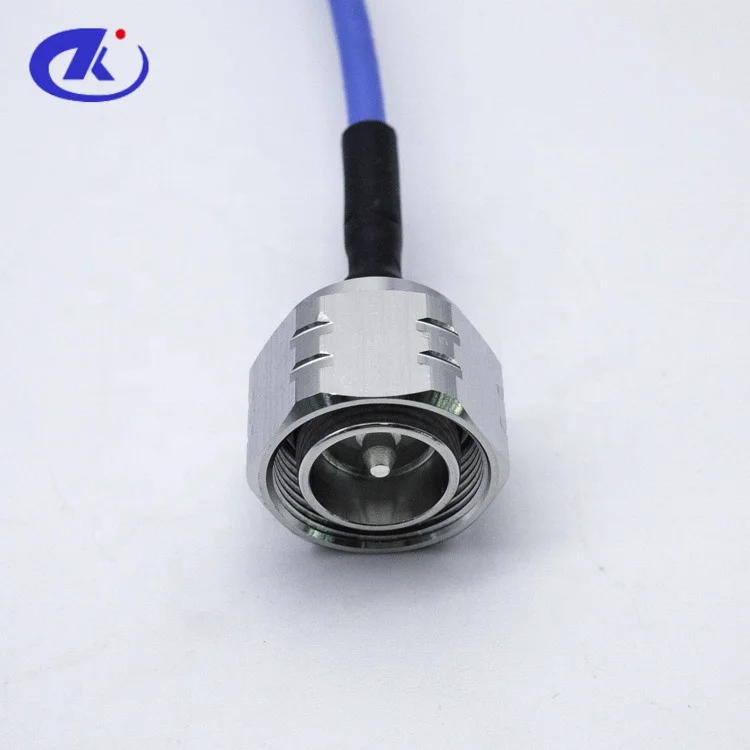

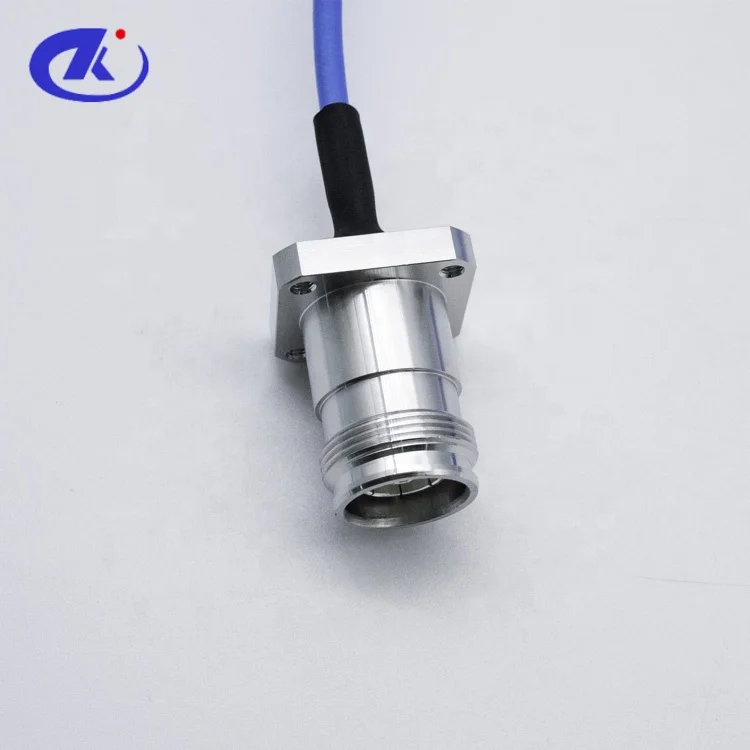

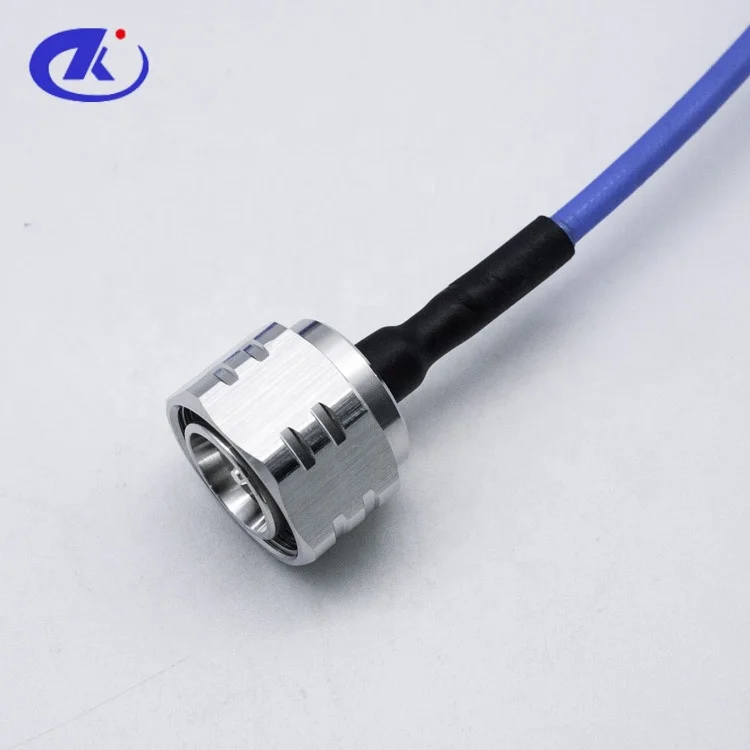

RG402/RG141 jumper cable assembly with 4.3/10 male to female connector

Pictures:

Technical Parameters

Interface
According to			IEC60169-54
Electrical
1	Characteristic Impedance		50ohm
2	Frequency Range		DC-3.8GHz
3	VSWR		≤1.15
4	Dielectric withstanding voltage		≥1500RMS,50Hz,at sea level
5	Dielectric Resistance		≥5000MΩ
Mechanical
1	Durability	Mating cycles ≥500
Material and plating
	Description	Material		Plating
1	Body	Brass		Tri-alloy
2	Insulator	PTFE		–
3	Center conductor	Phosphor bronze		Ag
4	Other	Brass		Ni
Environmental
1	Temperature Range	-40℃~+85℃
2	Watertightness	IP67
3	RoHS compliant	Pass
