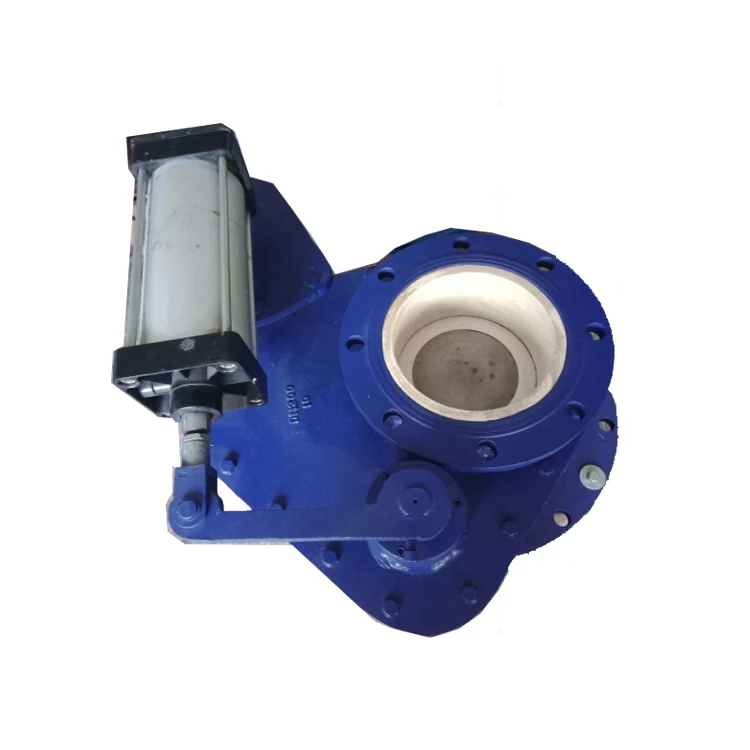

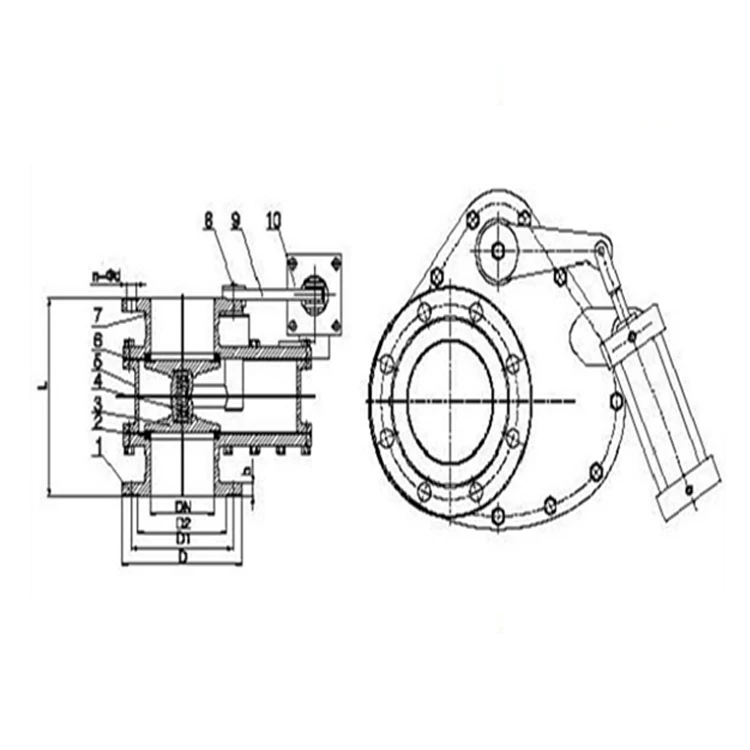

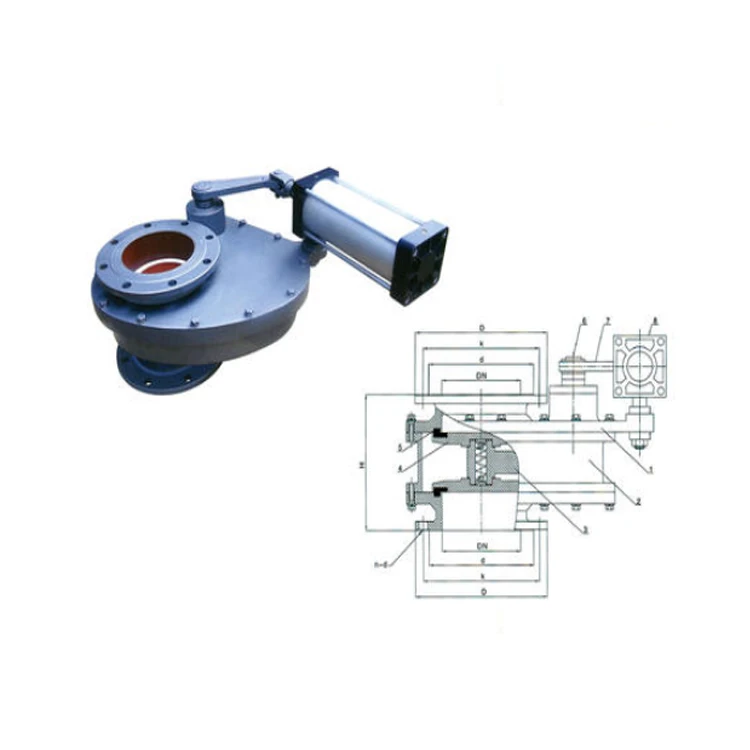

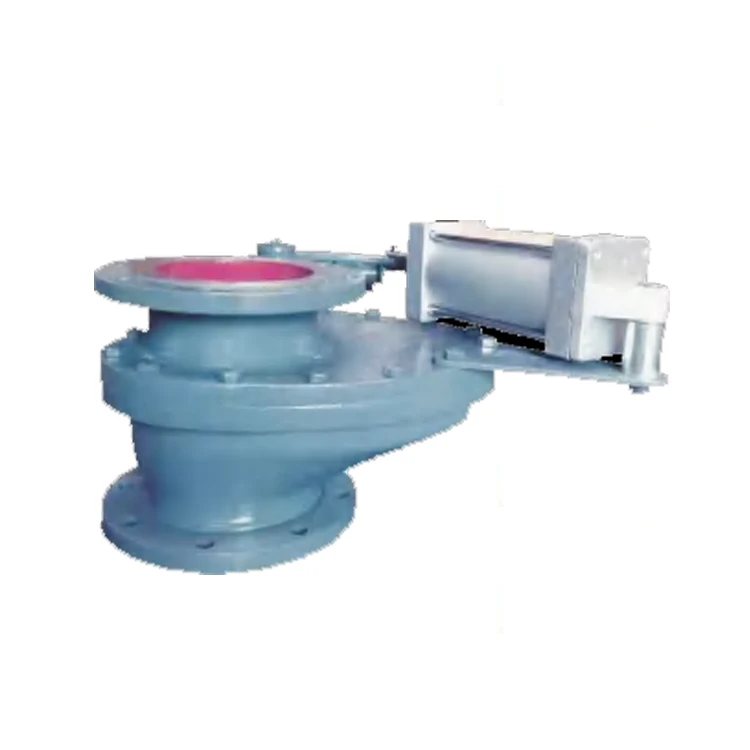

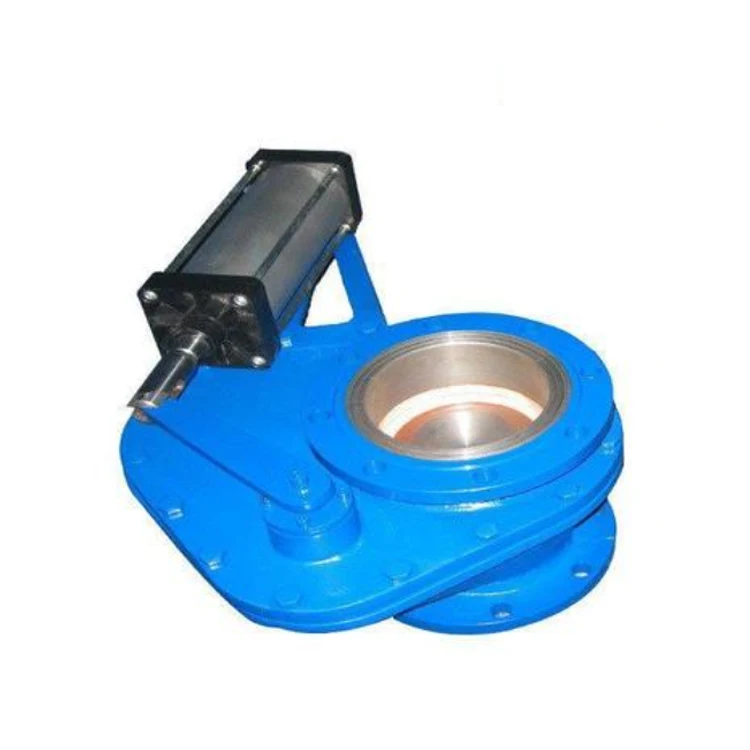

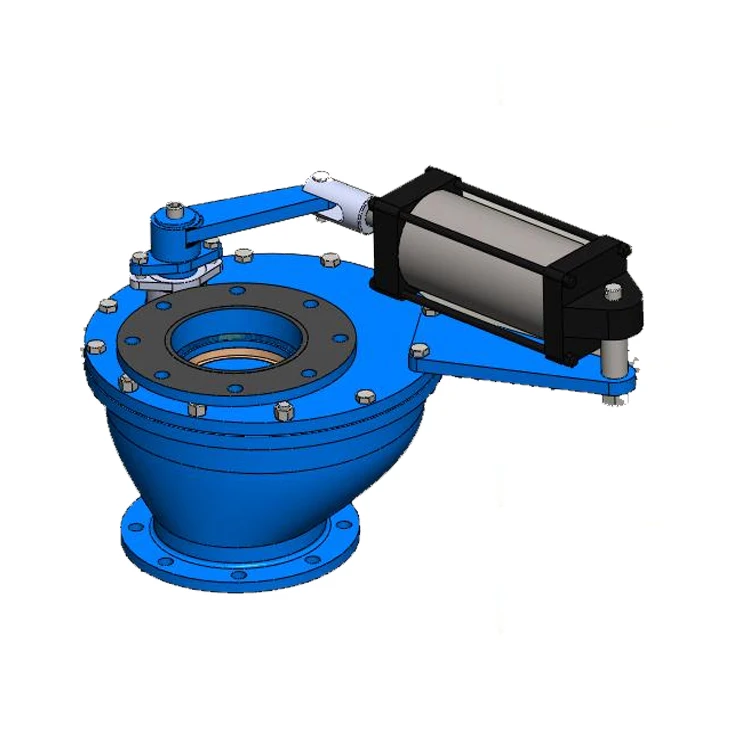

Pneumatic rotary ceramic swing valve is suitable for vertical pipe, horizontal installation valve. It is driven by a rotating cylinder, or swing cylinder valve shaft, the valve plate through the spline and the valve shaft fixed, the valve plate under the action of the cylinder rotation. The cylinder is equipped with a signal feedback system, which outputs 4-20ma current signal to the control computer. After the cylinder receives the signal, the needle immediately rotates to open the valve and counterclockwise rotates to close the valve. When the valve opens the valve plate is hidden in the body cavity, free from media erosion. The valve body inlet is equipped with toughened ZTA ceramic seat, and the valve plate is inset with matching ceramic sealing ring. The sealing pair is effectively sealed by grinding the surface of the grinding machine. There are wear-resisting ceramics embedded in the contact parts of the valve body flow passage with the medium. Its chemical stability and hardness are extremely high (Rockwell hardness HRC90), second only to diamond. The valve body unique streamline structure design, does not exist to block the ash dead angle. Flowing erosion resistance and good wear resistance. Large valve cavity design, rotary disc sealing structure, gate spin in the process of opening and closing, opening and closing flexible. And a self-cleaning polishing function, one-way seal when the valve is closed, is suitable for the dry ash and pulverized coal, slag slurry, granular materials, such as medium of conveying, often used in pneumatic conveying system for feeding, discharging and exhaust balance, no dust, no jamming and simple maintenance, the service life of the valve is 10 to 20 times longer than ordinary materials.
