Развлекательный полный комплект настенный усилитель динамик микрофон домашняя система
- Категория: Amplifier >>>
- Поставщик: Guangzhou,Shupasi,Electronic,Tech,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 433.79 $* | 442.26 $* |
| Jul-16-2025 | 351.19 $* | 358.41 $* |
| Jun-16-2025 | 426.80 $* | 435.24 $* |
| May-16-2025 | 423.28 $* | 431.36 $* |
| Apr-16-2025 | 338.9 $* | 345.34 $* |
| Mar-16-2025 | 416.91 $* | 424.56 $* |
| Feb-16-2025 | 413.61 $* | 421.12 $* |
| Jan-16-2025 | 409.70 $* | 417.28 $* |
Характеристики
Specification
item | value |
Certification | ce, RoHS, FCC |
Brand Name | SURPASS |
Model Number | SP-PW7820K+8C520H |
Type | Home Amplifier |
Channels | 8 (7.1) |
Place of Origin | China |
Type | Home Entertainment |
Name | Amplifier Speaker KTV Microphone |
Maximum Power Per Channel | 20W |
Power Output | 8*20W |
Main screen size | 7inch HD touch screen |
Operation system | Android 8.1 |
ROM/RAM | 2G/16G |
Speaker | 5'' Coxial Ceiling Speaker |

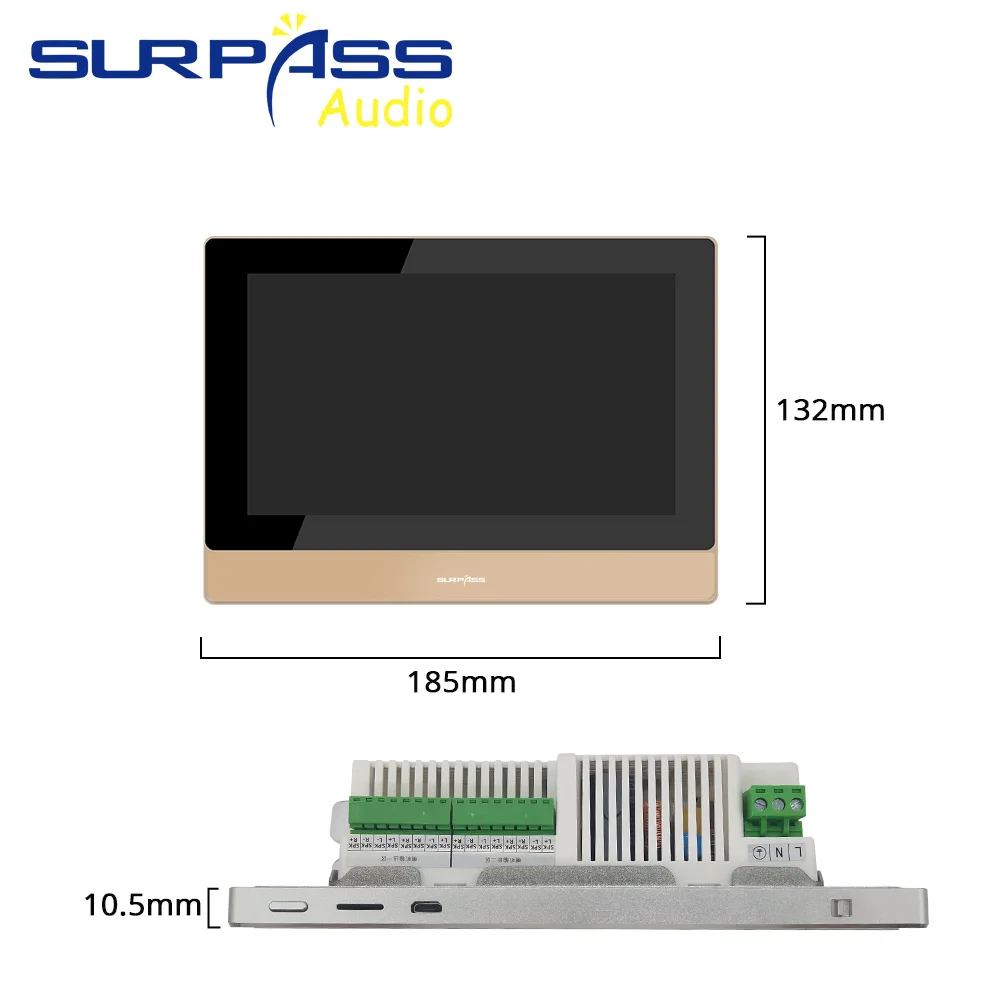

Amplifier Installation Size | 175*110*60mm |
Amplifier Size | 86*86*10mm |
Product Description

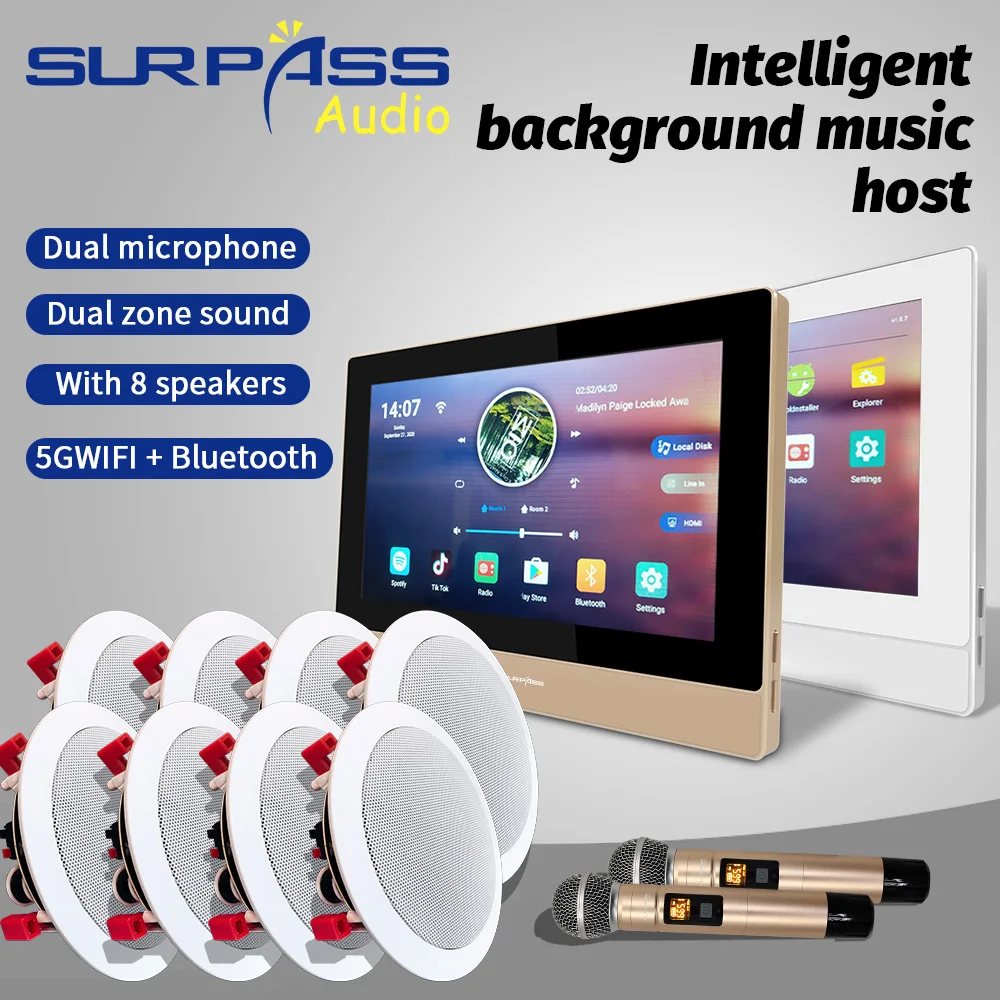

Entertainment Full Set In-wall Installation Amplifier Speaker Microphone Home KTV System
Wall Amplifier Specifications:
1. System
> Operation System: Android 8.1 System
> CPU Model: Quad-core Cortex-A35
> CPU Frequency: 1.5GHZ
2. Screen
> Main screen size: 7 inch
> Resolution: 1024*600
> Material: IPS(full view)
> Touch Screen: Multi-touch capacitive screen
3. Storage
> RAM memory: 2GB
> ROM: 16GB
> USB: 2.0 port,can read 32G
4. Network
> Wired port: not support
> WIFI: support 5GWIFI
5. Amplifier
> Output Power: 8*20W(Ya maha digital amplifier)
> Output impedance: 4-8 ohm
> Total harmonic distortion: 0.03%(1W.1KHZ)
> Frequency response: 20Hz-20KHz
> Audio signal to noise ratio: 98db
> Zone: Two Zones of speaker volume independent adjustment
> Speaker: Eight-channel speaker output
> Sound Effect: Built-in DSP 10 kinds of sound effect adjustment, compatible with branded speakers such as J BL, HiVi ect.
> Blue-tooth: Version 5.0
> Power Input: AC110-250V
> Audio Input: AUX input, one set
> Audio Output: one set
> Active Subwoofer Output: one set
> HDMI Output: High Resolution Video output HD 1080P, Same screen display
> IR Remote Control: Support
> Audio format: MP3, WAV, WMA, FLAC, APE, ACC, AC3, OGG etc.
> Video format: MPEG-1/2/3/4

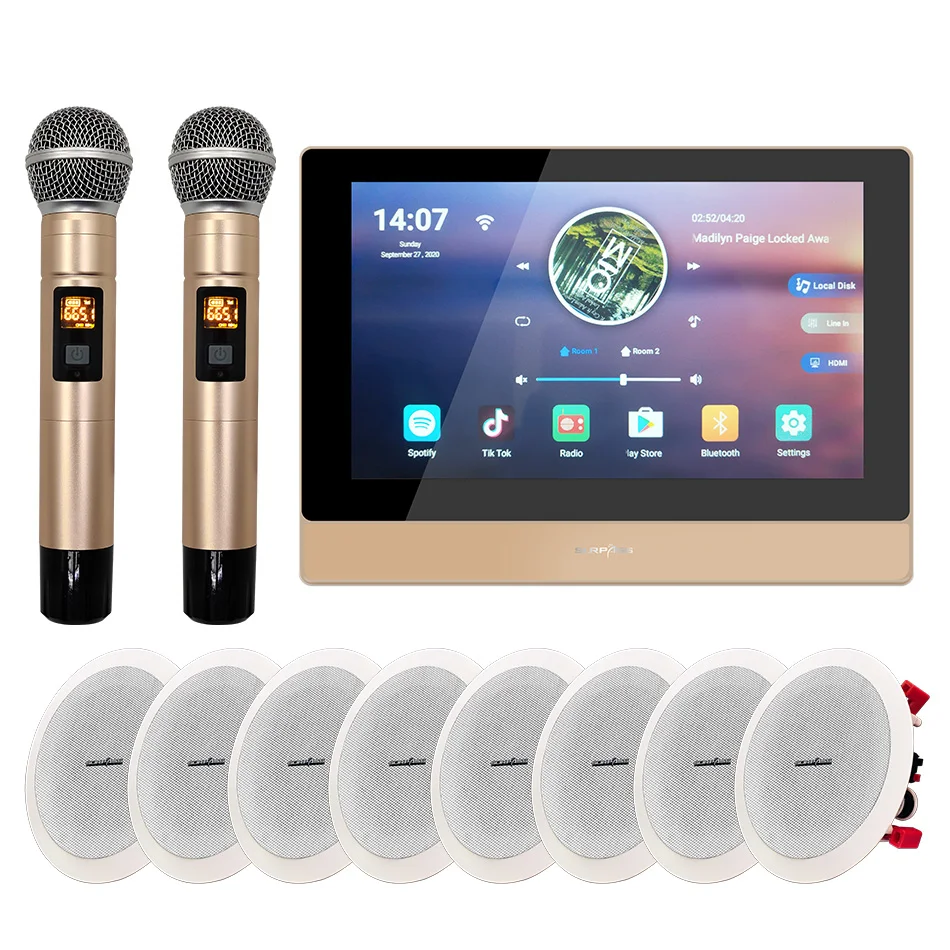

Package include:
1. amplifier*1 (model number:SP-PW7820K)
2. ceiling speaker *8 (model number:SP-C520H)
1. System
> Operation System: Android 8.1 System
> CPU Model: Quad-core Cortex-A35
> CPU Frequency: 1.5GHZ
2. Screen
> Main screen size: 7 inch
> Resolution: 1024*600
> Material: IPS(full view)
> Touch Screen: Multi-touch capacitive screen
3. Storage
> RAM memory: 2GB
> ROM: 16GB
> USB: 2.0 port,can read 32G
4. Network
> Wired port: not support
> WIFI: support 5GWIFI
5. Amplifier
> Output Power: 8*20W(Ya maha digital amplifier)
> Output impedance: 4-8 ohm
> Total harmonic distortion: 0.03%(1W.1KHZ)
> Frequency response: 20Hz-20KHz
> Audio signal to noise ratio: 98db
> Zone: Two Zones of speaker volume independent adjustment
> Speaker: Eight-channel speaker output
> Sound Effect: Built-in DSP 10 kinds of sound effect adjustment, compatible with branded speakers such as J BL, HiVi ect.
> Blue-tooth: Version 5.0
> Power Input: AC110-250V
> Audio Input: AUX input, one set
> Audio Output: one set
> Active Subwoofer Output: one set
> HDMI Output: High Resolution Video output HD 1080P, Same screen display
> IR Remote Control: Support
> Audio format: MP3, WAV, WMA, FLAC, APE, ACC, AC3, OGG etc.
> Video format: MPEG-1/2/3/4
Ceiling Speaker Specificatoins:
> Rated Power: 10W @8Ω
> Material: Plastic frame + iron grille cover
> Maximum Power: 20W
> Impedance: Black: Com / Red: 8Ω
> Sensitivity (1W/1M): 88dB ± 3dB
> Frequency response: 100-18KHz
> Speaker Unit: Coxial 5''x1, 0.75''x1
> Installation Cutout Size: Φ168mm
> Product Size: Φ203 x85mm
> Rated Power: 10W @8Ω
> Material: Plastic frame + iron grille cover
> Maximum Power: 20W
> Impedance: Black: Com / Red: 8Ω
> Sensitivity (1W/1M): 88dB ± 3dB
> Frequency response: 100-18KHz
> Speaker Unit: Coxial 5''x1, 0.75''x1
> Installation Cutout Size: Φ168mm
> Product Size: Φ203 x85mm
Dynaimic microphone specifications:
> Microphone head: dynamic microphone
> Working Voltage:DC3V 1.5V AAA*2 battery
> Working Power: 10dBm
> Life: 3-5 hours
> Modulation Method: pi/4DQPSK
> Audio Response: 30-18KHz
> Carrier Frequency:500-980MHz(U section)
> Audio Signal to Noise Ratio:<100dB
> Microphone head: dynamic microphone
> Working Voltage:DC3V 1.5V AAA*2 battery
> Working Power: 10dBm
> Life: 3-5 hours
> Modulation Method: pi/4DQPSK
> Audio Response: 30-18KHz
> Carrier Frequency:500-980MHz(U section)
> Audio Signal to Noise Ratio:<100dB
Package include:
1. amplifier*1 (model number:SP-PW7820K)
2. ceiling speaker *8 (model number:SP-C520H)
3. wireless microphone *2
4. remote control*1
5. mounted box, bracket and screw
4. remote control*1
5. mounted box, bracket and screw
