Conprofe Ultrasonic Graphite Machining Center 3 Axis CNC Profile VMC China Machining Centers Parts
Product Description
| UGP 600 | ||
| System | 840Dsl system | |

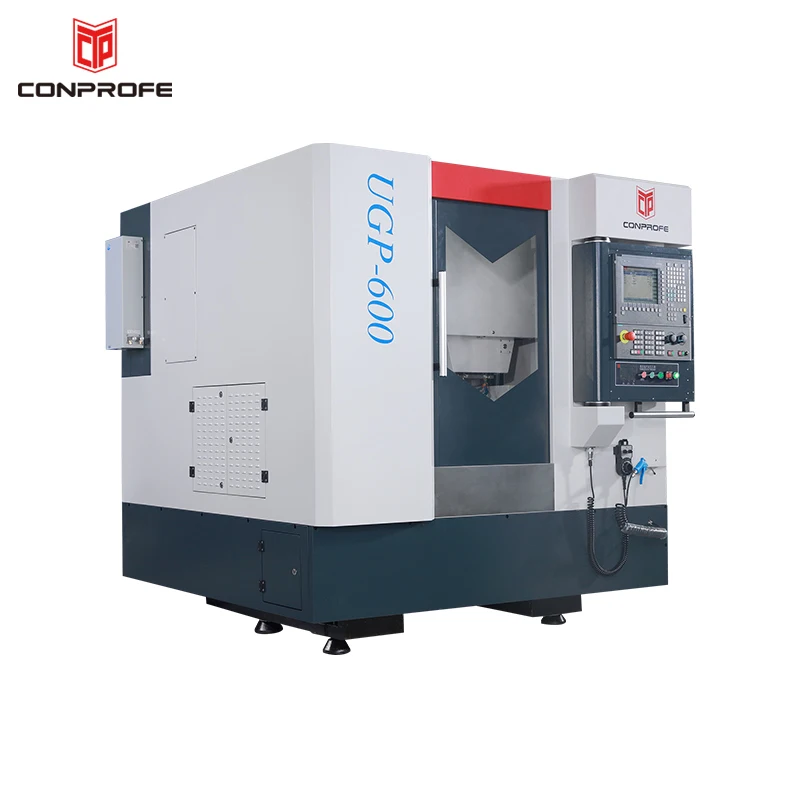

| Product Name | Conprofe Ultrasonic Graphite Machining Center | |
| Work table | Dimension | 620x560 |
| Max.Load | 200 | |
| Travels | Max.Travel in X-/Y-/Z-axis | 600x500x180mm |
| FeedRate | Rapid Traverse in X-/Y-/Z-axis | 15/15/12m/min |

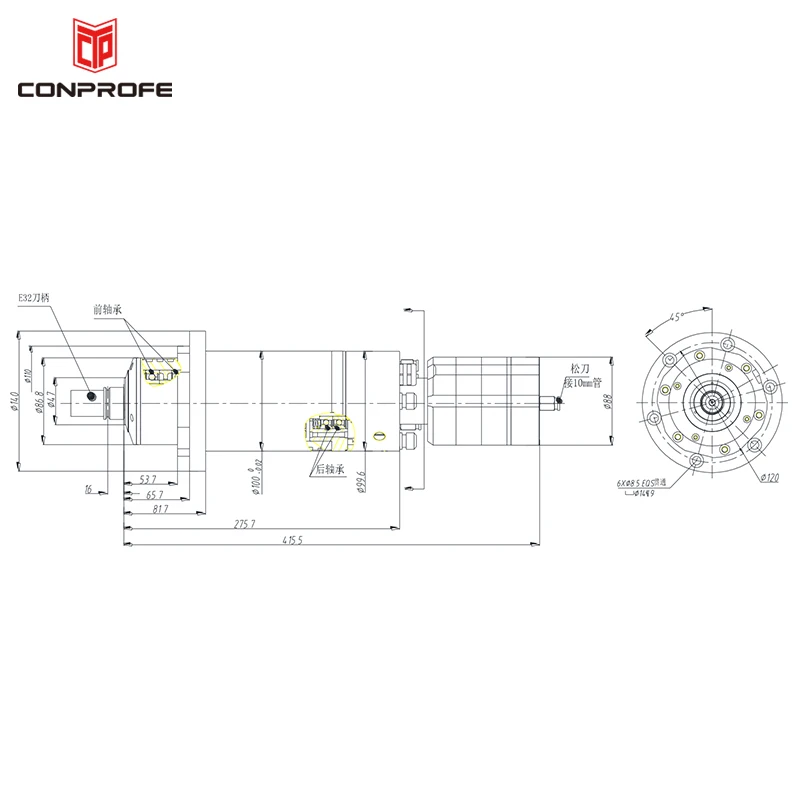

| Spindle | Diameter | 100mm |
| Power Rating | 6.5kW | |
| Max.Speed | 40000rpm | |
| Magazine | Tool Capacity | 15Positions |
| Tool Holder Spindle | HSK-32E | |
| Tool Overhang | 90mm | |
| Accuracy | Positioning Accuracy in X-/Y-/Z-axis | 0.003mm |
| Repeatability Accuracy in X-/Y-IZ-axis | 0.002mm | |
| Power and Dimensions | PowerSupply | 3-phase AC, 380V/50Hz/25A |
| Weight | 5000kg | |

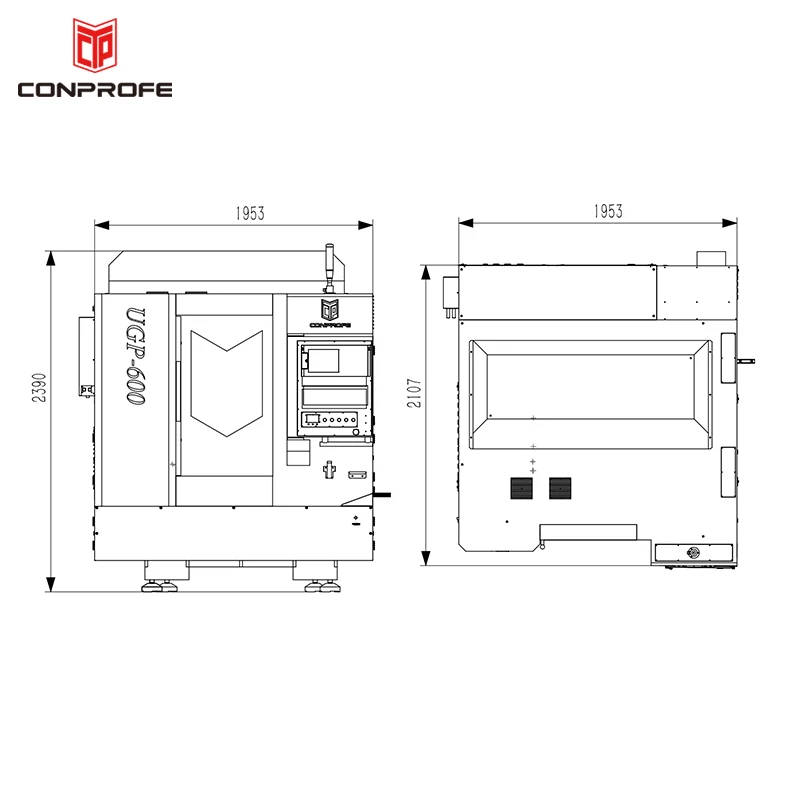

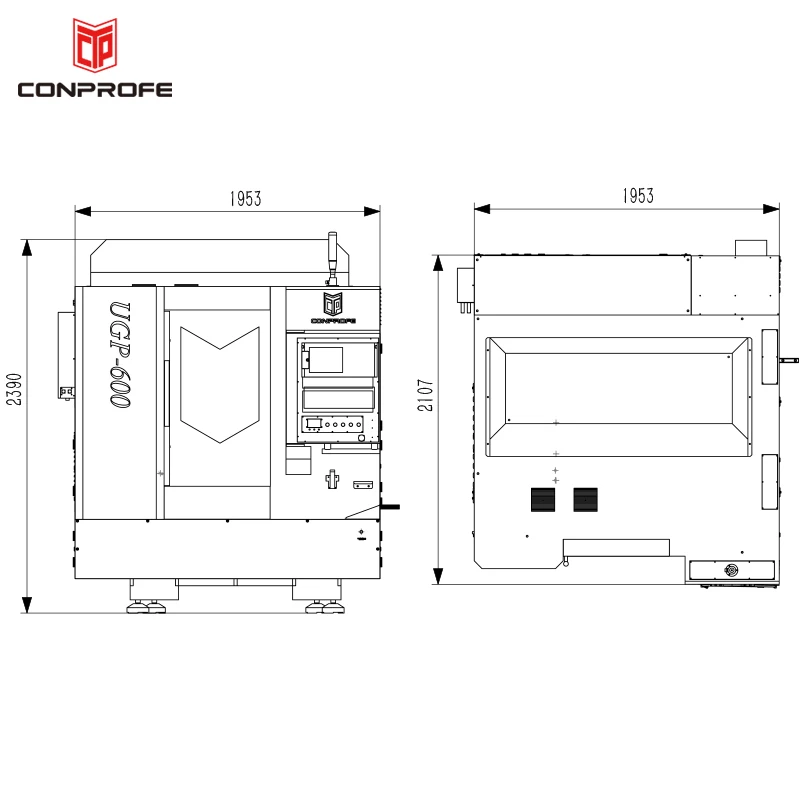

| Dimensions(X/Y/Z) | 2160 × 2090 × 2390mm | |
Make the Impossible Possible:
- 130% output with 30% CAPEX
- Sub-surface damage reduced by 40%
- Tool life improved by 3~10 times
- Cutting force down by 50%
- Cutting heat down by 30%

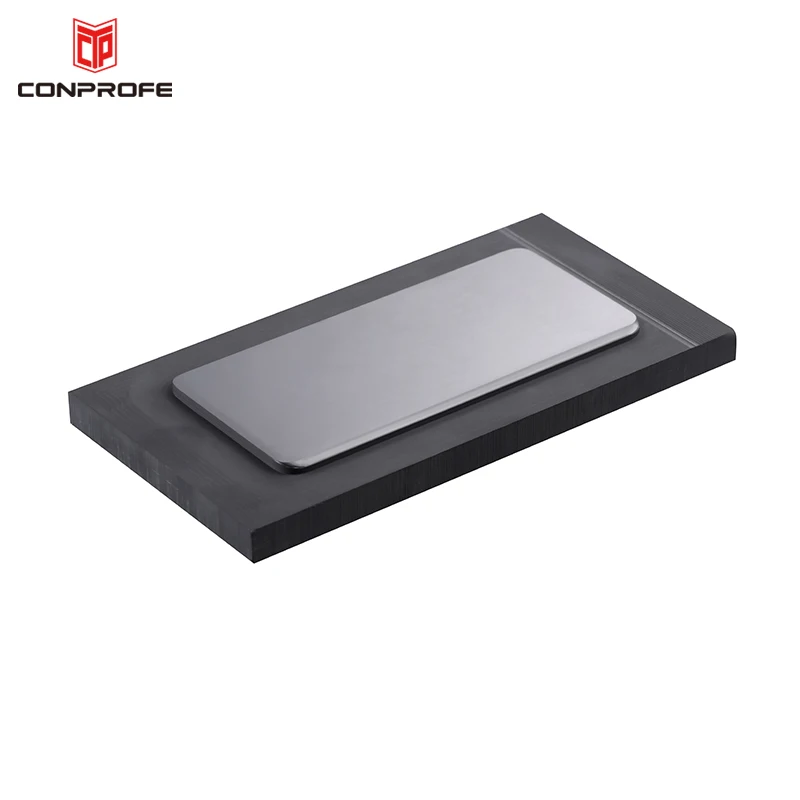

1. Best fit for graphite processing

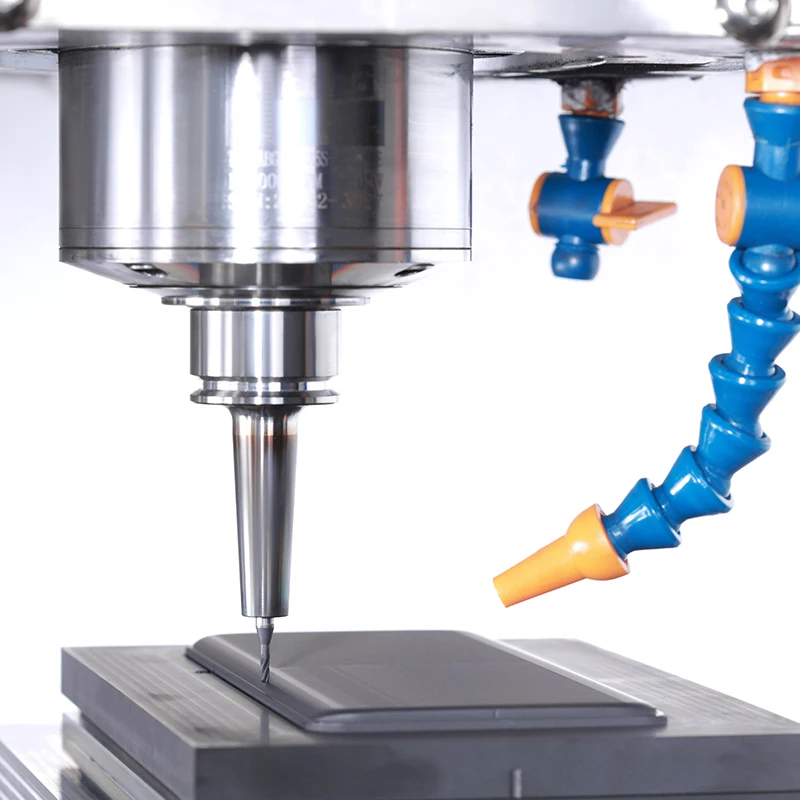

2. High precision and efficiency with ultrasonic technologies
3. Permanent magnet synchronous motor built into spindle and thus low thermal elongation
4. Double-lay protection and positive pressure sealing technology against graphite dust
5. High-precision grating scale allows for closed loop control
6. Significant tool life improvement
