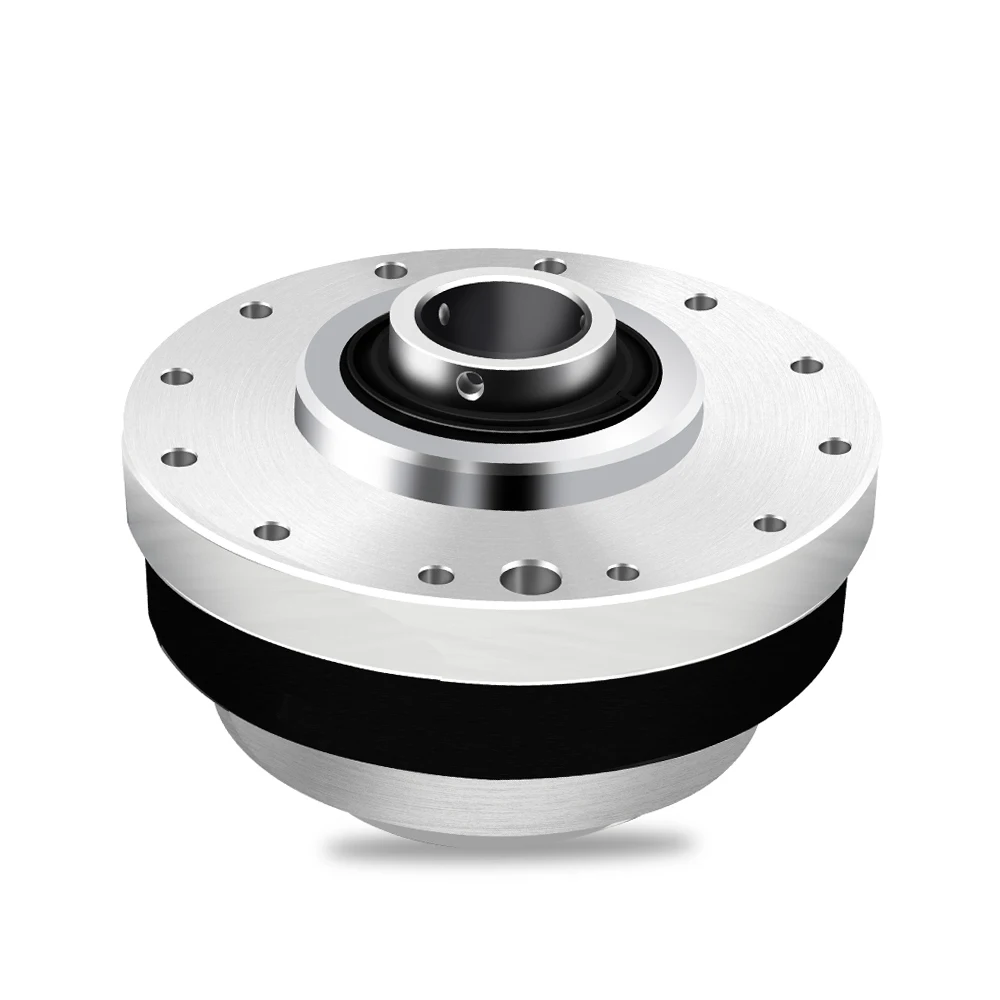

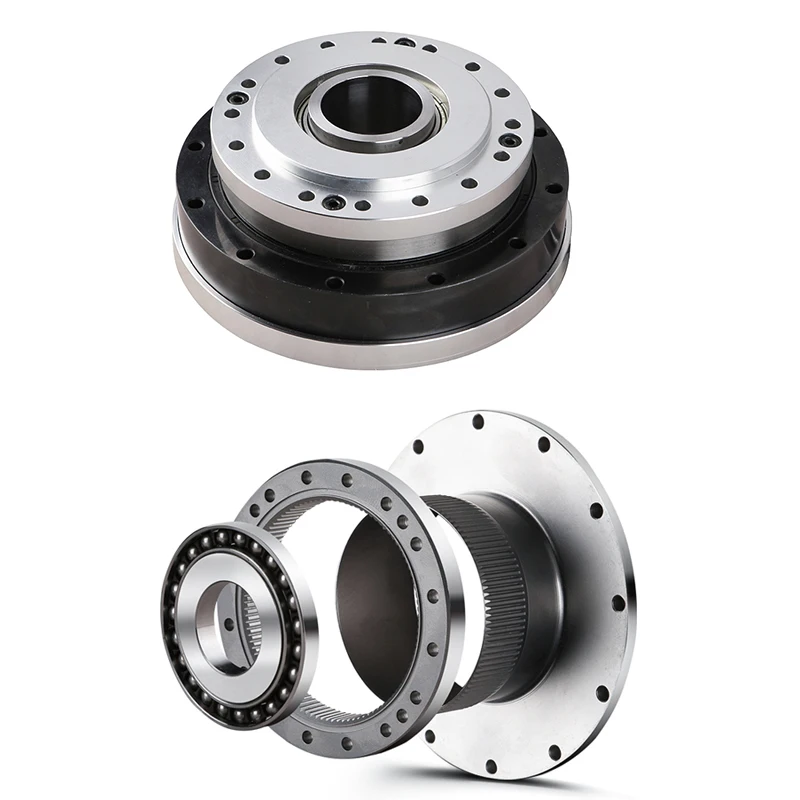

Factory supply 25mm No Backlash Harmonic Drive Reducer Gearbox
Product Description
Adopt international latest technology, under innovative tech, strict QC, our independent R& D team synchronously adopt international craft and cast great quality harmonic gear reducer. With s-shaped teeth, our harmonic reducer with high precision, low noise and long life.
Product Features

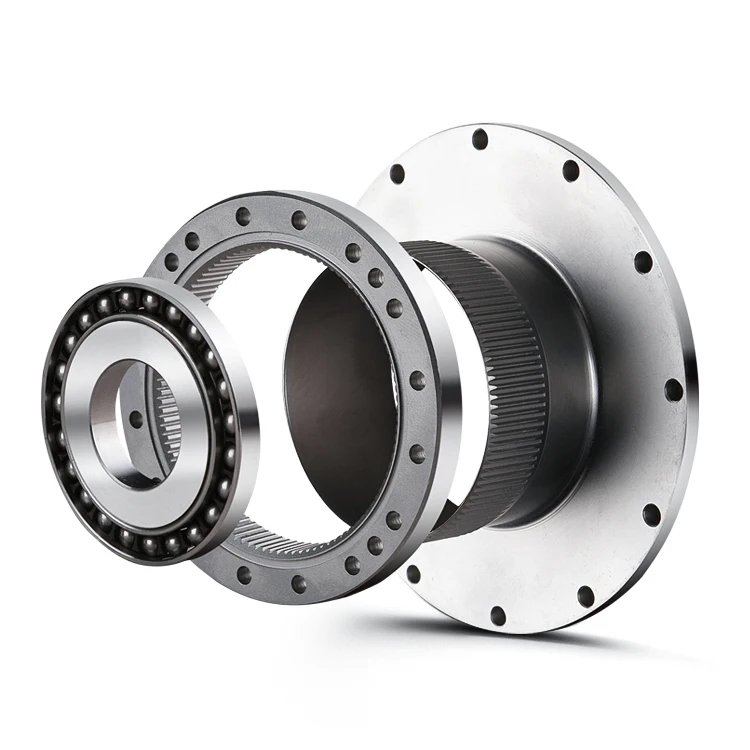

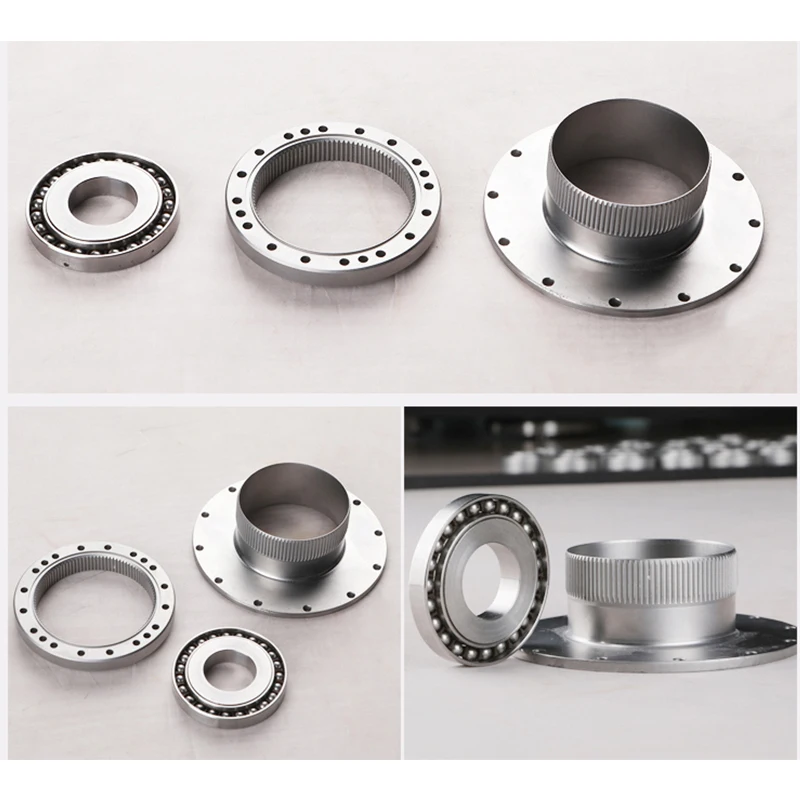

With 10 years’ research of harmonic drive reducer, we master the core technology, adopt the latest international S-shape gear transmission mechanism for harmonic reducer. While maintaining the smoothness of the traditional involute tooth type, it can improve the performance of precision, strength, rigidity, service life and so on.
Four advantages of our Harmonic Reducer
1.S-shaped tooth
2.Long life
3.High precision
4.Low noise
Product Parameter
There are 14, 17, 20, 25 and 32 models harmonic reducer. Detailed parameter as below
| Model | Reduction ratio | Rated speed when input 2000r/min | Allowable peak torque at start stop | Maximum allowable load torque on average | Maximum allowable moment torque | ||||
| Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | ||
| 25 | 50 | 51 | 5.2 | 127 | 13 | 72 | 7.3 | 242 | 25 |
| 80 | 82 | 8.4 | 178 | 18 | 113 | 12 | 332 | 34 | |
| 100 | 87 | 8.9 | 204 | 21 | 140 | 14 | 369 | 38 | |
| 120 | 87 | 8.9 | 217 | 22 | 140 | 14 | 395 | 40 | |
| 160 | 87 | 8.9 | 229 | 23 | 140 | 14 | 408 | 42 | |
| Model | Reduction ratio | Allowable maximum input speed r/min | Allowable average input speed r/min | Rotational inertia | Back clerance | Angular transm ission accuracy | |||
| Lubricating oil | Grease lubrication | Lubricating oil | Grease lubrication | I *10-4kgm² | J *10-5kgfms² | arcsec | arcmin | ||
| 25 | 50 | 7500 | 5600 | 5600 | 3500 | 0.413 | 0.421 | 17 | 1 |
| 80 | 11 | ||||||||
| 100 | 9 | ||||||||
| 120 | 8 | ||||||||
| 160 | 6 | ||||||||
Application
Harmonic drive reducers are mainly applied in aerospace filed, industry robot, CNC machine, radar, data communication equipment, robotic arm, precision measuring instrument and etc.
Packaging & Shipping
We adopt thick foam inside the carton to protect the harmonic drive reducer. DHL, FEDEX, TNT, EMS are ok for sample order. We also could provide sea transport for large quantity orders of harmonic gear reducers.
Company Information
Zhengzhou Defy Mechanical&Electrical Equipment Co., Ltd is a professional manufacturer of harmonic drive reducer. Our factory dedicates to the research of harmonic reducer since 2010s, more than 10 years’ experience makes our product quality rank in the leading position in China. The precise harmonic reducer developed and produced by our company adopts the latest international S-shaped gear transmission mechanism, which is the only domestic enterprise capable of quantifying the production of this kind of toothed harmonic reducer, with an annual output of 500,000 sets of various products for the market.
Our Services
1. We accept small order of harmonic reducer;
2. Sample order of harmonic gear speed reducer delivery time is in 10 days, mass quantity order lead time is 7-15 days;
3. We can accept payment via paypal, T/T and L/C;
4.Quality assurance of our harmonic reducer is 1 year, and we can provide you professional technical support;
5. We provide free software wand training how to use the products. Engineers are available for technical support.
