Диапазон диаметра 80-750 мм гибкий изолированный воздуховод предварительно
- Категория: HVAC Systems & Parts >>>
- Поставщик: Wuxi,Endian,Pipe,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.28 $* | 0.97 $* |
| Aug-20-2025 | 0.8 $* | 0.41 $* |
| Jul-20-2025 | 0.64 $* | 0.39 $* |
| Jun-20-2025 | 0.92 $* | 0.10 $* |
| May-20-2025 | 0.8 $* | 0.81 $* |
| Apr-20-2025 | 0.70 $* | 0.87 $* |
| Mar-20-2025 | 0.72 $* | 0.94 $* |
| Feb-20-2025 | 0.80 $* | 0.32 $* |
| Jan-20-2025 | 0.85 $* | 0.48 $* |
Характеристики
Products Description
Standard length | 6 meters |
Glass fiber thickness | 25mm |
Maximum working pressure | 2500Pa |
Steel wire | 0.8-1.4MM |
Diameter range | 80-750mm (4" -30") |
Temperature range | -30°C-120C |
Maximum air velocity | 30m/s |
Physical size | medium 80 100 125 150 200 250 300 350 400 450 500 |
Specification range (diameter) | 80-500mm (length and specifications can be customized according to customer requirements) |

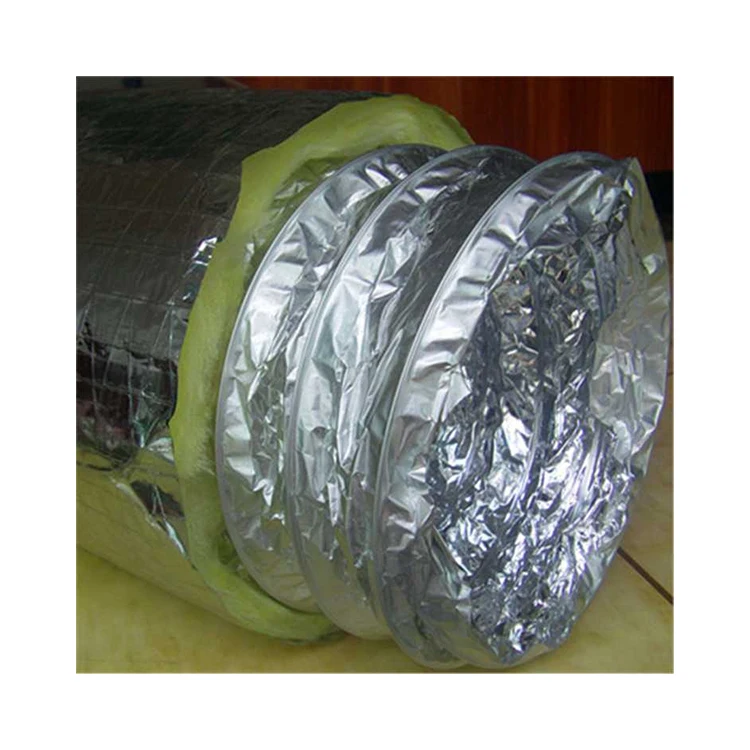

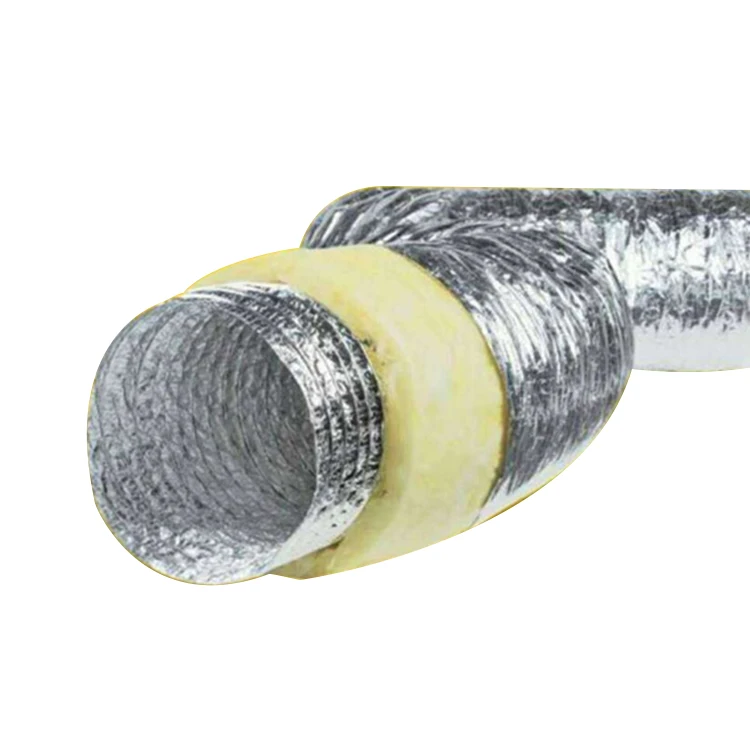

Product features | Using standard thin-walled aluminum tube as the core, finishing the coated glass wool as the pollution layer, and covering the tidal barrier The layer is made of strong aluminum foil or fiberglass cloth. |
Specification100.150.200.250.300.350.400.450.500.550.600MM
Length 6 meters (can be customized according to customer requirements)Temperature range -30 degrees +120 degrees
Density 16-20KG/cubic
Steel wire 0.8-1.4MM

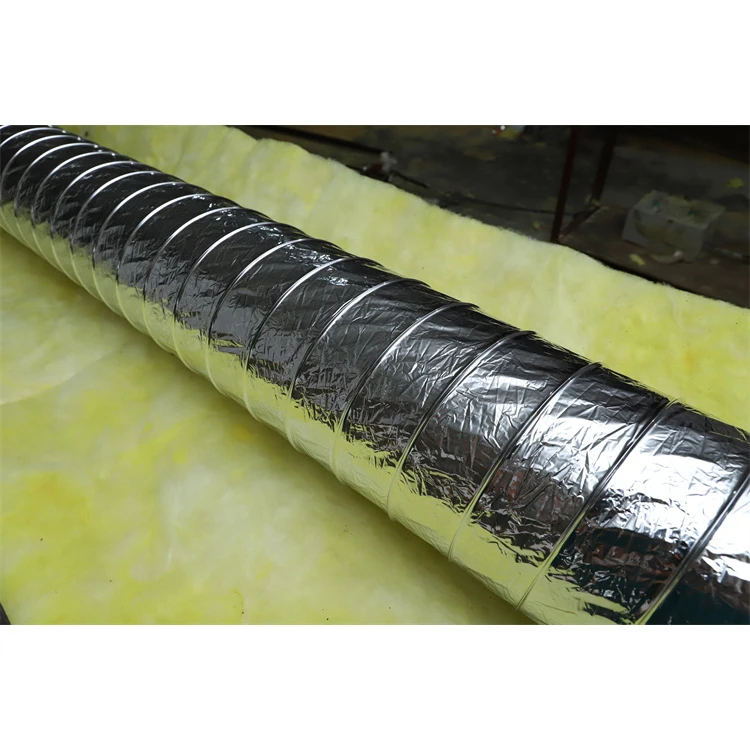

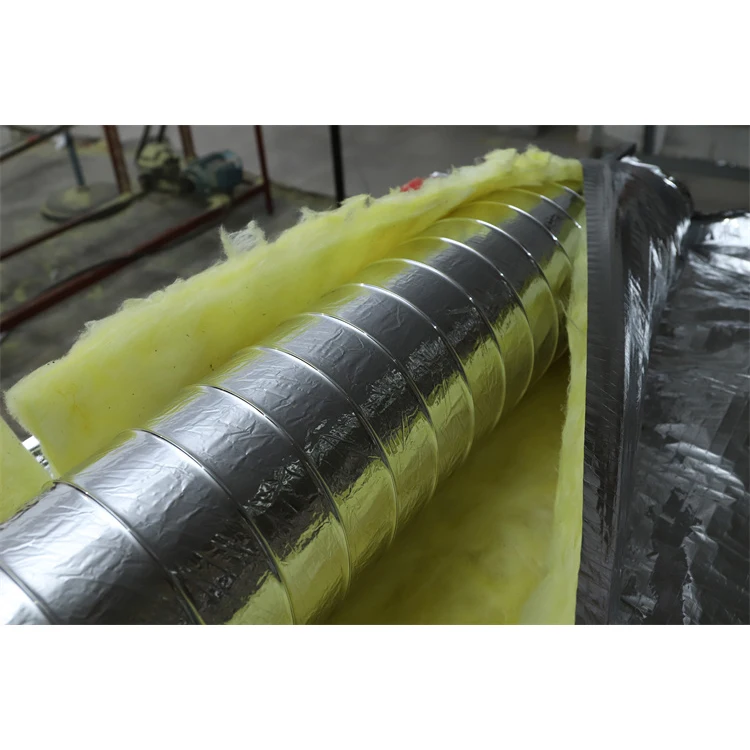

Mainly used for high-pressure, medium-pressure, low-pressure central air-conditioning ventilation system, equipment silencer system, the inner tube is made of steel wire wound with aluminized film, the steel wire spacing is 2-5CM, and the outer cover is 250MM thick 16-20KG/cubic glass wool Felt, outsourcing and moisture-proof wrapped by PAP clip fascia
WUXI ENDIAN AIR DUCT Co., Ltd. is located in Wuxi City with beautiful scenery and convenient transportation. Is a research and development, sales of flexible ventilation duct as one of the professional manufacturers, the main products are aluminum foil duct, range hood aluminum foil duct, air conditioning refrigeration duct, activated carbon air filter, central air conditioning insulation duct, ventilation system equipment, PVC composite duct, nylon duct, canvas duct and other accessories.
