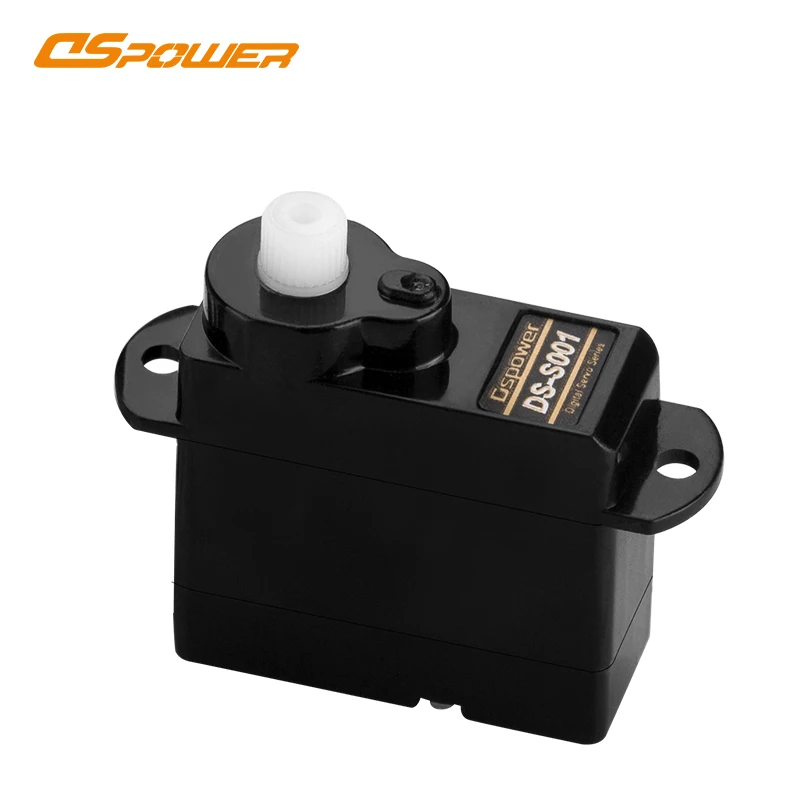

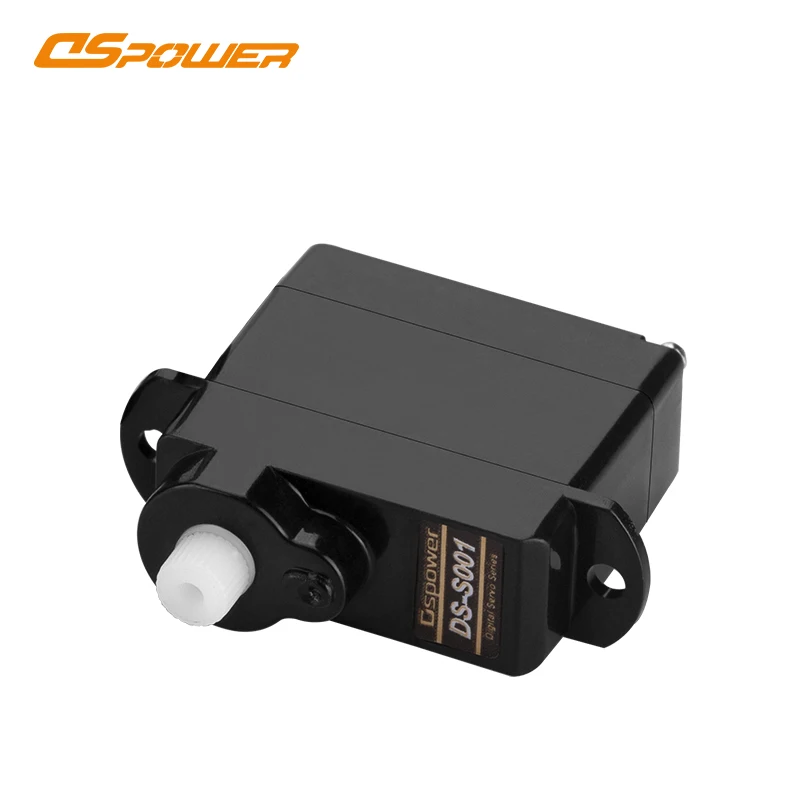

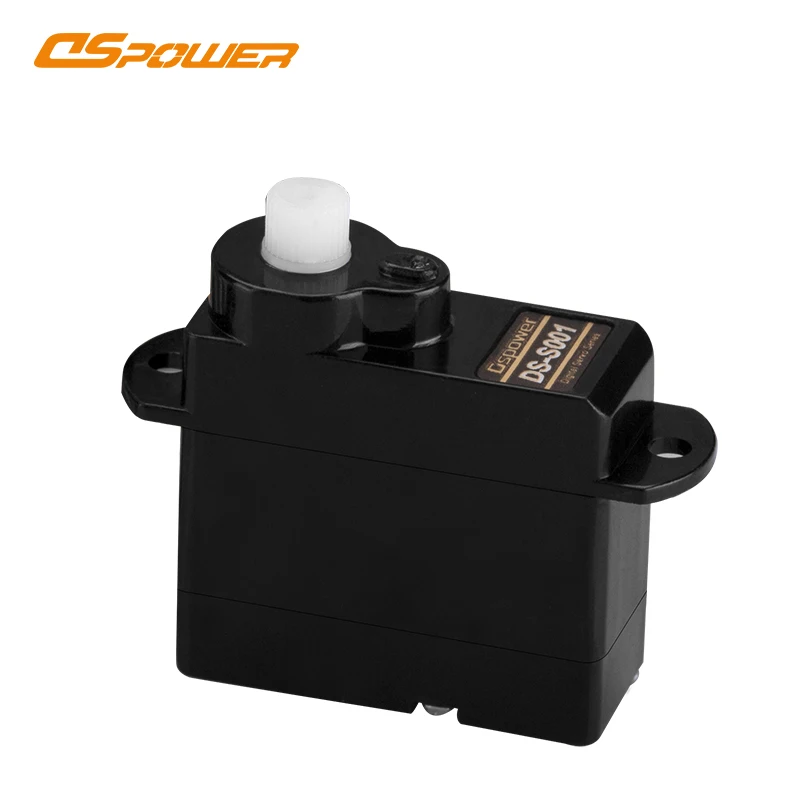

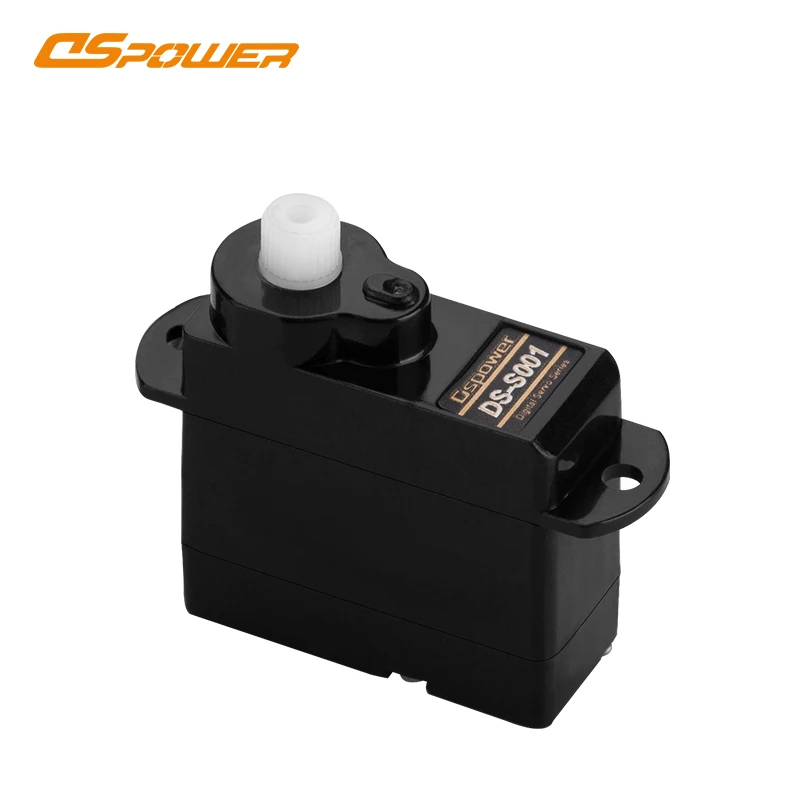

Dspower мини сервоприводы Электроника вертолеты прямой привод сервомоторы пластиковый сервомотор используется для радиоуправляемых


Поделиться:


Цена:4,59 $ - 4,99 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 5.32 $* 5.71 $*
Aug-19-2025 5.16 $* 5.99 $*
Jul-19-2025 4.4 $* 4.87 $*
Jun-19-2025 5.6 $* 5.68 $*
May-19-2025 4.13 $* 4.42 $*
Apr-19-2025 5.36 $* 5.90 $*
Mar-19-2025 5.76 $* 5.43 $*
Feb-19-2025 4.80 $* 4.60 $*
Jan-19-2025 4.40 $* 4.12 $*

Характеристики



Product Description


[Suitable for: ]





Building a miniature walking robot
Creating grippers or other mechanisms for small robots
Moving control surfaces on small model aircraft






[Feature:]





This tiny (and we mean tiny!) servo is a light weight mechanical actuator that can be controlled directly from the digital output pins on your Arduino or other microcontroller. Only 1 digital pin is required!
There are a plethora of tutorials online that will walk you through all aspects of controlling servos using the Arduino.

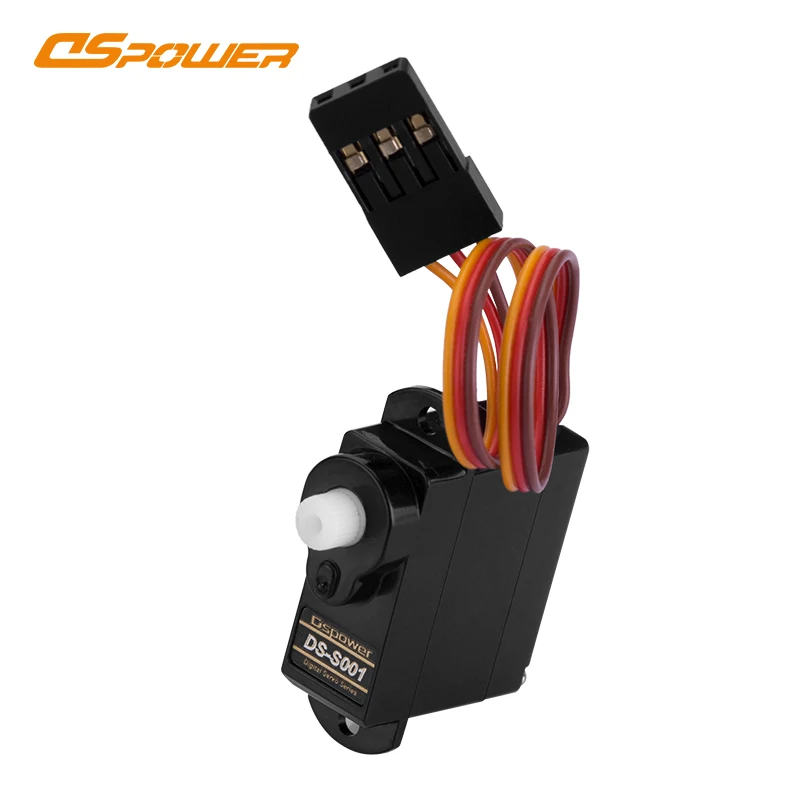

The servo comes with a 3 Pin Female 0.1" connector on a 6" cable. All you need to do is provide power, ground and a digital signal! Also included is a small assortment of plastic arms and screws to aid in attaching parts to the servo.






[Stable Performance: ]





This generic sub-micro servo is one of the lightest servos around, weighing just 3.7 g (0.13 oz).


It makes a great tiny actuator for a small robot mechanism or radio-controlled models. Servo horns and associated hardware are included. For your robot needs we offer Micro-gearhead motors.











*NOTE:







1 Year warranty against manufacturer defects



Warranty does not cover stripped gears or damage caused by abuse.












Product Description








































































Standby Current≤6mA at 4.2V
No Load Current≤50mA at 3.7V     ≤60mA at 4.2V
No Load Speed≤0.12sec/60° at 3.7V    ≤0.10sec/60° at 4.2V
Rated Torque57gf.cm at 3.7V  62gf.cm at 4.2V
Stall Current ≤330mA at 3.7V     ≤380mA at 4.2V
Stall Torque≥0.40kgf·cm  at 3.7V   ≥0.45kgf·cm  at 4.2V
Rotating DirectionCCW(1000→2000μs)
Pulse Width Range500~2500μs
Operating Travel Angle

145°±10°(700~2300μs)


Mechanical Limit Angle

360°


Angle deviation

≤ 1°


L&R Angle deviation≤ 7°
Back Lash≤ 1°
Case Material ABS

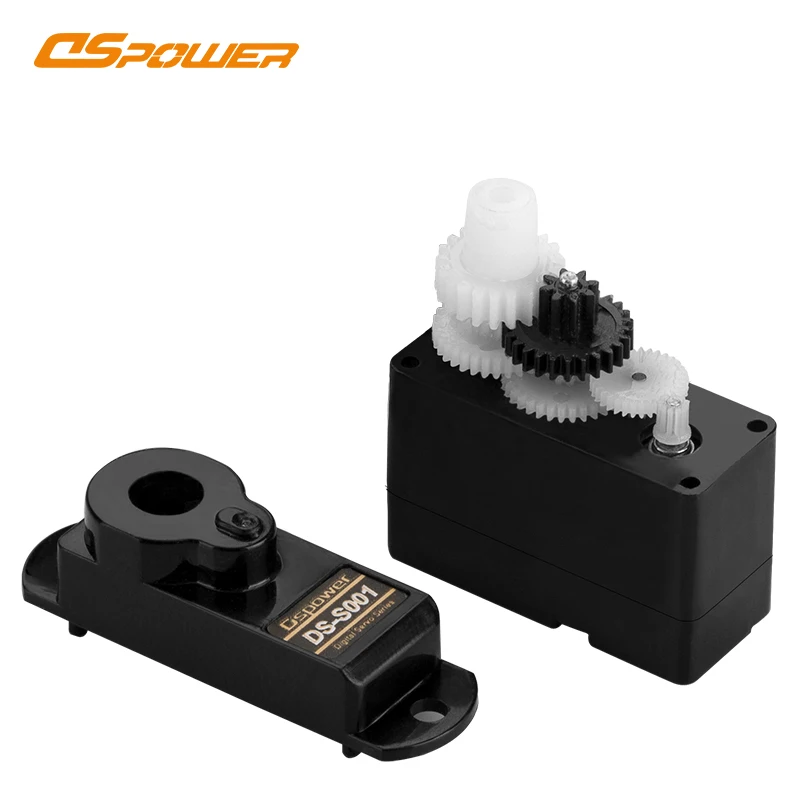

Gear Set Material Plastic gear
Motor Type

Coreless  motor





DS-S001--2_01.jpgDS-S001--2_03.jpgDS-S001--2_04.jpgDS-S001--2_05.jpgDS-S001--2_06.jpgDS-S001--2_07.jpgDS-S001--2_08.jpgDS-S001--2_09.jpgDS-S001--2_10.jpgDS-S001--2_11.jpg
