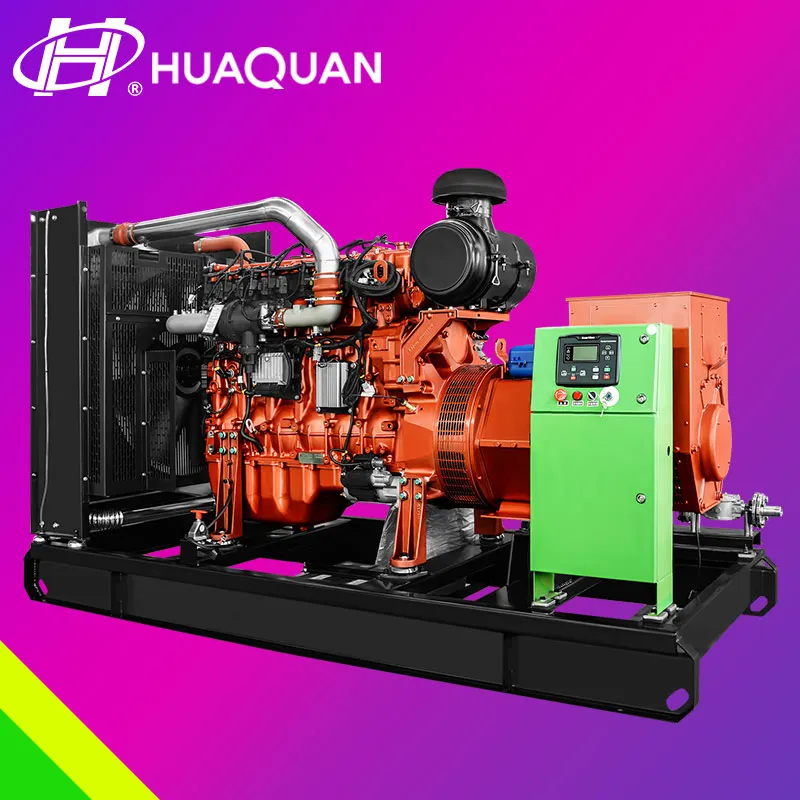

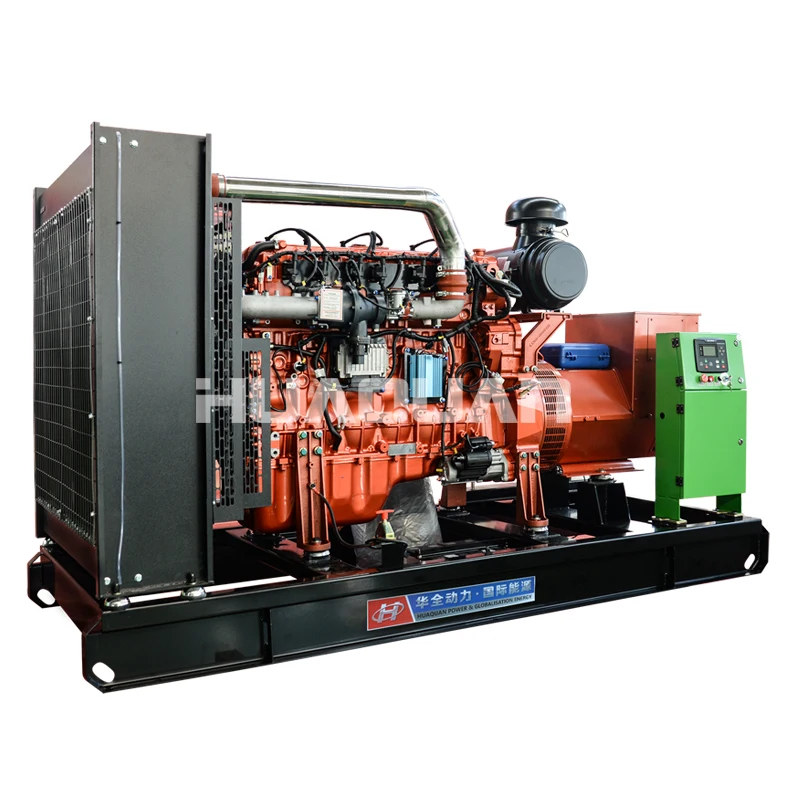

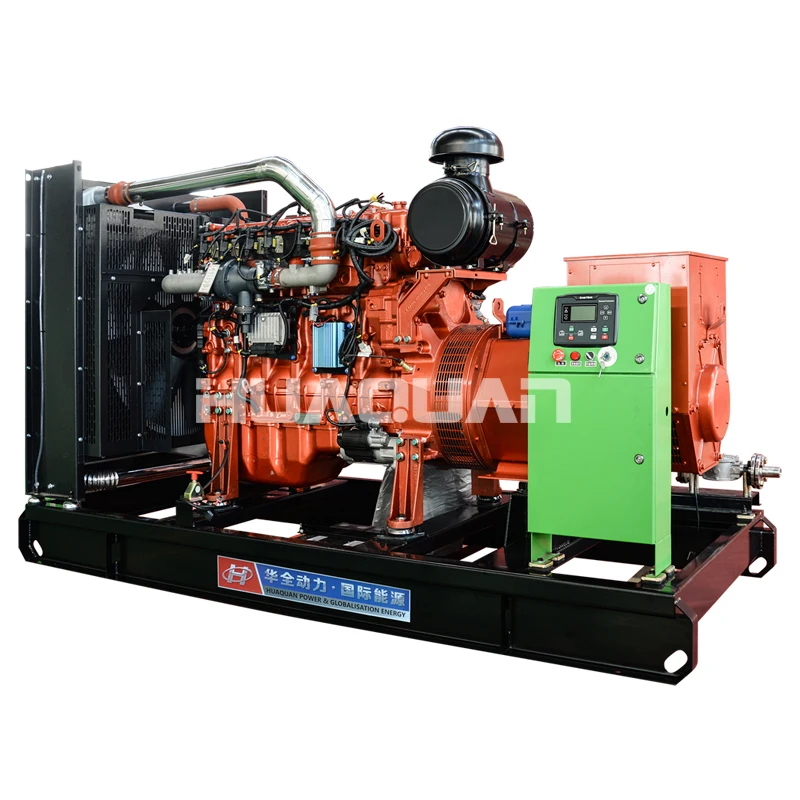

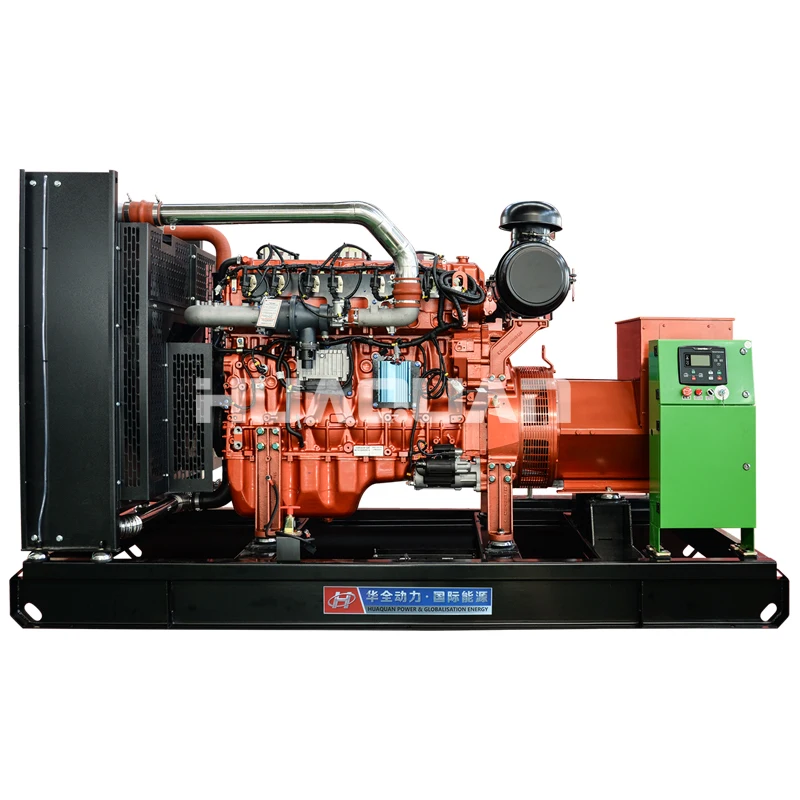

1,Huaquan 180kw gas generator set, external dimensions: 2800×850×1600 (L×W×H mm), unit weight: 2100kg. |
2,Adopt domestic Guangxi Yuchai series gas engine, 6 cylinders, controlled by ECU, spark plug ignition method, closed water circulation cooling system, good heat dissipation of generator set. |
3,Equipped with Huaquan AC synchronous generator, using pure copper wire inside, brushless motor, low failure rate, maintenance-free and long life. |
4,According to actual needs, Huaquan rainproof shed, mute box, mobile trailer, etc. can be selected to facilitate the use of the generator set. |
5,The warranty period of the generator set is: 12 months after the acceptance of the unit's commissioning test or 1000 hours of cumulative operation; whichever comes first. |
|
Unit model: |
HQRQ180GF |
Steady state voltage adjustment rate (%): |
≤± 1 |
Output power: |
180KW |
Voltage fluctuation rate (%): |
≤ ± 0.5 |
Power factor: |
COSΦ = 0.8 (lagging) |
Transient voltage adjustment rate (%): |
+20 ~-15 |
Output voltage: |
400V / 230V |
Voltage stabilization time (s): |
≤1 |
Output current: |
324A |
Steady state frequency adjustment rate (%): |
≤ ± 1 |
Rated frequency: |
50Hz |
Frequency fluctuation rate (%): |
≤ ± 0.5 |
Rated speed: |
1500rpm |
Transient frequency adjustment rate (%): |
+ 10 ~ -7 |
Gas grade: |
LNG/CNG/Biogas |
Frequency stabilization time (S): |
≤3 |
Dimensions: |
2800×850×1600(L×W×H mm) |
gas consumption (100% load): |
0.6L/kW·h |
Start mode: |
2100kg |
Acoustic noise (LP7m): |
≤95dB(A) |
gas engine technical parameters |
Brand/origin: |
Yuchai gas Engine |
Cooling method: |
Closed water-cooling |
Model: |
YC6MK265NL-D20 |
Oil supply method: |
direct injection |
Number of cylinders / Dare to mention structure: |
6/ L Type |
Speed regulation method: |
ECU control |
Bore stroke: |
123×145 mm |
Intake method: |
Turbocharged |
Compression ratio: |
11.5:1 |
Overload capacity: |
110% |
Weight: |
DC 24V Electric start |
Speed: |
1500rpm |
Technical parameters of generator |
Brand: |
Huaquan Brushless Generator |
Protection level: |
IP22 |
Model: |
HQF-180 |
Wiring mode: |
Three-phase four-wire, Y-connection |
Rated power: |
180kW |
Adjustment method: |
AVR (Automatic Voltage Regulator) |
Rated voltage: |
400V / 230V |
Output frequency: |
50Hz |
Insulation class: |
H class |
Output factor: |
COSΦ = 0.8 (lag) |
Ø Ø EFI internal combustion engine (gas); |
Ø AC synchronous generator(Single Bearing); |
Ø Water Radiator design for 40-45℃ Ambient belt-driven fans and guards; |
Ø Generation output air switch,Standard control panel; |
Ø Steel common base with shock absorber; |
Ø Dry-type air filter fuel filter,oil filter,starting motor,Self-charging alternator; |
Ø starter battery and connecting cables; |
Ø Industrial 9dB muffler and accessories; |
Ø Random information: original technical documents of gas engine and generator, generator set manual, test report, etc.; |
Optional accessories(Extra charged) |
Ø Engine oil,diesel,water jacket,Anti-condensation heater |
Ø Battery floating charger |
Ø Self-protection unit/self-starting control panel |
Ø Tree-remote control panel |
Ø ATS AUTO-loaded transferring screen |
Ø Daily fuel tank,Integral fuel tank |
Ø Waterproof type(Cabinet) |
Ø Mobile trailer(Drip proof) |
Ø Mobile trailer(Silent type) |
|
