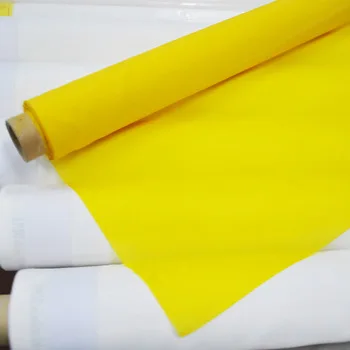

72 90 110 115 160 190 микрон нейлоновая сетка рулон нейлоновый экран используется для фильтрации пищевых

72 90 110 115 160 190 микрон нейлоновая сетка рулон нейлоновый экран используется для фильтрации пищевых

Категория: Ткань для фильтров >>>
Поставщик: Hebei,Shangshai,Wire,Mesh,Manufacturing,Co.,Ltd.

Цена:1,00 $ - 3,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-19-2025	1.67 $*	1.74 $*
Jul-19-2025	1.85 $*	1.43 $*
Jun-19-2025	1.88 $*	1.74 $*
May-19-2025	1.66 $*	1.62 $*
Apr-19-2025	1.7 $*	1.16 $*
Mar-19-2025	1.77 $*	1.0 $*
Feb-19-2025	1.22 $*	1.91 $*
Jan-19-2025	1.17 $*	1.15 $*

Характеристики

Products Description

Nylon filter screen is mainly made of P.P fiber textile molding.Good acid and alkaline resistance and corrosion resistance.Low
resistance, repeated cleaning, high economy.The captured long and short fibers and dust particles are easy to clean, and the
filtration efficiency is not affected by cleaning.Good impact resistance.

Details Images

1.The mesh with great precision exact and regular square holes, food grade, very good dimensional stability and no any chemicals
treatment in the production process

2.Widely used in areas as filtration and separation industry(Widely used in food filtration and industry filter),the industries of
petroleum, chemical, metallurgy, cement, environmental dedusting and mine. Filtration rates can be from 27% to 78%. Such as food
industry for milling filtering and flour milling, milling and other grains milling. Like glucose production, milk powder, soybean
milk etc.

3..Widely used in areas as filtration and separation industry(Widely used in food filtration and industry filter),the industries of
petroleum, chemical, metallurgy, cement, environmental dedusting and mine. Filtration rates can be from 27% to 78%. Such as food
industry for milling filtering and flour milling, milling and other grains milling. Like glucose production, milk powder, soybean
milk etc.

Specification

Polyester monofilament mesh
Specification	Mesh count	Thread diameter	Mesh opening	Opening rate	Thickness	Theoretic ink volme	Maximum tension
(/cm)	(/inch)	（丝径）（um）	（孔径）(um)	（开孔率）(%)	（厚度）(um)	（下墨量）(c㎥/㎡)	（张力）(N)
10	25	250	700	49	620	323	66
14	36	200	514	52	410	229	61
16	40	200	425	46	400	201	58
16	40	250	375	36	500	198	61
18	45	150	405	53	300	165	57
20	50	100	400	64	200	128	50
20	50	150	350	49	300	147	53
20	50	180	320	41	350	152	56
24	56	100	316	58	190	109	49
24	60	120	297	51	240	124	52
24	60	150	267	41	300	135	56
28	70	80	277	60	150	90	46
28	70	100	257	52	200	114	49
30	76	120	213	41	240	102	55
32	80	80	232	55	140	77	40
32	80	100	213	46	200	100	54
32	80	120	193	38	240	93	60
34	86	100	194	44	221	97	56
36	90	80	198	51	156	79	48
36	90	100	178	41	216	89	56
39	99	55	201	62	100	62	30
39	99	71	185	52	135	71	48
39	99	78	178	48	150	73	60
40	100	80	170	46	150	69	37
43	110	80	153	43	130	56	35
47	120	55	158	55	105	58	33
47	120	64	149	49	130	64	35
47	120	71	142	44	135	60	47
51	130	55	140	51	100	51	30
51	130	71	125	41	140	57	43
53	135	55	134	50	105	53	34
53	135	64	125	44	120	52	40
53	135	71	118	39	135	53	47
56	142	55	124	48	111	53	35
56	142	64	115	41	115	47	41
59	150	55	114	46	105	48	31
59	150	64	105	39	120	46	40
61	155	55	109	44	110	49	32
61	155	64	100	37	115	43	41
64	163	55	101	42	105	44	33
64	163	64	92	35	120	42	42
68	173	55	92	39	107	42	36
68	173	64	83	32	130	41	40
72	183	48	94	46	80	37	34
72	183	55	84	37	100	37	38
77	195	55	75	33	105	35	33
80	200	48	77	38	92	35	34
90	230	45	72	42	70	29	30
90	230	48	66	35	85	30	32
100	250	40	61	37	70	26	32
110	280	40	52	33	85	28	34
120	300	40	42	26	68	16	33
120	300	34	47	32	55	18	34
140	350	34	37	24	58	14	33
150	380	31	34	26	46	13	31
165	420	31	25	17	46	10	31
