Новый продукт, переносные пилорезы
US $1500-$2000

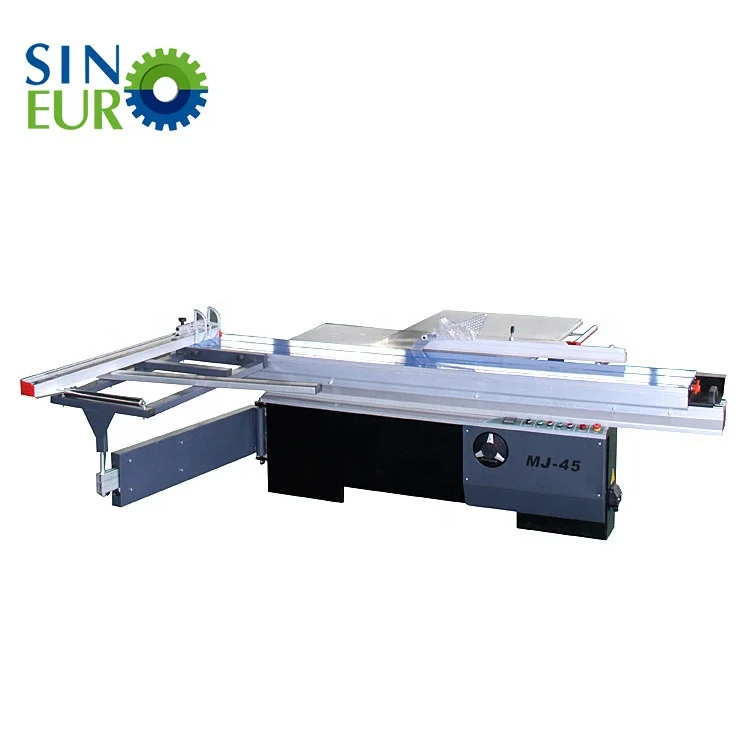

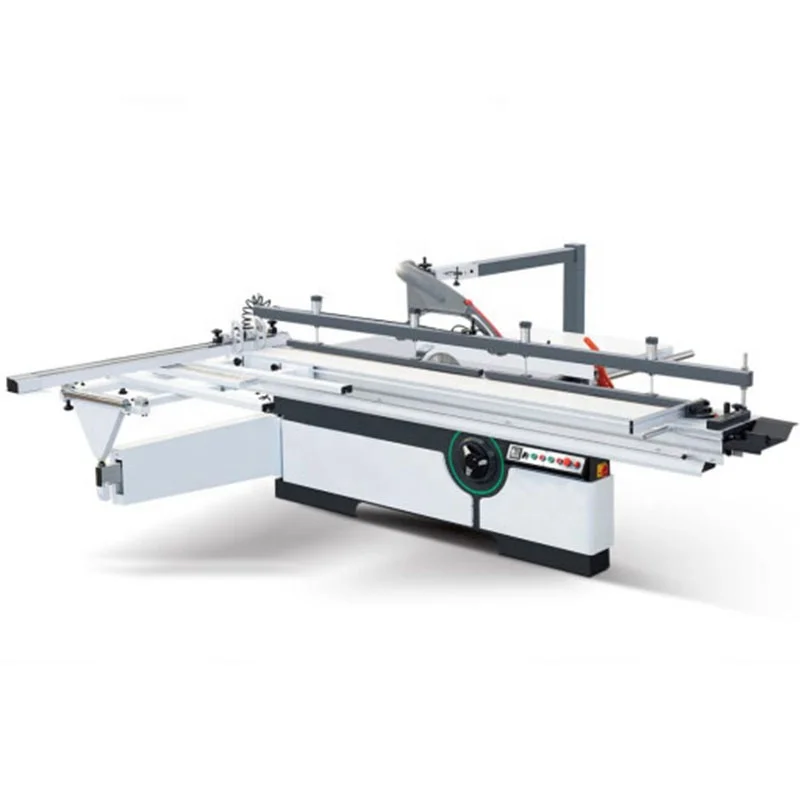

Деревообрабатывающая Точная машина для резки меламиновой доски деревянный раздвижной стол панельная
- Категория: Торцовочный станок >>>
- Поставщик: Shandong,Sinoeuro,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2618.56 $* | 2749.96 $* |
| Aug-16-2025 | 2596.35 $* | 2726.40 $* |
| Jul-16-2025 | 2178.20 $* | 2287.93 $* |
| Jun-16-2025 | 2552.22 $* | 2680.24 $* |
| May-16-2025 | 2222.2 $* | 2333.2 $* |
| Apr-16-2025 | 2508.18 $* | 2633.63 $* |
| Mar-16-2025 | 2486.8 $* | 2610.33 $* |
| Feb-16-2025 | 2464.51 $* | 2587.67 $* |
| Jan-16-2025 | 2442.46 $* | 2564.87 $* |
Характеристики
Product Overview
1.Precision table cutting saw apply to processing all kinds of MDF boards, PB boards, wood-based panels, ABS panels, PVC panels, organic glass plates and soild wood and others with wood structure and similar hardness.
2.Adopt lengthened machine body,NSK bear,Chrome Plated Round Bar push table,Copper motor,Cast iron worktable,Paint baking treatment for the appearance of the whole machine.
3.Common models:45°/90°Electronic rise and down.45°with 3 meter working table,90° with 2.8 meter working table.
Support the customization of various models,such as 3 meter ,3.2 meter,3.8 meter,4 meter,4.2 meter.
Model( Electric up and down of main saw blade ) | MJ-45 |
Sliding table size(mm) | 3200*375mm |
Gross cut capacity(mm) | 3000 |
Width between saw blade&rip fence(mm) | 1250 |
Saw blade diameter(mm) | 300(250-350) |
Height of cut (300mm) | 70-80 |
Main saw spindle Speed rpm | 4500/6000 |
Main spindle diameter(mm) | 30 |
Tilting saw blade | 0-45° |
Main motor Power(kw) | 5.5kw |
Scoring motor power | 1.1kw |
Scoring saw blade dia (mm) | 120 |
scoring saw blade speed rpm | 8000 |
Scoring saw diameter (mm) | 20 |
Weight(kgs) | 950 |
Voltage | 380V 50HZ |
Details Images
1.European step lock
Double layer thickened round bar chrome plated guide rail.
High pressure bearing capacity.
Accurate cutting.
Long service life.
2.Digital display angle
Electric lifting is adopted.
Digital display adjustment angle.
Easy to opreate,
3.Double saw blade
Small saw blade marking line
Large saw blade cutting board
There is no edge collapse and burr
4.Copper motor
High power pure copper motor
Main motor is 5.5kw,1.1kw
Enough power and long service life
5.Large guiding rule
Large European guiding rule
No shift during cutting
With magnifier, more accurate
6.Cast iron worktable
Enlarge and widen the auxiliary worktable
Our workshop
For more product
90° sliding table saw only can cut right angles.
Pls click here for 90° sliding table saw details.
45° sliding table saw can cut not only right angles, but also 0-45 degrees.The saw blade can be tilted to 45 degrees.
FAQ
Q1：Does one machine can only produce one size?
A1：Not exactly, it depends on the machine.
Q2：Do you have after sales support?
A2：Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
Q3：Can you be responsible for transport?
A3：Yes, please tell us the destination port or address. we have rich experience in transport.
Q4：You are trade company or factory?
A4：We are Manufacturer.
Q5：Do you have overseas engineers?
A5：Yes, we not only provide overseas engineers, but also provide technical training.
Q6：Do you provide customized?
A1：Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
A1：Not exactly, it depends on the machine.
Q2：Do you have after sales support?
A2：Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
Q3：Can you be responsible for transport?
A3：Yes, please tell us the destination port or address. we have rich experience in transport.
Q4：You are trade company or factory?
A4：We are Manufacturer.
Q5：Do you have overseas engineers?
A5：Yes, we not only provide overseas engineers, but also provide technical training.
Q6：Do you provide customized?
A1：Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
Q7：What can you do if the machine broken?
A7：Our machine's warranty period is 12months. if the broken parts can't repair, we can
send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we canthrough negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we canthrough negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
