Датчик толщины покрытия 0 1 микрон/0-1300 автомобильный тестер краски измерительный

Introductions:

The thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.

The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.

Technical specifications

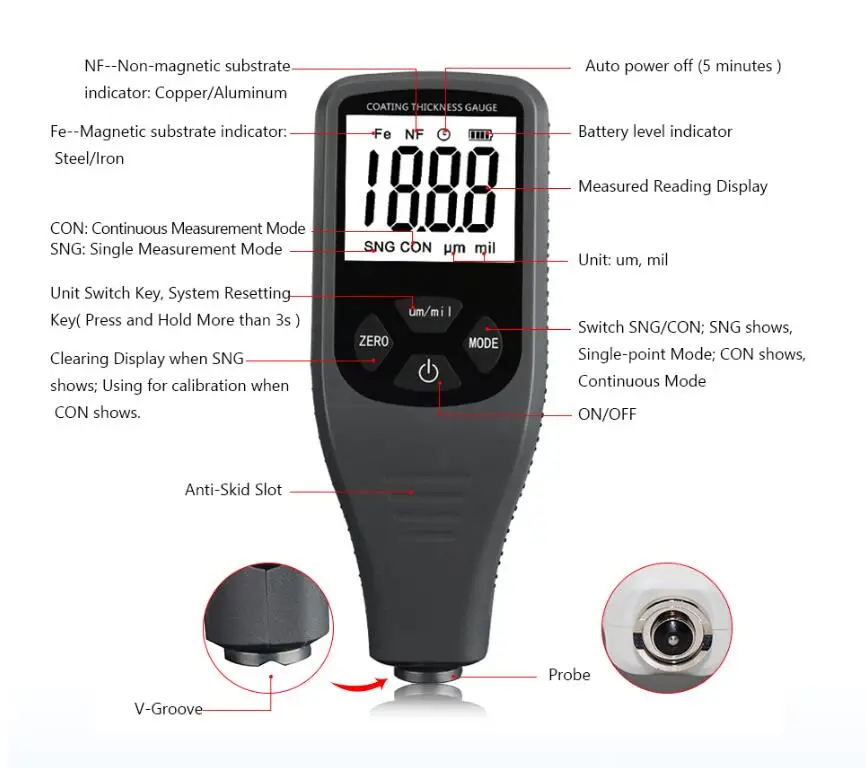

1. Fe--Magnetic substrate indicator: Steel/Iron

2. NF--Non-magnetic substrate indicator: Copper/Aluminum

3. Auto power off flag, auto power-off in 5 minutes with no-operation

4. Battery level indicator

5. Measured Reading Display

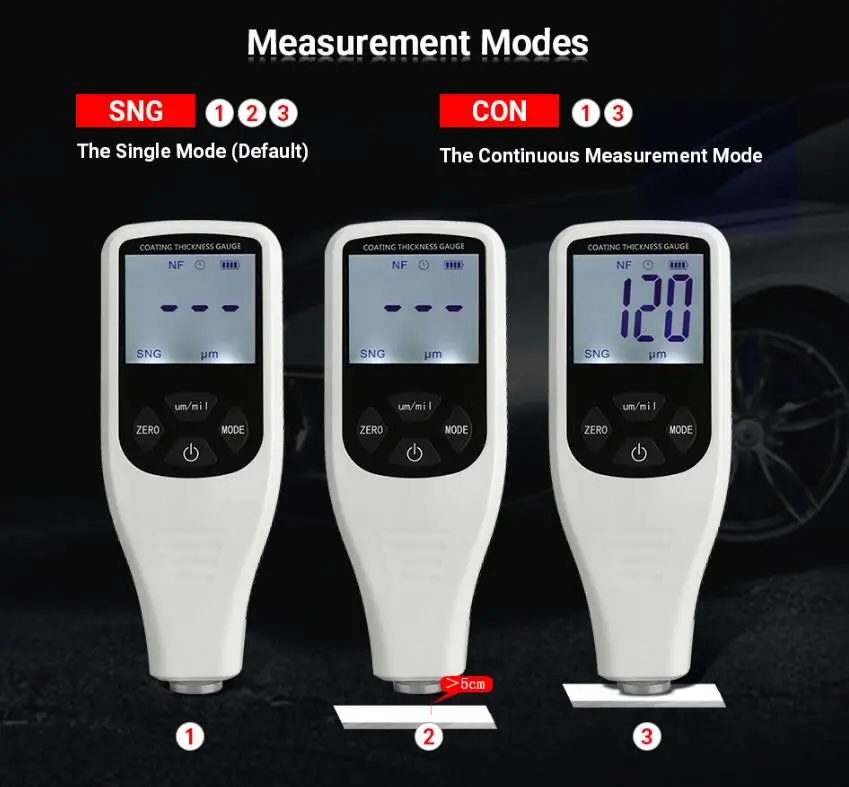

6. SNG: Single Measurement Mode

7. CON: Continuous Measurement Mode

8. Unit: um, mil

9. ON/OFF

10. um/mil: Unit Switch Key, System Resetting Key( Press and Hold More than 3s )

11. ZERO: Clearing Display when SNG shows;

Using for calibration when CON shows.

12. MODE: Switch SNG/CON; SNG shows, Single-point Mode; CON shows, Continuous Mode

13. Anti-Skid Slot

14. Probe

15.V-Groove

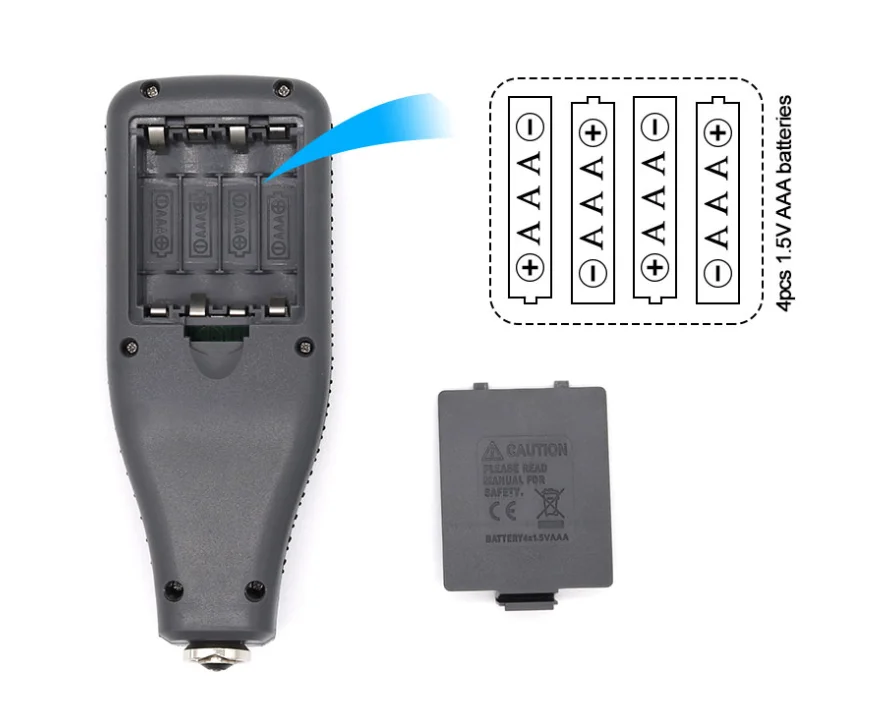

16. Battery Compartment

Factors of Affecting Accuracy

User needs to know the factors of affecting measurement accuracy before using the gauge. The factors are listed as below:

n  Curvature radius convex<1.5mm

n  Curvature radius concave <25mm

n  Diameter of measuring area <6mm

n  Thickness of substrate <0.5mm

n  Surface roughness

n  Adhesive substances: clean the probe and coating surface

n  Strong magnetic field around

n  Out of Operation Temperature and Humidity

n  Low Battery

Application Field:

The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.

 Product pictures:

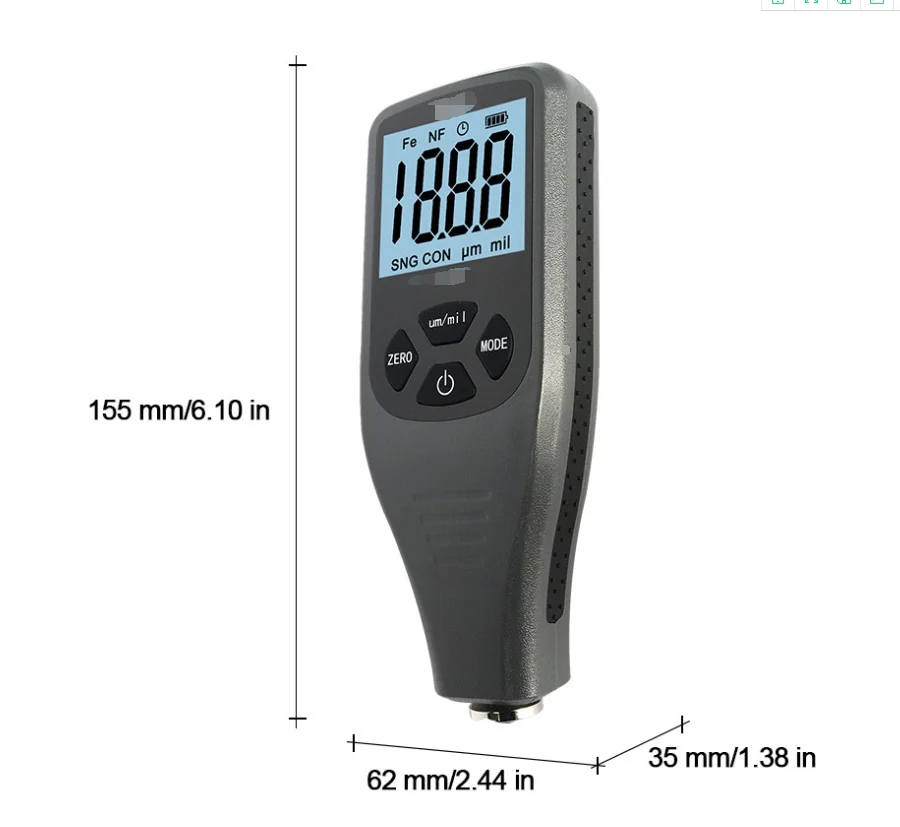

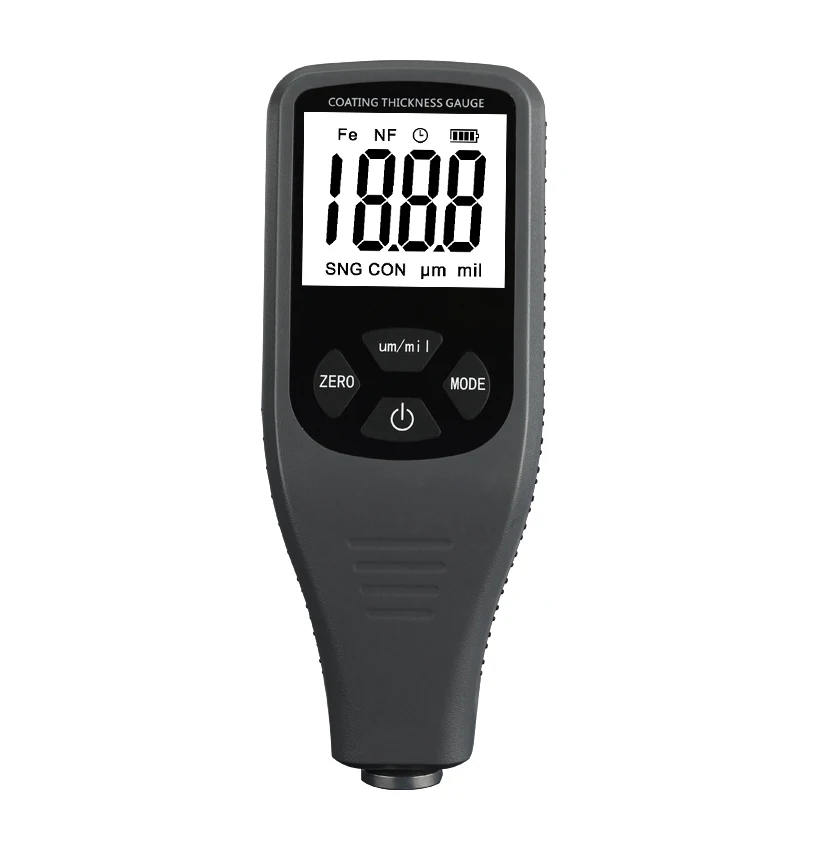

u  Coating Thickness Gauge

u  Substrates

u  Five Standard foils

u  User Guide
