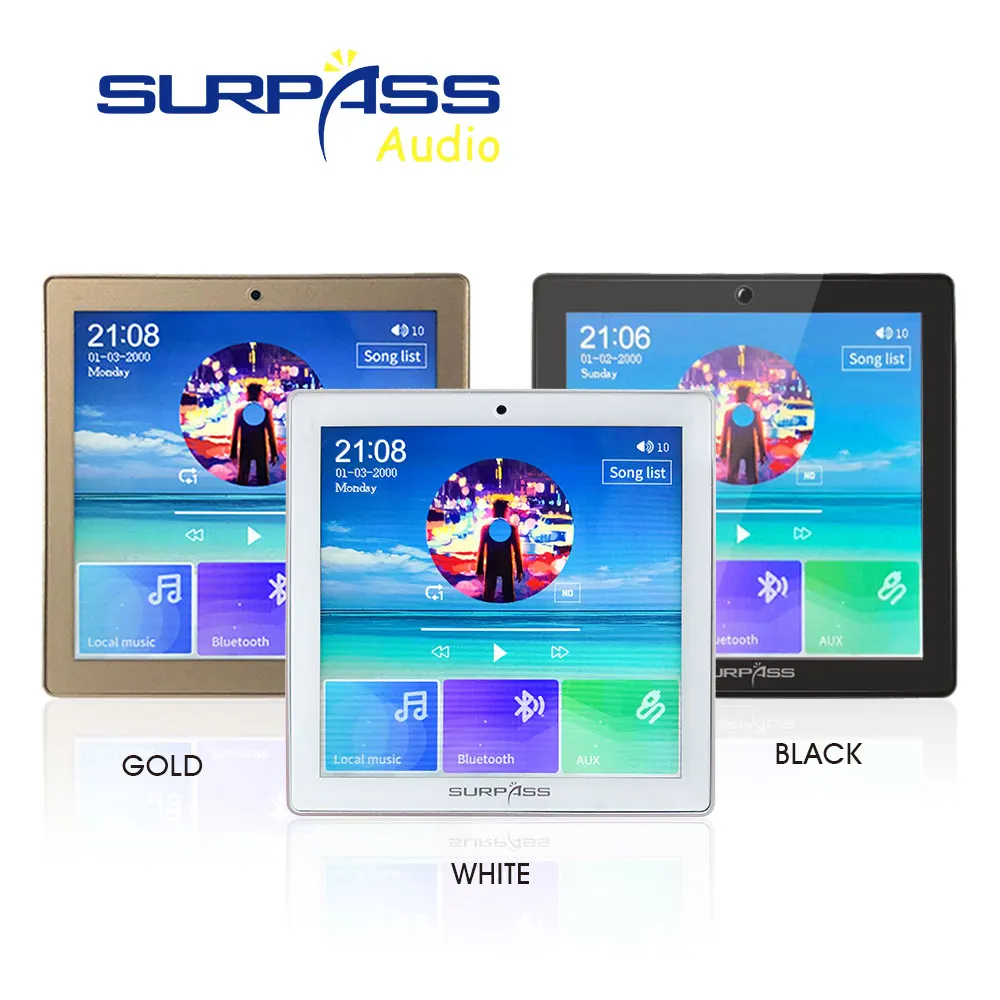

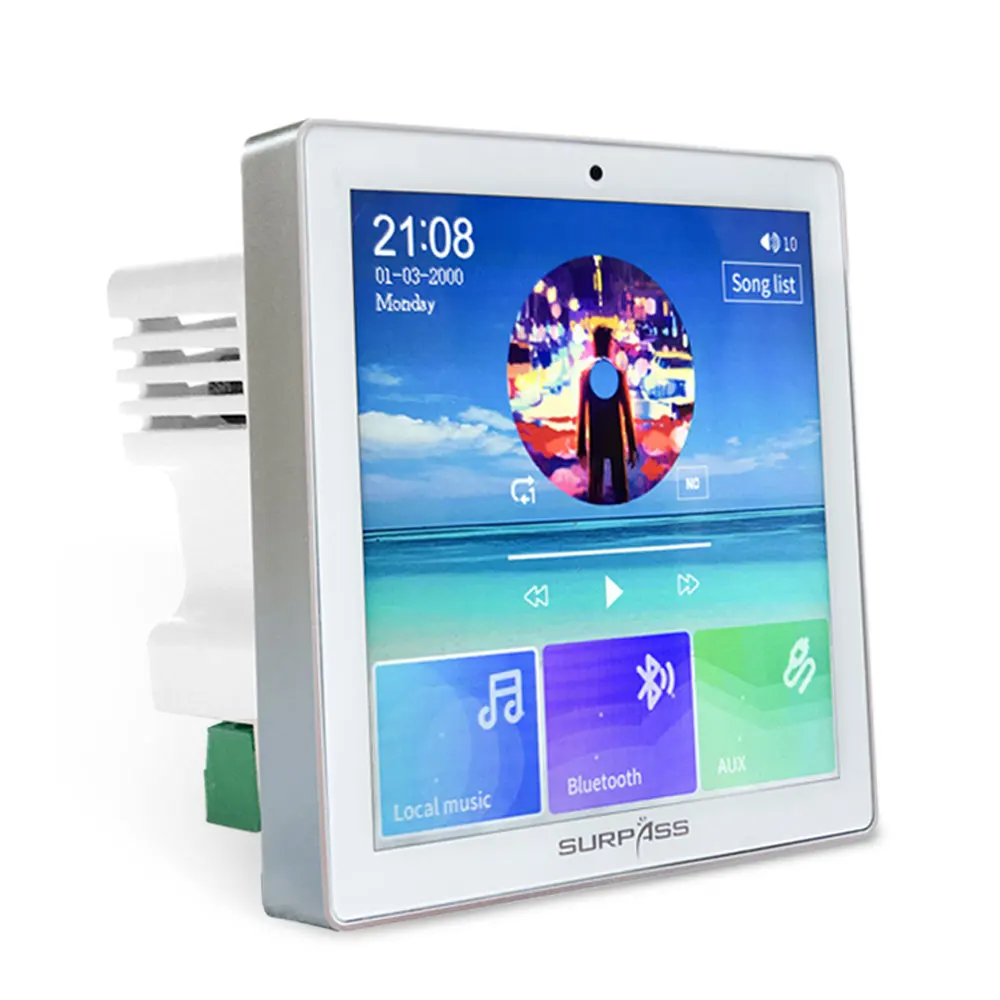

Smart Home Audio 4 Channel Wireless Blue tooth Screen Flush-mounted Radio USB Amplifier

Smart Home Audio 4 Channel Wireless blue-tooth In Wall Amplifier Specifications:
• Output Power: RMS 4x20W
• Output Impedance: 4-8Ω
• T.H.D.: 0.03%
• Frequency Response: 20Hz-20KHz
• Audio S/N: 98dB
• Memory Card: up to 32G
• Size: 86*86*11mm

Smart Home Audio 4 Channel Wireless Blue-tooth In Wall Amplifier Package Include:
1. 86 standard back box
2. remote control
3. screw set
4. bracket
5. amplifier host

Smart Home Audio 4 Channel Wireless blue-tooth In Wall Amplifier Function:

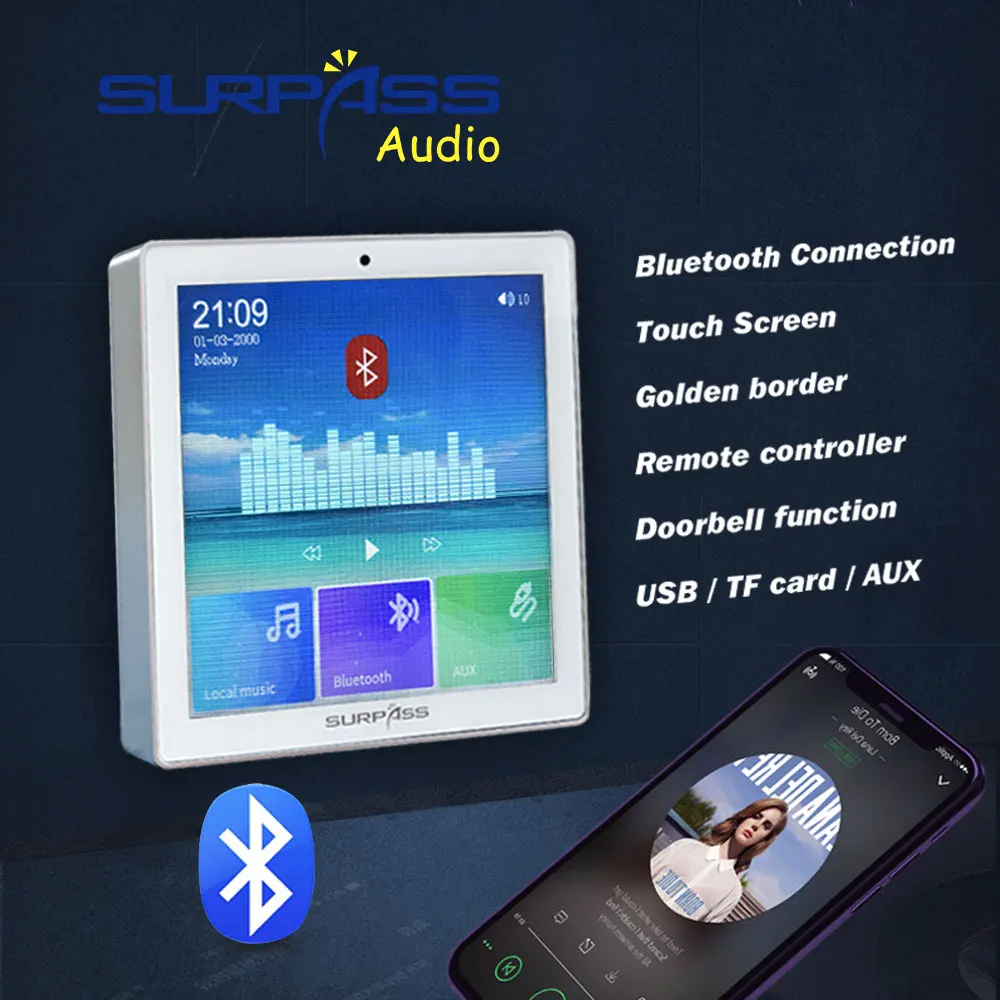

>> Wireless Blue-tooth connection
Adopt blue-tooth wireless connection technology. You can stream music from smart phone, pad, computer to the device and having the sound through ceiling speakers. You can control the volume on your device in hand. With modifiable blue-tooth name and password, you can install in close area but without confusion on the name when pairing.

>> FM radio
Built-in all-digital auto-tuning radio, 30 radio stations

>> Easy in wall installation
Standard 86 Mounted on the wall for easy control

>> Time message
Music Alarm Clock to wake up with timer message function to play music and set your unique music alarm clock.

>> Doorbell
Support trigger doorbell function: DB+GND
Trigger the doorbell interface. The indoor speaker will play the doorbell ringtone when pressing the doorbell.

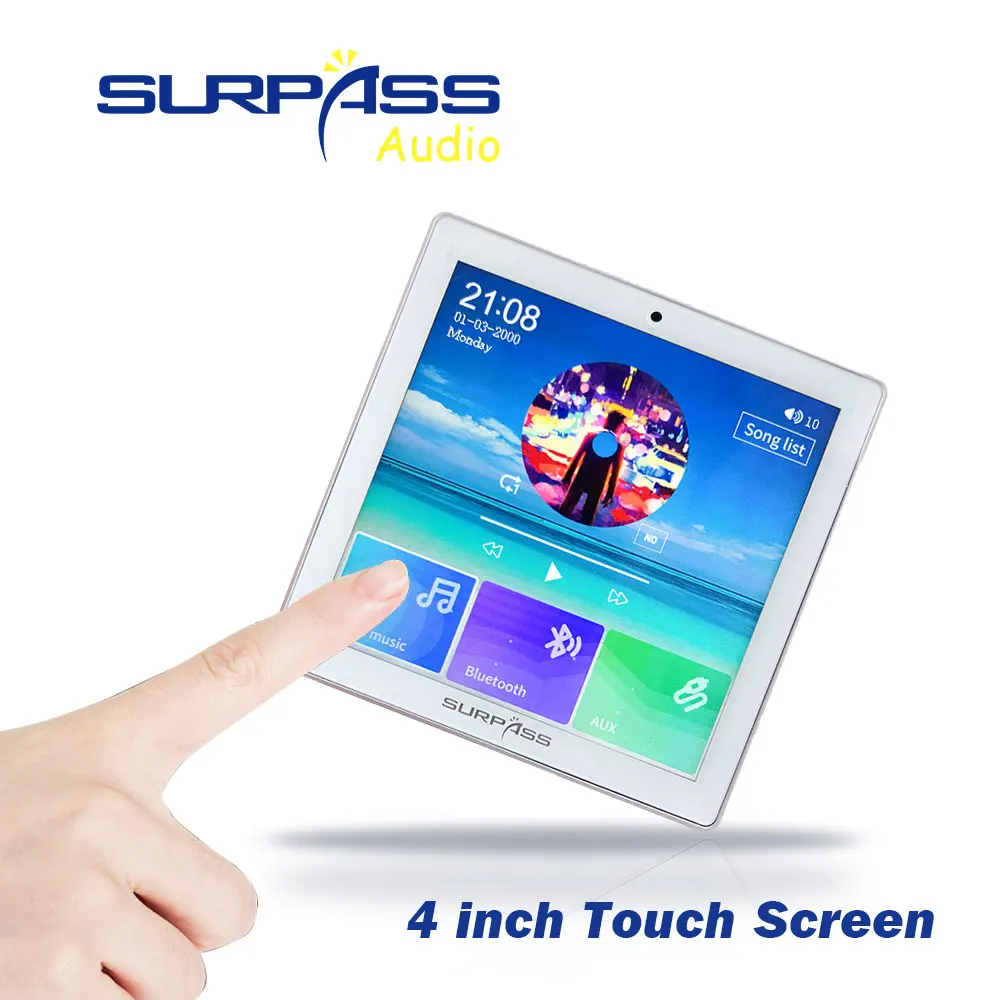

>> 4inch HD touch screen
High sensitivity 4 inch touch screen ensures fabulous visual experience and fast touch response.

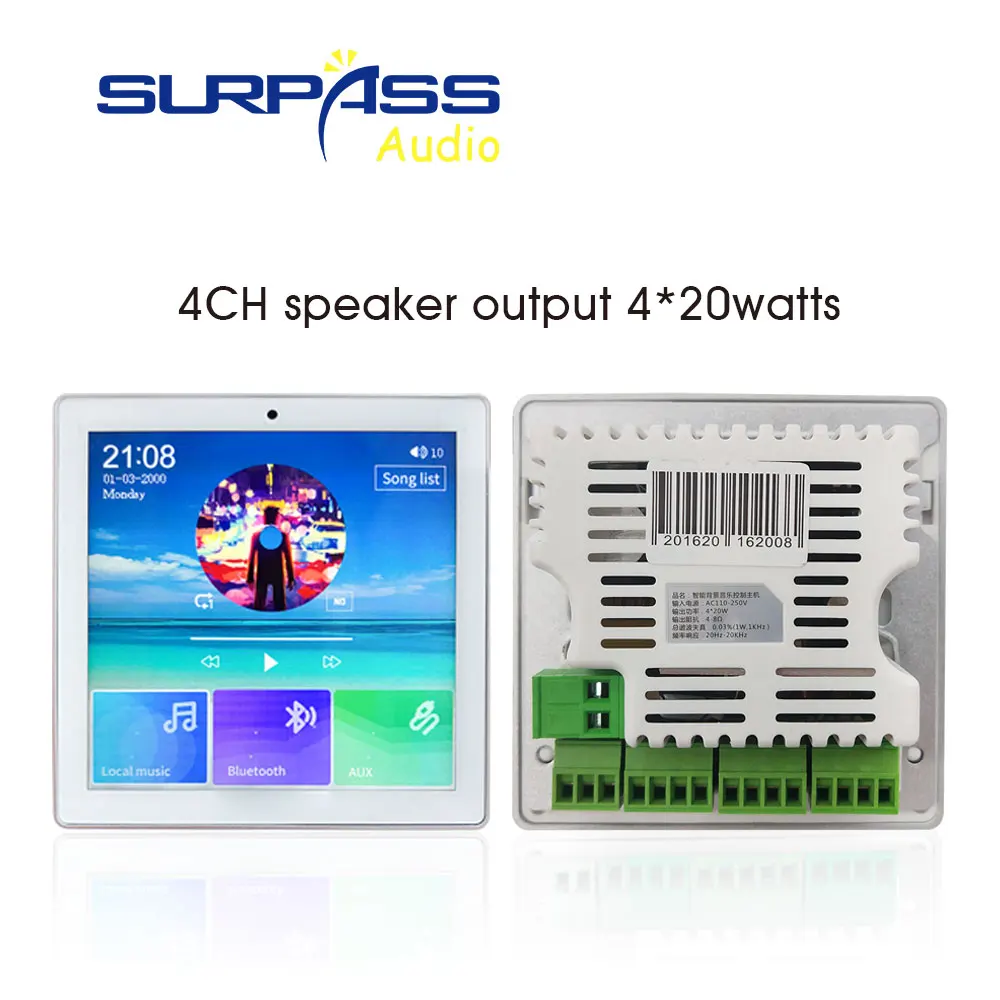

>> Four-channel speaker output
Support audio input and output function with secure and fast connect phoenix connectors.

>> Multi-function

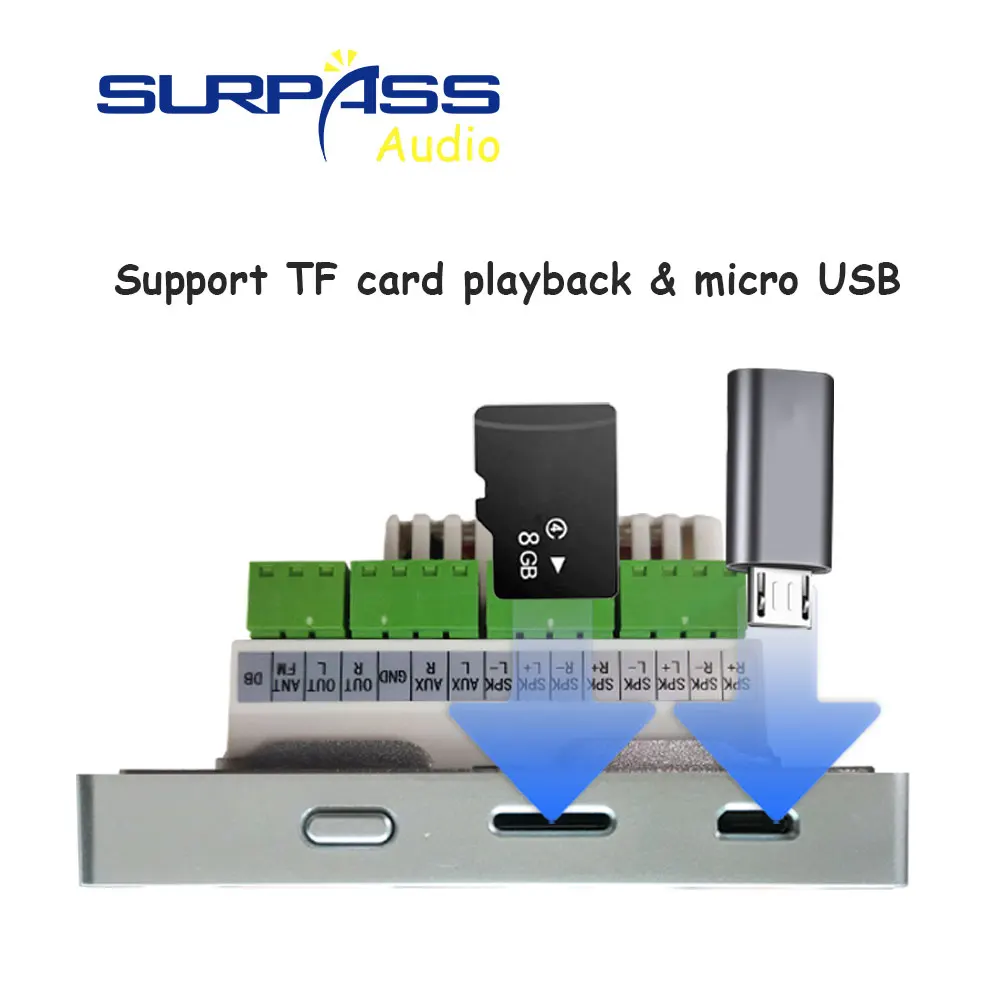

USB, TF Card, blue-tooth are supported. Suitable for homes, commercial areas, kid's room, etc.

>> Sound effect
Sound function: support ordinary, rock, classical, jazz, pop and other sound effects

>> Remote control
Infrared wireless remote control, suitable for homes, commercial areas, kid's room, etc.

*** Please noted that the speaker in the pictures just show that the amplifier can connect up to 4 speakers, but the speakers are not including in the package

Smart Home Audio 4 Channel Wireless Blue-tooth In Wall Amplifier Instructions:
1. Speaker: Speaker wire (200 cores). RVH2X100,RVH2X200 connect to SPK R+ SPK R-.
2. Speaker: Speaker wire (200 cores). RVH2X100,RVH2X200 connect to SPK R+ SPK R-.
3. Audio input wire: Audio wire (three core shielded wire: commonly known as microphone wire). RVVP2X0.5, RVVP2X0.75 connect to AUX L+AUX R+GND.
4. Audio output wire: Audio wire (three core shielded wire: commonly known as microphone wire). RVVP2X0.5, RVVP2X0.75 connect to OUT R +OUT L+GND. Can be connected to other amplifiers.
5. FM: Radio antenna
6. Trigger the doorbell: Connect to GND+DB to trigger the doorbell.
7. Power supply terminal: Connect AC110V-240V power supply.

How to install Smart Home Audio 4 Channel Wireless Blue-tooth In Wall Amplifier?

Package includes:

Notes: the link is not including the speakers, if you need the speakers together
