Гидравлический подъемный Блок для нефтяных

Категория: Mining Machine Parts >>>
Поставщик: Liuzhou,Biaohuang,Import,&,Export,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.30 $*	0.67 $*
Aug-20-2025	0.15 $*	0.97 $*
Jul-20-2025	0.61 $*	0.42 $*
Jun-20-2025	0.87 $*	0.47 $*
May-20-2025	0.87 $*	0.8 $*
Apr-20-2025	0.72 $*	0.97 $*
Mar-20-2025	0.6 $*	0.23 $*
Feb-20-2025	0.35 $*	0.87 $*
Jan-20-2025	0.92 $*	0.5 $*

Характеристики

Oilfield bucking machine for drilling equipment

Product Description

BHJQ400/150 breakout and make up machine has six hydraulic cylinders, in working, the pipe is fixed ,the six hydraulic cylinders synchronized able to clamp the coupling and rotate continuousely. Every cylinder control one jaw, and every three cylinder move synchronously, so it can be used for both big and small workpiece; for small pipes, only three jaws scratch out to clamp the coupling, and for big ones, it is six. The reliable synchronizer is imported from Italy. To adjust the center automatically, the backup tong can move a bit. The clamp force is controlled by the hydraulic system.

Product Application

The BHJQ400/150 bucking machine is used for making up & break out the pipes, casings and downhole tool.

Technical Parameter

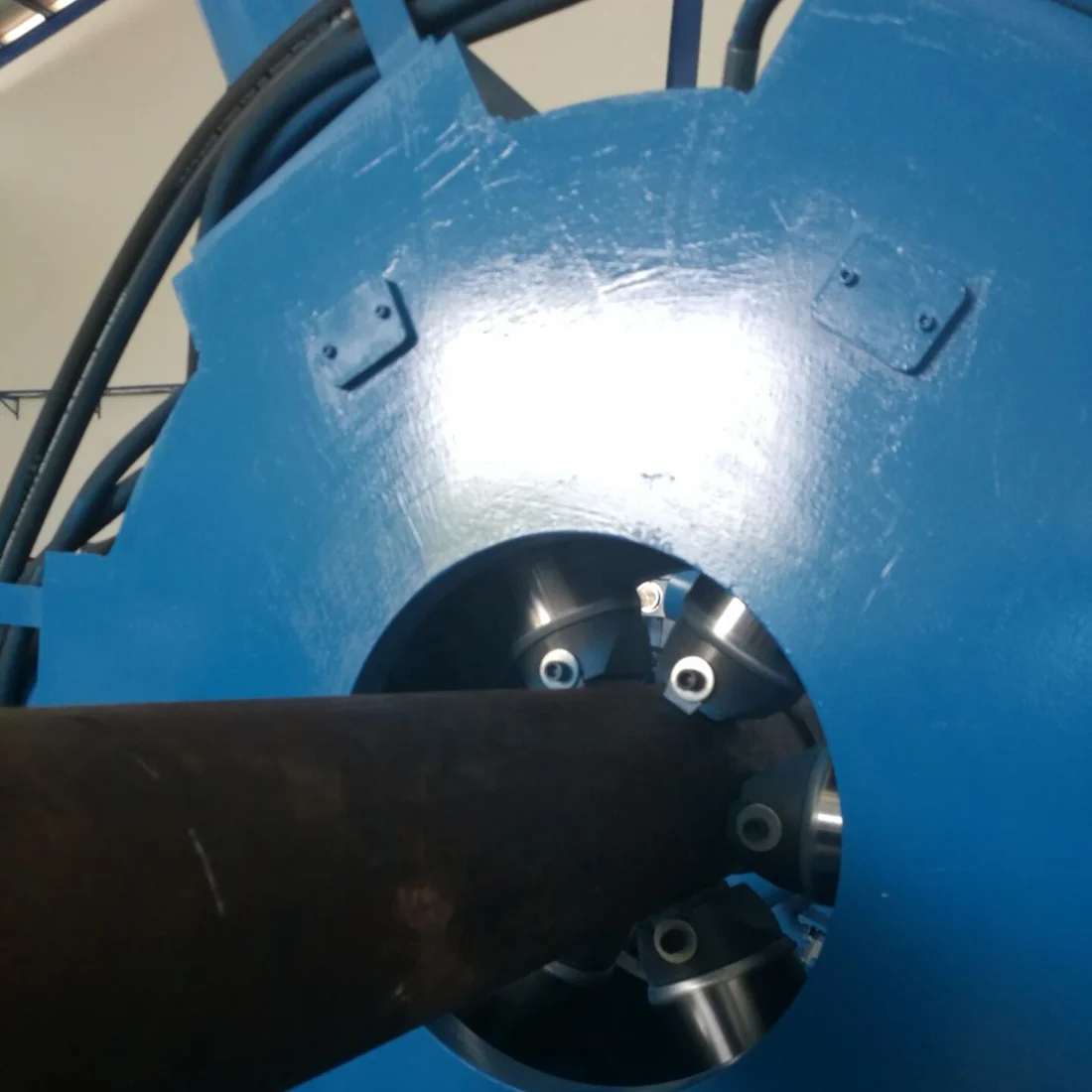

1.Dies marking:non-marking according to API, and no damage for the workpiece accuracy.Non marking dies for protect speciality material such as chrome.

Model	BHJQ400/150
Bore diameter	400mm
Application	2-3/8 inch—14 inch
Centre height	4.6FT
Speed range	It takes double pump air-cooled hydraulic power, manual stepless speed control the rotary speed, rotating head speed is :0.5-5r/min(30KW).
Make –up torque	a) Max. torque:The Max. make-up torque is150KN.M at 20Mpa pressure; b) Torque display: The computer can display, record and control the torque and turns.
Control mode	PLC+15” tablet PC,operation with buttons. And the machine will stop automatically reaching the setting torque.
Torque accuracy	150N.m
Motor power	30Kw
Hydraulic system	Max.pressure:20MPa,flow rate:40-240L/min.

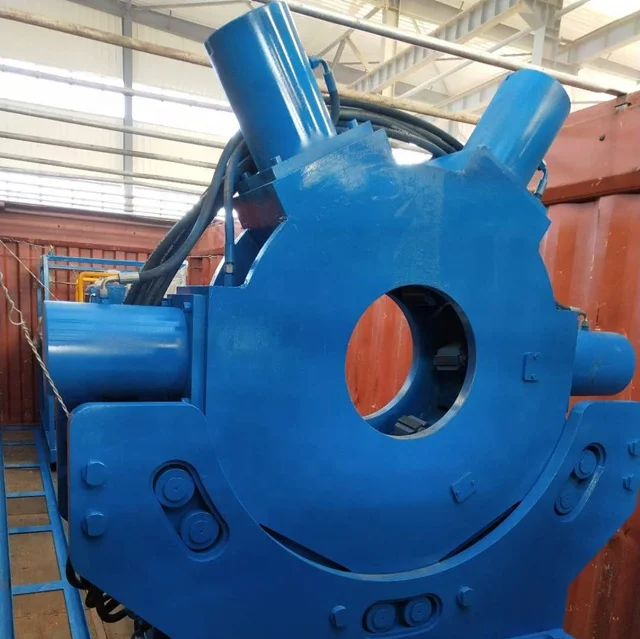

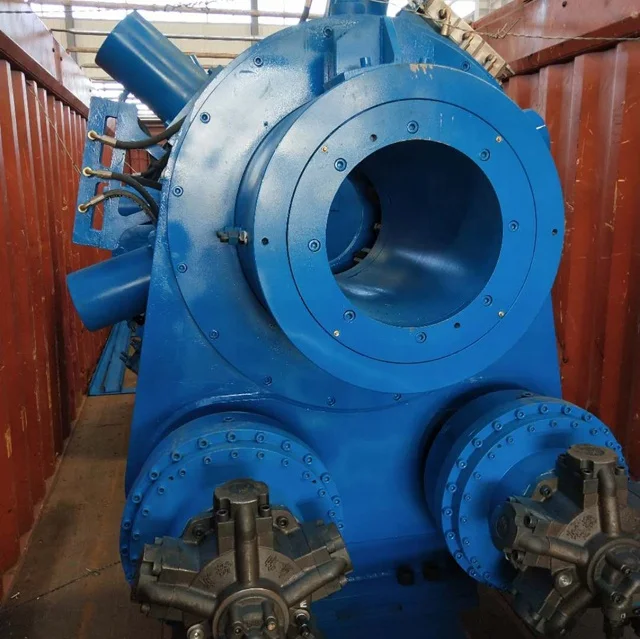

More details of the API standard hydraulic pipe breakout machine picture

Oilfield bucking machine for drilling equipment

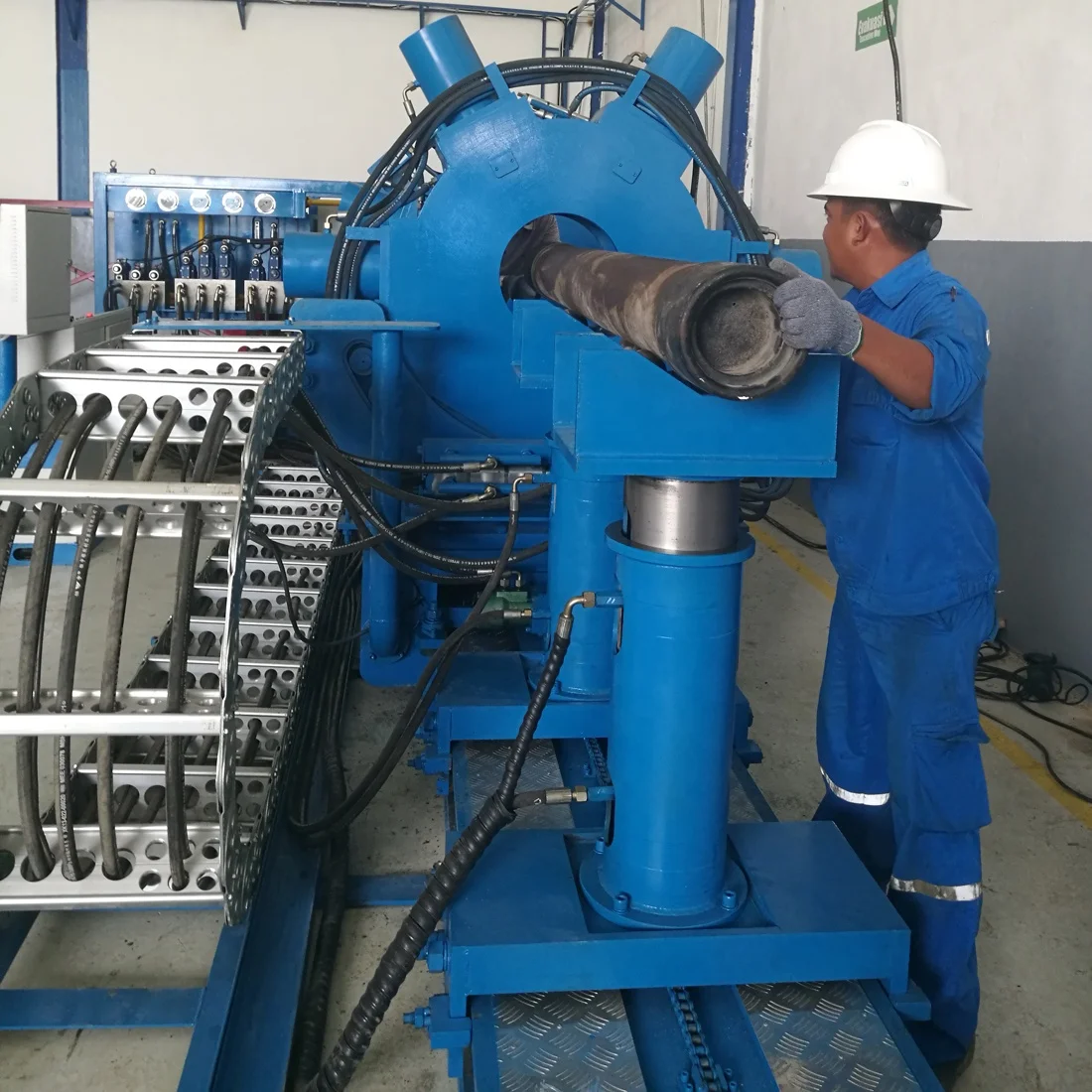

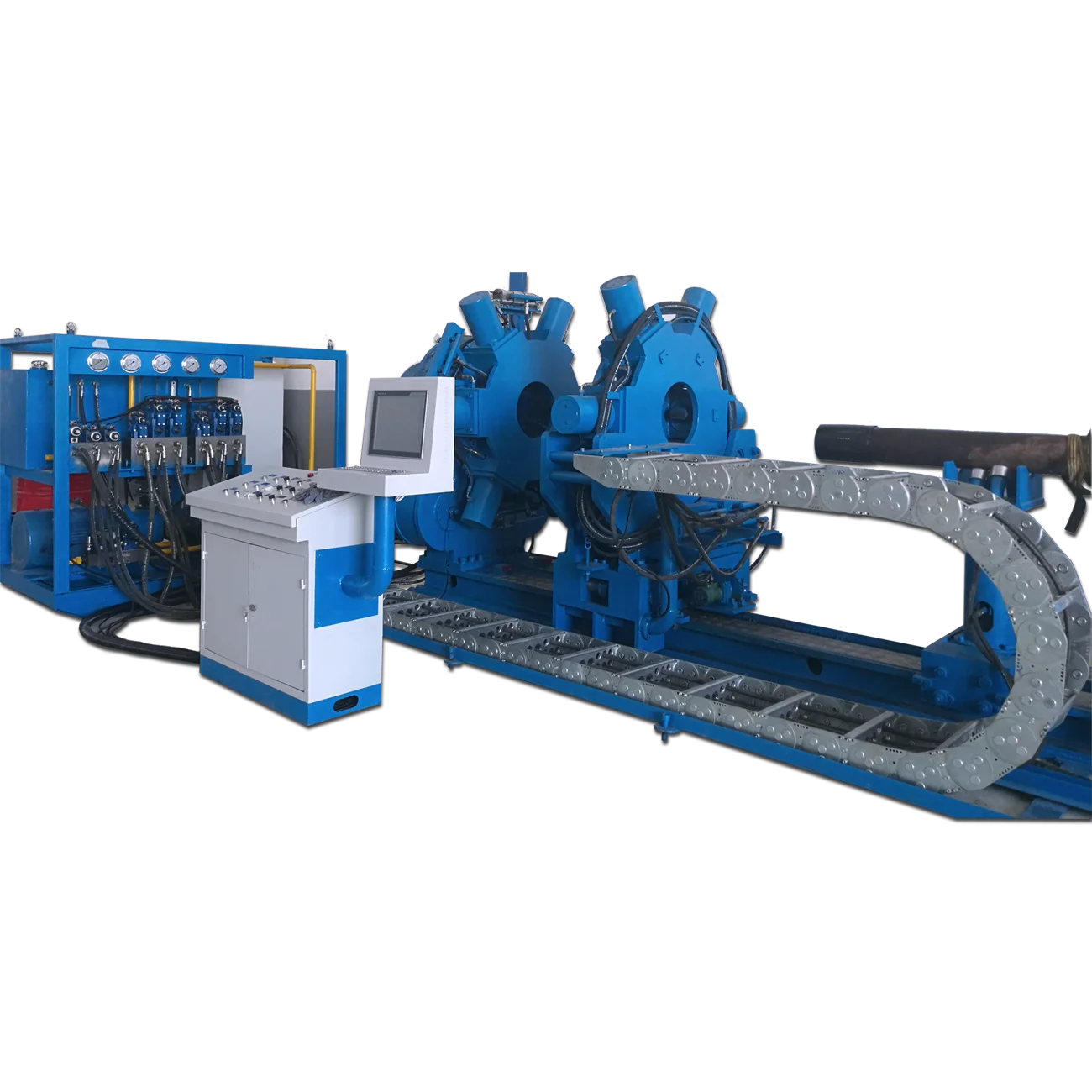

The configuration of the coupling makeup and breakout machine

Oilfield bucking machine for drilling equipment

Company Information

Liuzhou Biaohuang Import & Export Co., Ltd located in Liuzhou,a beautiful city in Guangxi Zhuang Autonomous Region in China, and founded in 2009. We have overseas office in Singapore and Indonesia which are responsible for products in overseas business development, and after-sales service etc.

We are manufacture bucking machine,we have professional team and complete production line.Liuzhou Biaohuang Import & Export Co., Ltd. businesses are targeted to provide the China best quality and services of products that meet their needs and requirements,exceeding their expectations and meeting the developments in International Markets.

1-3

Company Office Reception Room Factory workshop

Production line Automatic load&unload material Installation and commissioning

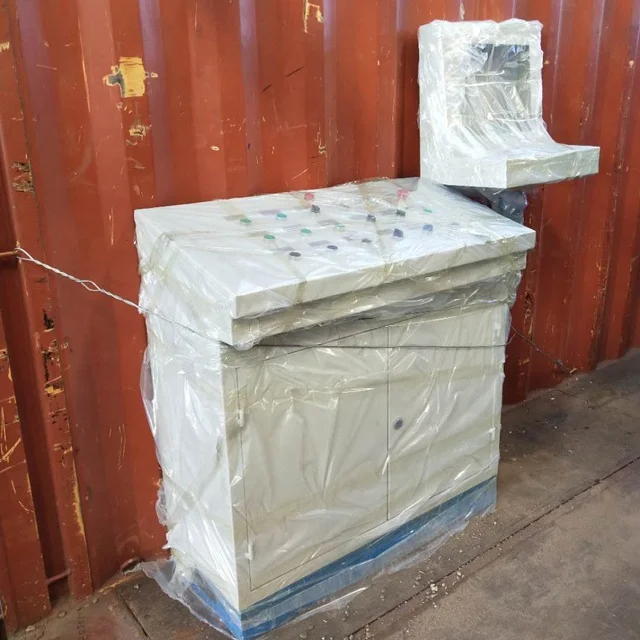

Packaging & Shipping

1.Without package,plywood wooden case and free fumigating wooden case.We can supply fumigation package and certificate.

2.Carton packing.

3. Shipping, train, express or upon clients' demands.

Oilfield bucking machine for drilling equipment

Customers:

As a professional low price high mechanical bucking machine manufacturer, Liuzhou Biaohuang Import & Export Co., Ltd. has best best experience for export sales the petroleum machinery hydraulic bucking mahcine sold to America, Dubai, Saudi Arabia,Yemen,Egypt, Indonesia, Vietnam, Malaysia, Singapore, Thailand and Africa market etc.

Please contact with us if have any requirement, more information and product video will be offered for your reference.
