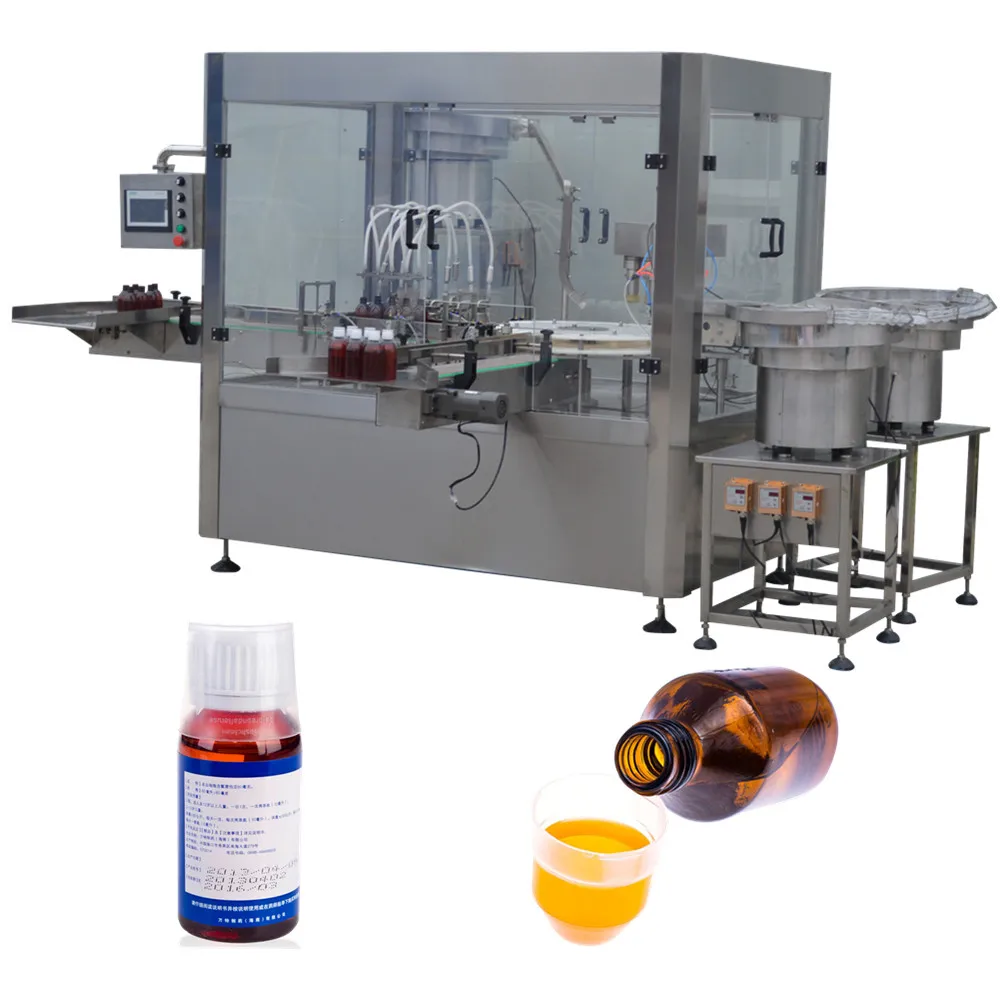

WB-YG4 automatic liquid filling and capping machine
Sample
This machine is mainly used for syrup, honey, juice, wine, drinks, cod liver oil, olive oil, essential oil, facial cleanser, shower gel, hair oil, ink, disinfectant, injection, laundry detergent and various medical liquid filling and capping.
Function and features:
1.machine use plunger type metering pump filling(when the filling volume difference is large,the corresponding pump body needs to be replaced),high precision.
2.The structure of pump adopts fast disassembled mechanism,easy to clean and disinfect.
3.PLC control system ,color touch screen display,machine has function of counting automatically.
4.The filling nozzle was equipped with drop-proof device.
5. When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly, it can effectively prevent the generation of bubbles.
6. Machine shell is made of 304 stainless steel,meets GMP standard.
Function and features:
1.machine use plunger type metering pump filling(when the filling volume difference is large,the corresponding pump body needs to be replaced),high precision.
2.The structure of pump adopts fast disassembled mechanism,easy to clean and disinfect.
3.PLC control system ,color touch screen display,machine has function of counting automatically.
4.The filling nozzle was equipped with drop-proof device.
5. When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly, it can effectively prevent the generation of bubbles.
6. Machine shell is made of 304 stainless steel,meets GMP standard.
Model | WB-YG4 Automatic liquid filling and capping machine |
Filing nozzle number | 4 (we can make 6/8/etc) |
Filling volume | 50-1000ml (can be customized) |
Filling speed | 20-50 bottles/min |
Filling accuracy | ≤ ±1% |
Capping rate | ≥ 98% |
Total power | 1.6 KW |
Power supply | 1 Ph. AC220V, 50/60Hz |
Machine size | L2200xW1200xH1800mm |
Net weight | 700kg |
Machine details
WB-YG4 automatic filling machine

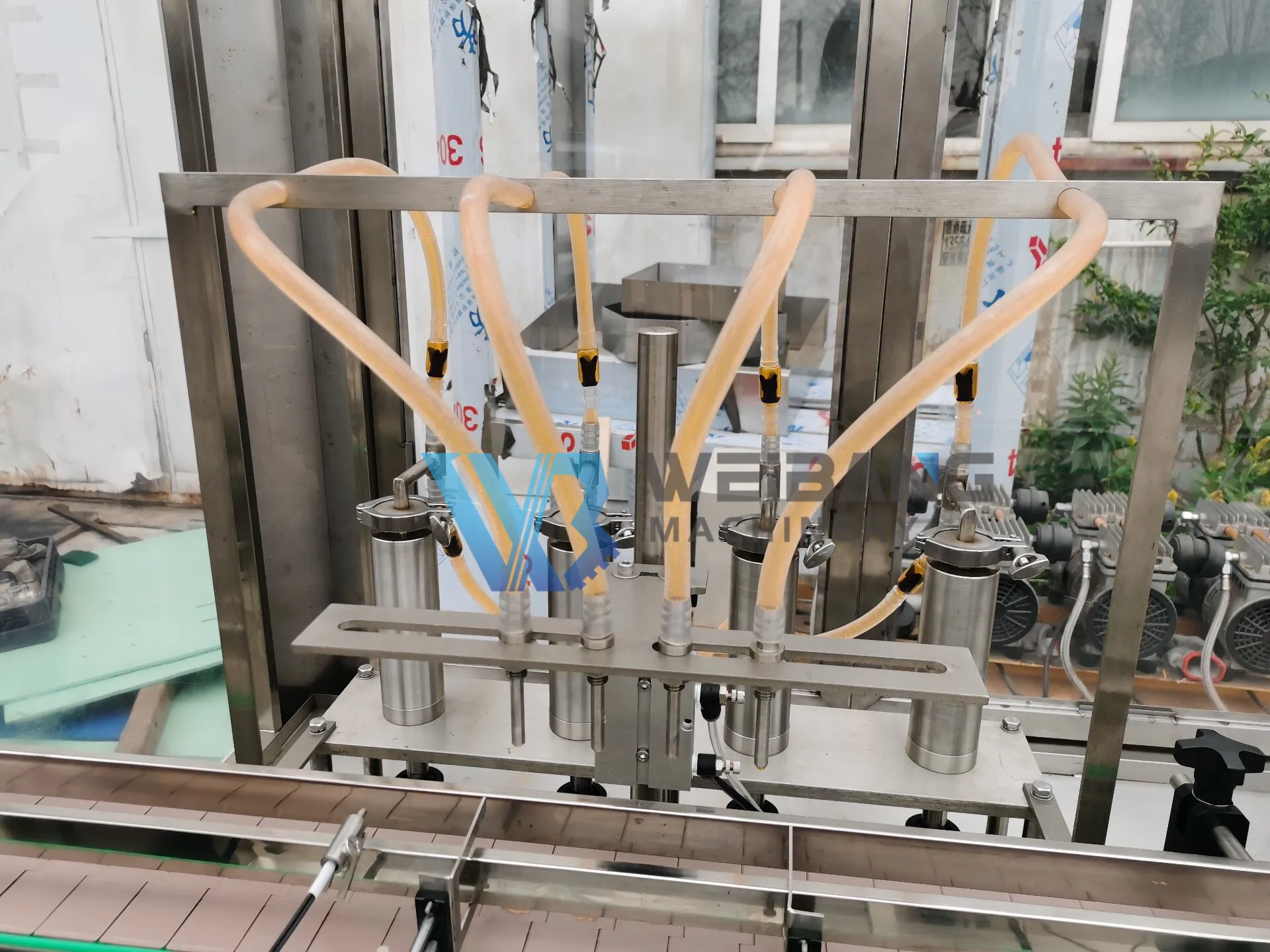

Filling part/4 nozzles fill
SS316
Touch screen
Change filling volume
Piston pump
Servo motor control
6/8/10 filling nozzles, customized according to filling speed
Capping part
Customized according to cap.press cap , 4 wheel capping, vacuum screw cap, aluminum foil sealer.
Cap feeder
with rubber
Rotary disk
Food grade nylon
Explosion-proof device
With protective cover
WB-LT100 automatic vertical labeling machine
WB-GP800 bottle feeder
WB-TP800 bottle collection table
Recommend Products
WB-YG4 automatic filling and capping machine
filling and capping in one machine
WB-TB200 automatic sleeve label shrink machine
Steam shrinkage and electrothermal shrinkage are optional
Other filling machine in our factory. plastic bottle filling line
Automatic liquid filling and capping line
