Характеристики
Products Description
Container House Parameters | ||||
Size | L 6055mm* W 2435*H 2896 | |||
Life span | More than 20 years | |||
Steel Frame | Main Beam For Floor And Bottom | Galvanized formed beam | ||
Thickness:3.0mm,2.5mm,2.3mm | ||||
Top Frame | C shape steel:C80*1.3mm,galvanized | |||
Square tube: 20*20*1.0mm,galvanized | ||||
Insulation:75mm fiber glass wool with sliver paper,density:14kg/m³ | ||||
Bottom Frame | Square tube: 50*100*1.2mm,galvanized | |||
Insulation:75mm fiber glass wool with sliver paper,density:14kg/m³ | ||||
Column | Galvanized steel Column | |||
Thickness:3.0mm,2.5mm,2.3mm | ||||
Corner fitting | Galvanized steel | |||
Thickness:3.5mm | ||||
Wall system | 75mm Sandwich Panel | 75mm rock wool board,density≥80kg/m3 | ||
Floor | Fiber Cement Board | Thickness :18mm | ||
Vinyl flooring | Thickness:1.6mm/2.0mm | |||
Roof | Ceiling | V-831 type,0.4mm Integrated Color Steel Sheet | ||
Window | Sliding Window | 925mm*1100mm | ||
Door | Steel Security Door | 840mm*2035mm | ||
Electrical Device | CEE industrial plug, socket voltage 220V- 250V, 2P32A, Fixed in explosion-proof box at the top beam of the short side; Using IP44 standard power distribution box. | |||
main power cable is 6 mm², AC cable is 4 mm², socket cable is 2.5 mm², lighting & switch cable is 1.5 mm². Four sockets, 1pc AC socket of three holes 16A, 3pcs socket of five holes 10A. 1pc single connection switch, 2pcs LED light, 2*15W. | ||||
Accessories | Screw ,Blot, Silicon sealant,etc | |||
OUR ADVANTAGES
ADVANTAGES |
1 Fast installation four workers can install one unit within two hours |
2 . Environmental protection , can be reused many times and no construction waste |
3 . Durable , service life up to 30 years |
4.Heat insulation, windproof, shockproof, moisture-proof, waterproof, leakage proof, environmental protection, reliable, fast and easy to be moved, flexible combination. |
5 . Modular building , Can be used in office building , workers dormitories , hotels , hospitals , warehousing,classrooms etc |
PRODUCT DEATILS

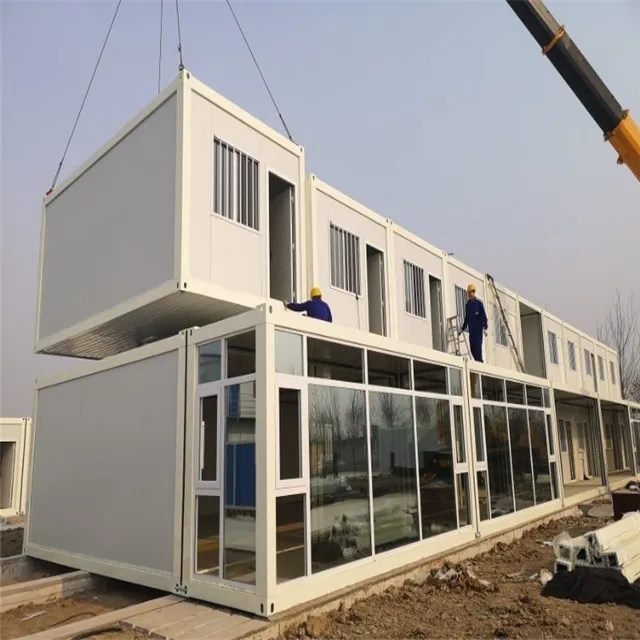

INSTALLATION PROCESS
PRODUCTION PROCESS
Company Profile
Shandong Dongchuang New Building Materials Co., Ltd.(also known as "DongChuang") has been dedicating itself to one-stop solution of prefabricated houses. The service ranges from architectural design, production, storage and transportation to installation instructions and after-sales service etc.
DongChuang, headquartered in Bidewen road of Weifang City, covering an area of 52,000 square meters, with more than 200 employees.Since the establishment of Dongchuang Group in 2011, our production emphasis has gone through the transformation from building structure to integrated housing production.
After years of efforts, our products havebeen exported to Europe, Africa, Southeast Asia, North America, South America and the Middle East.Now, its main products can bedivided into four categories, which are steel structure building, light steel villas, container house and Double-C Structure. The annual production capacity for different types of buildings can reach 500,000 square meters.
Our mission is to let the world know about integrated housing.We will never stop our pace, we will be better.
FAQ
1.You are manufacture factory or trading company?
We are manufacture factory. And you are welcomed to visit us for inspection. The quality control flow will show youourprofessional. Also you will enjoy the best price and competitive price.
2.What’s your delivery time?
Salesman will confirm the time accordingly, large order should communicate with order management department in advance. Normally, delivery time is 15 days after receive deposit. Large order delivery time should be arranged separately.
3.How to control the quality of your product?
a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
4. How can I get the quotation of the project ?
If you have drawing ,we can offer you our quotation according to your drawing . If you have no design , Our engineer will design drawings for you according to your requirement for confirmation. and then offer you a quotation.
5.How to install ?
A:Our products are easy to install.And we have detailed installation video and guide book for you to install.And we could send engineers as installation director even a team.
6. What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure. High corrosion region: use corrosion resistant material, or paint anticorrosive coating.
