1300 мм ПВХ ДВП ламинирующая линия машина для приклеивания бумаги ламинирования
- Категория: Wood Based Panels Machinery >>>
- Поставщик: Shanghai,Chanho,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.61 $* | 0.62 $* |
| Aug-17-2025 | 0.86 $* | 0.8 $* |
| Jul-17-2025 | 0.50 $* | 0.71 $* |
| Jun-17-2025 | 0.25 $* | 0.3 $* |
| May-17-2025 | 0.15 $* | 0.4 $* |
| Apr-17-2025 | 0.0 $* | 0.89 $* |
| Mar-17-2025 | 0.10 $* | 0.21 $* |
| Feb-17-2025 | 0.22 $* | 0.44 $* |
| Jan-17-2025 | 0.92 $* | 0.81 $* |
Характеристики
Product Overview

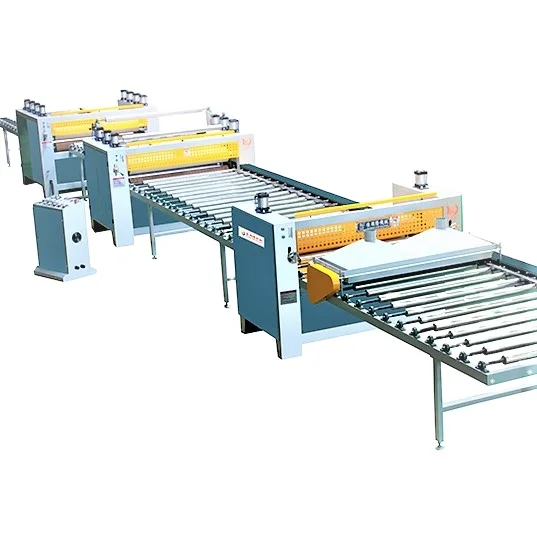

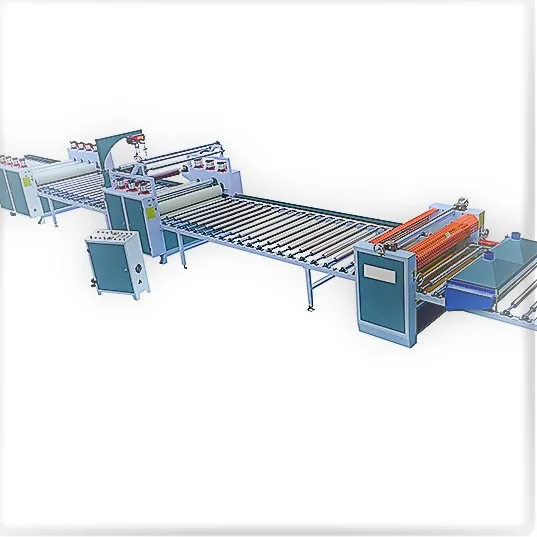

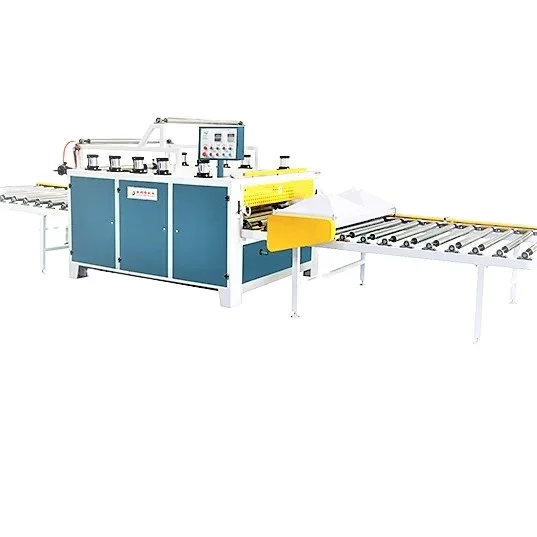

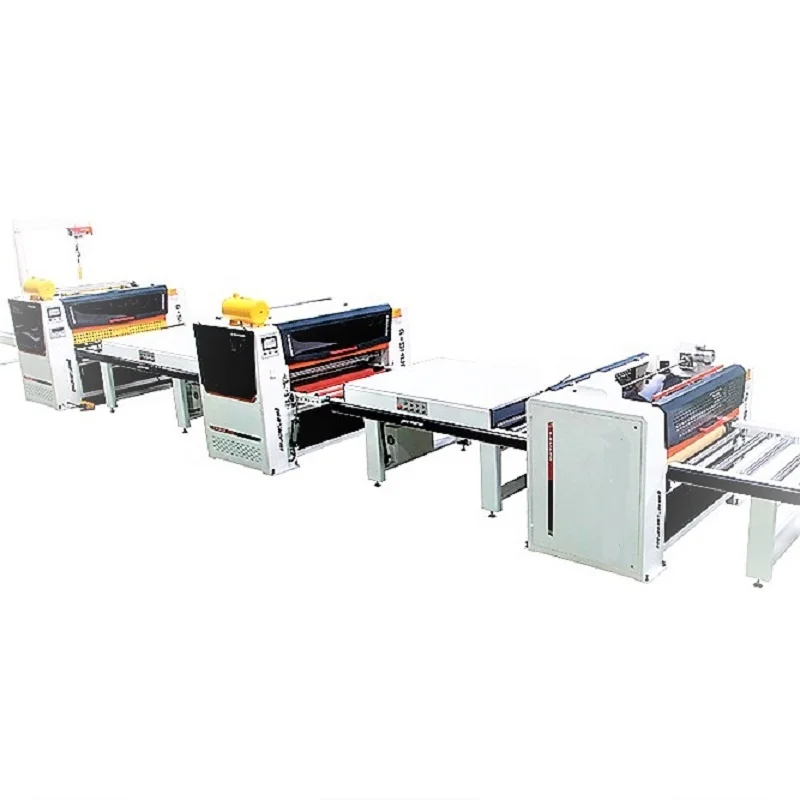

high glossy pur roller lamination line
1.BRIEFING
The production line is suitable for various boards coated with different lamination materials . The hot-melt adhesive (PUR)
automatically laminate the surface material on raw board, and the adhesion effect is achieved instantaneously. Its glue has high
adhesion, cold resistance, high temperature endurable, waterproof, environmental protection and so on. The production line has
higher automation function.two people can operate production.
2.. Scope of application:
1), substrate board: floor, cabinet board, honeycomb board, aluminum plastic board, hpl, MDF, PVC polymer board, wood plastic
board Etc..
2), surface material: aluminum film, high gloss PVC, PETG, acrylic, HPL, decorative paper and so on.
3) glue : EVA, PUR, onecomponent oily glue: white glue etc..
3. TECHINCAL DATA OF THE LINE
1). Machine specifications: length * width * height = about 17350*2450*2040mm
2). Thickness of processed sheet: 2.5-50 mm
3). Maximum width of processed plate: 1220mm
4). Production speed: 5-20 meters/min
The production line is suitable for various boards coated with different lamination materials . The hot-melt adhesive (PUR)
automatically laminate the surface material on raw board, and the adhesion effect is achieved instantaneously. Its glue has high
adhesion, cold resistance, high temperature endurable, waterproof, environmental protection and so on. The production line has
higher automation function.two people can operate production.
2.. Scope of application:
1), substrate board: floor, cabinet board, honeycomb board, aluminum plastic board, hpl, MDF, PVC polymer board, wood plastic
board Etc..
2), surface material: aluminum film, high gloss PVC, PETG, acrylic, HPL, decorative paper and so on.
3) glue : EVA, PUR, onecomponent oily glue: white glue etc..
3. TECHINCAL DATA OF THE LINE
1). Machine specifications: length * width * height = about 17350*2450*2040mm
2). Thickness of processed sheet: 2.5-50 mm
3). Maximum width of processed plate: 1220mm
4). Production speed: 5-20 meters/min
FEATURES AT A GLANCE
main character
1. Its glue has high adhesion, cold resistance, high temperature endurable, waterproof, environmental protection and so on.
2. The production line has higher automation two people can operate production.
3.The deviation between the actual amount of glue applied by the glue machine and the amount of glue set by the system is ≤5%
4. The product rolls are evenly glued and there is no breaking glue . After the surface of the product is laminated with PVC film, there is no unevenness when touching it by hand.
5.The glue spreading roller adopts imported silica gel, the maximum temperature of the glue layer surface can reach 100 centigrade
6.The control glue roller uses chrome plating roller, the maximum heating temperature can reach 200 centigrade
7.The glue spreading roller and controls glue roller with flanges at both ends, and the precision cutting block glue copper plate and it ensures that the glue does not leak when working.
2. The production line has higher automation two people can operate production.
3.The deviation between the actual amount of glue applied by the glue machine and the amount of glue set by the system is ≤5%
4. The product rolls are evenly glued and there is no breaking glue . After the surface of the product is laminated with PVC film, there is no unevenness when touching it by hand.
5.The glue spreading roller adopts imported silica gel, the maximum temperature of the glue layer surface can reach 100 centigrade
6.The control glue roller uses chrome plating roller, the maximum heating temperature can reach 200 centigrade
7.The glue spreading roller and controls glue roller with flanges at both ends, and the precision cutting block glue copper plate and it ensures that the glue does not leak when working.
PRODUCT SPECIFICATIONS
Machine specifications:
1） length * width *height = about 17350*2450*2040mm
2). Thickness of processed sheet: 2.5-50 mm
3). Maximum width of processed plate: 1220mm
4). Production speed: 5-20 meters/min
2). Thickness of processed sheet: 2.5-50 mm
3). Maximum width of processed plate: 1220mm
4). Production speed: 5-20 meters/min
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
ON LINE TECHINCAL SUPPORT
SUPERVSION INSTALLATION TESTING TRAINING
SPARE PART SUPPLY LONG TEM WITH COMPETITIVE PRICE
SITE VISITNG AND TECHNICAL SERVICE IF NECESSARY
SUPERVSION INSTALLATION TESTING TRAINING
SPARE PART SUPPLY LONG TEM WITH COMPETITIVE PRICE
SITE VISITNG AND TECHNICAL SERVICE IF NECESSARY
Successful Project
Project in Thailand
Project in India
Project in Russia
