Умный обратный клапан Mete Gps удаленная арматура Lora Lorawan цифровой расходомер детали с пульсом для
- Категория: Счетчики воды >>>
- Поставщик: Kaifeng,Pusheng,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 29.34 $* | 30.16 $* |
| Aug-19-2025 | 28.84 $* | 29.59 $* |
| Jul-19-2025 | 24.2 $* | 25.50 $* |
| Jun-19-2025 | 28.60 $* | 29.71 $* |
| May-19-2025 | 24.87 $* | 25.76 $* |
| Apr-19-2025 | 27.99 $* | 28.29 $* |
| Mar-19-2025 | 27.89 $* | 28.73 $* |
| Feb-19-2025 | 27.78 $* | 28.74 $* |
| Jan-19-2025 | 27.82 $* | 28.75 $* |
Характеристики
Function description:
Sampling measurement
Various sampling methods can be realized, such as dry reed tube, hall and other pulse sampling methods and photoelectric sampling methods.
Valve control
The upper computer can control the valve operation of the gauge by prefabricating the command.
Attack close valve
When the table is under magnetic attack, upload the data frame and set the attack state, and close the valve.After the attack disappears, upload the data frame and open the valve.
In place to detect
With switch in place detection function, when the normally open contact is in place and closed, the table switch valve is in place, the valve can be stopped immediately
Time to upload
The module automatically uploads one frame of table data every 6 hours
Trigger the upload
The module is usually in standby state, which can be triggered to make the module upload real-time data and work status once.
Valve fault detection
Automatically identify whether the valve limit switch is normal. When the limit switch fails, the valve state position is abnormal, and there will be an alarm in the background.
Dry reed tube fault detection
When the fault occurs in the sampling reed tube or hall element, the meter will transmit the prompt of fault in the reed tube, and the meter will not be measured any more. The meter will be measured normally after the fault is eliminated.
Infrared communication
Infrared communication can be used to set the table address, table base and LoRaWAN's secret key and other parameters.
Various sampling methods can be realized, such as dry reed tube, hall and other pulse sampling methods and photoelectric sampling methods.
Valve control
The upper computer can control the valve operation of the gauge by prefabricating the command.
Attack close valve
When the table is under magnetic attack, upload the data frame and set the attack state, and close the valve.After the attack disappears, upload the data frame and open the valve.
In place to detect
With switch in place detection function, when the normally open contact is in place and closed, the table switch valve is in place, the valve can be stopped immediately
Time to upload
The module automatically uploads one frame of table data every 6 hours
Trigger the upload
The module is usually in standby state, which can be triggered to make the module upload real-time data and work status once.
Valve fault detection
Automatically identify whether the valve limit switch is normal. When the limit switch fails, the valve state position is abnormal, and there will be an alarm in the background.
Dry reed tube fault detection
When the fault occurs in the sampling reed tube or hall element, the meter will transmit the prompt of fault in the reed tube, and the meter will not be measured any more. The meter will be measured normally after the fault is eliminated.
Infrared communication
Infrared communication can be used to set the table address, table base and LoRaWAN's secret key and other parameters.

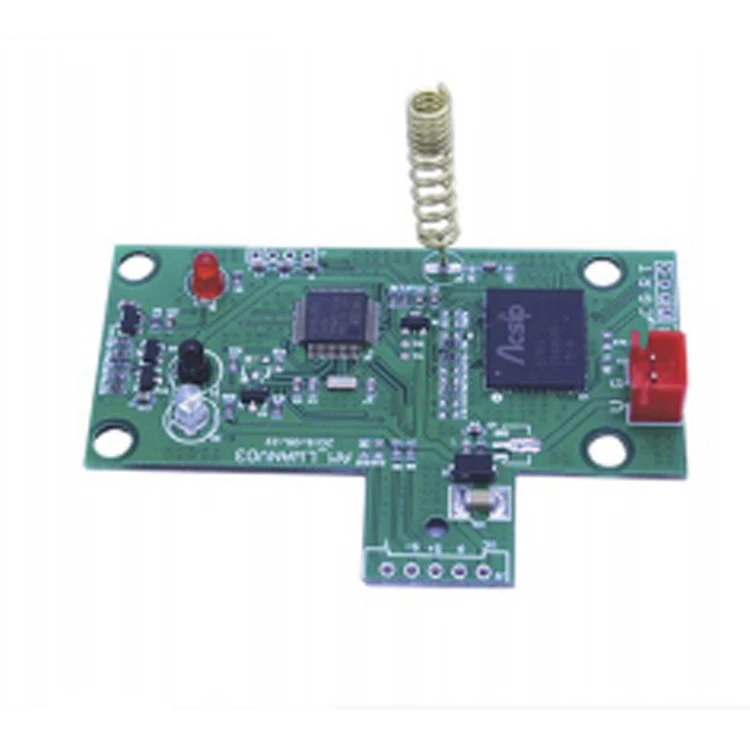

LoRaWAN technical parameters
Project | Content | Note |
Working voltage | 2.7~3.6V | Recommend ER25600 + SPC1520 |
Working temperature | -20~75℃ | |
Working humidity | 10%-90% of the sex has no condensation on humidity | |
Working frequency band | Make the region operating frequency band adjustable according to different | |
Transmission power | ≤20dBm | |
Reception sensitivity | -136±1dBm | |
The static current | <5 uA | |
Emission current | <100mA | |
Receives the current | <15mA |
1、Before the installation should first clear the branch pipe of hemp, sand and other sundries, so as not to cause the plugging fault of the water meter.
2、All parts of the IC card water meter shall be installed in a position to avoid exposure to sunlight, flooding, freezing, chemical and electromagnetic contamination Dye, and convenient disassembly, meter reading, and credit card.
3、The IC card water meter is required to be installed horizontally, and the arrow on the water meter housing must be in the same direction as the water flow
4、In order to ensure the accuracy of the flowmeter, it is required to leave 6-12 times the nominal diameter of the straight pipe section in front of the water meter.
Straight sections with 4-6 nominal diameters are left at the rear
2、All parts of the IC card water meter shall be installed in a position to avoid exposure to sunlight, flooding, freezing, chemical and electromagnetic contamination Dye, and convenient disassembly, meter reading, and credit card.
3、The IC card water meter is required to be installed horizontally, and the arrow on the water meter housing must be in the same direction as the water flow
4、In order to ensure the accuracy of the flowmeter, it is required to leave 6-12 times the nominal diameter of the straight pipe section in front of the water meter.
Straight sections with 4-6 nominal diameters are left at the rear
Our company is located in Yuwangtai District, Kaifeng City, an ancient capital of the Eight Dynasties. It is a professional company that produces and develops various types of water meter instruments. Products implement new national standards.
Mainly produce various types of photoelectric read-only remote transmission water meters, wireless remote transmission water meters, split-type radio frequency ic card water meters, ic card radio frequency, contact smart water meters and various types of ultrasonic waves of various calibers, mechanical heat meters and rotor-type cold and hot water meters Meters, liquid-sealed water meters, dry-type water meters, highly sensitive drip water meters, plug-in type, horizontal screw-wing type, etc. hundreds of meters, at the same time, all kinds of meters and smart device software and hardware development and general software, smart device APP , CMS application, CV field development.
Mainly produce various types of photoelectric read-only remote transmission water meters, wireless remote transmission water meters, split-type radio frequency ic card water meters, ic card radio frequency, contact smart water meters and various types of ultrasonic waves of various calibers, mechanical heat meters and rotor-type cold and hot water meters Meters, liquid-sealed water meters, dry-type water meters, highly sensitive drip water meters, plug-in type, horizontal screw-wing type, etc. hundreds of meters, at the same time, all kinds of meters and smart device software and hardware development and general software, smart device APP , CMS application, CV field development.
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
Packing :
packing in bulk in container or in steel frame in container or as customized .
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
Packing :
packing in bulk in container or in steel frame in container or as customized .
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q4. How about your delivery time?
A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q4. How about your delivery time?
A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
