Новейшая буквенная 3D принтер для вывесок промышленности с автоматической акриловой смолы наполнения и
- Категория: Цифровые принтеры >>>
- Поставщик: Dongguan,Imai,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 4760.74 $* | 4998.95 $* |
| Aug-19-2025 | 4720.49 $* | 4956.57 $* |
| Jul-19-2025 | 3960.34 $* | 4158.6 $* |
| Jun-19-2025 | 4640.11 $* | 4872.36 $* |
| May-19-2025 | 4040.12 $* | 4242.98 $* |
| Apr-19-2025 | 4560.41 $* | 4788.98 $* |
| Mar-19-2025 | 4520.47 $* | 4746.5 $* |
| Feb-19-2025 | 4480.34 $* | 4704.15 $* |
| Jan-19-2025 | 4440.53 $* | 4662.89 $* |
Характеристики
Product Description
Brief introduction

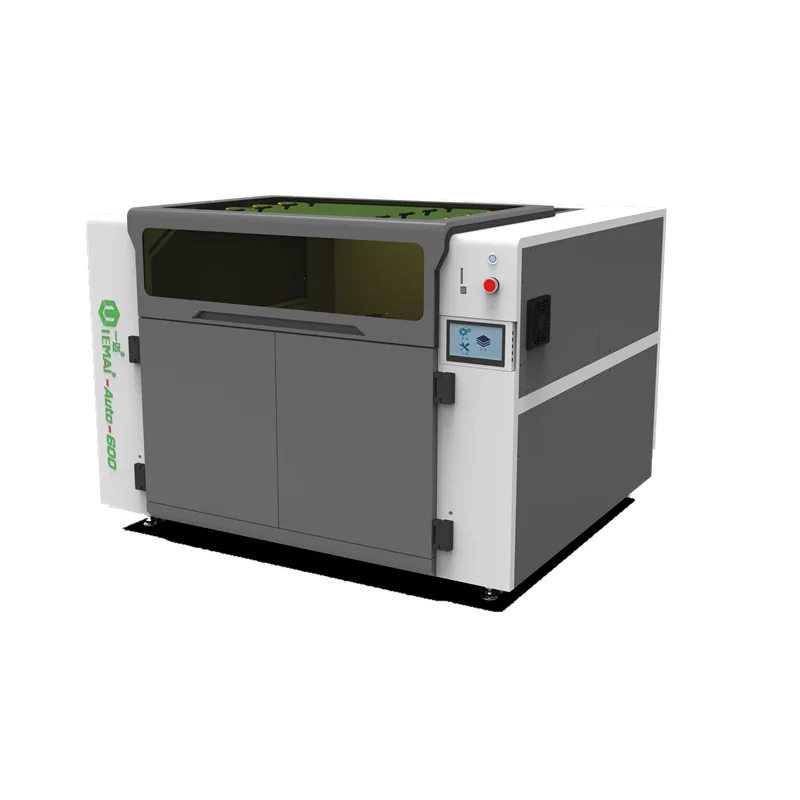

3D-Printer ADV for Letter AUTO-600 fdm machine for advertising word sign , 3D printing for the sign making industry
Latest letter 3D printer machinery for signage industry with automatic acrylic resin filling and UV system
YM-AUTO-600 is an Channl 3D signboard channel letter printer based on the principle of fuse deposition (FFF) technology,
Supports 3D printing + automatic filling + intelligent UV curing + printing substrate, etc.All steps are completed automatically, truly realize one-stop intelligent letter making.
With a closed constant temperature environment, support indoor and outdoor 3D printing materials.
Core Parameters | Main Feature |
Print size:600*600*100 mm | (1)Automatic acrylic liquid filling; |
Print temperature:265℃ | (2)Automatic UV curing; |
Mode of connection:SD card, Wi-Fi,USB. | (3)automatic bed leveling. |
Support materials:1.75mm-PLA/PETG/PLA/TPU,etc. | (4)After the power is restored, continue printing |
YM-AUTO-600 | ||||
Size&Weight | Print Size | 600*600*100mm | ||
Machine Size | 1115*935*555mm | |||
Packing Size | 1215*995*705mm | |||
Machine Weight | 160Kg | |||
Shipping Weight | 195Kg | |||
Nozzles | Nozzles Temperature | 275℃ | ||
Nozzles Diameter | Standard:0.8mm.Optional:0.4/0.6/1.0mm | |||
Number Of Nozzle | 2 in 1 out.Double/Single color printing | |||
Printing Parameters | Print Speed | 0-120mm/s | ||
X/Y/Z-axis drive | Linear actuator | |||
Layer Thickness | 0.2-0.4 mm | |||
Positioning Accuracy | X/Y:12.5μm Z:1.25μm | |||
Connection Method | SD Card,USB,WIFI | |||
Main Features
1.\t2 color printing, Quick release switch 2 in 1 out print head;
2.\tAutomatic acrylic liquid filling;
3.\tAutomatic UV curing;
4.\tPower Failure Recovery,filament sensor, automatic shutdown.
5.\tColorful 5.0 inch multi-language touch screen.
6.\tWi-Fi control;
2.\tAutomatic acrylic liquid filling;
3.\tAutomatic UV curing;
4.\tPower Failure Recovery,filament sensor, automatic shutdown.
5.\tColorful 5.0 inch multi-language touch screen.
6.\tWi-Fi control;
7.\tAuto-bed leveling system.
Detailed Images
Machine Parts
Name:Acrylic glue nozzle
Feature:Independent glue filling system for production automation
There is also a corresponding pipe cleaning system that does not require manual cleaning.
Machine Parts
Name: UV Lamp
Parameters:(0.6m)40W/10R

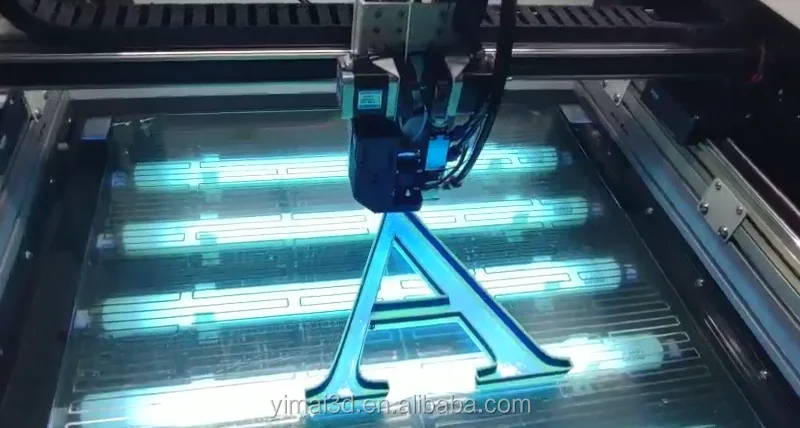

Features:The liquid acrylic is extruded from the nozzle onto the glass plate.
UV lamp solidifies liquid acrylic.
Machine Parts
Name: Intelligent Main board
STM32 processor: clock frequency 36MHz, memory 512kb, 64K SRAM, 1M file processing time 2s.
Special function: print resuming, Filament Absent Warning, WIFI control, auto & timing shutdown
Machine Parts
Name: Nozzles
(1) 2 in 1 out special extruder,quickly switching for different colors for multi-color printing.
(2)Nozzle temperature up to 275℃,Support the printing of a variety of materials.
(3)Max Build Volume is 600*600*100 mm.
Software
We will provide professional letter slicing software for users. It only need 2D file, such as svg, dxf, nc file, the software will automatically create 3D design, and many kinds of letter design for choice.
Packing & Delivery
Packaging | ||
Size | 1215mm (L) * 995mm (W) * 705 mm(D) | |
Weight | 175kg | |
Packaging Details | The normal package is wooden box(Size: 1215*995*705mm). If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use PE film for packing or pack it according to customers special request. | |
Company Profile
Dongguan Iemai Intelligent Technology Co.,Ltd is a high technological enterprise which specialized in producing 3D printers and 3D filaments in the Pearl River Delta of China. IEMAI 3D develops, manufactures, and sells high performance functional materials and Industrial 3D printing solutions.
IEMAI is committed to the highest manufacturing design and quality standards where all 3D printers have received ROHS and CE certifications. IEMAI is committed to the research and development of core technology, and we have software copyright and invention patents.
Today, IEMAI's 3D printing solutions cover the aerospace, automotive, oil and gas, medical, dental and electronics manufacturing industries.
Our Main products:
1. Large printing size industrial series: YM-NT-750, YM-NT-1000.
2. High performance materials high temperature 3D printing series: MAGIC-HT-M, MAGIC-HT-L, MAGIC-HT-PRO, MAGIC-HT-MAX, YM-HT-750.
3. Desktop 3D printers: MAGIC-L , YMS600.
4. 3D Letter printing machine: YM-AUTO-600, YM-4020 , YM6010/UV.
5. 3D printing consumables, including PEEK, PEI ( ULTEM ) , PPSU , PLA, ABS, PETG, PC, CARBON FIBER, TPU , TPE, PVA, HIPS, METAL,PA6, etc..
IEMAI is committed to the highest manufacturing design and quality standards where all 3D printers have received ROHS and CE certifications. IEMAI is committed to the research and development of core technology, and we have software copyright and invention patents.
Today, IEMAI's 3D printing solutions cover the aerospace, automotive, oil and gas, medical, dental and electronics manufacturing industries.
Our Main products:
1. Large printing size industrial series: YM-NT-750, YM-NT-1000.
2. High performance materials high temperature 3D printing series: MAGIC-HT-M, MAGIC-HT-L, MAGIC-HT-PRO, MAGIC-HT-MAX, YM-HT-750.
3. Desktop 3D printers: MAGIC-L , YMS600.
4. 3D Letter printing machine: YM-AUTO-600, YM-4020 , YM6010/UV.
5. 3D printing consumables, including PEEK, PEI ( ULTEM ) , PPSU , PLA, ABS, PETG, PC, CARBON FIBER, TPU , TPE, PVA, HIPS, METAL,PA6, etc..
6. Lampshade 3D printer LAMPRO-600.
7. 3D filament extrusion machine line.
Our certification:
* 10+ Patents.
* CE , Rohs certification.
* 1 software copyright
* trademark
Our certification:
* 10+ Patents.
* CE , Rohs certification.
* 1 software copyright
* trademark
