Цена:75,00 $ - 101,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-20-2025 95.41 $* 97.40 $*
Jul-20-2025 77.97 $* 79.82 $*
Jun-20-2025 94.42 $* 96.86 $*
May-20-2025 93.47 $* 95.33 $*
Apr-20-2025 74.40 $* 75.58 $*
Mar-20-2025 92.60 $* 94.37 $*
Feb-20-2025 91.62 $* 93.78 $*
Jan-20-2025 90.27 $* 92.25 $*

Характеристики



Related Products




Product Description


The 1000mm industrial exhaust ventilation air mover box fan is CE certified, and it complies with the quality standards in most countries like UL for US, SASO for Saudi Arabia, and SAA for Australia



Manufacturer Industrial Window Small Smoke Ventilating Exhaust Fans for Poultry Farm Barn Exhaust Fan Technical Details


Type:
Standard
OEM
Fan Size
1000mmx1000mmx350mm (39" x 39"x 14")
Any size
Fan Diameter(inch)
36
36
Fan Color
Silver
Painted or coating in any color
Fan Blade Material:
1.0mm/18 gauge galvanized steel
as per customers’ requirements
Fan Frame Material:
0.7mm/24 gauge galvanized steel
0.7mm, or higher thickness galvanized steel, fiberglass, or stainless steel


Details Images




Exhaust Fan Shutter
Fan shutters can be fully closed to keep out the rain, dust, pest and light.
90° Fully Open Fan Louver
The fan louvers can be fully opened to intake the largest amount of fresh air.




Higher Blade Curved Braket, higher airflow volumn
Ultra-thick galvanized steel or stainless steel fan blade
Rugged aluminum alloy pulley system for higher durability


One Piece Durable Automotive Bearing

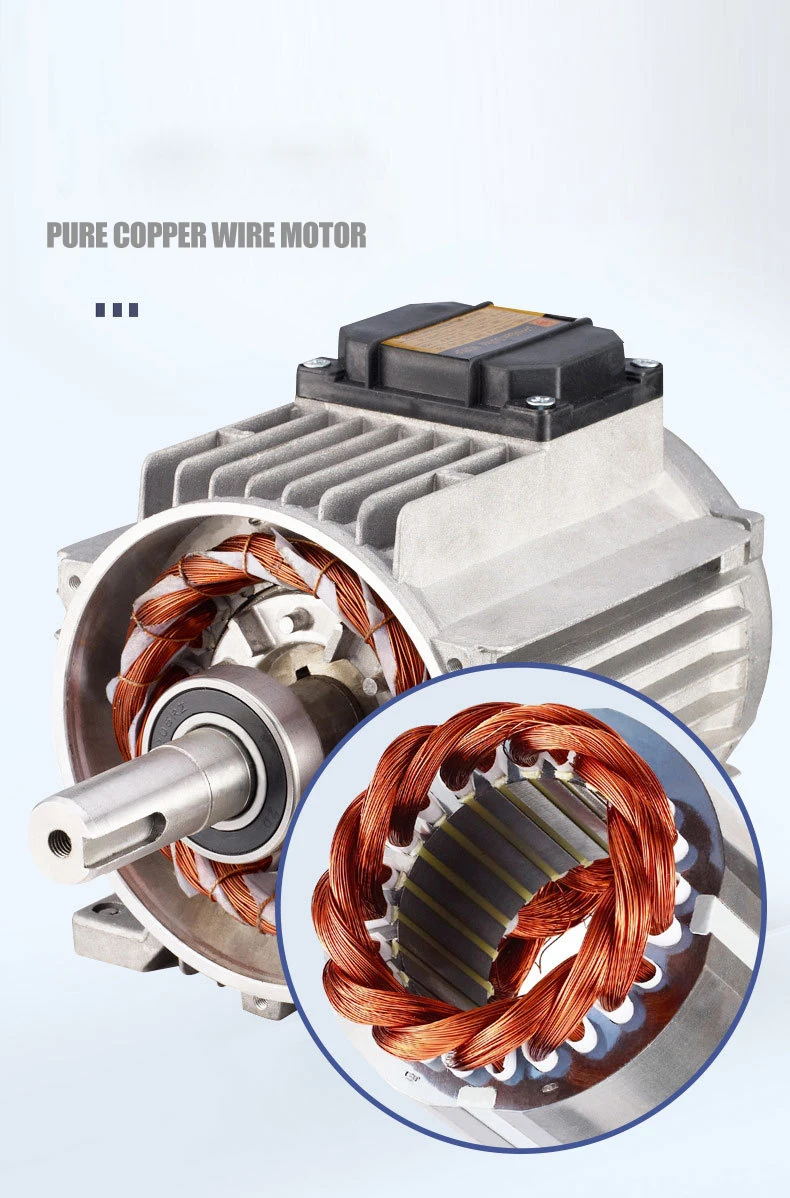

High Efficiency 100% Copper Motor
Durable and Heat-Resistant Motor

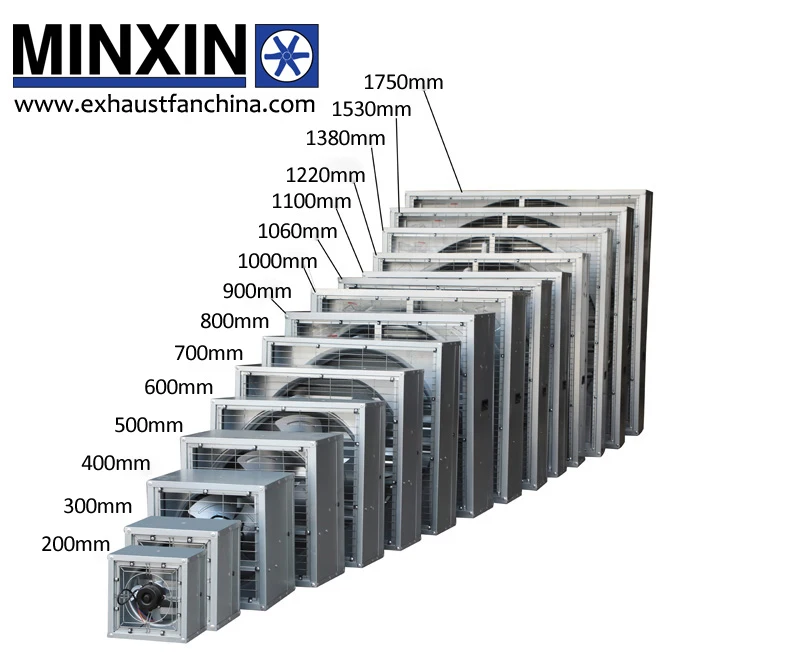

Size Information


Model
Dimensions
Air Flow
Power
Workable Areas
Fan Speed
Noise
200#
200mmx200mmx170mm
588CFM
150W
5~20㎡
2000rpm
<45db
300#
300mmx300mmx200mm
1200CFM
150W
5~20㎡
2200rpm
<50db
400#
400mmx400mmx300mm
1500CFM
250W
20~40㎡
1400rpm
<55db
500#
500mmx500mmx300mm


3000CFM


250W



25~50㎡



1400rpm



<55db

600#

600mmx600mmx300mm

4700CFM
250W


50~60㎡

960rpm


<55db

700#

700mmx700mmx300mm

6000CFM


250W

60~70㎡



960rpm

<60db
800#

800mmx800mmx300mm

7650CFM


250W

70~80㎡



960rpm



<60db

800#

800mmx800mmx350mm

13000CFM
370 W


70~80㎡



960rpm



<60db

900#

900mmx900mmx350mm
16000CFM


370 W

80~90㎡

450rpm

<55db
1000#

1000mmx1000mmx350mm

17650CFM
550 W

90~100㎡



450rpm



<60db



1060#



1060mmx1060mmx350mm

19000CFM


550 W

100~120㎡



450rpm



<60db



1100#



1100mmx1100mmx350mm

20000CFM
550 W


110~130㎡



450rpm



<60db



1220#



1220mmx1220mmx350mm

22000CFM
750 W


120~140㎡



450rpm



<60db

1380#



1380mmx1380mmx350mm

26000CFM
1100 W


140~160㎡



450rpm



<65db

1530#



1530mmx1530mmx400mm

32800CFM
1500W


160~200㎡



450rpm



<70db

1750#
1750mmx1750mmx450mm
40000CFM
1800W
180~220㎡
350rpm
<70db


Packing&Shipping


The exhaust fans can either be shipped in unassebled way to save space and shipping cost, or shipping the assembled exhaust fans to save trouble and time.


Unassembled Exhaust Fan Parts
The unassembled fan parts can be shipped to customers for assembly, it will help to save shipping cost.
Assembled Exhaust Fans
The assembled exhaust fans can be sent to customers for immediate installation.




After Sales Service


One Year Warranty, Lifetime Aftersale Service
We offer 1 year warranty on the motors and the entire fan, and we will provide free spare parts for any defective models within the warranty period.


Why Chose Us




Long Standing History
10 years' OEM experience of industrial exhaust fans, over 200 skilled employees.
Well Equipped
Equipped with over 100 automatic machines and 10 production lines, lower product cost for our customers
Fully Customizable
Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.




Most Complete Fan Sizes
10 years' OEM experience of industrial exhaust fans. Exhaust fans sizes range from 200mm to 1750mm, ventilation capacity ranges from 600CFM to 40000CFM
Fast Delivery
Highest production capacity in China, our daily output is 3,000pcs. Most of our customer can be delivered within 7 days, some can be delivered some day or 3 days
Complete Product Line
95% of the fan parts are produced in our own facility, we handle from coil sliding and folding, laser welding, die casting and stamping, motor cooper coil winding, CNC machining and assembly to ensure high precision of each part and higher performance of
the exhaust fans




Company Introduction


MINXIN INDUSTRIAL is well known for its most complete production line for industrial exhaust fans, evaporative air conditioners, and mobile air coolers.




Our Services & Strength
Minxin Industrial was founded in 2015, since then Minxin has been specialized in manufacturing industrial exhaust fans and evaporative air coolers of all sizes, such as:
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler


MINXIN Headquater
Space: 20,000㎡
Production: Fan parts production, motor production
MINXIN Plant 2
Space: 6,000㎡
Production: Air cooler and cooling pad production and assembly


MINXIN Plant 3
Space: 6,000㎡
Production: Exhaust fan and circulation fan assembly
MINXIN Plant 4
Space: 5,000㎡
Production: Exhaust fan and circulation fan assembly




Our Production Lines
Supporting 120 employees, our 20,000 square meter factory is top-notch, Minxin Industrial equipped itself with all the production equipment processes in house for better control of the quality and delivery time:
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop


Steel coil sliding and cutting line, steel pipe cutting line
Aluminum Die Cast Tooling & Casting
Plastic Molding & Injection workshop


Motor Copper Coil Winding Line
Motor Assembly Workshop
Stamping Workshop


Wire Guard Welding
Fan Parts CNC Machining
Laser Cutting
