Характеристики
Related Products
Technical Characteristics

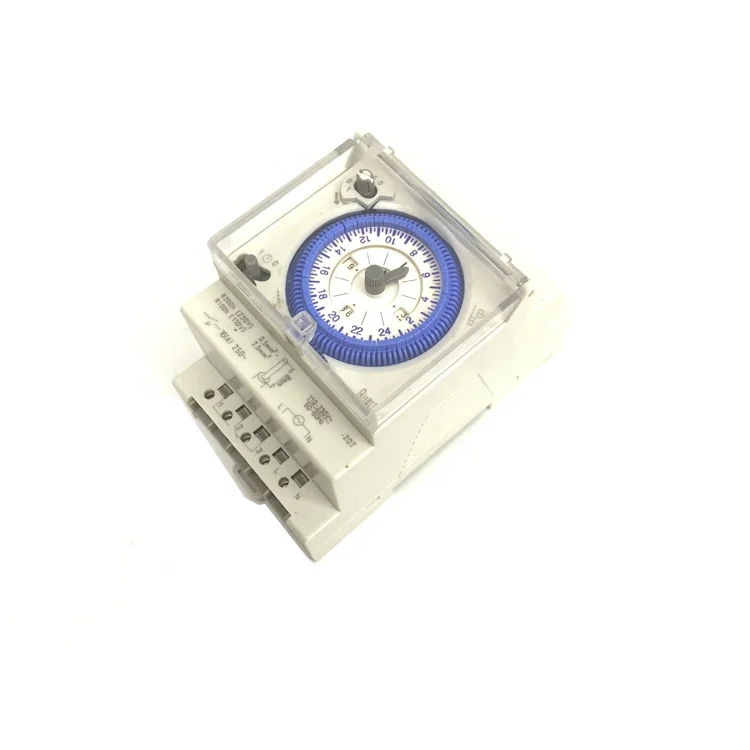

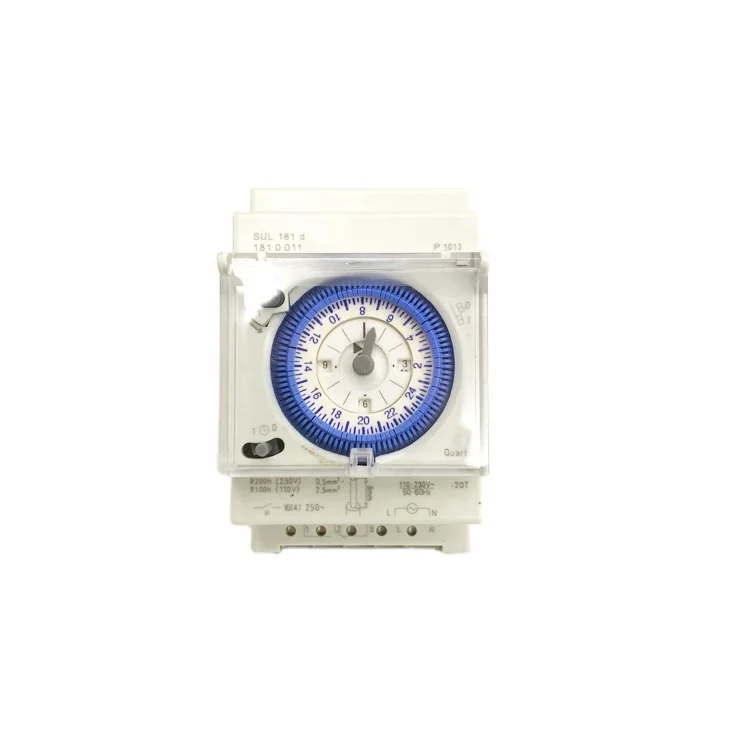

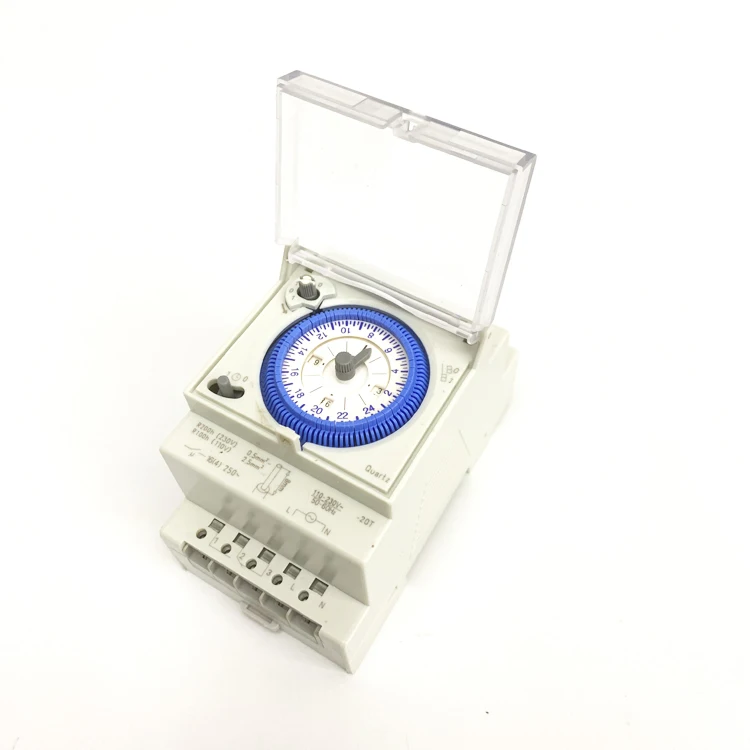

SUL181D mechanical programmable time control switch
The SUL181D daily program analog time switches are programmed using switching segments, it's quickly read and easy to change. The shortest switching time is 15 minutes and it can switching with continuous ON/AUTO/continuous OFF.
Description
- Analogue time switch
- 1 channel
- Daily program
- 96 switching segments
- Quartz controlled
- Shortest switching time: 15 minutes
- Clock hands for time display and in addition 12/24 hour recognition
- Simple summer/winter time correction
- Time can be changed clockwise
- DuoFix spring terminals
- For 2 conductors each
- Wire or strand (with or without wire end sleeve)
- Wire diameter: 0.5 - 2.5 mm²
- Button for releasing plug-in connection
- Switching preselection
- Manual switch with 3 positions:Permanent ON/AUTO/permanent OFF
- Switching status display
SUL181d
- With power reserve (NiMH rechargeable battery)
SYN161d
- Without power reserve
Technical Data
Operating voltage | 230-240 VAC/110VAC/24VDC/12VDC |
Frequency | 50-60Hz |
Number of channels | 1 |
Width | 3 modules |
Installation type | DIN rail |
Drive | Quartz-controlled stepper motor |
Program | Daily program |
Power reserve | 7 days |
Max. switching capacity at 250 V AC, cos φ = 1 | 16 A |
Max. switching capacity at 250 V AC, cos φ = 0.6 | 4 A |
Incandescent/halogen lamp load | 1100W |
LED lamp < 2 W | 20W |
LED lamp > 2 W | 180W |
Shortest switching time | 15 min |
Programmable every 30 min | 15 min |
Time accuracy at 25 °C | ≤ ± 2 s/day(Quartz) |
Type of contact | Changeover contact |
Switching output | Potential-free and phase-independent |
Number of switching segments | 96 |
Power consumption | 1.5VA |
Test approval | CE |
Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
Ambient temperature | -10 °C ~+50 °C |
Protection class | II in accordance with EN 60730-1 |
Protection Degree | IP 20 |
Connection Example and Scale Drawing

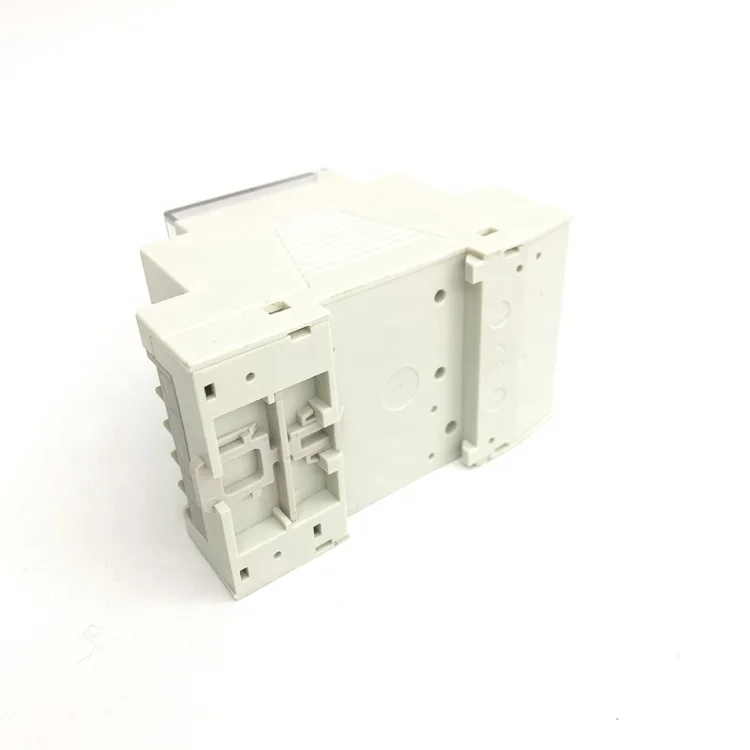

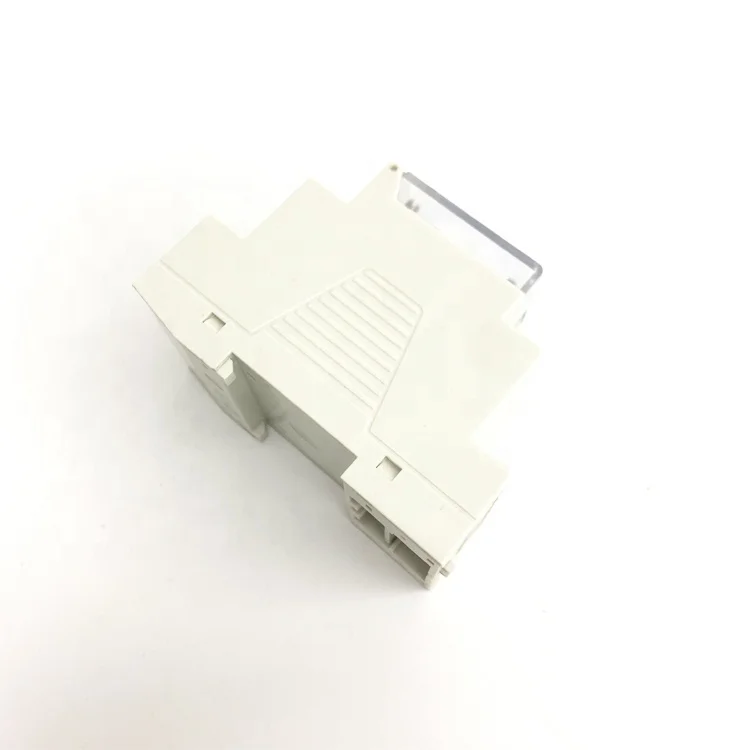

Details Images
