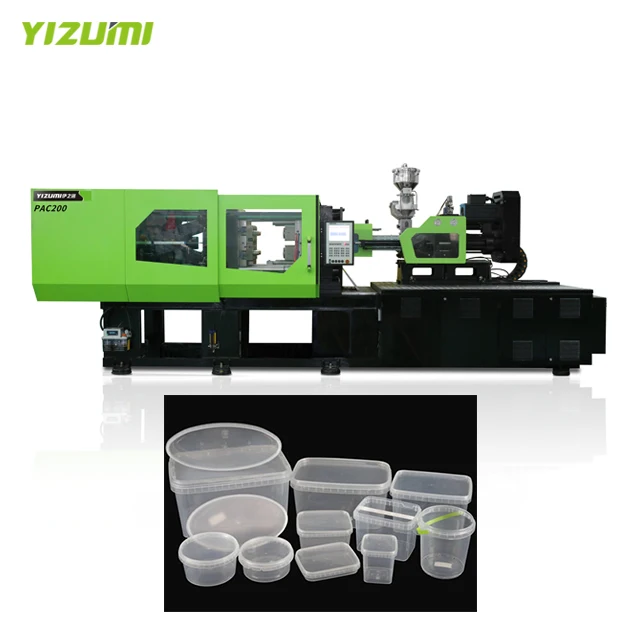

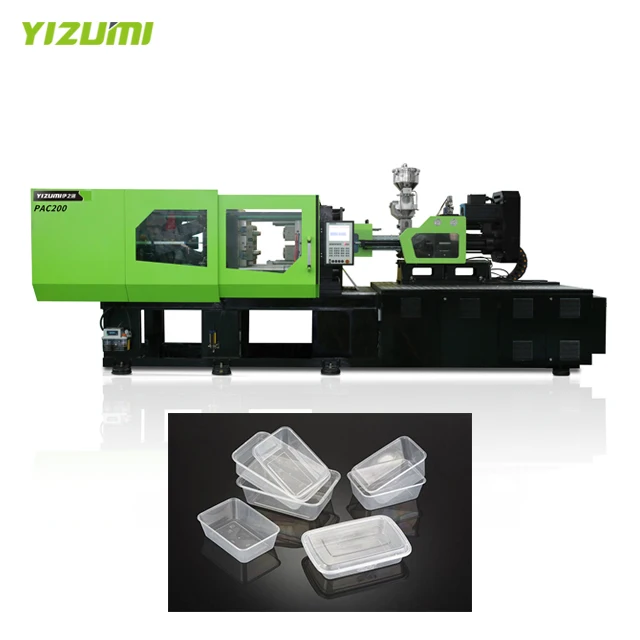

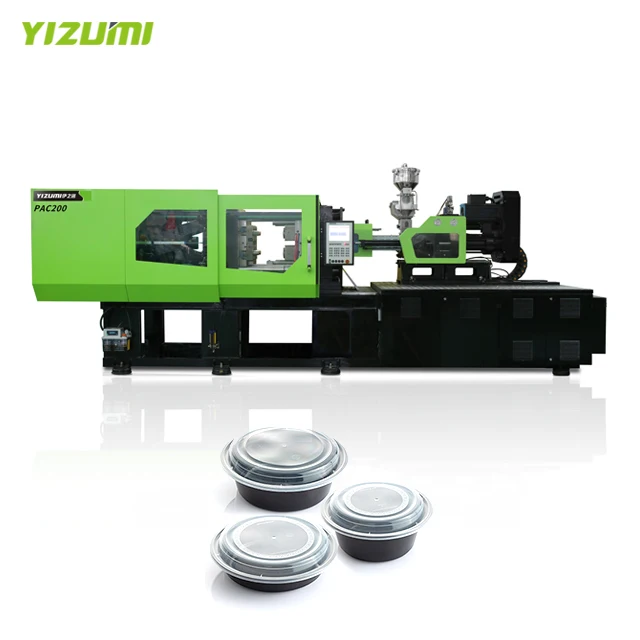

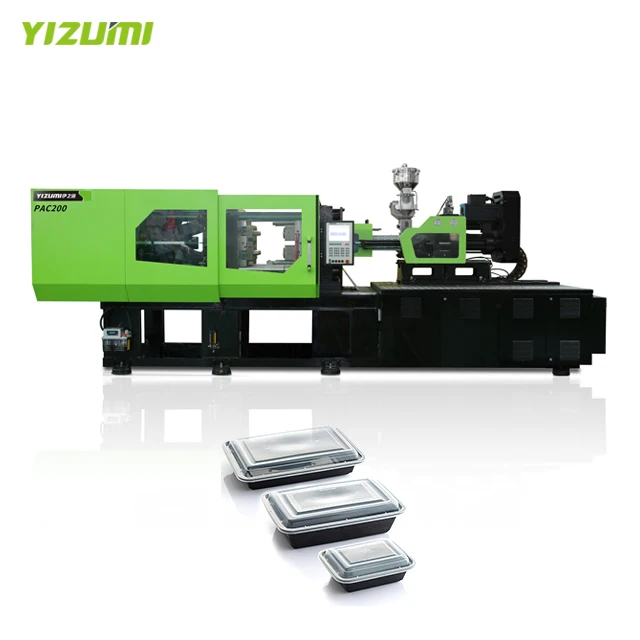

YIZUMI High Speed Thin Wall Container Making Machine Plastic Injection Molding Moulding 200Ton Factory
- Категория: Plastic Injection Machines >>>
- Поставщик: Guangdong,Yizumi,Precision,Injection,Molding,And,Die,Casting,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 9541011.66 $* | 10018062.17 $* |
| Aug-20-2025 | 9460834.16 $* | 9933876.61 $* |
| Jul-20-2025 | 7937479.56 $* | 8334353.37 $* |
| Jun-20-2025 | 9300481.43 $* | 9765505.86 $* |
| May-20-2025 | 8097833.66 $* | 8502725.48 $* |
| Apr-20-2025 | 9140128.13 $* | 9597134.71 $* |
| Mar-20-2025 | 9059951.34 $* | 9512949.97 $* |
| Feb-20-2025 | 8979775.31 $* | 9428764.62 $* |
| Jan-20-2025 | 8899598.17 $* | 9344578.68 $* |
Характеристики
Injection unit
Single-cylinder injection unit, with low inertia, fast response and higher injection accuracy.Precise injection guide mechanism
ensures piston centering.![]()
ensures piston centering.
Clamping Unit
High-rigidity clamping unit ensures fast and smooth movements of the machine.Clamping force is more effectively applied to the
middle of platens which are designed based on mechanics principles, with
minimum deformation of platens and more uniform force distribution on the mold.![]()
middle of platens which are designed based on mechanics principles, with
minimum deformation of platens and more uniform force distribution on the mold.
Hydraulic System
Fast-responsed hydraulic system；
Imported hydraulic system![]()
Imported hydraulic system
Electric dozing motor
Reduce production cycle time through parallel operation. Driven by servo motor, the dozing motor has higher energy conversation
efficiency and saves more energy.
efficiency and saves more energy.
Specification
INJECTION UNIT | ||||
International specification | 1480/3500 | |||
Shot volume | cm^3 | 896 | ||
Shot weight (PS) | g | 824 | ||
oz | 29.1 | |||
Screw diameter | mm | 65 | ||
Injection pressure | MPa | 166 | ||
Screw L:D ratio | 22:1 | |||
Max. injection speed | mm/s | 220 | ||
Screw stroke | mm | 270 | ||
Screw speed(stepless) | r/min | 0-300 | ||
CLAMPING UNIT | ||||
Clamping force | kN | 3500 | ||
Opening stroke | mm | 700 | ||
Space between bars | mm×mm | 730*730 | ||
Max. Daylight | mm | 1450 | ||
mold thickness(Min.Max) | mm | 300-750 | ||
Hydraulic ejection storke | mm | 200 | ||
Ejector number | 13 | |||
Hydraulic ejection force | kN | 137 | ||
POWER UNIT | ||||
Hydraulic system pressure | MPa | 17.5 | ||
Pump motor | kW | 55+33.9 | ||
Heating capacity | kW | 22.6/24/27 | ||
Number of temp control zones | 5 | |||
GENERAL UNIT | ||||
Dry cycle time | s | 2.6 | ||
Oil tank capacity | L | 724 | ||
Machine dimensions(LxWxH) | mxmxm | 7.5*2.2*2.4 | ||
Machine weight | Ton | 15 | ||
NOTE: The listed machine price is for standard machine only, any extra requirement (e.g. CE/UL/KCS safety standard and so on) will be subject to extra charge.
![]()
Packaging & Delivering
![]()
Company Profile
![]()
![]()
![]()
Why Choose Us
![]()
![]()
![]()
Exhibition
![]()
Certifications
![]()
FAQ
![]()
Q1: Where is your factory located?
A1: Guangdong Yizumi Precision Injection Molding and Die Casting Technology Co., Ltd which is located at No.12, Shunchang Road, Daliang, Shunde, Foshan, Guangdong Province, China 528306
Q2: Are you an integrated supplier for injection molding machine, mold, robot and auxiliary?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Yizumi has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold and auxiliary selection but also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also. Currently we provide visit online by video call for the COVID-19.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 1-2 month
Q7 : What is the warranty of the machine ?
A7: The whole machine’s warranty period is 13 months and key parts will be depended.
Q8 : Mold trial will be available in Yizumi factory ?
A8： Yes, Customer can send the mold to Yizumi factory and test.
Q9 . Do you provide any spare parts with machine?
A9: Yes, Yizumi will provide one set standard spare parts to customer including heater ,filter, screw head ,screw washer, checking ring ,sealings, etc.
