DDM бренд DMHF-3100 цинковый сплав Плоская овальная форма трубочно формировачные машины труба
- Категория: Станок для резки канавок >>>
- Поставщик: DDM,(Shanghai),Industrial,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.97 $* | 0.69 $* |
| Aug-17-2025 | 0.5 $* | 0.34 $* |
| Jul-17-2025 | 0.74 $* | 0.19 $* |
| Jun-17-2025 | 0.32 $* | 0.66 $* |
| May-17-2025 | 0.15 $* | 0.12 $* |
| Apr-17-2025 | 0.72 $* | 0.81 $* |
| Mar-17-2025 | 0.32 $* | 0.11 $* |
| Feb-17-2025 | 0.2 $* | 0.61 $* |
| Jan-17-2025 | 0.4 $* | 0.25 $* |
Характеристики
Product Overview
DDM Brand DMHF-3100 flat oval duct forming machine pipe making machine
Machine Features
1.Thickness Range：0.4-1.2mm
2. Maximum Duct Length：3100mm
3. Arm range ： Minmum Diameter 330mm
The oval duct is formed by round spiral duct that is stretched and deformed upward. The design of the oval duct forming machine plays a big role.
The newly upgraded oval duct forming machine has increased the capacity of the cylinder on the basis of the original, so that the diameter of the processing is larger,
the expansion makes the joint more precise and does not rebound.
Preda oval duct forming machine is easy to operate, and it can be easily operated after being filled with oil.
It is a more practical equipment in the air duct production industry.

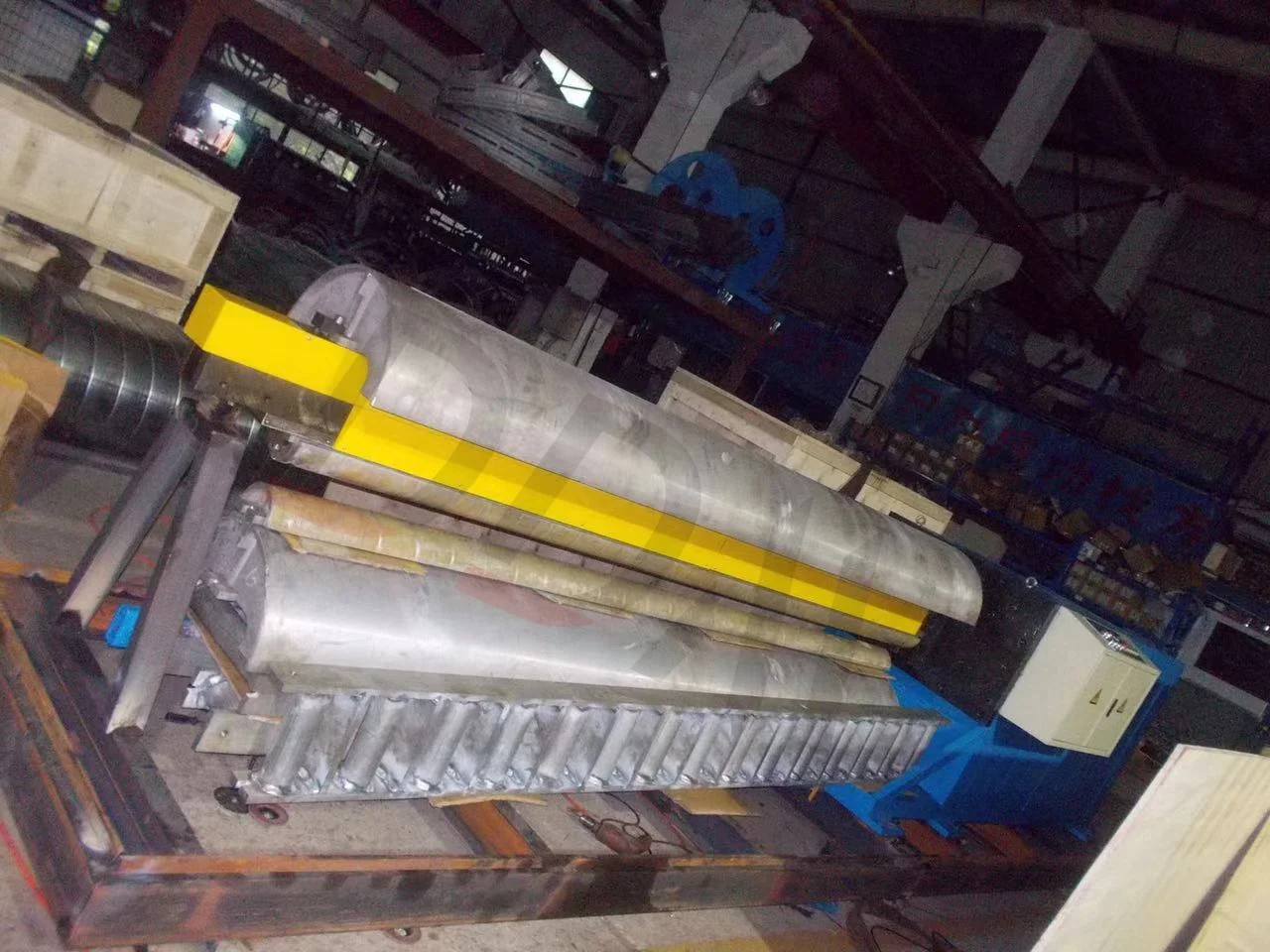

The overview of DDM Brand DMHF-3100 flat oval duct forming machine pipe making machine

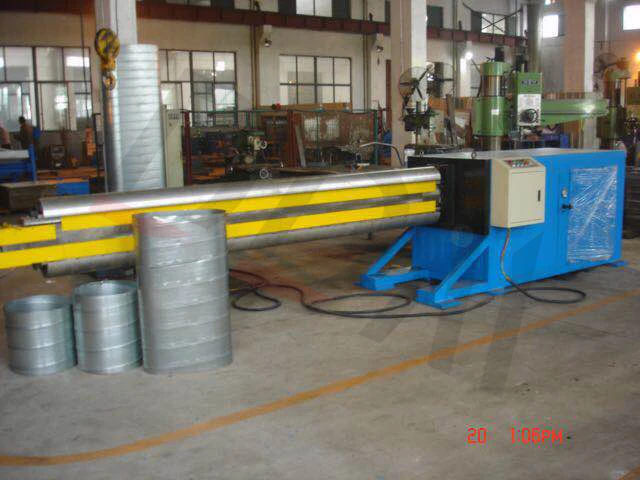

The front view of DDM Brand DMHF-3100 flat oval duct forming machine pipe making machine
The back viewo of DMTF-2020 Hvac Round Duct Forming Machine Spiral tubeformer spiral duct making machine

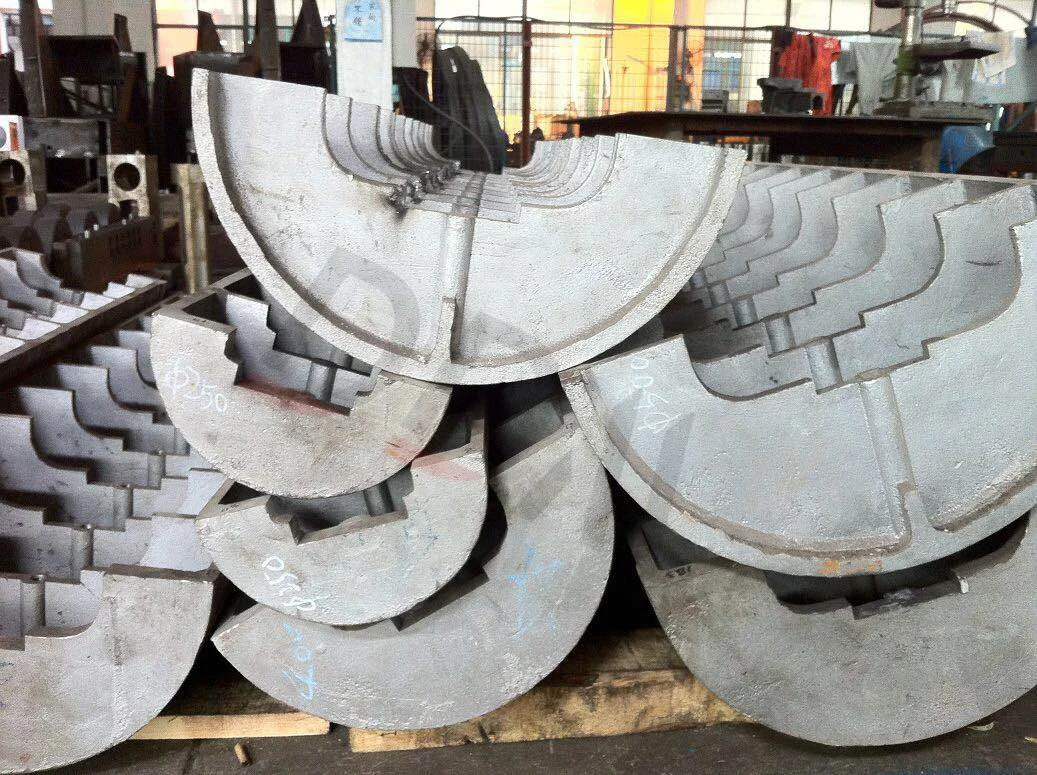

Customzied forming mould for DDM Brand DMHF-3100 flat oval duct forming machine pipe making machine

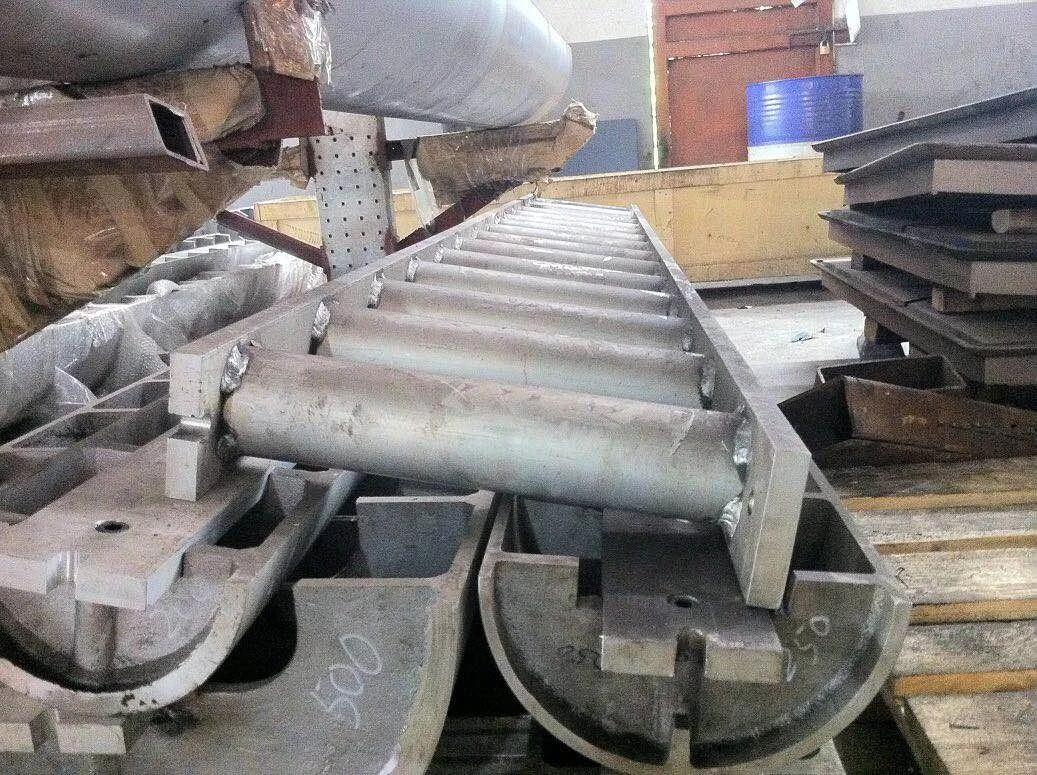

Customized machine tray for different oval pipe length forming .

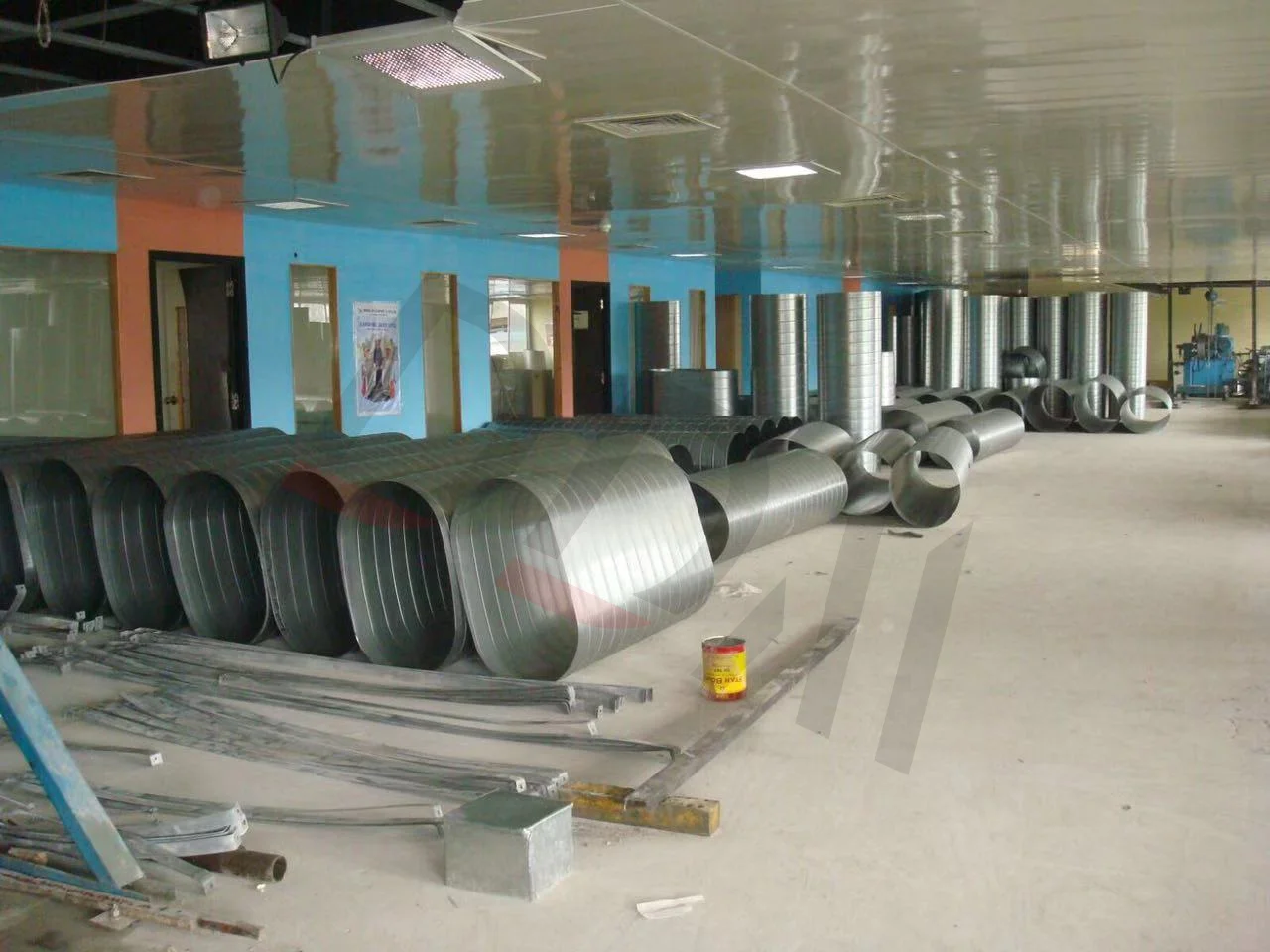

Perfect oval pipe made by DDM Brand DMHF-3100 flat oval duct forming machine pipe making machine
Machine Parameters
DMHF-3100 flat oval duct forming machine Parameters | ||
Technical Data | ||
Model | DMHF-3100 | |
Thickness range (mm) | 0.4-1.2mm | |
Max duct length (mm) | 3100mm | |
Arm range | min diameter 330mm | |
Die specification | Φ150/Φ200/Φ250/Φ300/Φ350/Φ400/Φ450/Φ500 | |
Tray specification | 50/100/200/300/400/500/600 | |
Lockseam | Outside tube ,on the inside on the request | |
Power （KW) | 18.5KW | |
Weight (KG) | 2720 | |
Dimension (MM) | 5630X1250X1130 | |
