Оригинальный Италия сканер штрих-кода DATALOGIC TL50-W-815 цвет датчик
- Категория: Sensors >>>
- Поставщик: Guangzhou,Keweiqi,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 171.10 $* | 174.94 $* |
| Jul-18-2025 | 139.41 $* | 142.77 $* |
| Jun-18-2025 | 169.87 $* | 172.90 $* |
| May-18-2025 | 167.96 $* | 170.86 $* |
| Apr-18-2025 | 134.28 $* | 137.55 $* |
| Mar-18-2025 | 165.34 $* | 168.32 $* |
| Feb-18-2025 | 163.86 $* | 166.72 $* |
| Jan-18-2025 | 162.3 $* | 165.17 $* |
Характеристики

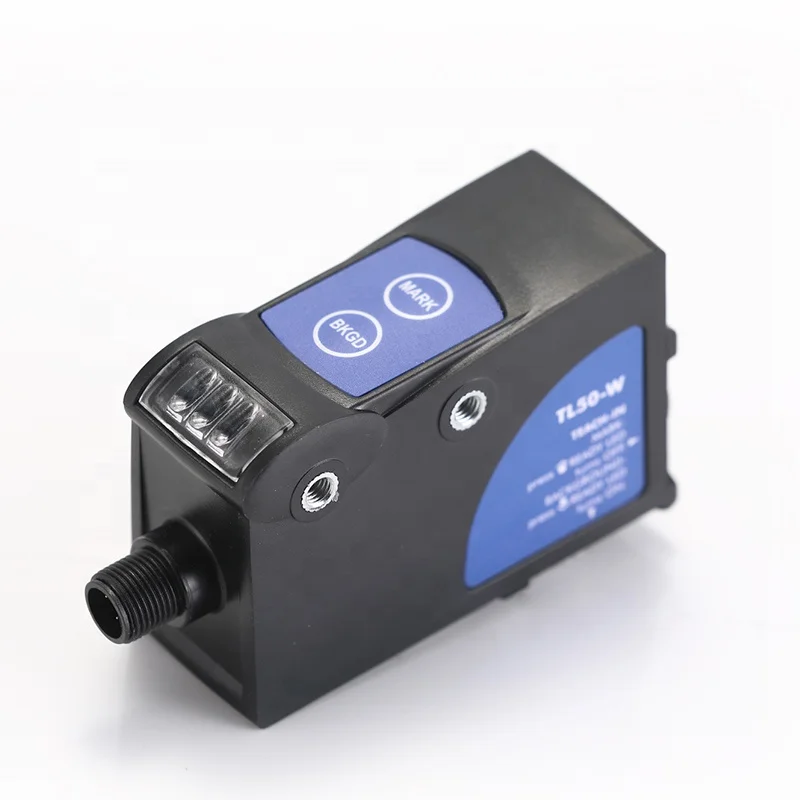

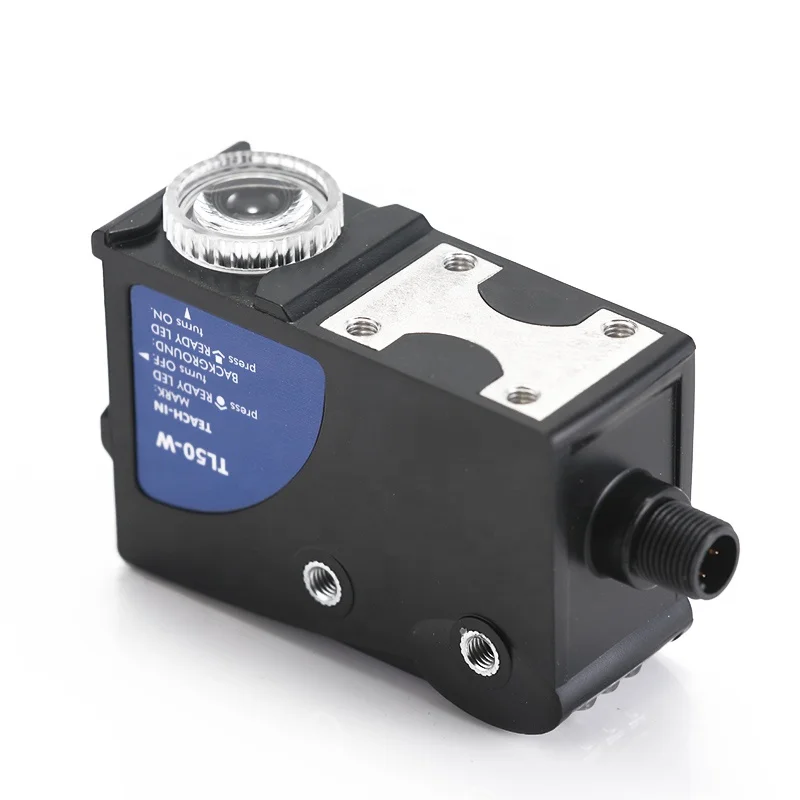

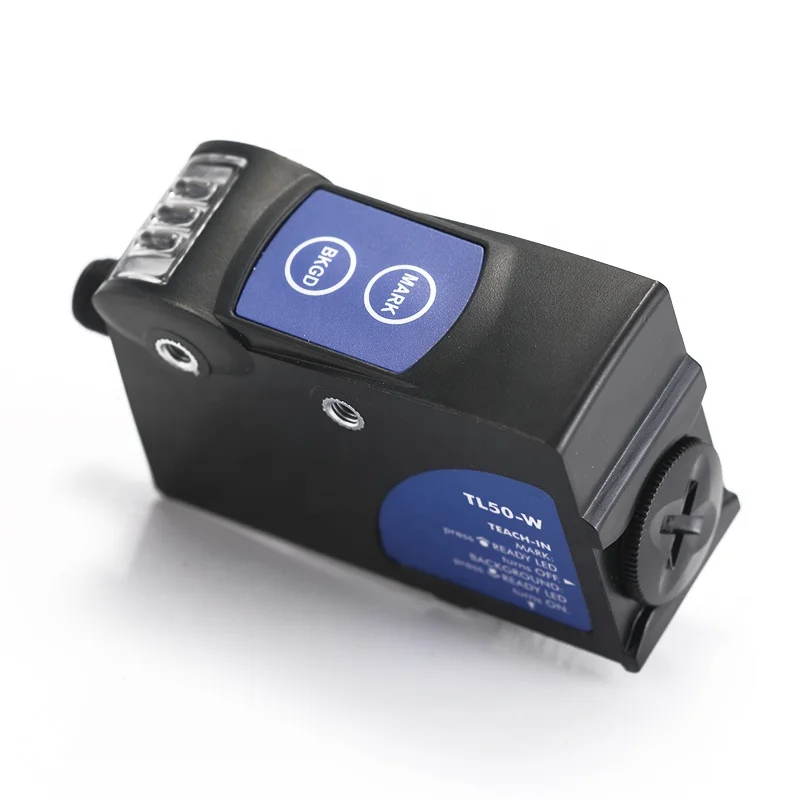

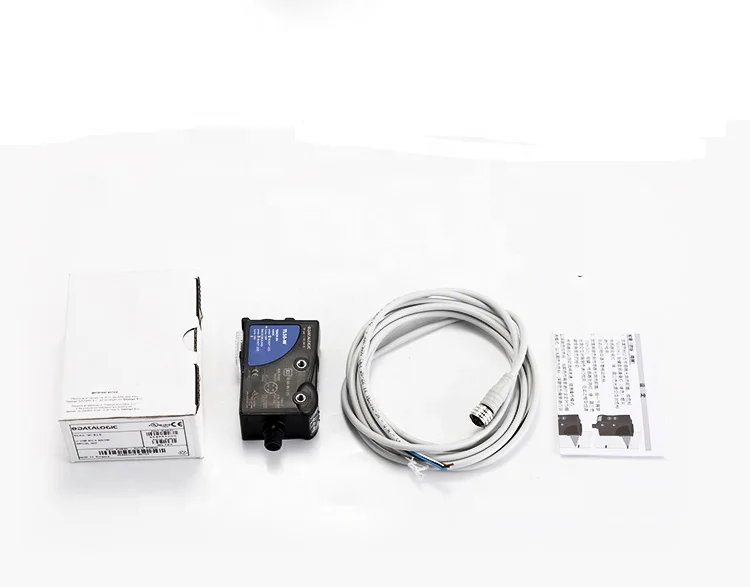

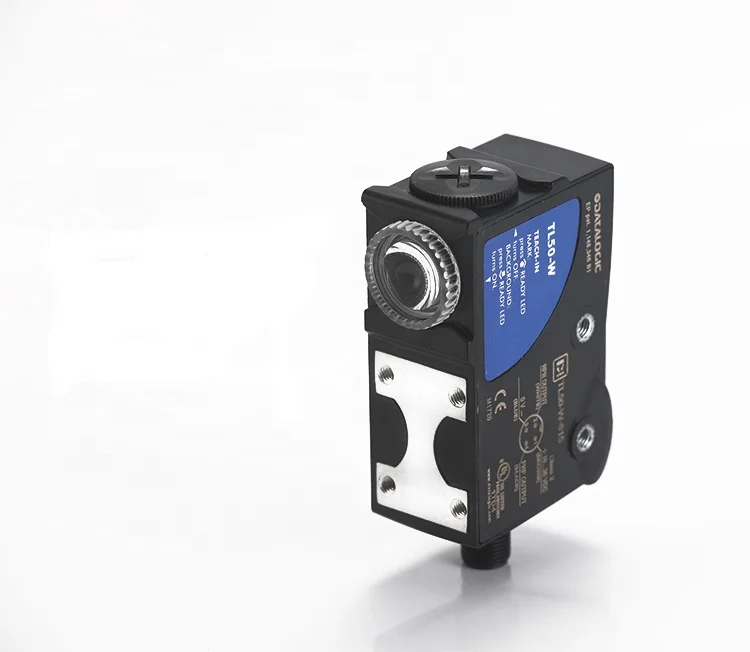

Original Italy DATALOGIC TL50-W-815 Color sensor,Contrast sensor ,Photoelectric sensor
The DATALOGIC TL50-W-815 Color sensor ,contrast sensor, photoelectric sensor offers the best solution for all the applications where cost reduction is requested, without compromising the excellent detection performances. The optimized optics of these sensors, the RGB LED emission with automatic color selection and the very fine resolution, allow the detection of the weakest contrast of colors or grayscale between mark and background, or between different objects or surfaces. The high resolution is not a limit for the detection speed, reaching 33ms response time and 15kHz switching frequency.
FEATURES & BENEFITS
RGB emission: high detection reliability and resolution
Teach-in push-button: fast and easy setting
15KHz switching frequency: precise and repeatability reading
TECHNICAL PARAMETERS
Power supply | 10-30 Vdc1 , reverse polarity protection |
Ripple | 2 Vpp max. |
Consumption | 50 mA max. at 24Vdc |
Light emission | RGB LED (630nm red, 520nm green, 465nm blue) 2 |
Spot dimension | 1.5 x 5 mm at 9 mm |
Operating distance | 9 mm |
Depth of field | ± 3 mm (with standard 9 mm lens) |
Setting | MARK push-button |
BKGD push-button | |
Indicators | yellow OUT PUT LED |
green READY LED | |
orange DE LAY LED | |
Output type | 1 PNP output / 1 NPN output |
Output current | 100 mA max. |
Saturation voltage | ≤2 V |
Response time | 33 μs |
Switching frequency | 15 kHz |
Operating mode | dark/light automatic |
Timing function | 0 ... 20 ms selectable |
Connections | 4-pole M12 connector |
Electrical protection | class 2 |
Mechanical protection | IP67 |
Protection devices | A, B3 |
Housing material | ABS |
Lens material | PMMA |
Operating temperature | -10…55°C |
Storage temperature | -20…70°C |
Reference standard | EN 60947-5-2 |
APPLICATIONS:
This product series has been developed to satisfy to requirements of the following reference applications:
Packaging lines
Paper and Printing machines
Automatic filling machines
Contact Information:
Wing Chen
Guangzhou Keweiqi Trading Co., Ltd.
Mob/Wechat: 86-13430251137
QQ: 543641513
Email: keweiqiprinting @126.com
Website: https://keweiqiprinting.en.alibaba.com/
