Оптовая продажа, складной четырехугольный зонт
US $9.00-$10.00
30 watt 50w public lighting SKD housings die cast aluminium for street lamps wholesale lens road sensor small led
- Категория: Casting >>>
- Поставщик: Ningbo,Die-Casting,Man,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 19.82 $* | 20.8 $* |
| Aug-19-2025 | 19.63 $* | 20.97 $* |
| Jul-19-2025 | 16.40 $* | 17.20 $* |
| Jun-19-2025 | 19.78 $* | 20.21 $* |
| May-19-2025 | 16.61 $* | 17.8 $* |
| Apr-19-2025 | 18.67 $* | 19.93 $* |
| Mar-19-2025 | 18.81 $* | 19.59 $* |
| Feb-19-2025 | 18.48 $* | 19.81 $* |
| Jan-19-2025 | 18.95 $* | 19.73 $* |
Характеристики
Products Description
Model NO. | YASL-09-50 |
Power | 50W |
Color Temperature | 3000-6500K |
Efficiency | ＞120LM/W |
Voltage | AC90-305V |
Power Factor | PF≥0.95 |
CRI(Ra) | Ra≥70 |
Ambient Temperature | -40-50℃ |
Ambient Humidity | 20%-90%RH |
Lifetime(hrs) | 50000 |
IP Rate | IP66 |
Installation Pipe Diameter | Φ50/60mm |
Installation Height | 4-8m |
Net Weight | 4.0kg |
Gross Weight | 4.5kg |
Packing Size(mm) | 560*250*210/2pcs |
Product Code | YASL-09-30 | YASL-09-50 | YASL-09-100 | YASL-09-150 |
Input Wattage | 40W | 60W | 100W | 180W |
Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
Luminous Flux | 4200-4800lm | 6600-7500 lm | 11000-12500lm | 19800-22500lm |
Input Voltage | AC90-305V | AC90-305V | AC90-305V | AC90-305V |
Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 |
Temperature of Working Condition | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ |
Humidity of Working Condition | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH |
LED Lifetime | 50000h | 50000h | 50000h | 50000h |
Protection Grade | IP66 | IP66 | IP66 | IP66 |
Installation Pipe Diameter | ⌀50-60mm | ⌀50-60mm | ⌀50-60mm | ⌀60-70mm |
Installation Height | 3-6m | 4-8m | 8-12m | 10-14m |
Net Weight | 2.7kg | 4.0kg | 6.5kg | 12.8kg |
Gross Weight | 3.0kg | 4.5kg | 7.0kg | 13.2kg |
Packing Size(mm) | 490×250×210 | 560×250×210 | 675×315×155 | 895×400×175 |

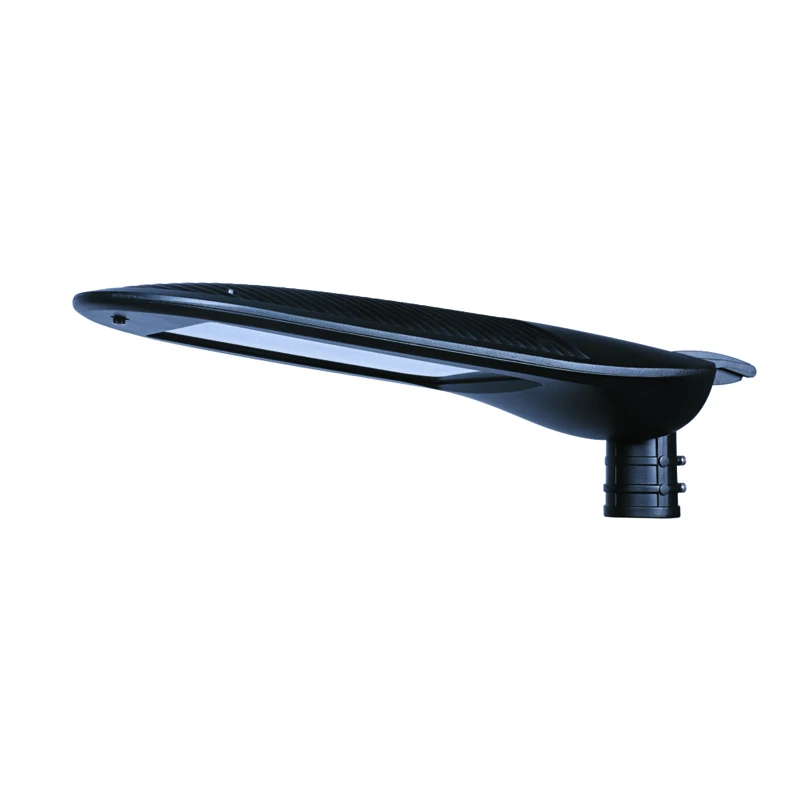

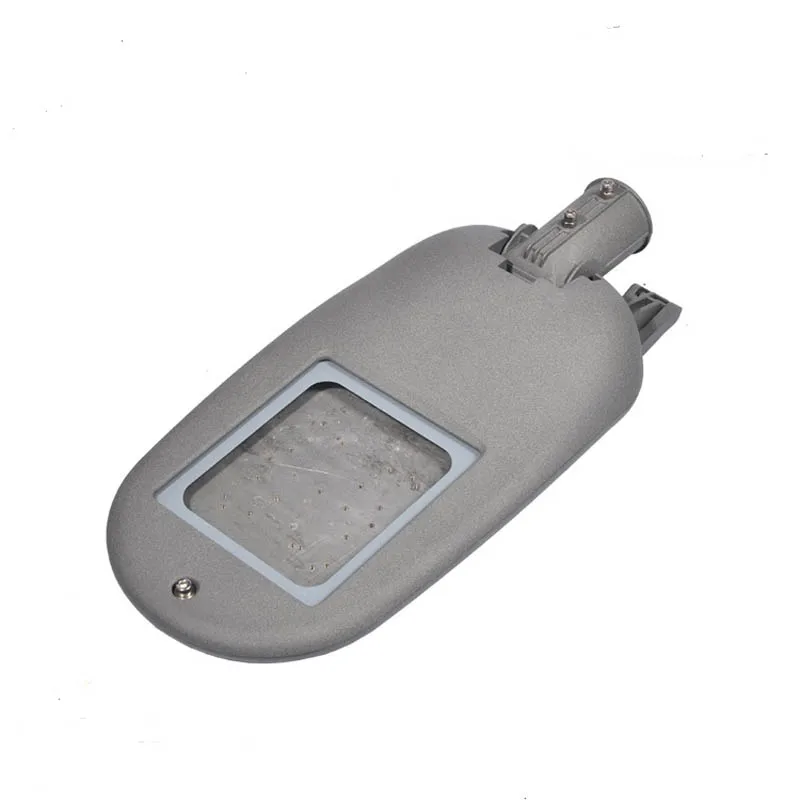

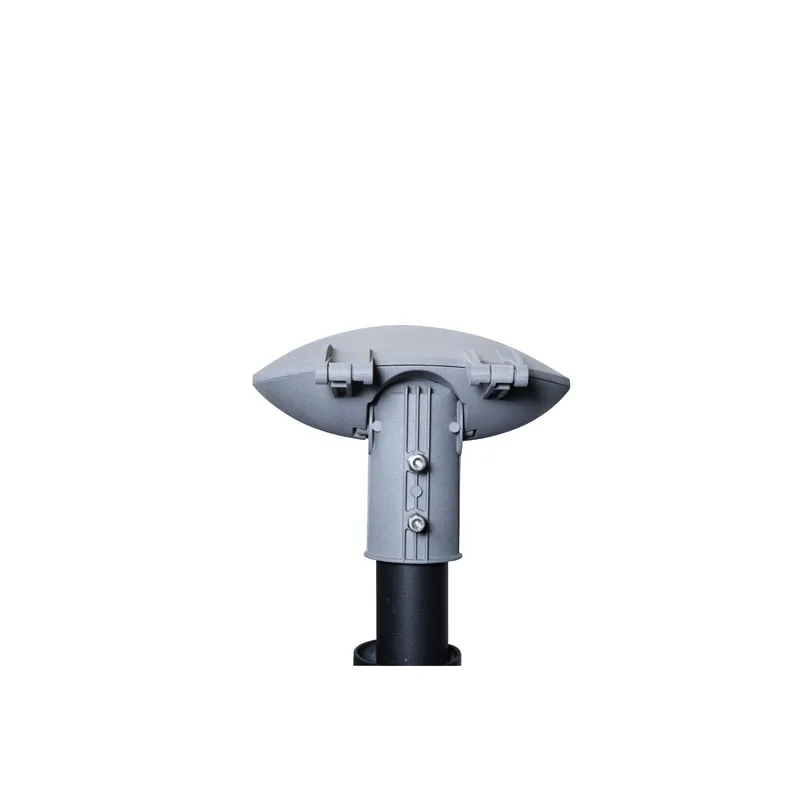

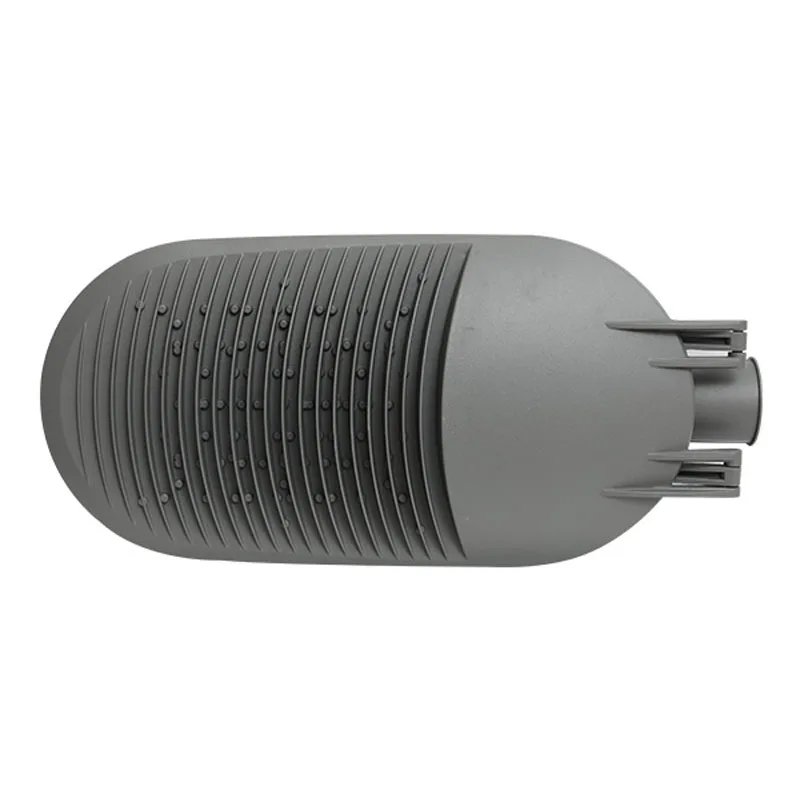

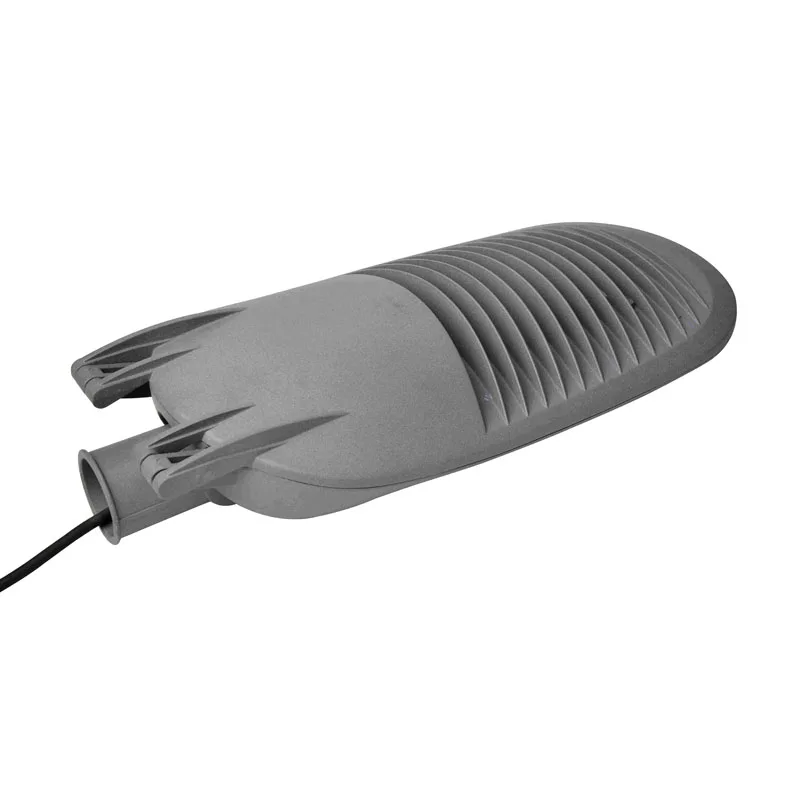

LED street light housing main features:
1. Streetlight manufactured entirely in aluminum-casting, with a classic and recognizable design of high-quality construction.
2. All elements from its advanced optical body are made of optimum quality materials. In addition, they are perfectly assembled to provide an excellent photometric distribution, very high efficiency and maximum use of energy without weakening its high
performance: luminous intensity, uniform lighting, minimization of light pollution and glare, long lifespan and watertightness.
3. 10KV surge arrester included. Installation diameter of Ø60mm.
4. Optionally suitable for control and dimming functions, suitable for any application.
2. All elements from its advanced optical body are made of optimum quality materials. In addition, they are perfectly assembled to provide an excellent photometric distribution, very high efficiency and maximum use of energy without weakening its high
performance: luminous intensity, uniform lighting, minimization of light pollution and glare, long lifespan and watertightness.
3. 10KV surge arrester included. Installation diameter of Ø60mm.
4. Optionally suitable for control and dimming functions, suitable for any application.
Smart Controller
Die-casting Man Street light managment solution enables our clients to monitor and manage LED street lights on a
single multi-purpose network
single multi-purpose network
Company Profile
About Us
.Ningbo Die casting Man Technology Co., Ltd has rich experience in street lighting and die casting manufacturing, and is a production service factory integrated in design, production and sales. The supporting production equipment includes die casting injection machines, CNC , powder coating workshop, assembling line and testing equipment. The company supports processing, customization, OEM&ODM, assemgling, testing etc. At the same time, it has a complete product research and development team, a mature production process and a scientific quality management system.
Main product range: street light, die casting injection OEM&ODM.
Product scope of application: lighting industrial and Die casting injection industrial
The company has always adhered to the "Never stand still on products and service" purposes, with high-quality products, good reputation, product sales all over the world. We will wholeheartedly conduct win-win cooperation with domestic and foreign merchants to develop together and create brilliance.
Product scope of application: lighting industrial and Die casting injection industrial
The company has always adhered to the "Never stand still on products and service" purposes, with high-quality products, good reputation, product sales all over the world. We will wholeheartedly conduct win-win cooperation with domestic and foreign merchants to develop together and create brilliance.
R&D
R&D Department
We have our own R&D department with five professional engineers.
We would design your product based on your idea, sample and drawing. We have full experience on lighting fixture design especially on street light and die casting injection OEM parts.
We could accept your file from DWG, solid work, UG and STP.
Also we have full experience supplier for die casting tool which will guarantee your tool quality, lead time. tool life time and maintaining.
Quality Control
Qulified system and QC control process
We work under ISO 9001 quality system.
We have quality control for material in-coming inspection, on-line process inspection and finished product quality inspection.
We well control every process to make sure that you products are qualified and under control.
Testing Equipment
Test Equipment in house
We have Photometric black house testing equipment in house
LED parameter in house to test colour tempreture, efficiency, wattage
IP rate testing machine
IK testing machine
salty spray testing machine
