Мастерская 5 тонн 3-х тонный гусеничный мини козловой
- Категория: Cranes >>>
- Поставщик: Jining,Luheng,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 26656.76 $* | 27989.28 $* |
| Aug-18-2025 | 26432.40 $* | 27754.0 $* |
| Jul-18-2025 | 22176.31 $* | 23285.89 $* |
| Jun-18-2025 | 25984.9 $* | 27283.92 $* |
| May-18-2025 | 22624.98 $* | 23755.30 $* |
| Apr-18-2025 | 25536.20 $* | 26813.89 $* |
| Mar-18-2025 | 25312.74 $* | 26578.62 $* |
| Feb-18-2025 | 25088.41 $* | 26342.99 $* |
| Jan-18-2025 | 24864.51 $* | 26107.25 $* |
Характеристики
Quick Detail for hydraulic spider crane lifting machine:
1. Rated lift capacity: 3 tons
2. Maximum lifting height: 9.5m
3. Boom length: 8.45m
4. Wireless remote control
5. Tip-over warning device
6. Dual usage: diesel engine mix with electric motor
7. Gradeability: 30°8. Crawler chassis rotation: 360° degree
1. Rated lift capacity: 3 tons
2. Maximum lifting height: 9.5m
3. Boom length: 8.45m
4. Wireless remote control
5. Tip-over warning device
6. Dual usage: diesel engine mix with electric motor
7. Gradeability: 30°8. Crawler chassis rotation: 360° degree
Product Description
optional slew limitation battery 10m 3ton spider crane
construction crane spider wide usage

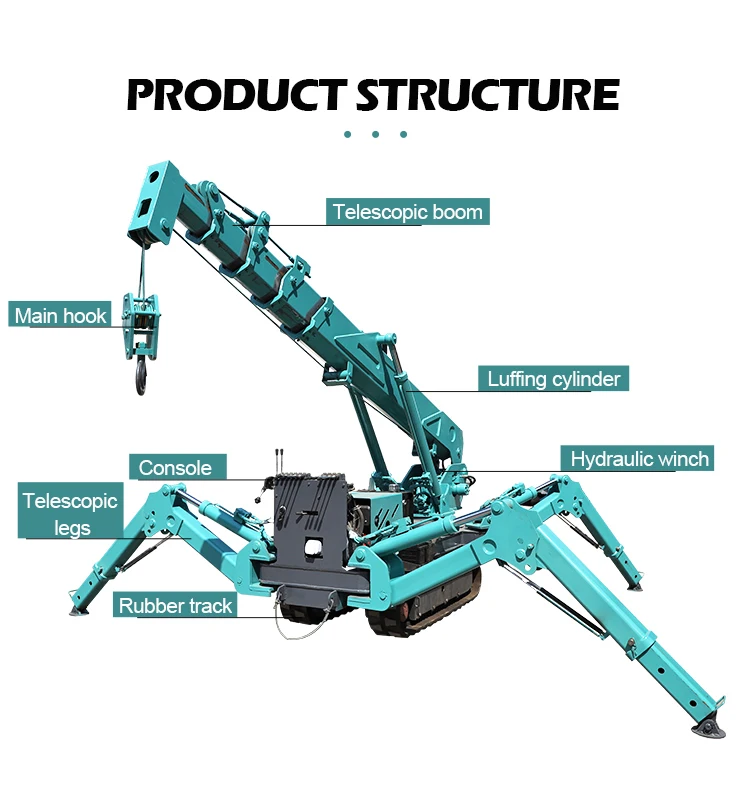

Spider Description:
HW series spider crane walks on a hydraulic crawler with hydraulic winching, stretching, up & down and slewing systems.
The crawler spider crane delivers unparalleled heavy lifting capacity for such a compact mini crane and is ideal for lifting projects in the most confined and compact working areas and is perfect for use on glass installation, cladding, steel and much more.
The crawler spider crane delivers unparalleled heavy lifting capacity for such a compact mini crane and is ideal for lifting projects in the most confined and compact working areas and is perfect for use on glass installation, cladding, steel and much more.
Applications:
The HWSC3T crane spider is widely applied to lifting especially in some narrow space where heavy-duty crane cannot get in,such as underground parking site constructions, electric work site building, indoor heavy material lifting,etc
The HWSC3T crane spider is widely applied to lifting especially in some narrow space where heavy-duty crane cannot get in,such as underground parking site constructions, electric work site building, indoor heavy material lifting,etc

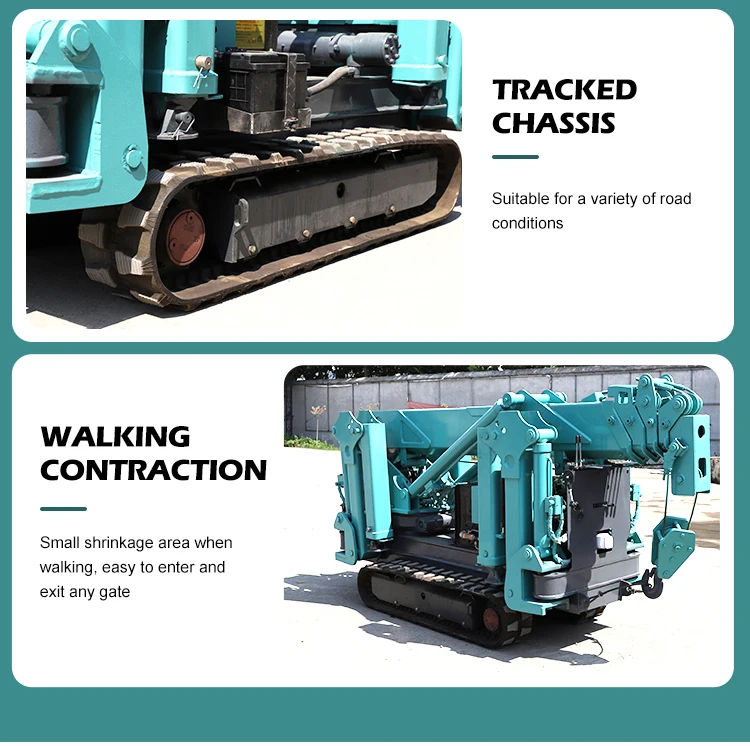

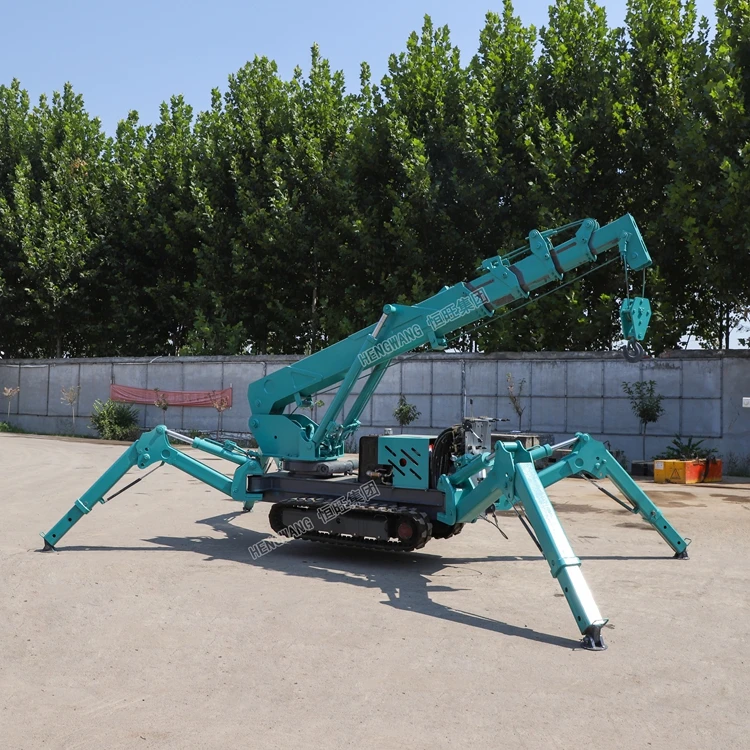

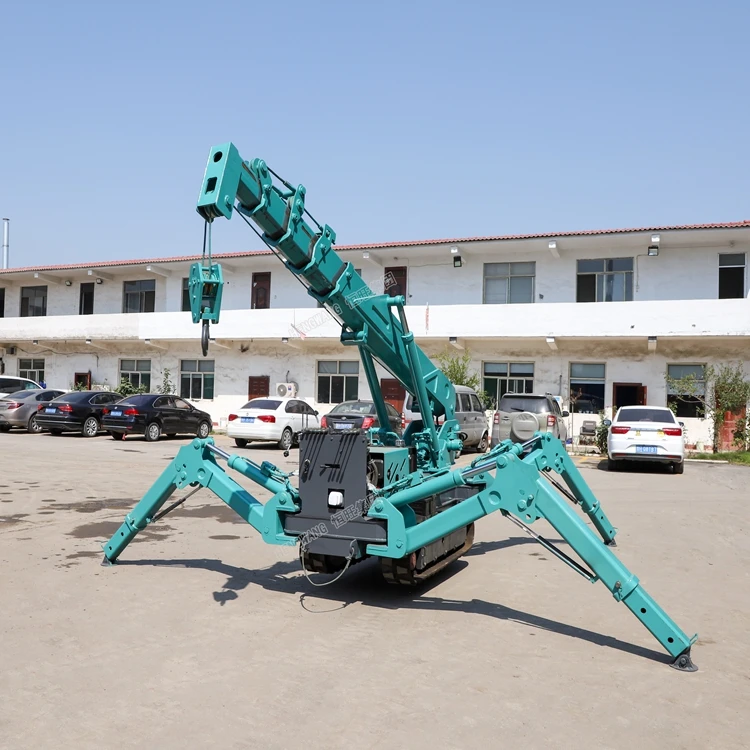

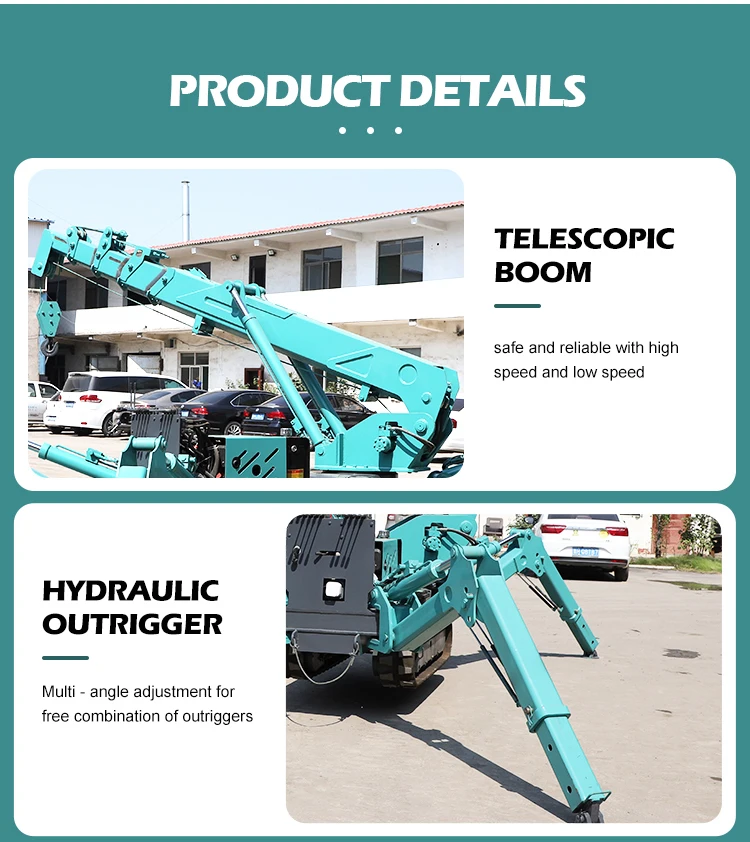

Detailed Images
construction crane spider confined areas applications spider crane details as follows:
manufacturing plants material lifting machine remote control crane spider type
crawler chassis mini diesel 3 ton spider crane with electric motor
wide usage of spider crawler mobile crane as follows
optional slew limitation battery 10m 3ton spider crane
Size Information
Parameters of crawler chassis mini diesel 3 ton spider crane with electric motor
our spider electric crane, the diesel engine , gasoline engine, electric motor is optional
optional slew limitation battery 10m 3ton spider crane
Model | HWSC3T | |||
Crane capacity | 3.0t*1.3m | |||
Maximum working radius | 8.45m | |||
Maximum lifting height | 9.5m | |||
Winch | Hook up speed | 3.6m/min(4 times) | ||
Diameter and length of wire rope | Ø8mm×50m | |||
Telescopic | Boom form | 5 stage (5 Automatic) | ||
Boom length | 8.2 m | |||
Derrick | Derricking angle | 0-75° | ||
Slewing | Slewing angle | 360-degree continuous | ||
Outrigger | Form of outrigger | First phase--automatic Second phase--manual | ||
Maximum extend range | 5.3m | |||
Traction system | Travel | Hydraulic | ||
Travel speed | 0-2.0km/h | |||
Track | Synthetic rubber | |||
Gradeability | 30° | |||
Track ground pressure | 50kpa | |||
Engine and machine parameters | ||||
Engine | Model | HONDA GX390 | ||
Displacement | 389.2ml | |||
Outputpower | 13HP(9.6KW) | |||
Starting method | Electric and Recoil Start | |||
Fule/Fule tank capacity | Automotive gasoline/6L | |||
Hydraulic(crane) | Tank capacity | 30L | ||
L×W×H | 2950*950*1500mm | |||
Total weight | 2,000kg | |||
Company Introduction
Shandogn Hengwang Group Co.Ltd.
Manufacturer of truck crane, spider crane, forklift,scissor lift platform,stacker, etc
Jining luheng machinery equipment co.ltd,as one branch of Shandogn Hengwang Group Co.Ltd. is the professional manufacturer of 4wheeled driven loader type forklift truck,road construction machine,and etc . With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
optional slew limitation battery 10m 3ton spider crane
crawler chassis mini diesel 3 ton spider crane with electric motor
