Net Splash Fill For Cooling Tower





The Net splash fill (Non-glued assembly fill) have been specially designed for medium to strongly polluted cooling water, the focus of the development being on a high stability as well as on easy and economical installation. Therefore these fills are built from mechanically joint grids and are easily cleaned. The Net grid packings are high-performance fills which provide an optimized pressure drop.



Counter Flow PP Net Cooling Tower Fill
This filler is different from film filler & grid filler. The feature as follows:
1: Unique mesh-designed can achieved liquid drop quickly Polymerization and dispersion
2: The open cross-diagonal/vertical grid structure promotes high frequency contact and renewal of gas and liquid, overcomes filler clogging and improve the overall cooling performance significantly.
It is very suitable in cooling tower, agricultural and highly complex mass transfer applications.

Feature:
1: Unique connection way ensures the assembled filler block firm & reliable.
2:Big Void ratio, High heat transfer coefficient
3:High temperature resistance, corrosion resistance
4:Quickly forming film,no easy to scale
5: Three-dimensional flow, uniform water distribution



Features:

1) Products suitable for inferior water qualities

2) Chemical and high temperature resistance of Polypropylene

3) High stability

4) Cleaning with high pressures cleaners possible

5) Long service life

6) Impact resistant

7) Environmentally friendly

8) Economical installation



Technical Data:

1) Length: 900mm

2) Width: 450mm

3) Flute: 19mm

4) Special heating exchange area: 125 square meter / cubic meter

5) Thickness: 1.8mm

6) Conection: wedged joint

7) Maximum total suspended solid: 300 ppm continuoous operation and can be bear under 500 ppm within 10 hours

8) Usage life: ≥ 20 years

Size mm	TSS  Short/Long Term PPM	Effective Surface area m²/m³	Material	Sheet Vertical Height mm
910*600*450	500/300	125	PP	20
910*600*450	500/300	125	PP	20
910*600*450	500/300	125	PP	20
910*600*450	1000/500	100	PP	25
480*600*445	1000/500	100	PP	25

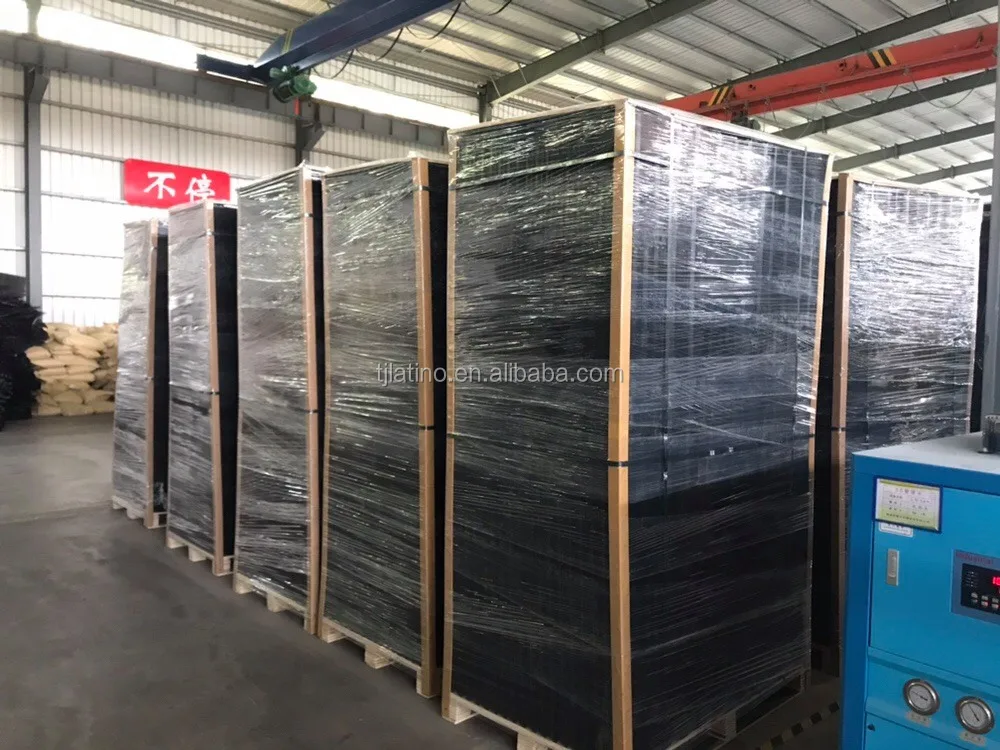

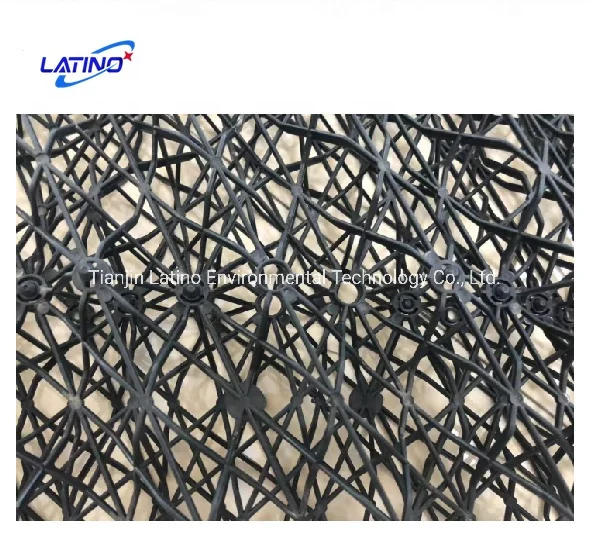

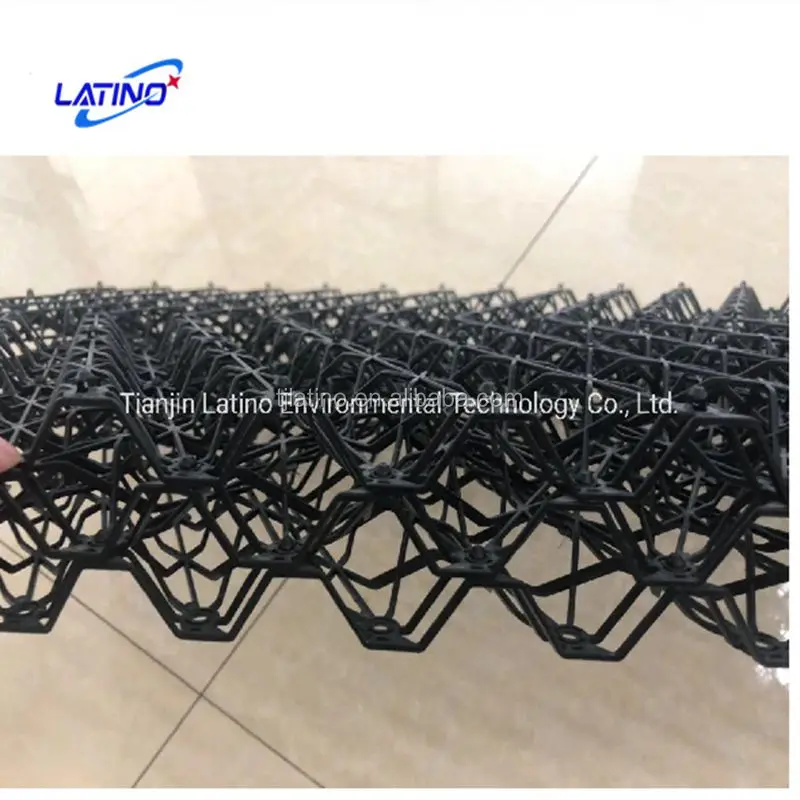

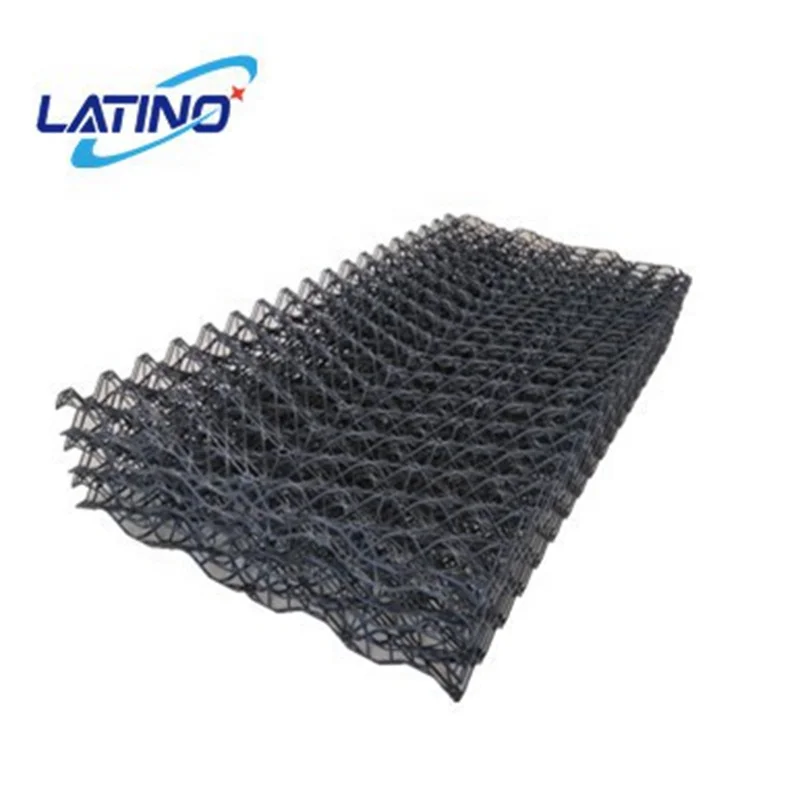

Product pictures:





Relevant cooling tower fill:









Our service

1. Provide the inspection and expediting service if you’re also purchasing other items in China at the same time;

2. Special packaging design and loading optimization,if needed;

3. LATINO can also help customers to provide quality cost-effective sourcing agency service in dry cooling area and wet cooling area;

4. Quality guarantee is 12 months;

FAQ

Q1. Are you a factory or a trading company?
A: We have our own factory, and separated the exporting business out as a separate company in the free zone of China.
Q2. How to define the product price?
A: PVC material is based on the thickness,vicat point, color, density,fire classification, packing and quantity.
Q3. Do you keep the stock of your products?
A: Yes, we maintain a certain amount of standard products inventory, in time to meet your needs.
Q4. Whether you have the ability to accept the product customization?
A: Products can be customized, we can make the new thermoforming or extruding mode based on your drawings and we can sign a confidentiality agreement about your patented product, pls contact us for any further information.
Q5. How to reassure those who doubt the product quality and actual situations?
A: A professional system can ensure the whole latest development which will be monitored by you through the reports in the diffferent stages.
